PID Values

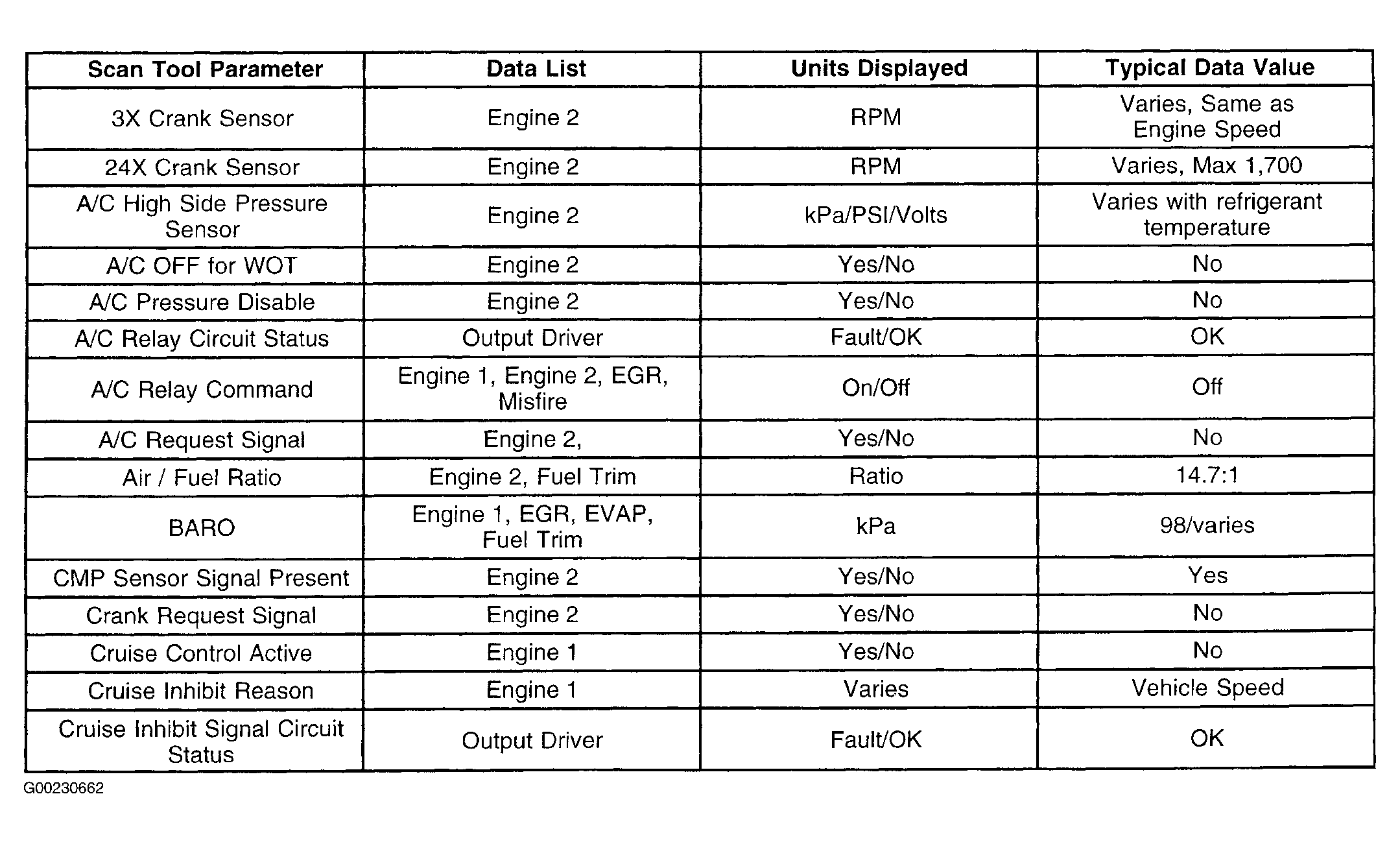

Fig 1: PID Values (1 Of 4)
G00230662Courtesy of GENERAL MOTORS CORP.

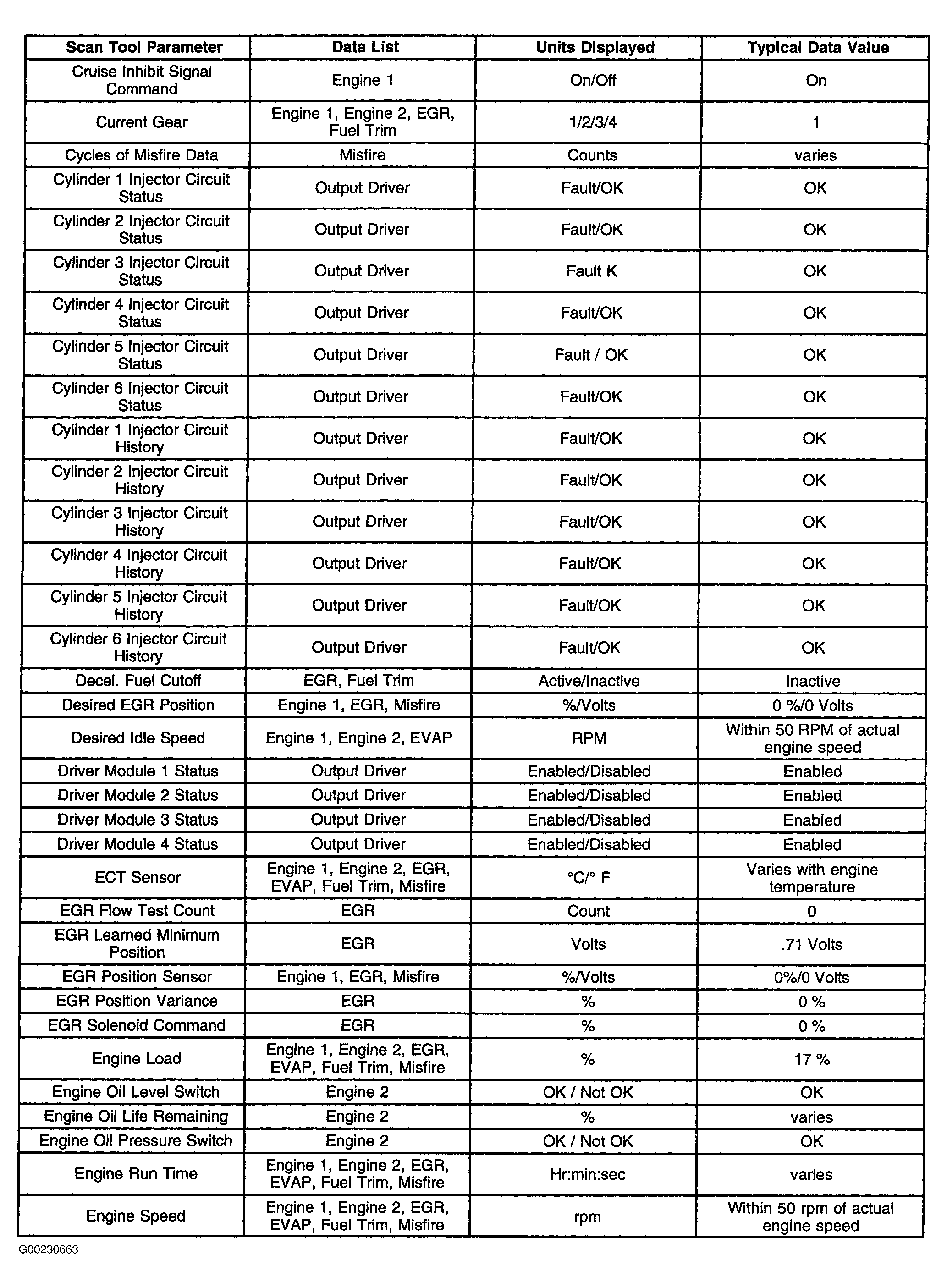

Fig 2: PID Values (2 Of 4)
G00230663Courtesy of GENERAL MOTORS CORP.

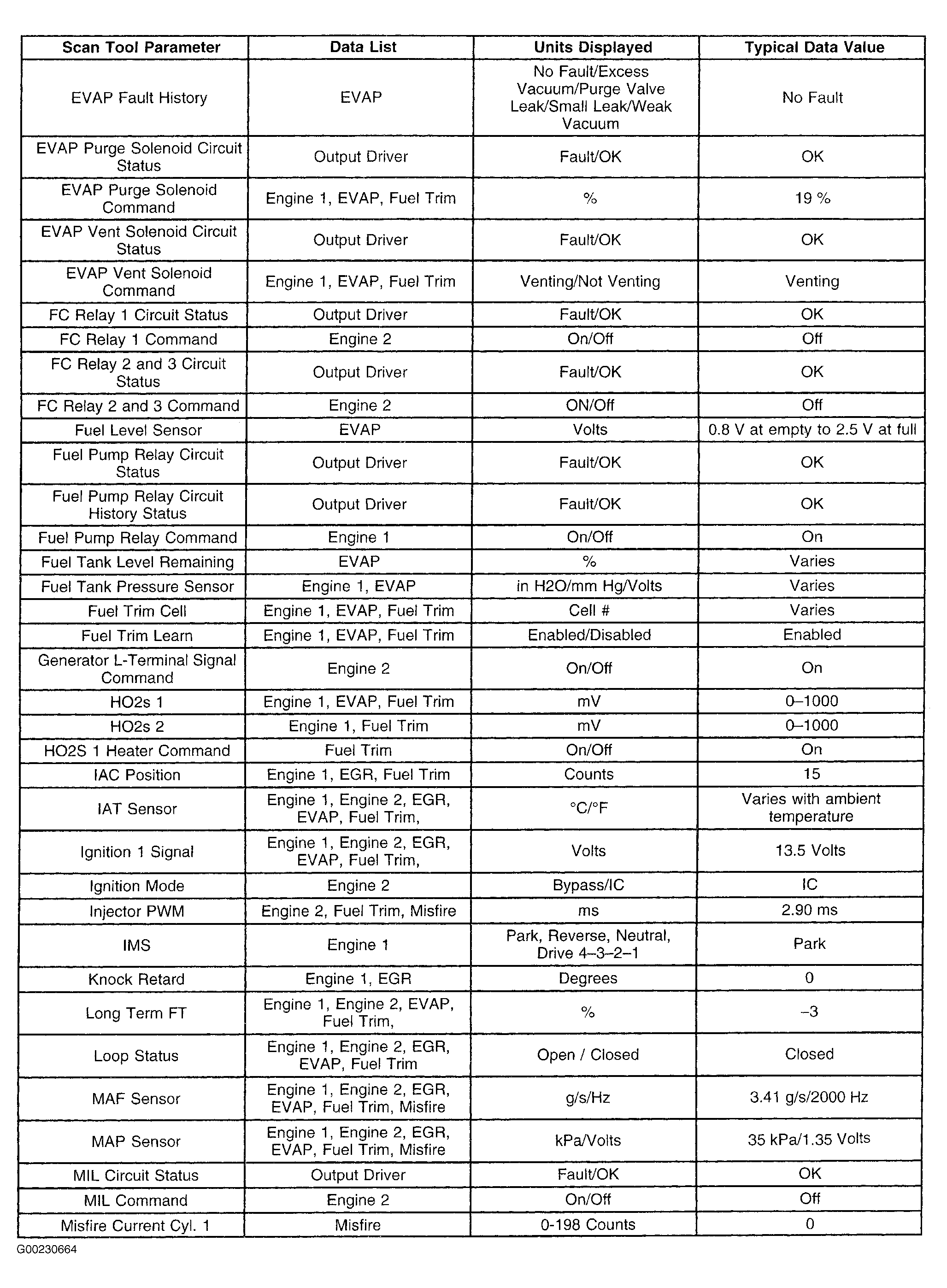

Fig 3: PID Values (3 Of 4)
G00230664Courtesy of GENERAL MOTORS CORP.

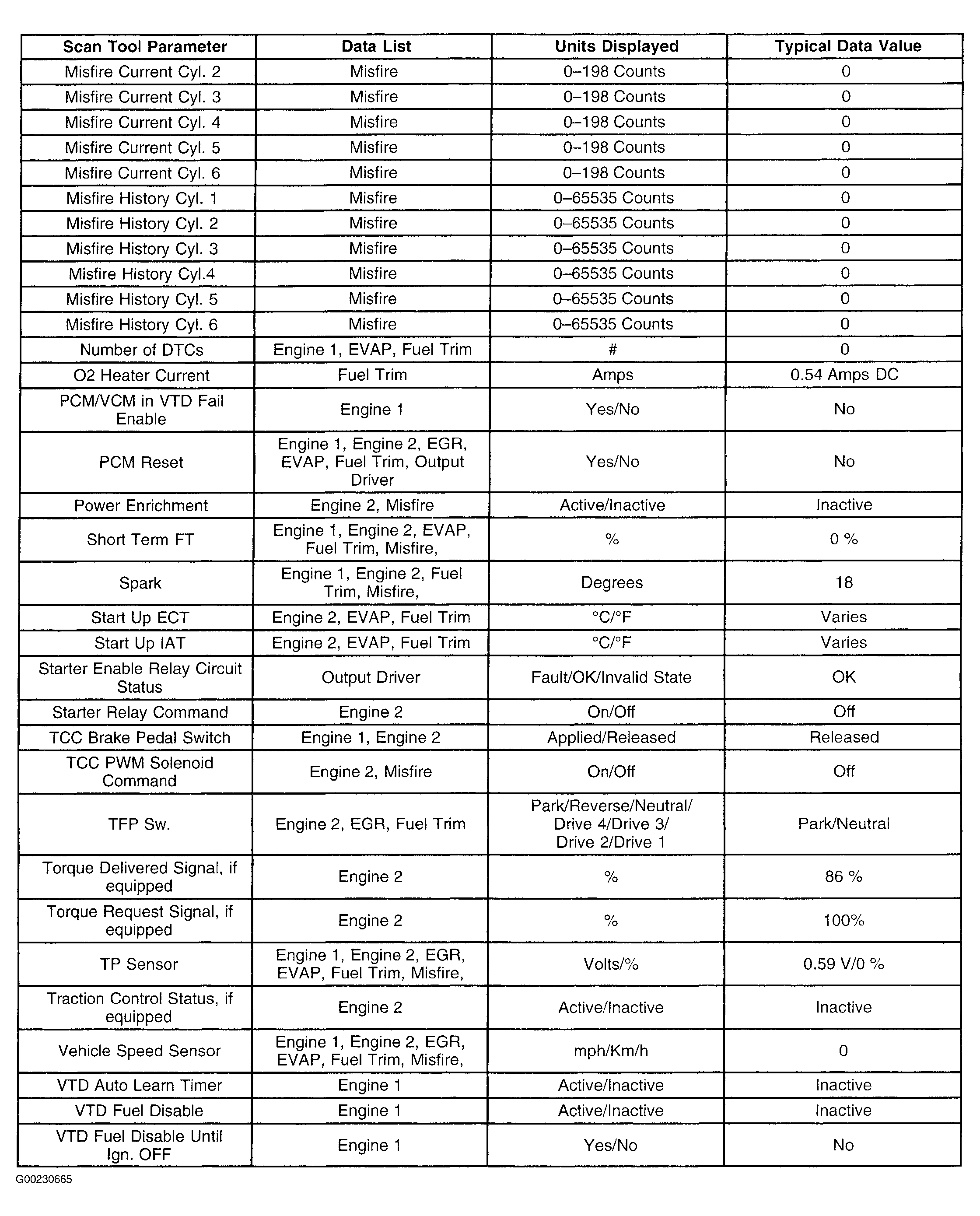

Fig 4: PID Values (4 Of 4)
G00230665Courtesy of GENERAL MOTORS CORP.
