HVAC Control Module Connector End View - C1

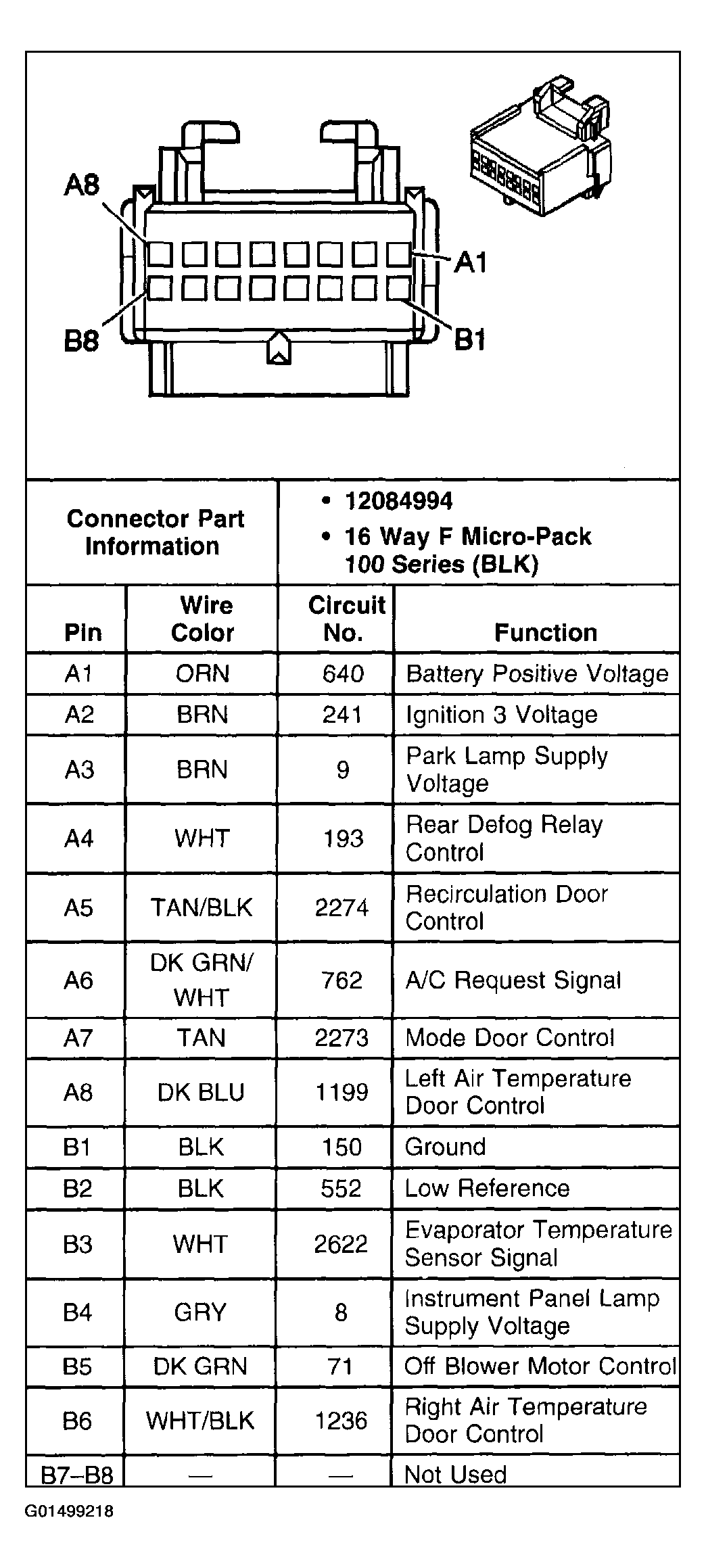

Fig 1: HVAC Control Module - C1
G01499218Courtesy of GENERAL MOTORS CORP.

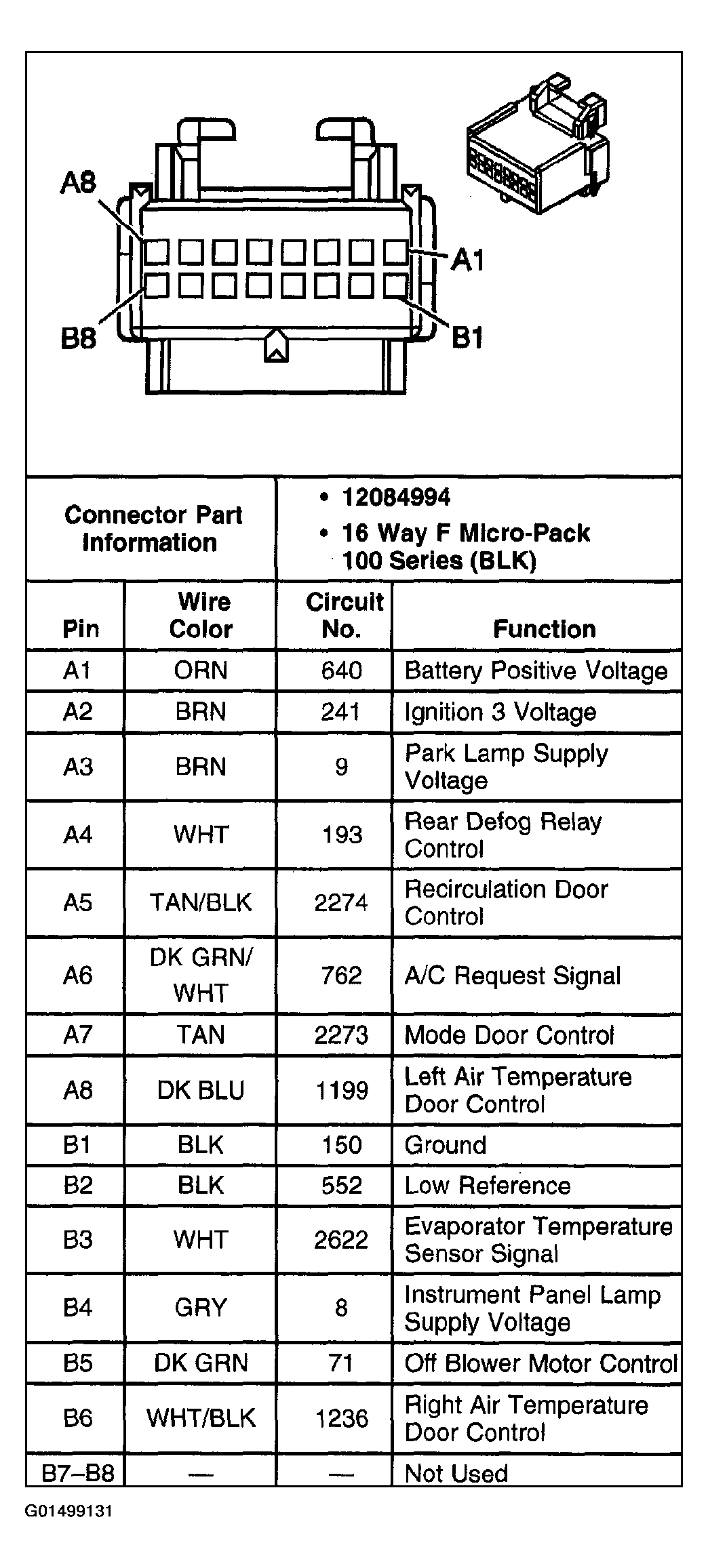

Fig 1: HVAC Control Module - C1
G01499131Courtesy of GENERAL MOTORS CORP.
