HVAC Control Module Connector End View - C2

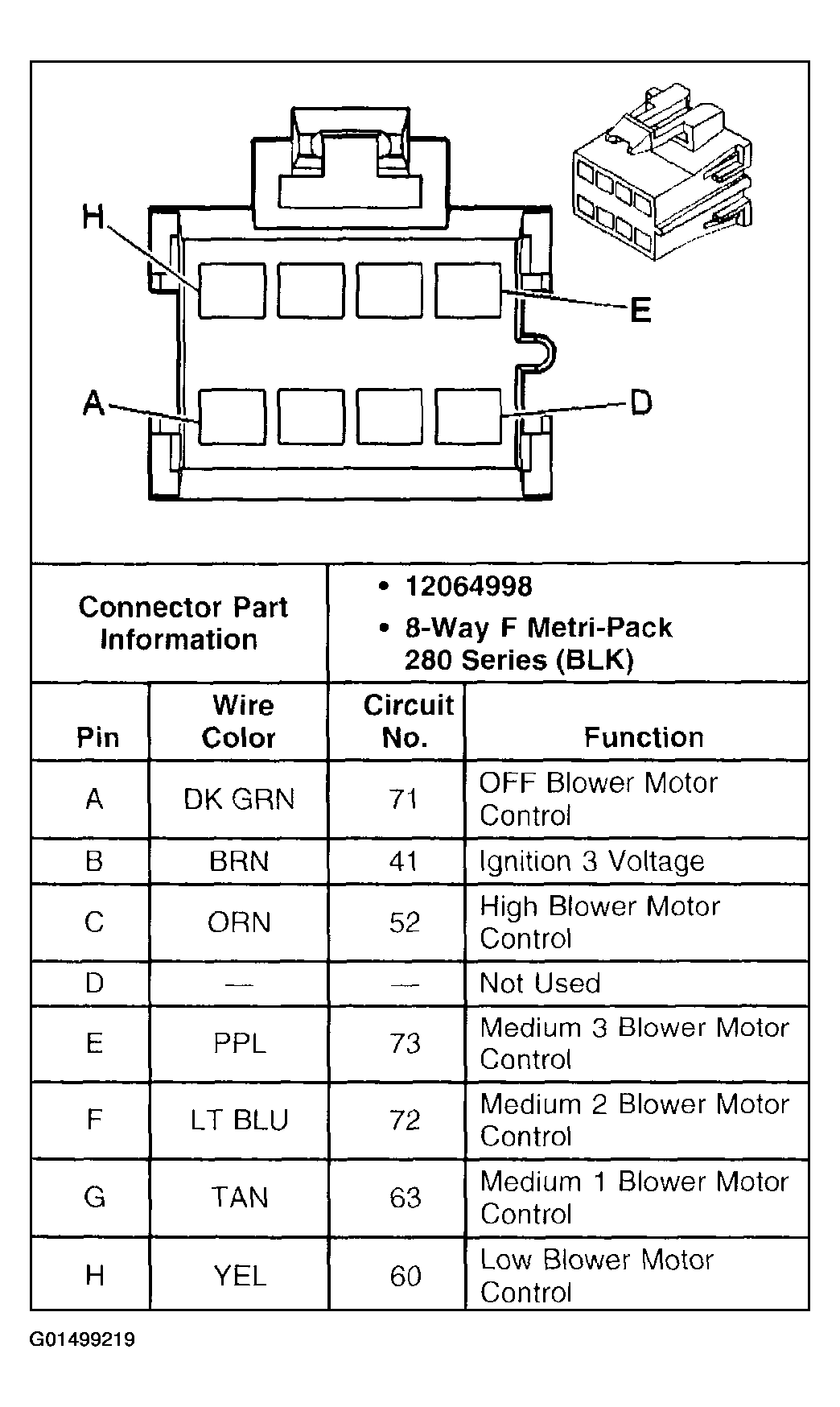

Fig 1: HVAC Control Module - C2
G01499219Courtesy of GENERAL MOTORS CORP.

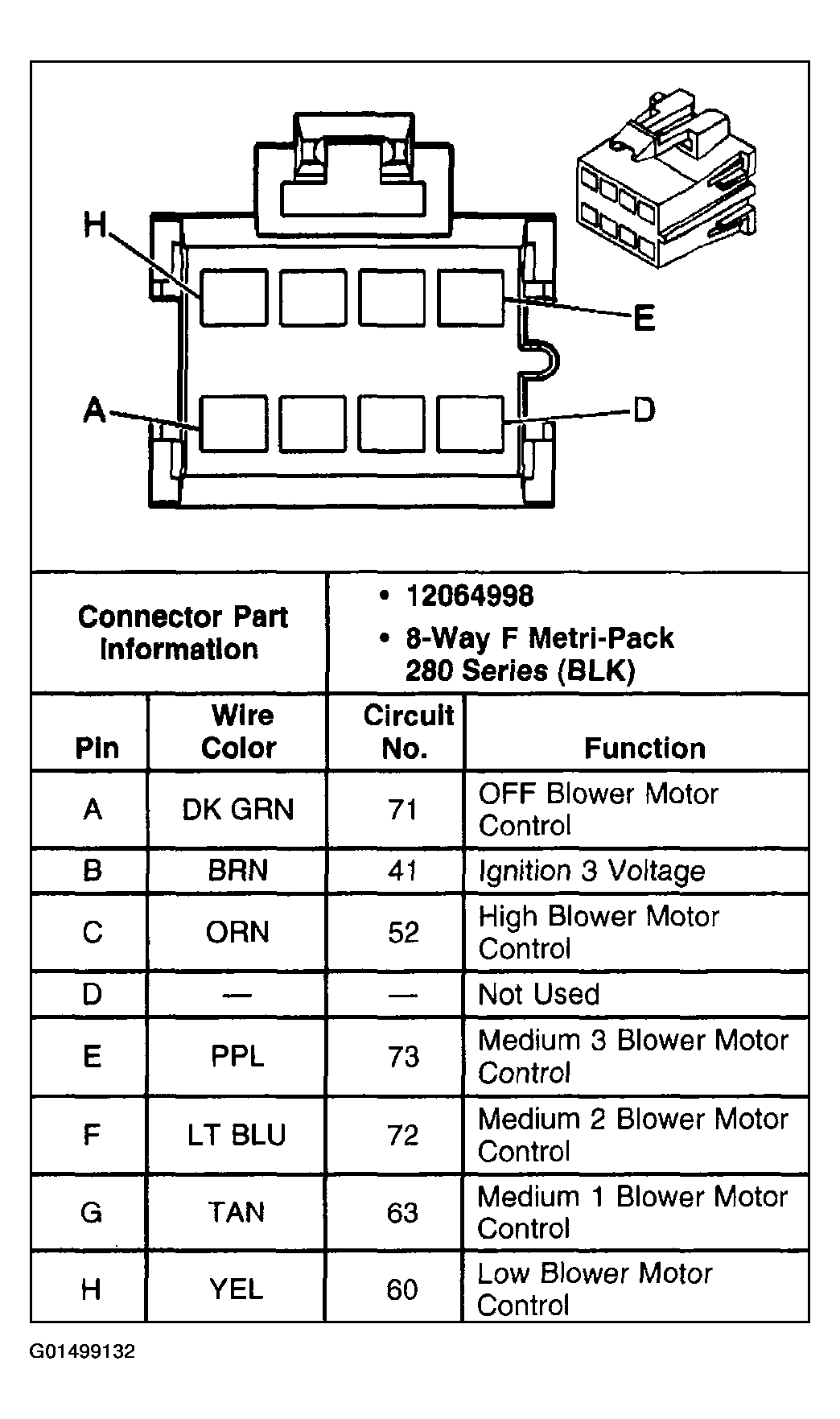

Fig 1: HVAC Control Module - C2
G01499132Courtesy of GENERAL MOTORS CORP.
