In-Line Connector End View C320
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
In-Line Connector End View C320

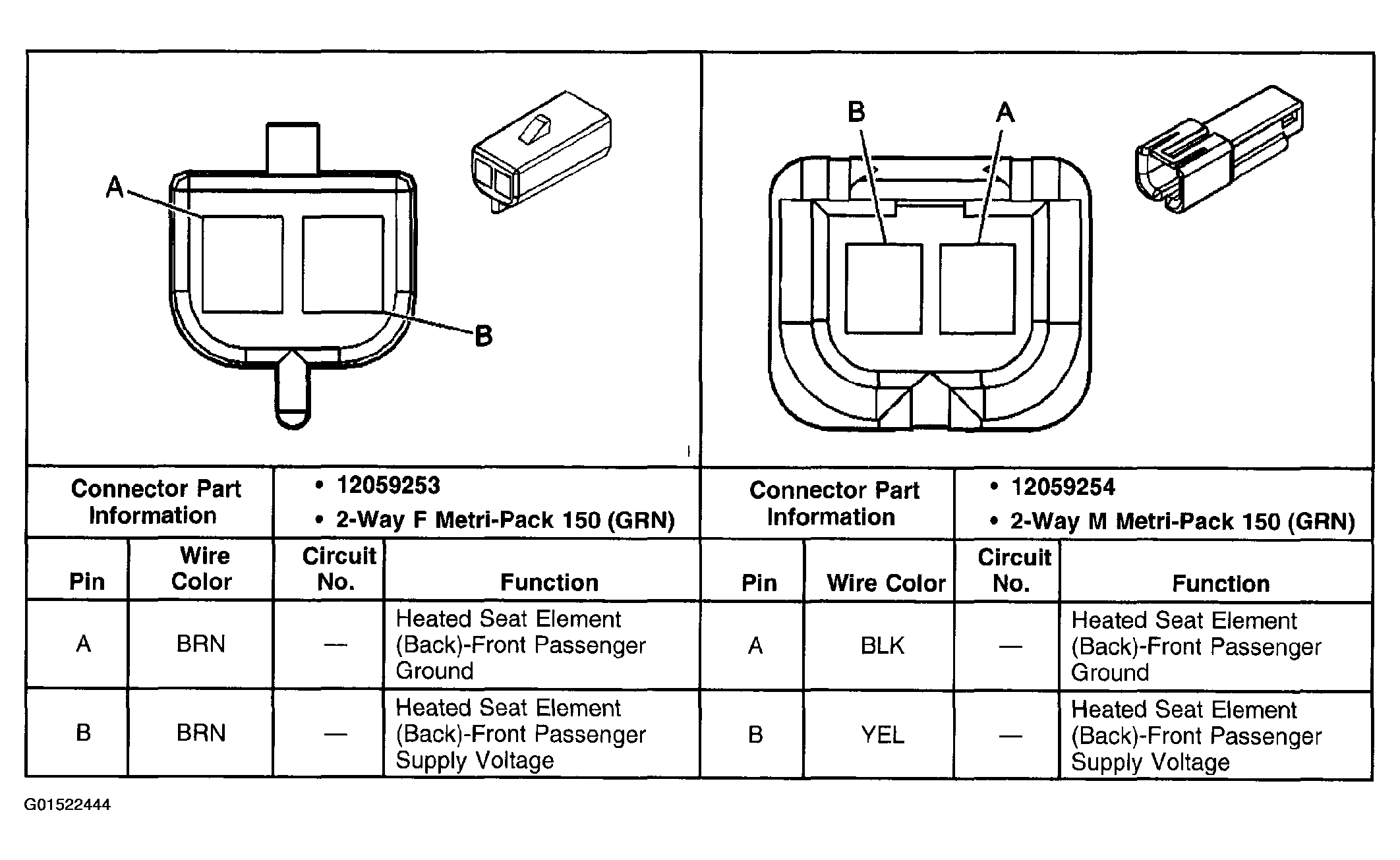

Fig 1: In-Line Connector C320
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
