Sunroof Positioning Encoding Switch Connector End View

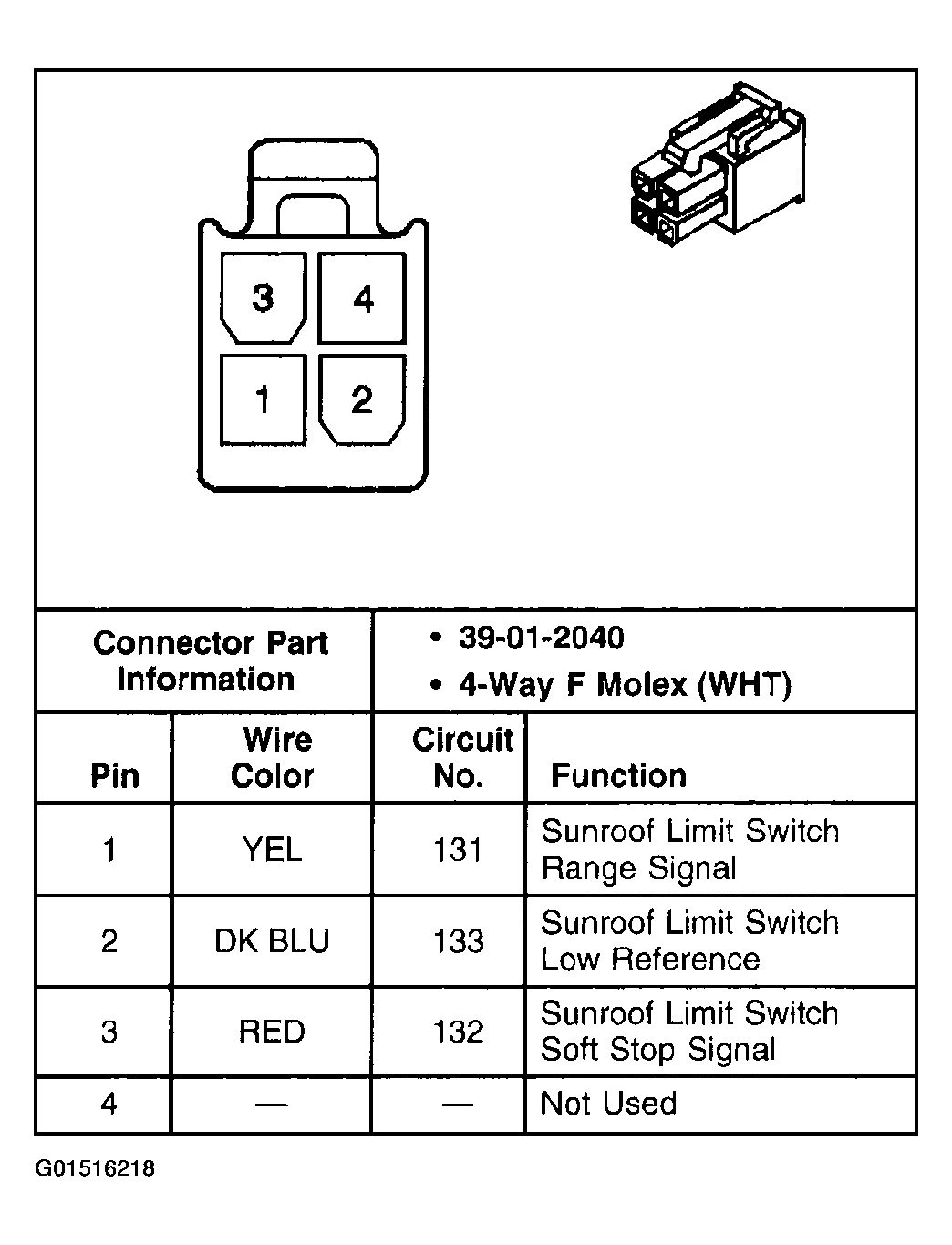

Fig 1: Sunroof Positioning Encoding Switch
G01516218Courtesy of GENERAL MOTORS CORP.
