Installation Procedure

Important:  Clean any existing corrosion from the battery terminal bolt flange and the battery cable end.

1. Install the battery ground (negative) cable and bolt to the battery.

   Tighten

   Tighten the battery terminal bolt to 16 N.m (12 lb ft).

2. Program all of the customer's radio station presets and set the radio clock to the current time.

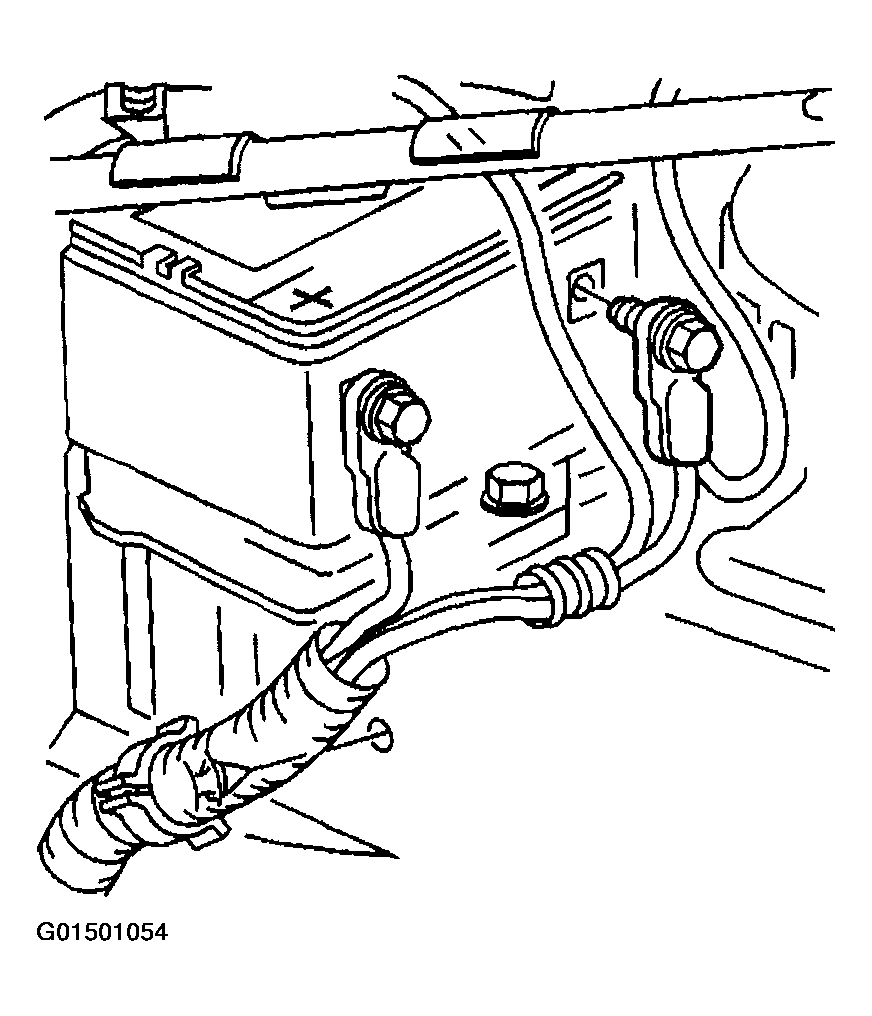

   Fig 1: Installing Battery Ground (Negative) Cable And Bolt

   Courtesy of GENERAL MOTORS CORP.
