Removal Procedure

Important:  When replacing battery cables, be sure to use battery cables that are the same type, gauge and length.

1. Remove the battery ground (negative) cable from the battery. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .
2. Remove the battery ground (negative) cable bolt from the core support.
3. Raise and support the vehicle.
4. Remove the lower radiator baffle. Refer to RADIATOR AIR BAFFLE ASSEMBLIES AND DEFLECTORS .
5. Remove the battery cable conduit from the conduit retainers.

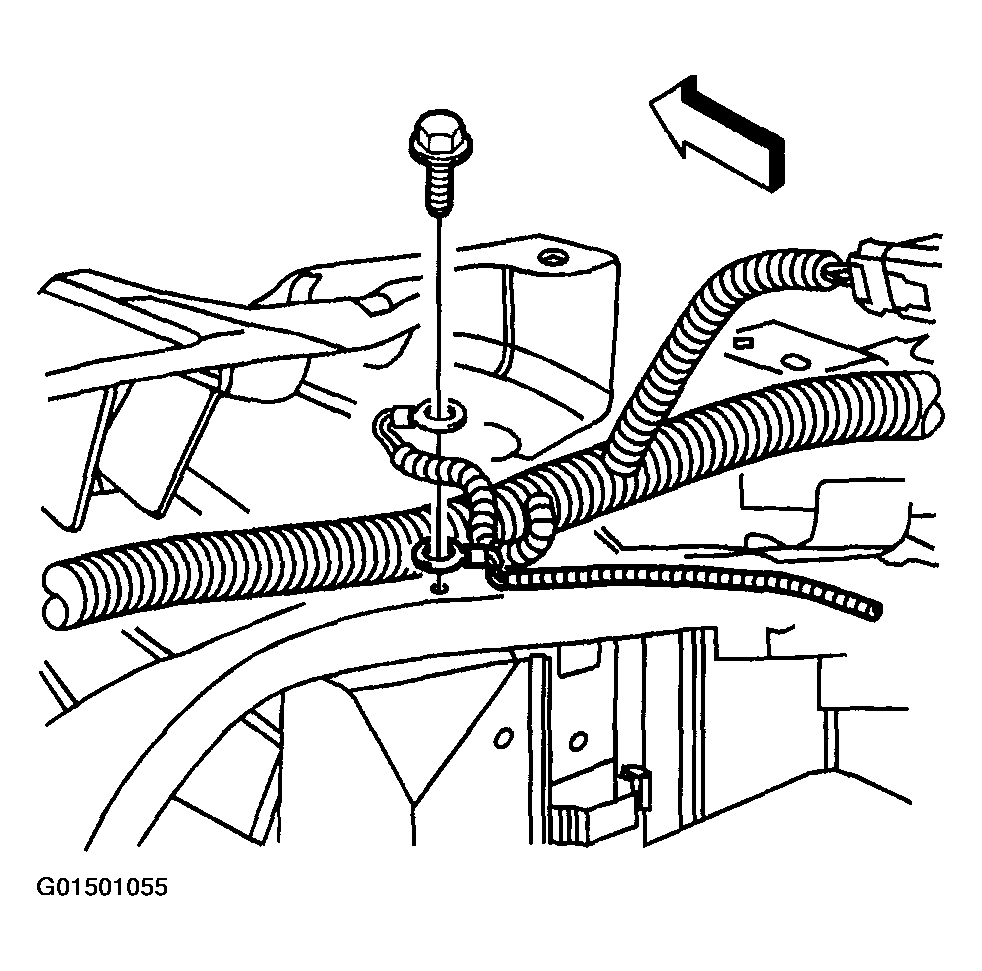

   Fig 1: Removing Battery Ground (Negative) Cable Bolt

   Courtesy of GENERAL MOTORS CORP.
6. Remove the battery cable from the conduit.
7. Remove the battery ground (negative) cable nut and cable from the transaxle stud.
8. Lower the vehicle.
9. Remove the battery ground (negative) cable from the vehicle.

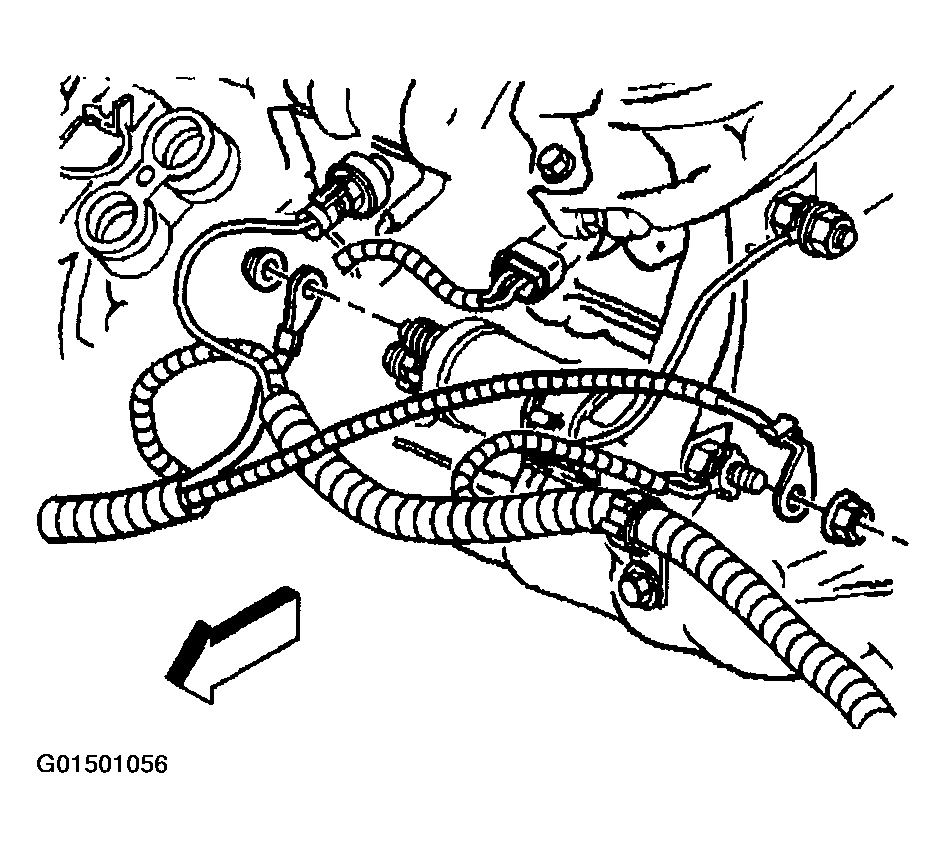

   Fig 2: Removing Battery Ground (Negative) Cable From Vehicle

   Courtesy of GENERAL MOTORS CORP.
