Installation Procedure

  1. Install the starter motor.
  2. Install the starter motor bolts.

    Tighten

    Tighten the starter motor bolts to 47 N.m (35 lb ft).

  3. Install the torque converter cover. Refer to TORQUE CONVERTER COVER REPLACEMENT .

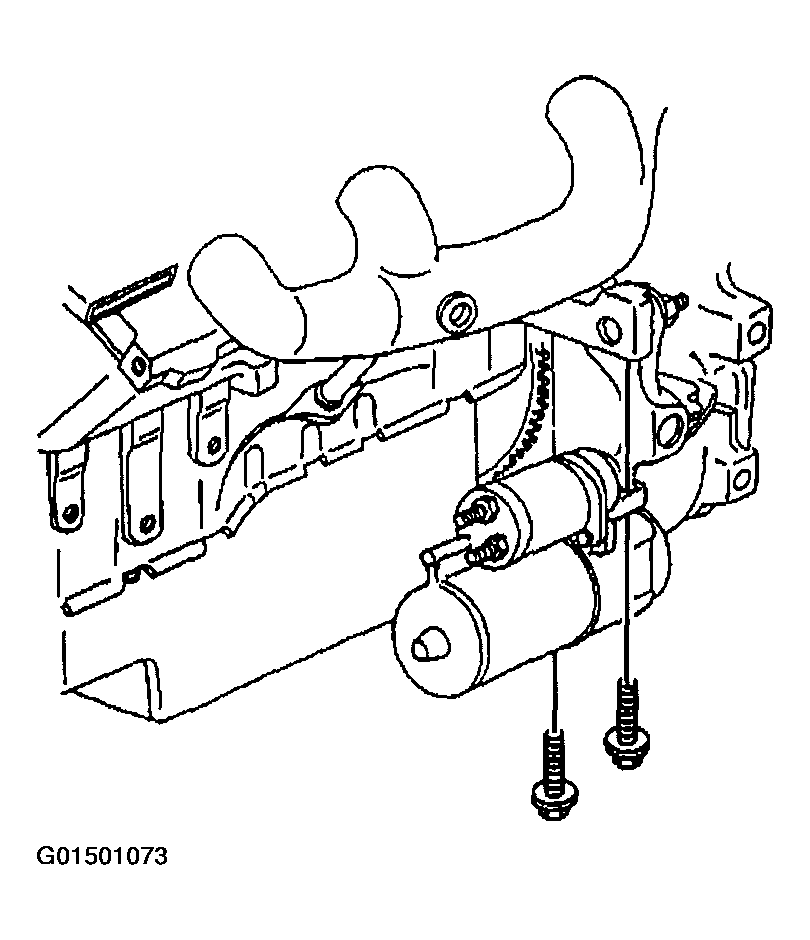

    Fig 1: Installing Starter Motor And Starter Motor Bolts
    G01501073Courtesy of GENERAL MOTORS CORP.
  4. Install the starter motor S terminal electrical lead and nut.

    Tighten

    Tighten the starter motor solenoid S terminal nut to 3 N.m (27 lb in).

  5. Install the starter motor BAT terminal electrical leads and nut.

    Tighten

    Tighten the starter motor solenoid BAT terminal nut to 10 N.m (89 lb in).

  6. Install radiator air baffle assembly. Refer to RADIATOR AIR BAFFLE ASSEMBLIES AND DEFLECTORS .
  7. Lower the vehicle.
  8. Install the battery ground (negative) cable to the battery. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .

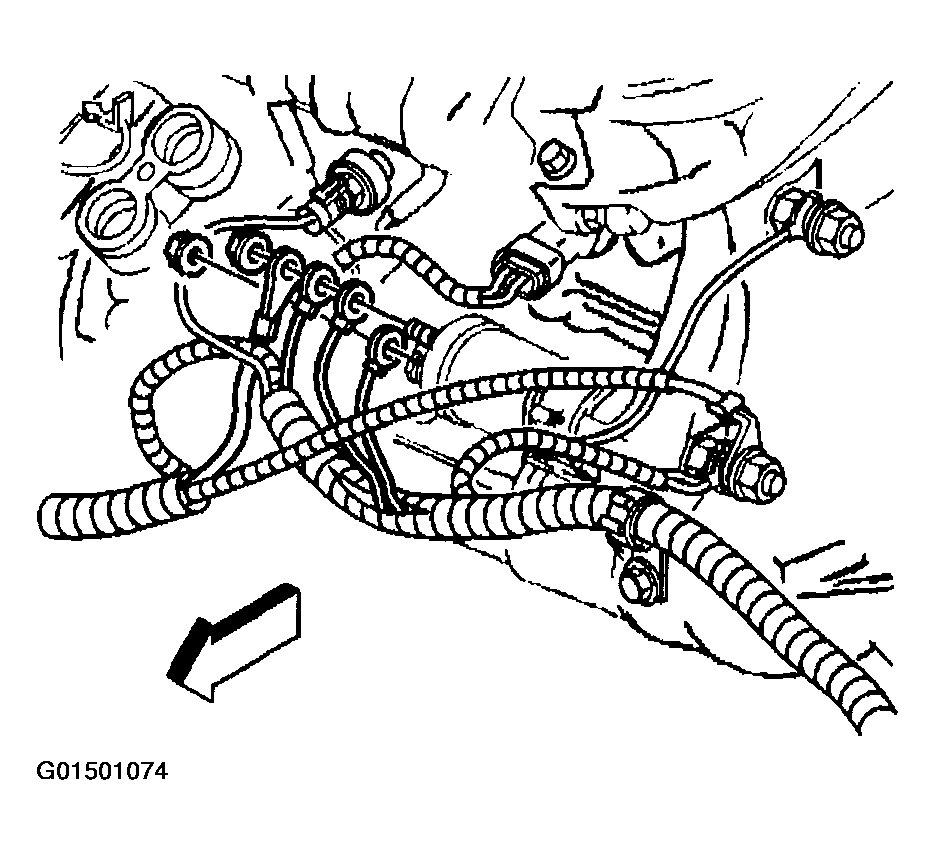

    Fig 2: Installing Starter Motor BAT Terminal Electrical Leads And Nut
    G01501074Courtesy of GENERAL MOTORS CORP.
