Removal & Installation
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
To install, reverse removal procedure.
- Remove rear shelf trim from inside rear storage compartment. See TRUNK TRIM PANELS .
- Disconnect harness connectors.

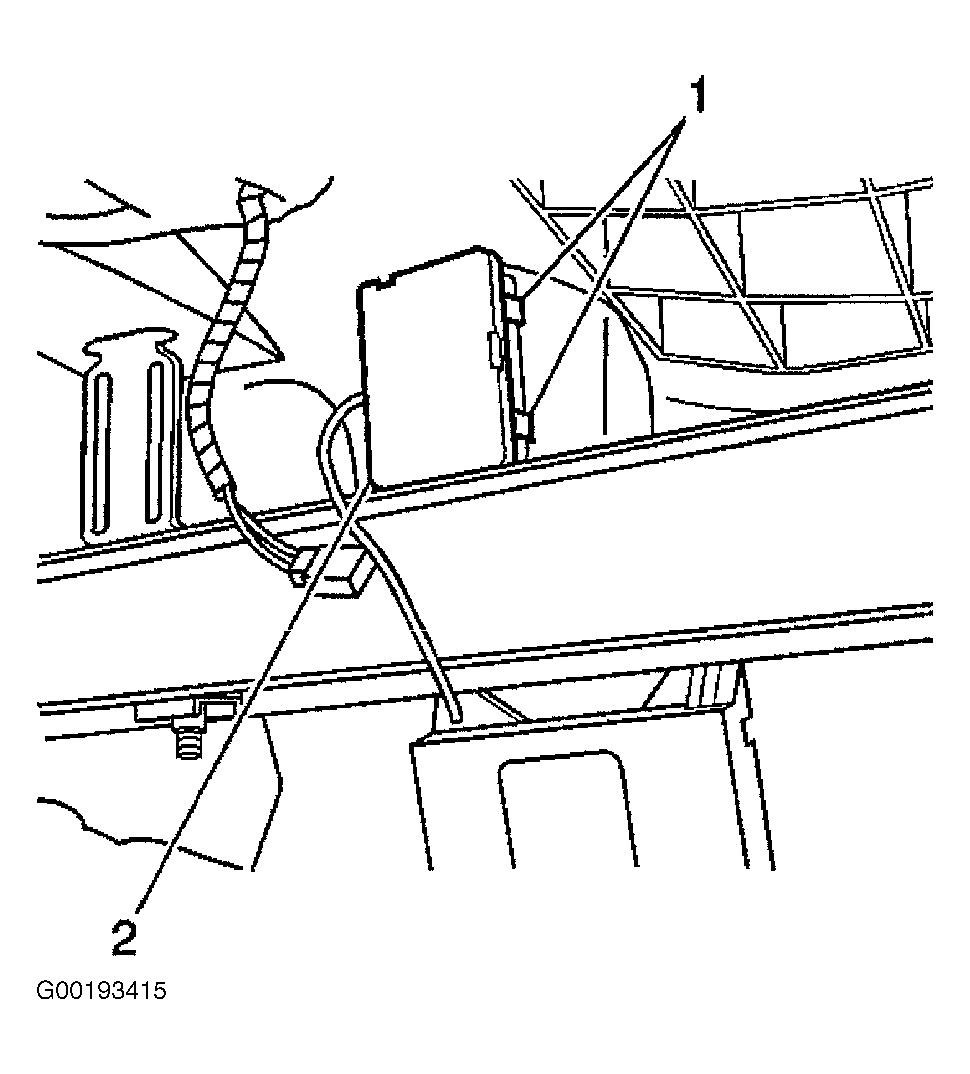

- Push on retainers (1) and remove Remote Control Door Lock Receiver (RCDLR) (2) from bracket. See Fig 1.
- To install, reverse removal procedure. Program RCDLR for transmitters. See REMOTE KEYLESS ENTRY TRANSMITTER under PROGRAMMING.
