Accelerator Controls Cable: Installation
WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

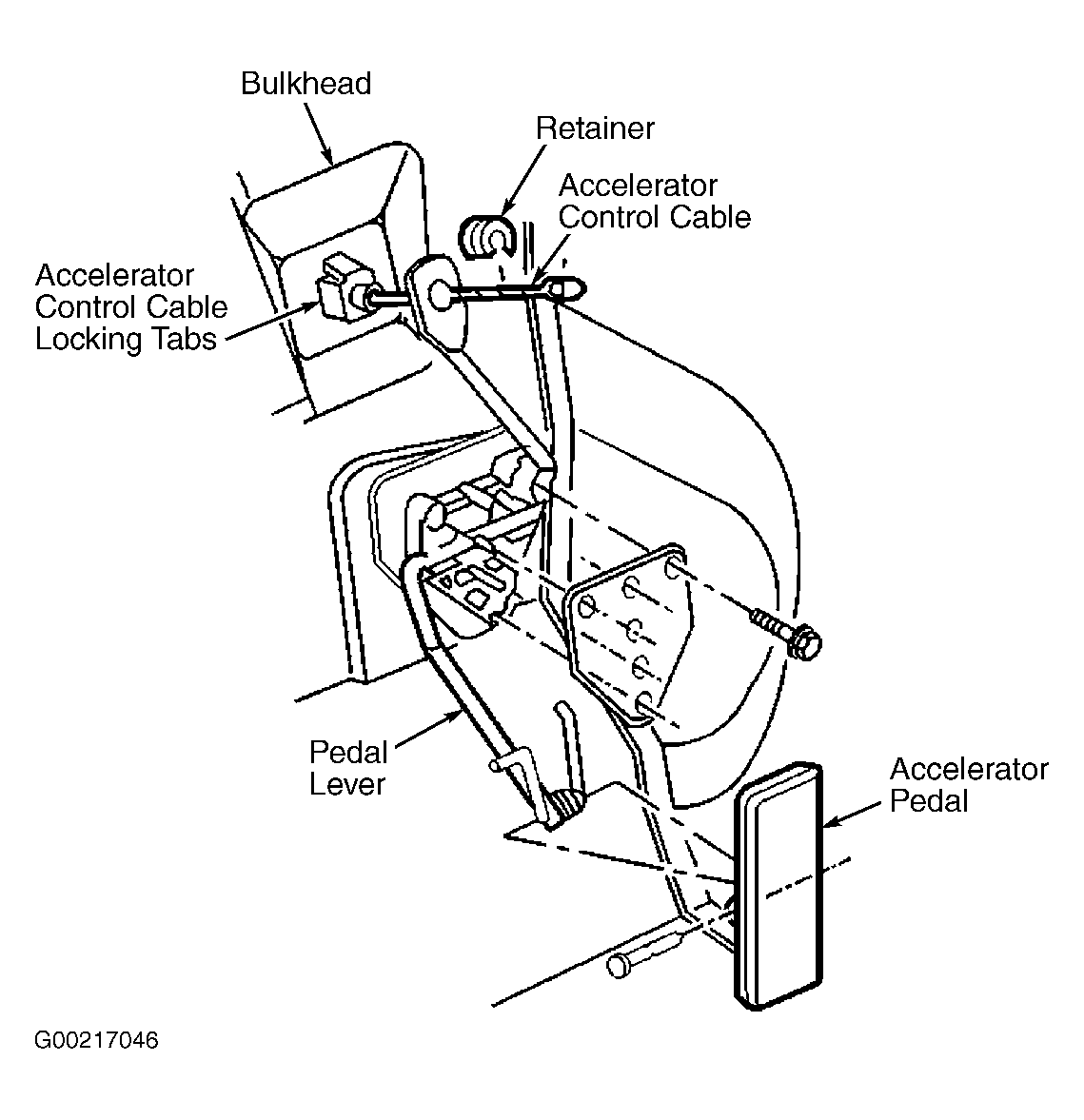

- Install the accelerator cable to the bulkhead. Ensure all locking tabs are expanded to secure cable assembly to dash panel. Ensure dash panel insulator does not come in contact with any portion of the cable.
- Install the accelerator cable to the accelerator pedal. Ensure the retainer is securely seated to the accelerator pedal. Install the accelerator cable to the engine cable bracket. Install the accelerator cable to the throttle lever. Install the air cleaner outlet duct. Install the engine cover.
