Accelerator Controls Cable: Removal
WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

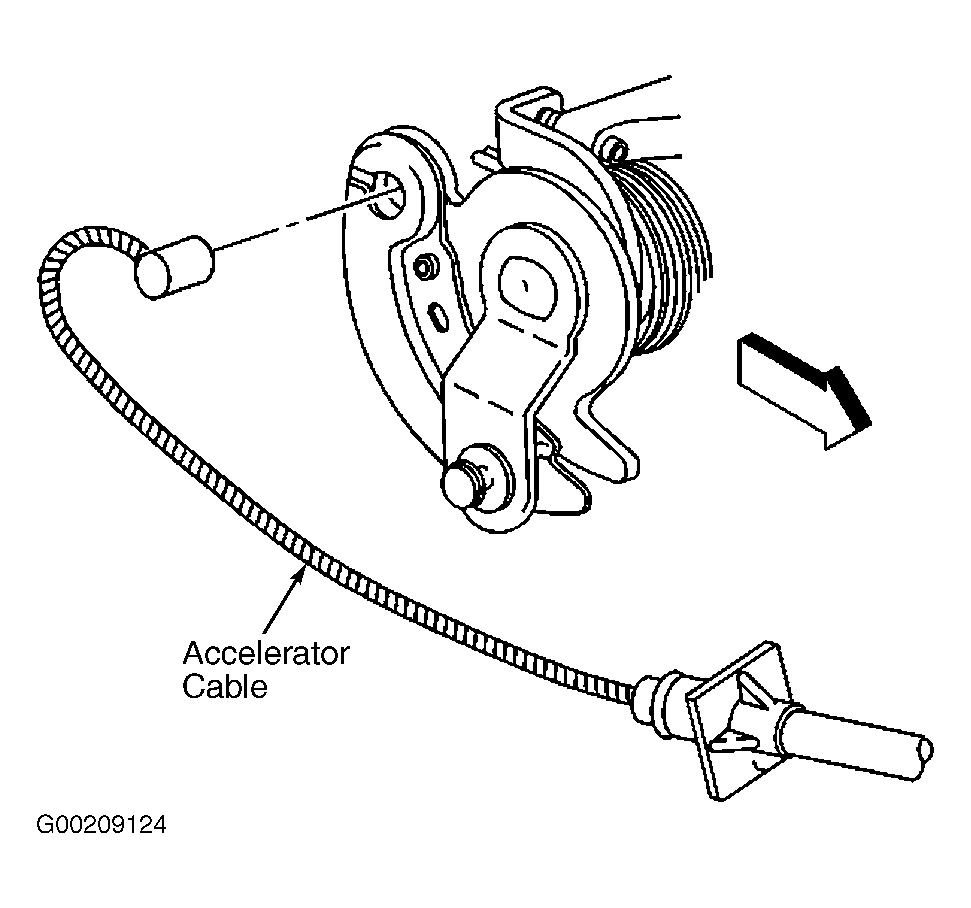

Remove the engine cover. See ENGINE COVER . Remove the air cleaner outlet duct. See AIR CLEANER OUTLET DUCT under AIR INDUCTION SYSTEMS. Remove the accelerator cable from the throttle lever. See Figure . Remove the accelerator cable from the engine cable bracket. Remove the accelerator cable from the accelerator pedal. See Figure . Remove the accelerator cable assembly from the bulkhead.
