Wiper Drive System Module: Installation

WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Install wiper drive system module to vehicle. Install 4 bolts to module. See Fig 1 . Tighten bolts to 8 N.m (71 lb in). Connect electrical connector to wiper motor. Install air inlet screen. Install wiper arms. See WIPER ARM . Ensure wiper/washers operate properly.

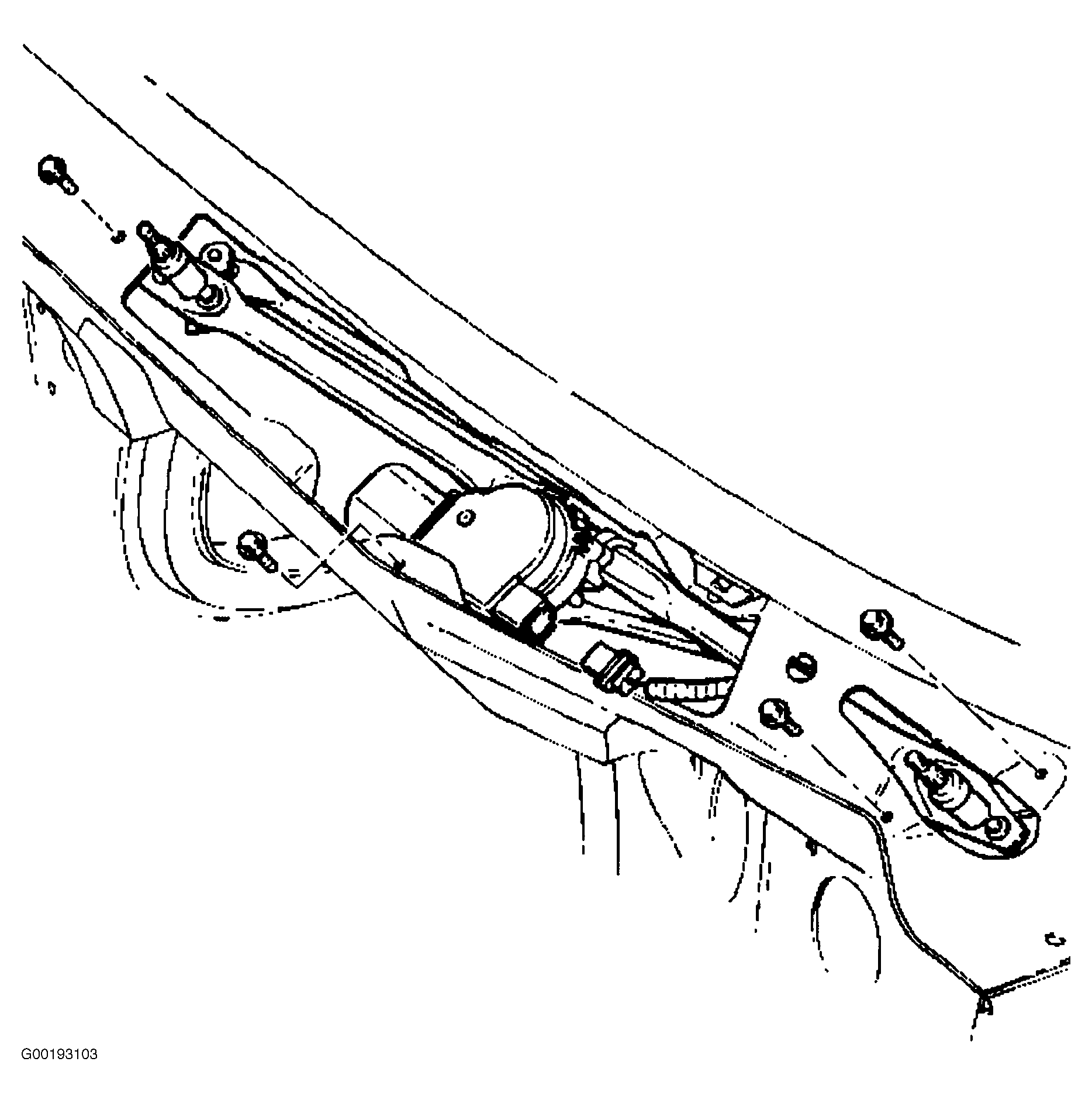

Fig 1: Wiper Drive System Module Removal & Installation

Courtesy of GENERAL MOTORS CORP.
