Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the alignment tabs (1), on the radio amplifier, over the mounting bracket.
  2. Install the radio amplifier electrical connectors (2).
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the fasteners to retain the radio amplifier to the mounting bracket.

    Tighten

    Tighten the fasteners to 9 N.m (80 lb in).

  4. Install the rear seat back. Refer to SEAT BACK REPLACEMENT -- REAR .
  5. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .

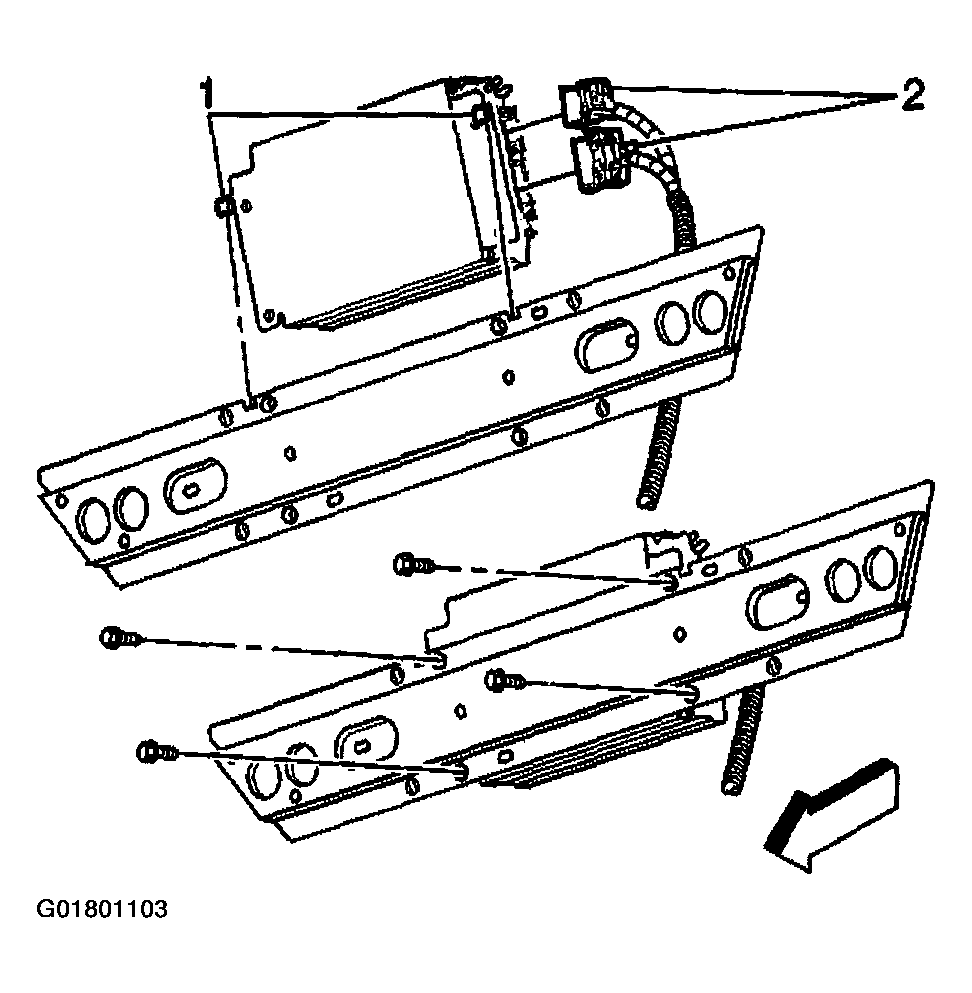

    Fig 1: Installing Amplifier
    G01801103Courtesy of GENERAL MOTORS CORP.
