Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Open the rear compartment.
Remove the right side rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT--REAR .
Remove the fasteners securing the CD mounting bracket to the rear compartment.
Disconnect the electrical connector from the remote CD player.

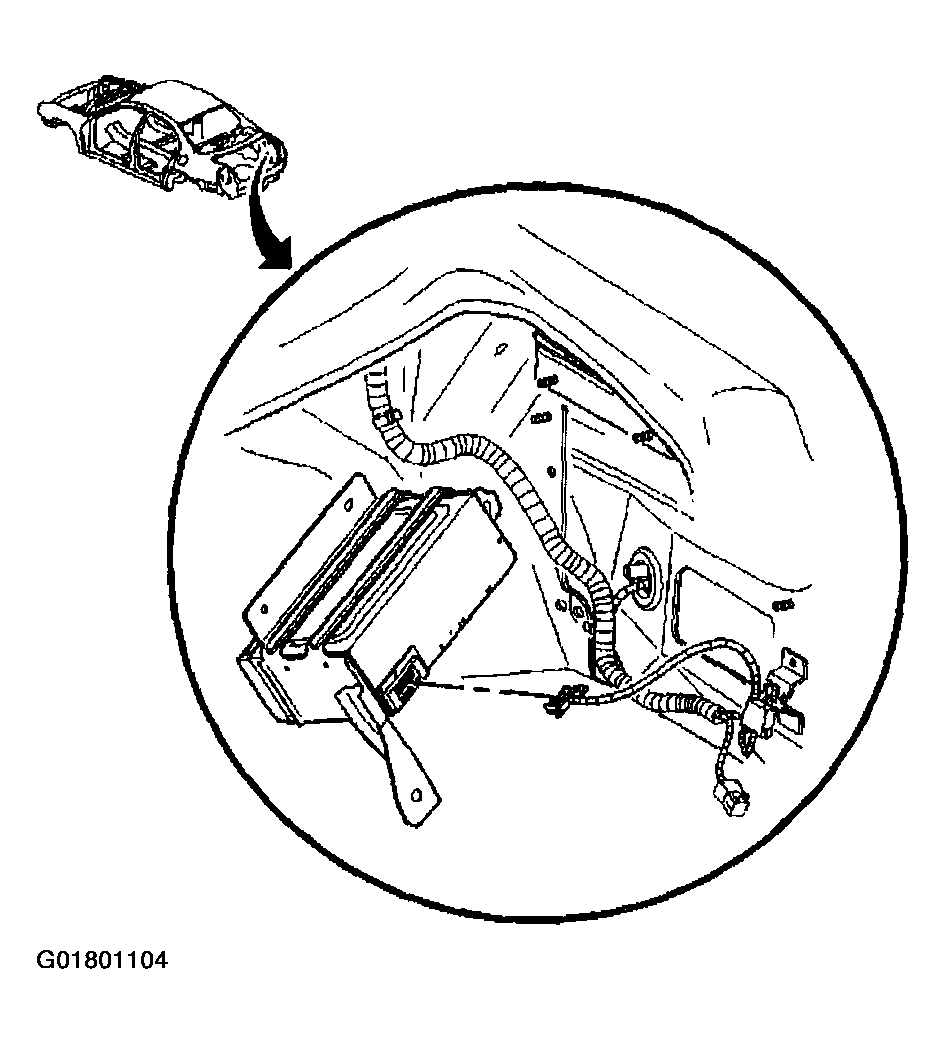

Fig 1: Removing CD Mounting Bracket
Courtesy of GENERAL MOTORS CORP.
Remove the fasteners securing the remote CD player to mounting bracket.
Separate the remote CD player from the bracket.

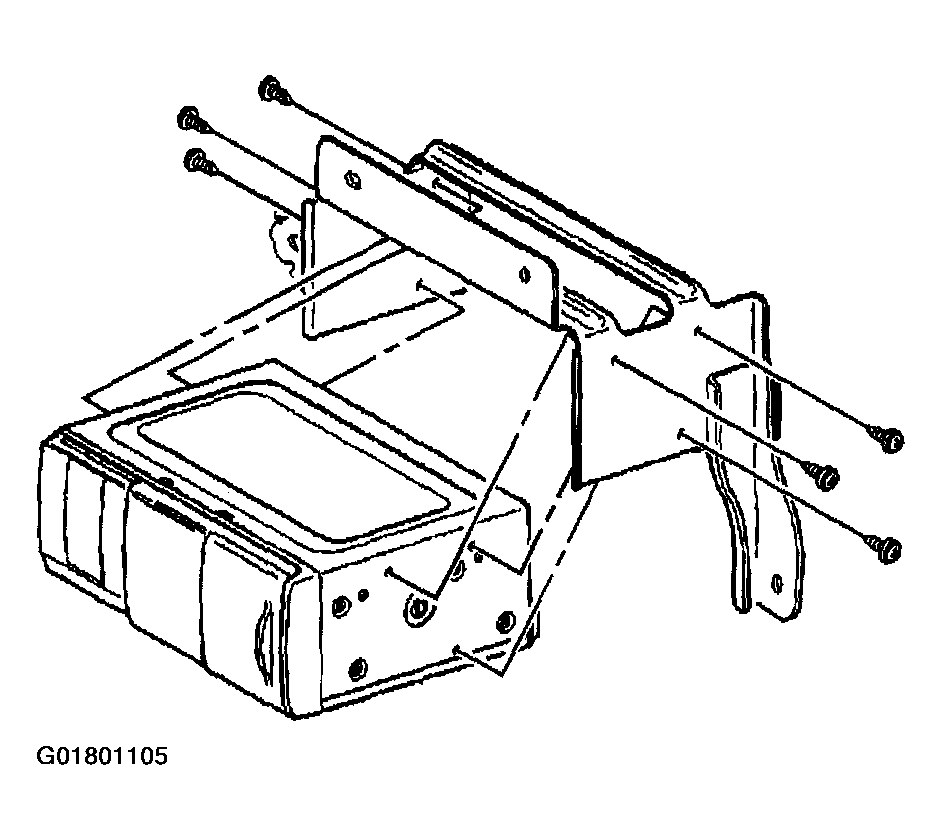

Fig 2: Removing CD Player From Bracket
Courtesy of GENERAL MOTORS CORP.
