Entertainment Connector End Views

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

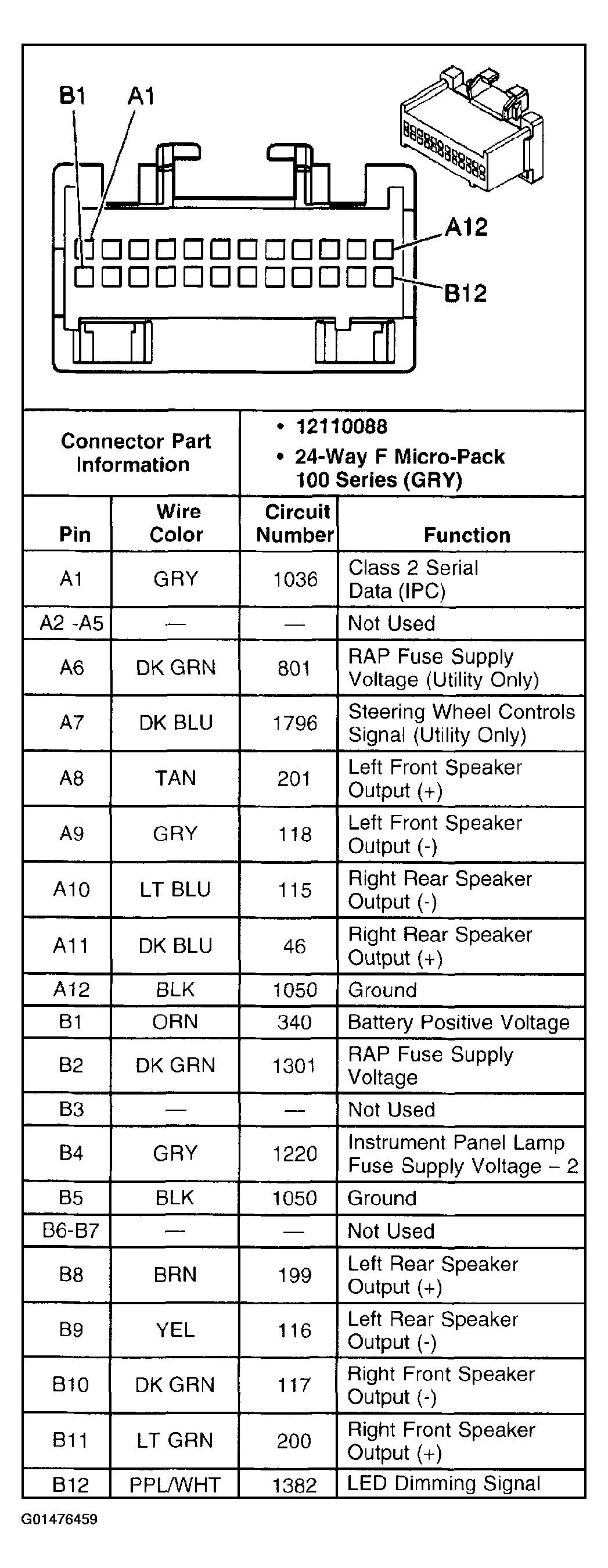

Fig 1: Radio

Courtesy of GENERAL MOTORS CORP.

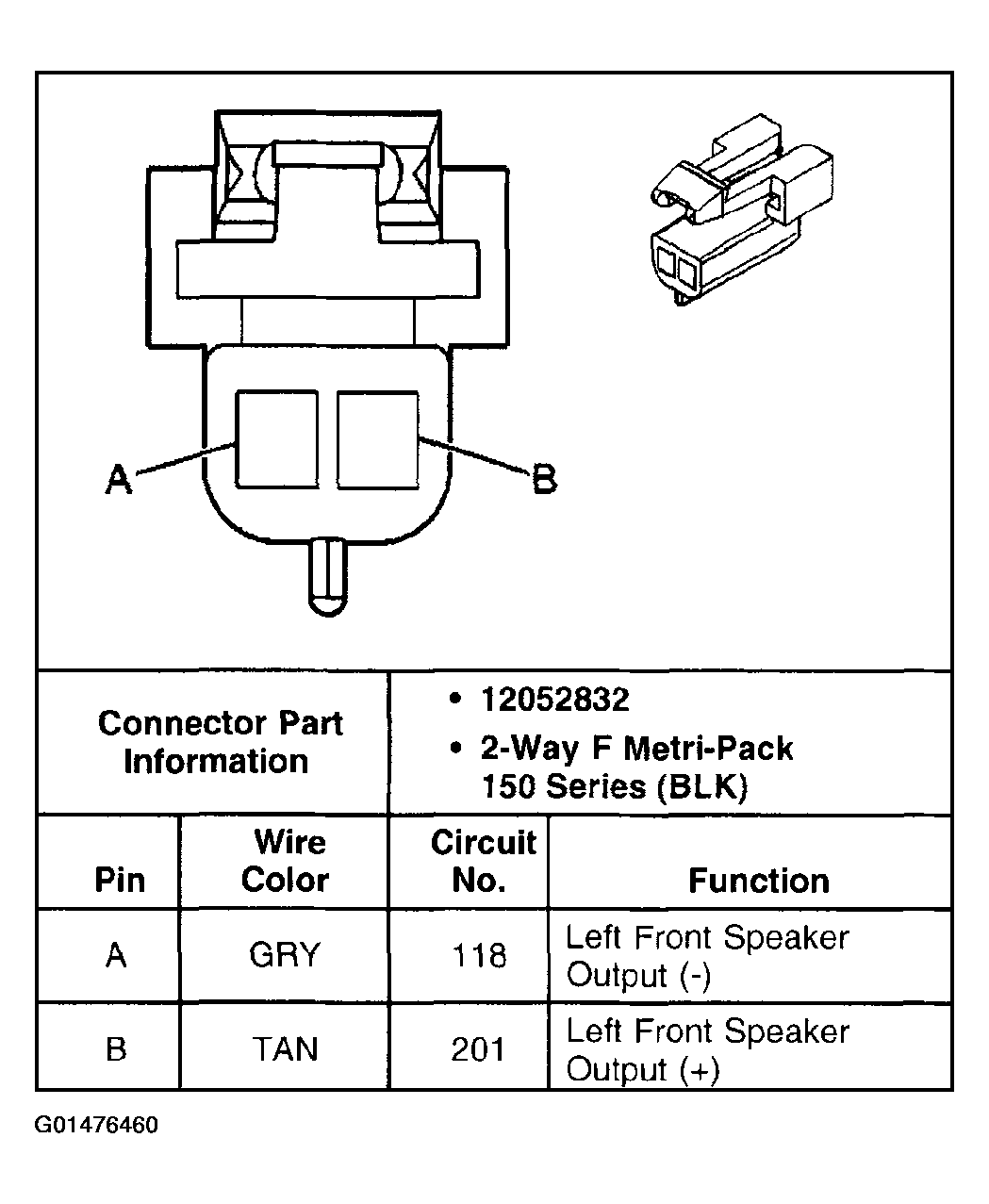

Fig 2: Speaker - LF (Pickup)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Speaker - LF (Utility)

Courtesy of GENERAL MOTORS CORP.

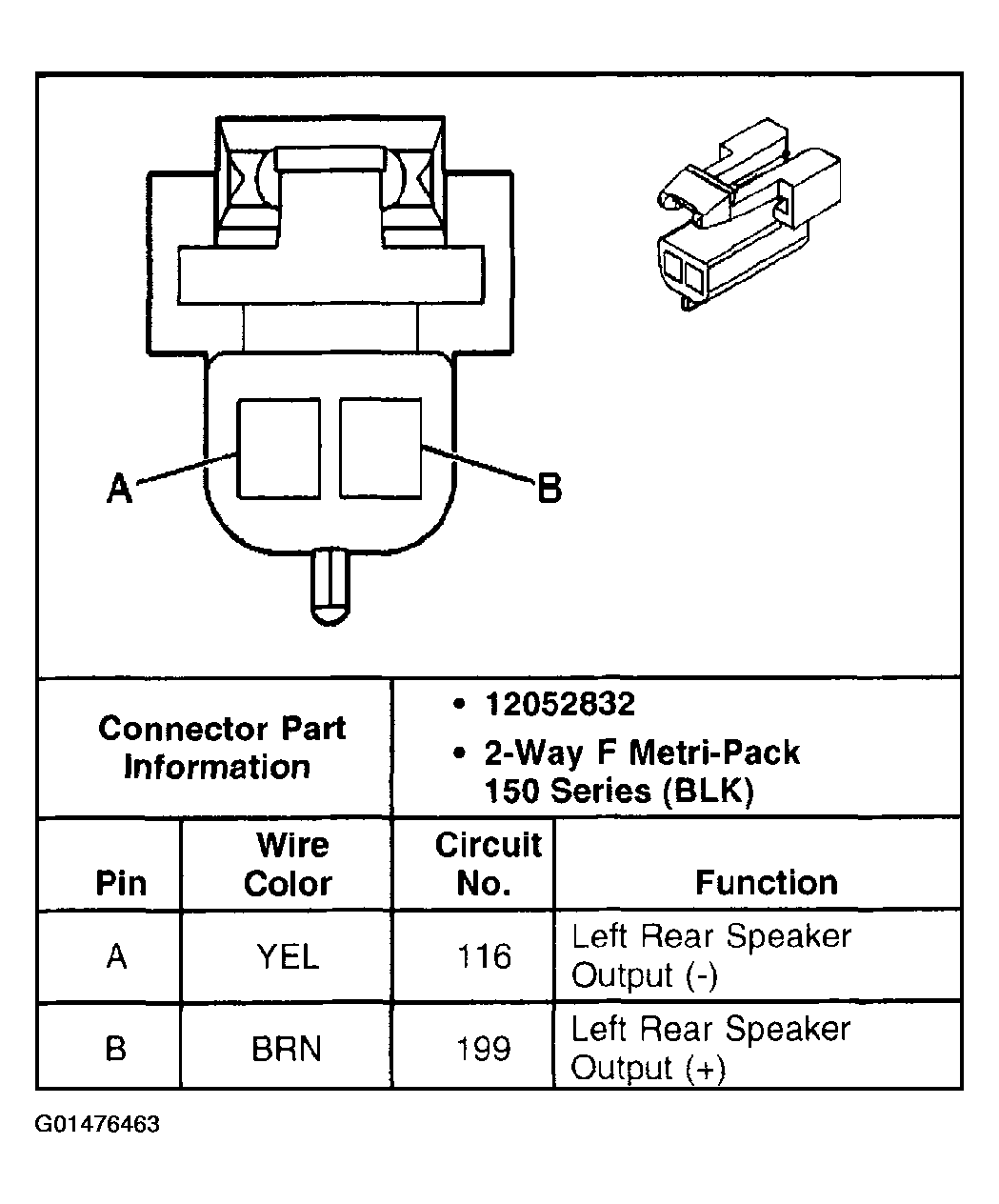

Fig 4: Speaker - LF Door

Courtesy of GENERAL MOTORS CORP.

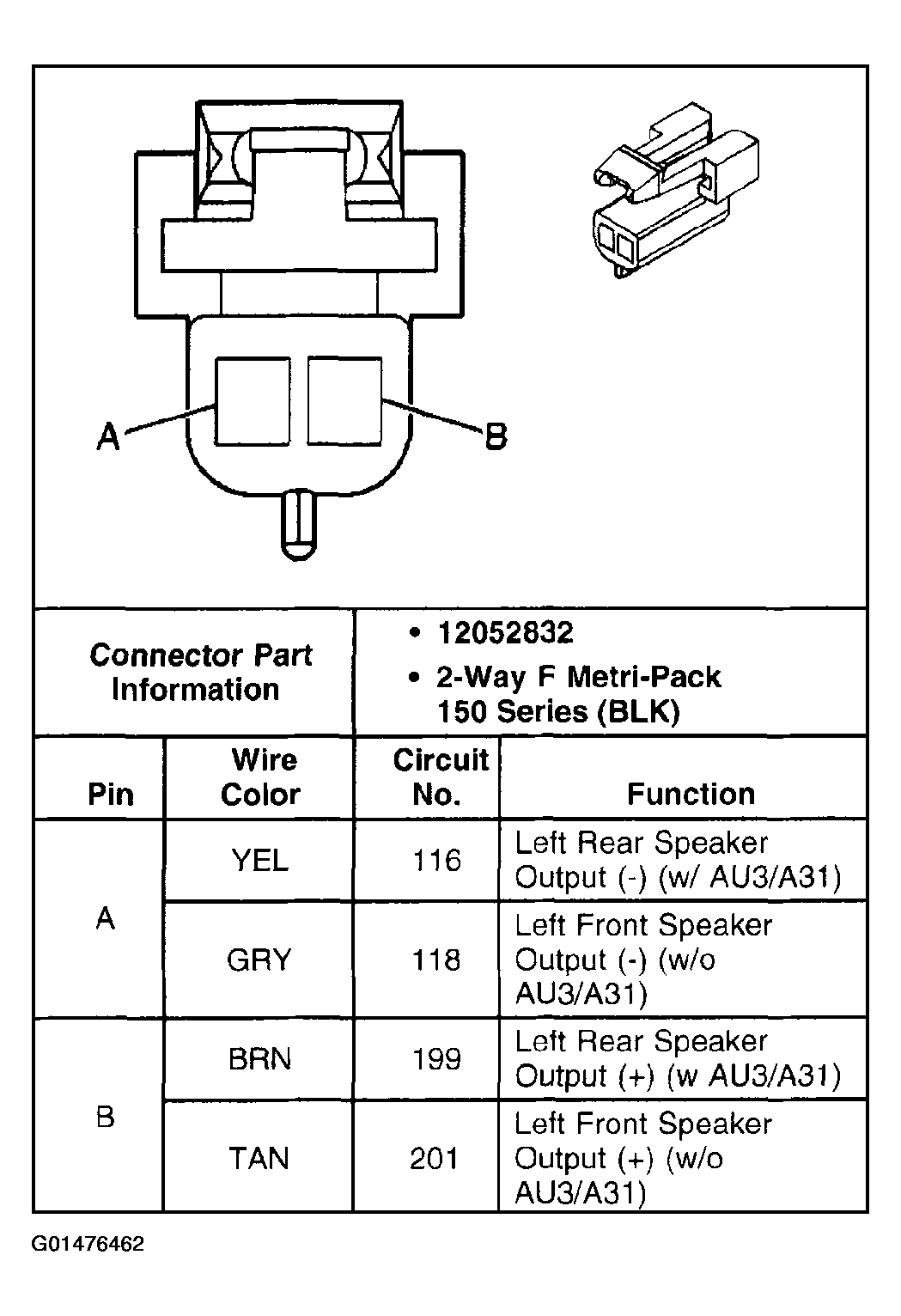

Fig 5: Speaker - LR (2-Door Utility)

Courtesy of GENERAL MOTORS CORP.

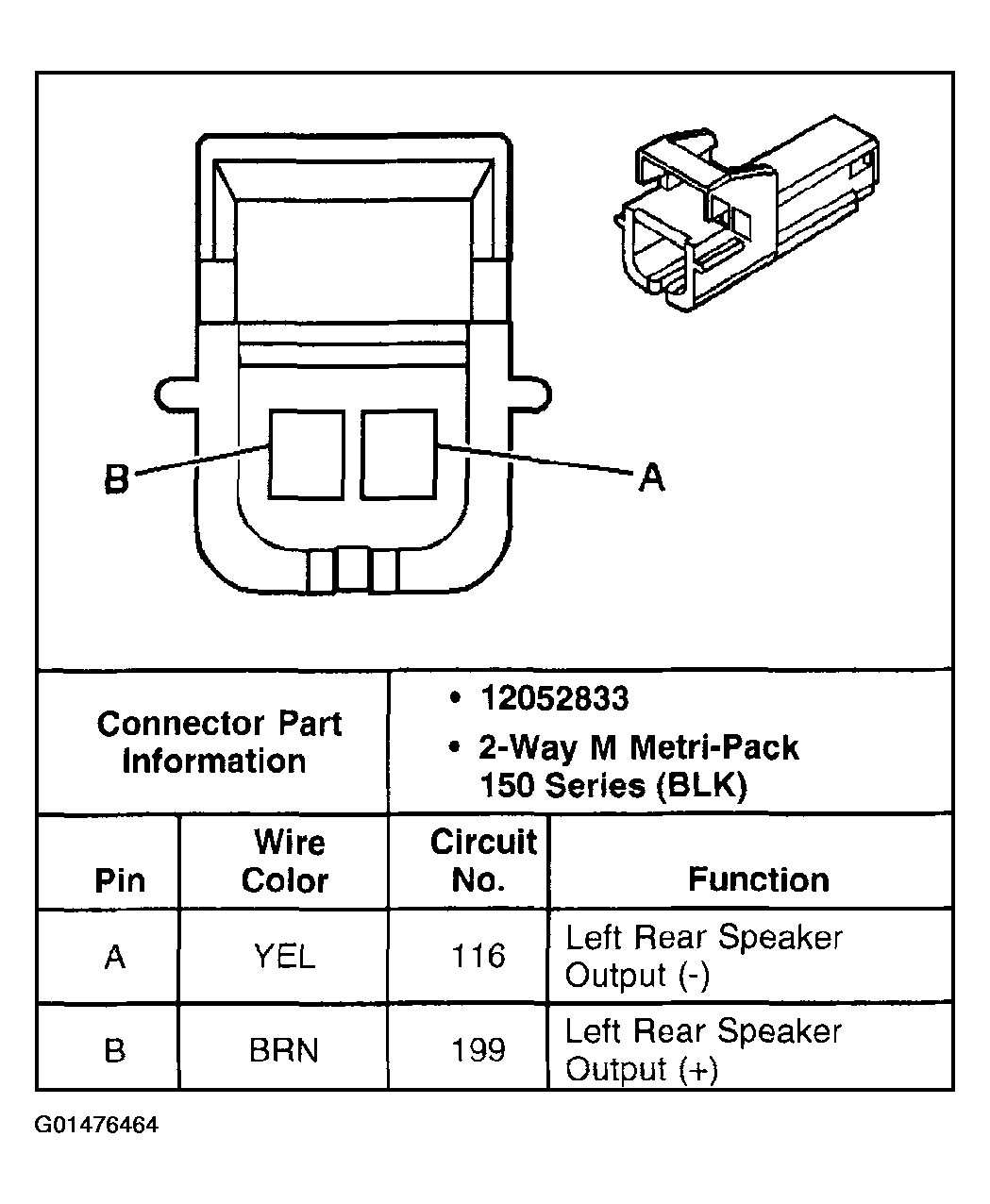

Fig 6: Speaker - LR Door (4-Door Utility)

Courtesy of GENERAL MOTORS CORP.

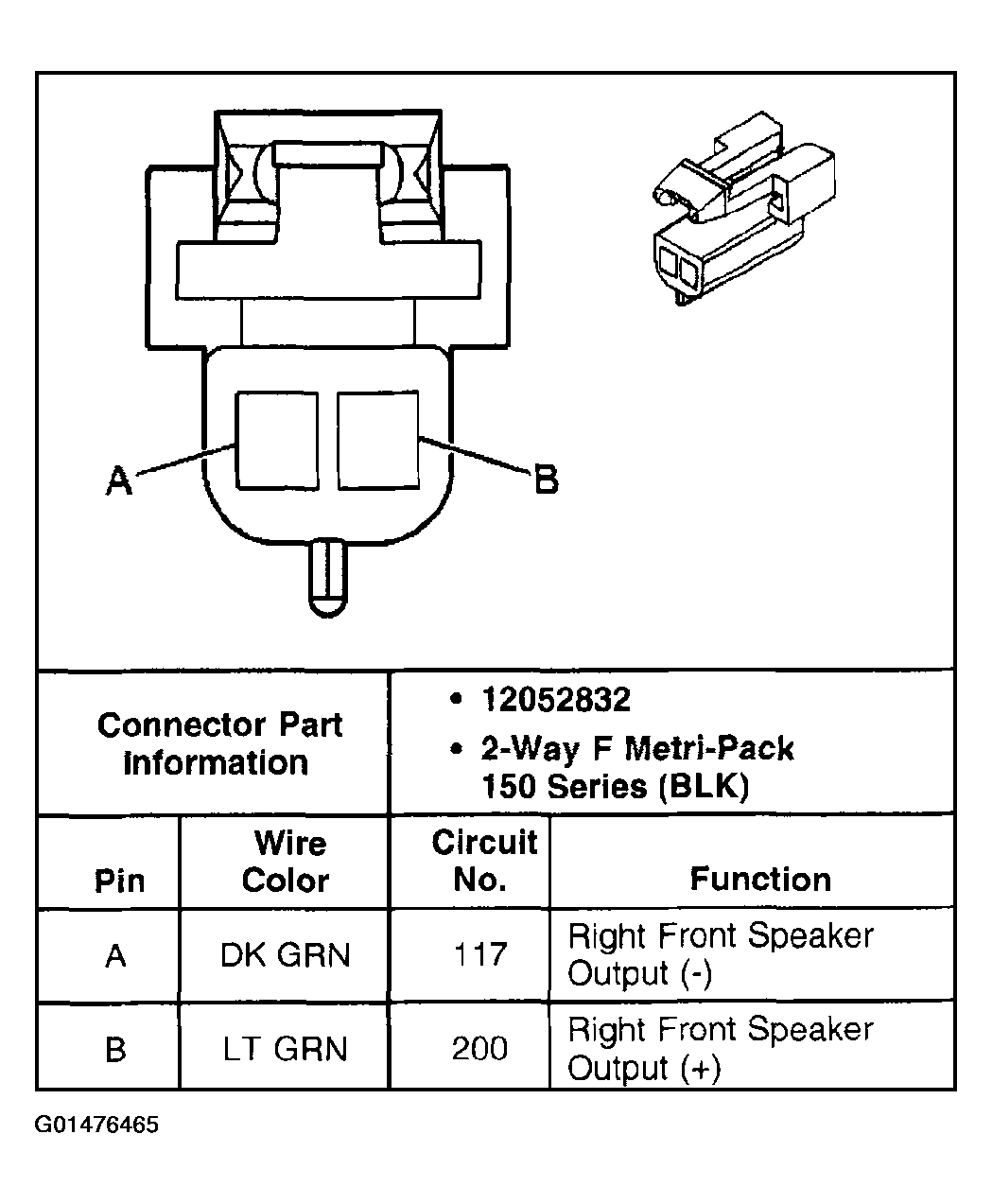

Fig 7: Speaker - RF (Pickup)

Courtesy of GENERAL MOTORS CORP.

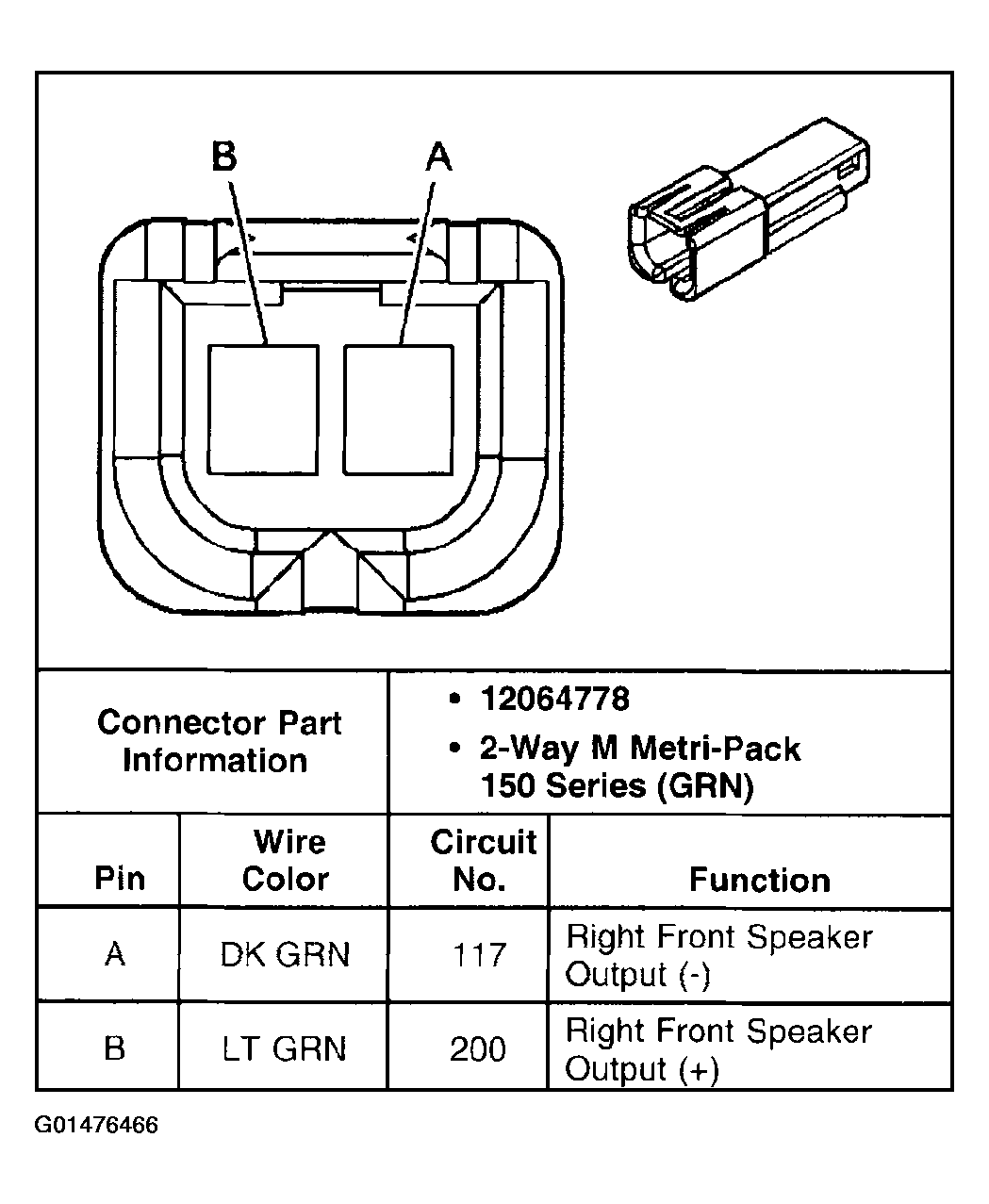

Fig 8: Speaker - RF

Courtesy of GENERAL MOTORS CORP.

Fig 9: Speaker - RF Door

Courtesy of GENERAL MOTORS CORP.

Fig 10: Speaker - RR (2-Door Utility)

Courtesy of GENERAL MOTORS CORP.

Fig 11: Speaker - RR Door (4-Door Utility)

Courtesy of GENERAL MOTORS CORP.

Fig 12: Steering Wheel Controls Switch - Left

Courtesy of GENERAL MOTORS CORP.

Fig 13: Steering Wheel Controls Switch - Right

Courtesy of GENERAL MOTORS CORP.
