Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the amplifier to the mounting bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the amplifier mounting nuts.

    Tighten

    Tighten the amplifier mounting bracket bolts to 10 N.m (88 lb in).

  3. Install the console wiring harness to the amplifier.
  4. Install the remote CD changer, if equipped.

    Refer to REMOTE CD PLAYER REPLACEMENT .

  5. Install the floor console to the vehicle. Refer to CONSOLE REPLACEMENT -- FRONT FLOOR (FULL LENGTH (AUTO TRANS)) or CONSOLE REPLACEMENT -- FRONT FLOOR (FULL LENGTH (ENVOY)) or CONSOLE REPLACEMENT -- FRONT FLOOR (NON-FULL LENGTH) or CONSOLE REPLACEMENT -- FRONT FLOOR (FULL LENGTH (MANUAL TRANS)) .
  6. Install the negative battery cable.

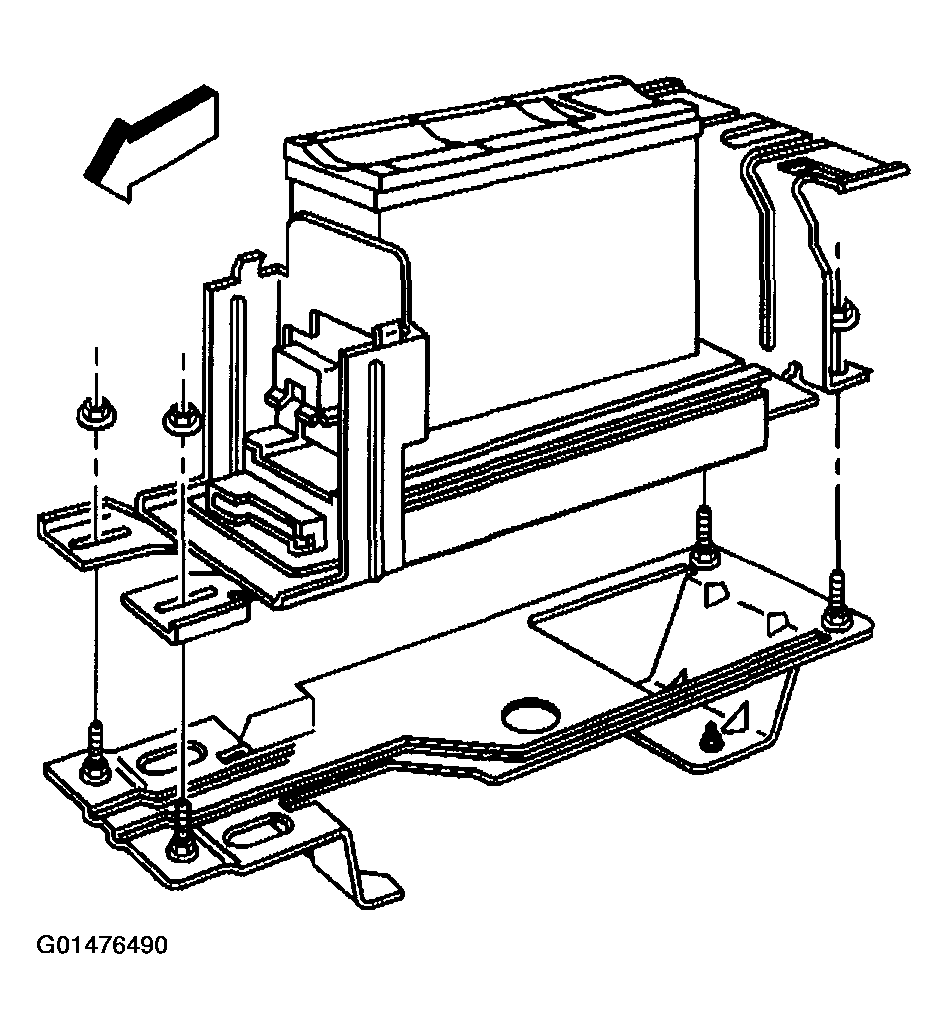

    Fig 1: Installing Amplifier To Mounting Bracket
    G01476490Courtesy of GENERAL MOTORS CORP.
