Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the electrical connector.
Install the remote cassette player to the console, by sliding the unit into place between the retaining tabs.
Install the remote cassette player tray, ensuring the unit locks into place.
Install the negative battery cable.

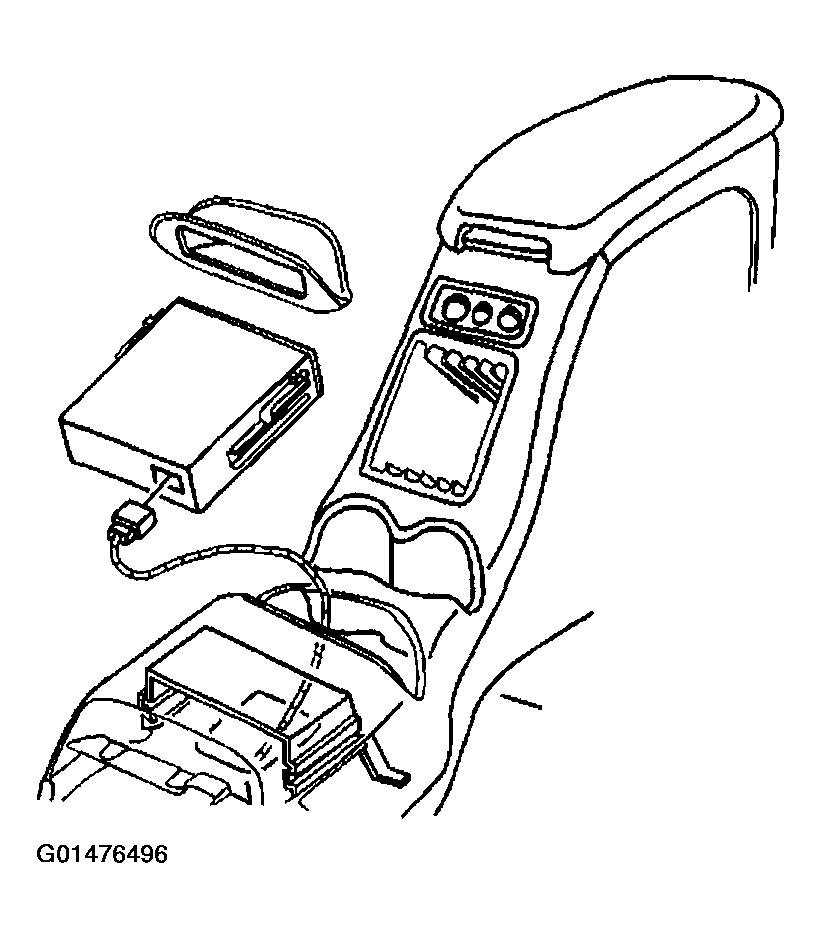

Fig 1: Electrical Connector
Courtesy of GENERAL MOTORS CORP.
