Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

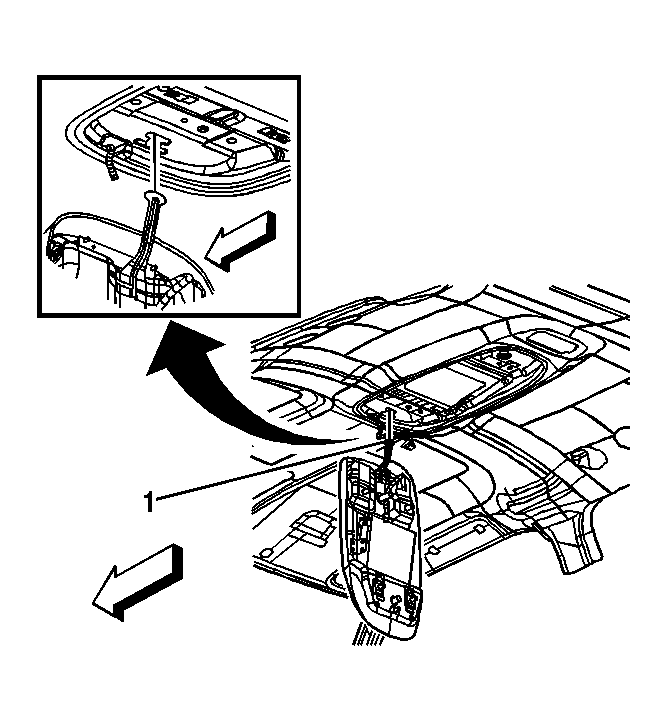

Install the DVD player hook (1) into the hook opening.

Fig 1: View Of DVD Player Assembly
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Ensure the harness is routed to the right side of the large plastic pin (2) as shown.
Connect the wire connector (1) to the DVD player assembly.

Fig 2: Identifying DVD Player Wiring Harness & Connector
Courtesy of GENERAL MOTORS CORP.
Install the harness retainer to the panel.
Swing the rear part of the assembly to the headliner so that the retainer is seated.
NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the rear retaining bolts.
Tighten: Tighten the bolts to 9 N.m (80 lb in).

Fig 3: Locating 4 Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
Move the screen to the open position.

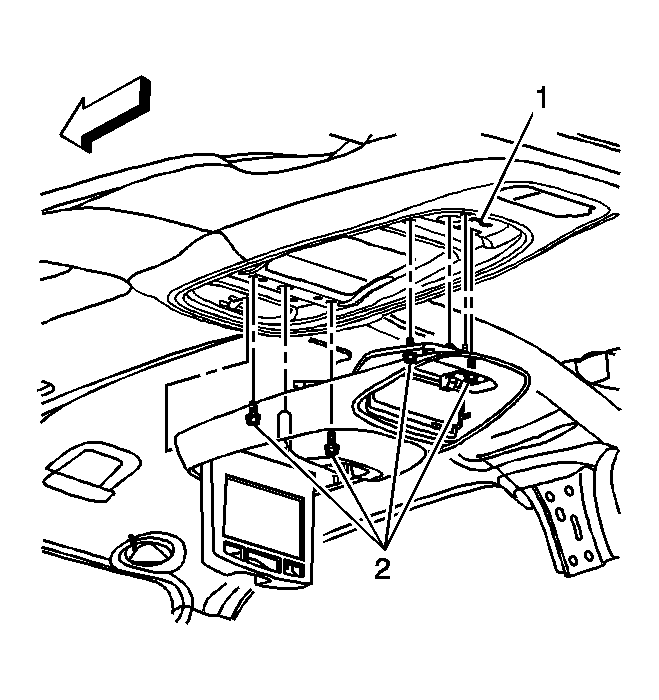

Install the front retaining bolts (2).
Tighten: Tighten the bolts to 9 N.m (80 lb in).

Fig 4: Locating DVD Player Front Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
Close the rear screw cover.
