Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install the hazard warning switch to the center air outlet.
Align the switch to the rear of the air outlet, then push to secure the switch.
Install the center air outlet and the air distribution duct to the IP upper trim pad. Refer to AIR OUTLET REPLACEMENT - CENTER in Heating, Ventilation and Air Conditioning.

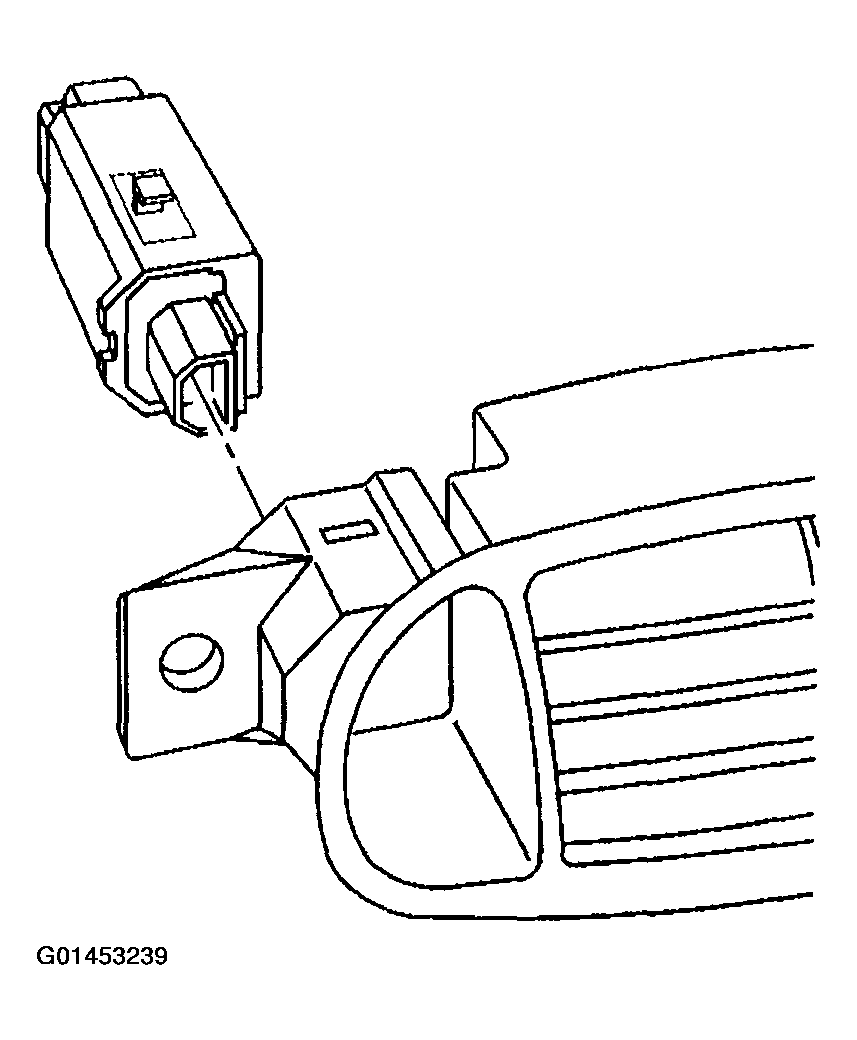

Fig 1: Installing Hazard Warning Switch To Center Air Outlet
Courtesy of GENERAL MOTORS CORP.
Install the hazard warning switch button.
Align the button to the switch, then push to secure.
Position the switch in the off position.
Install the IP upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gauges and Console.

Fig 2: Hazard Warning Switch Button
Courtesy of GENERAL MOTORS CORP.
