Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery tray.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the battery tray bolts.

    Tighten

    Tighten the battery tray bolts to 5 N.m (44 lb in).

  3. Install the battery. Refer to Battery Replacement .
  4. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .

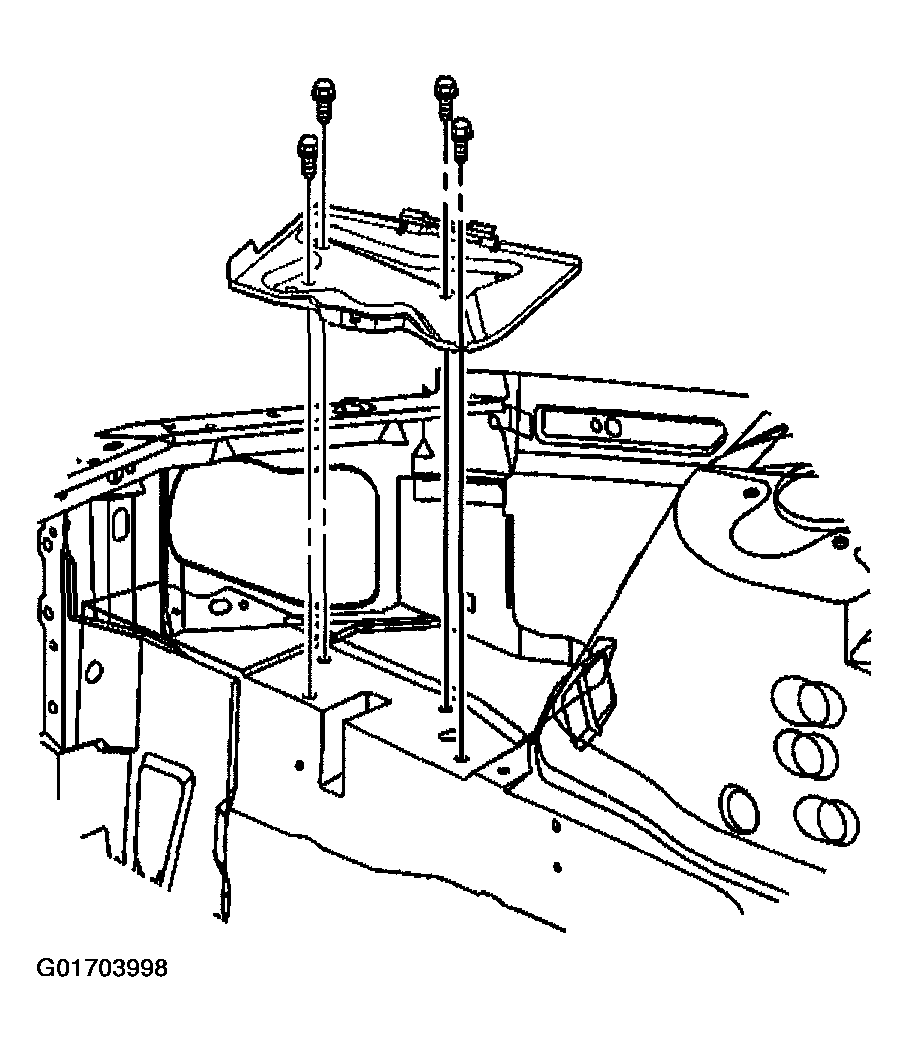

    Fig 1: Battery Tray & Bolts
    G01703998Courtesy of GENERAL MOTORS CORP.
