Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the lumbar control switch to the seat.
  2. Connect the electrical connector (1) to the seat harness.

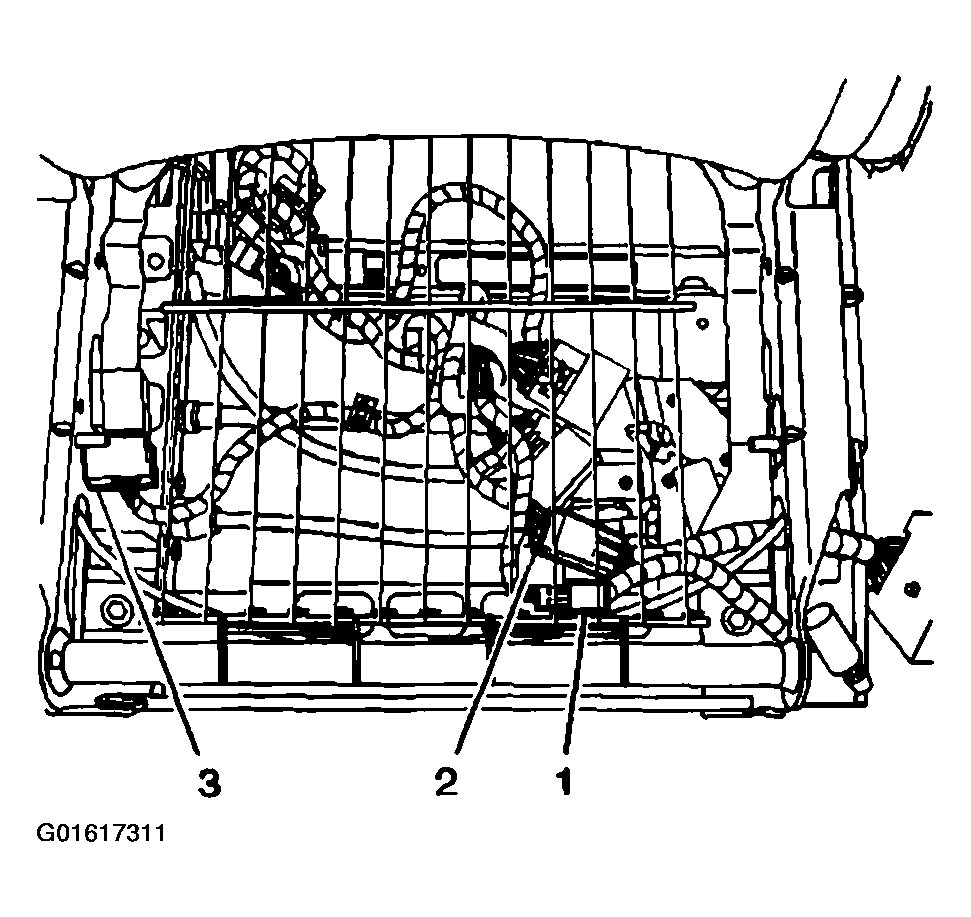

    Fig 1: Locating Seat Harness Electrical Connector
    G01617311Courtesy of GENERAL MOTORS CORP.
  3. Press the switch into the mount on the trim panel.
  4. Install the trim panel. Refer to Trim Panel Replacement - Front Seat .

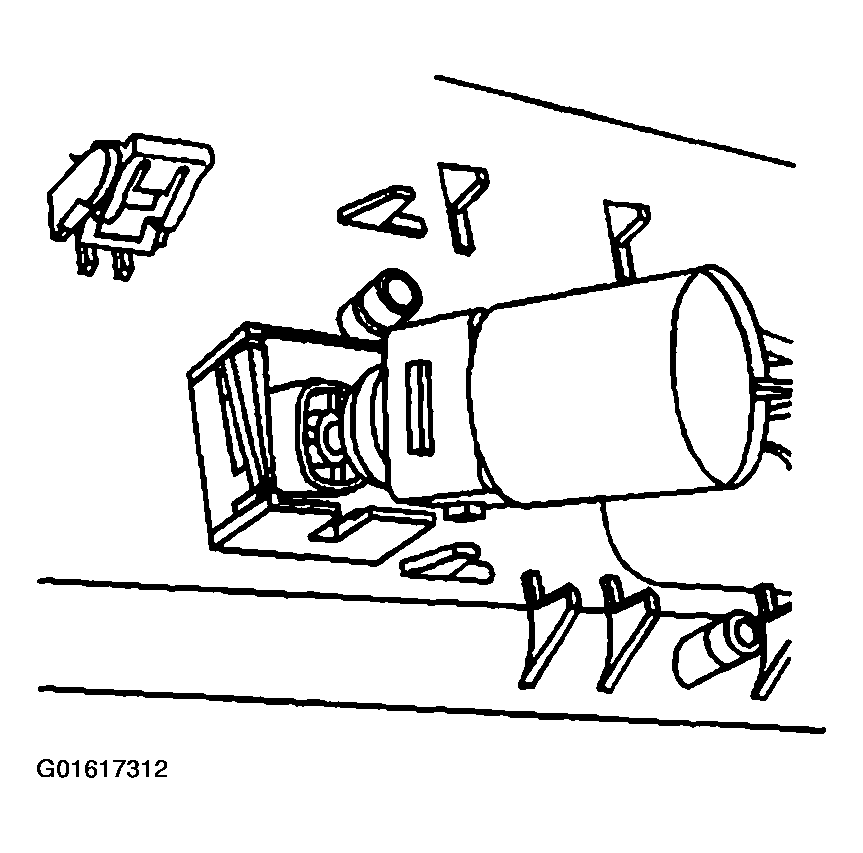

    Fig 2: Lumbar Control Switch
    G01617312Courtesy of GENERAL MOTORS CORP.
