Automatic Level Control Suspension Component Views

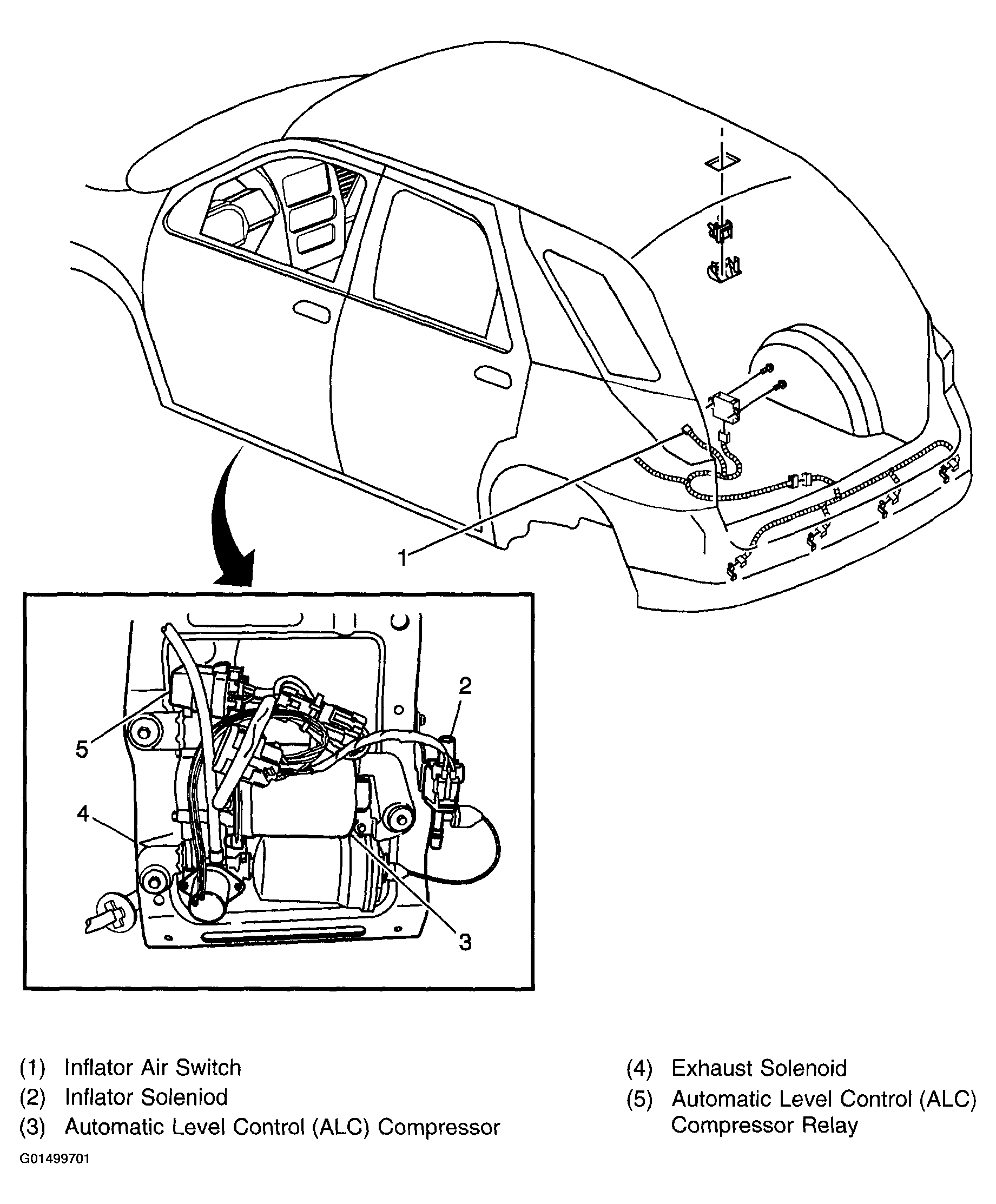

Fig 1: Locating Relay, Switch, Solenoid & Compressor Assembly
G01499701Courtesy of GENERAL MOTORS CORP.

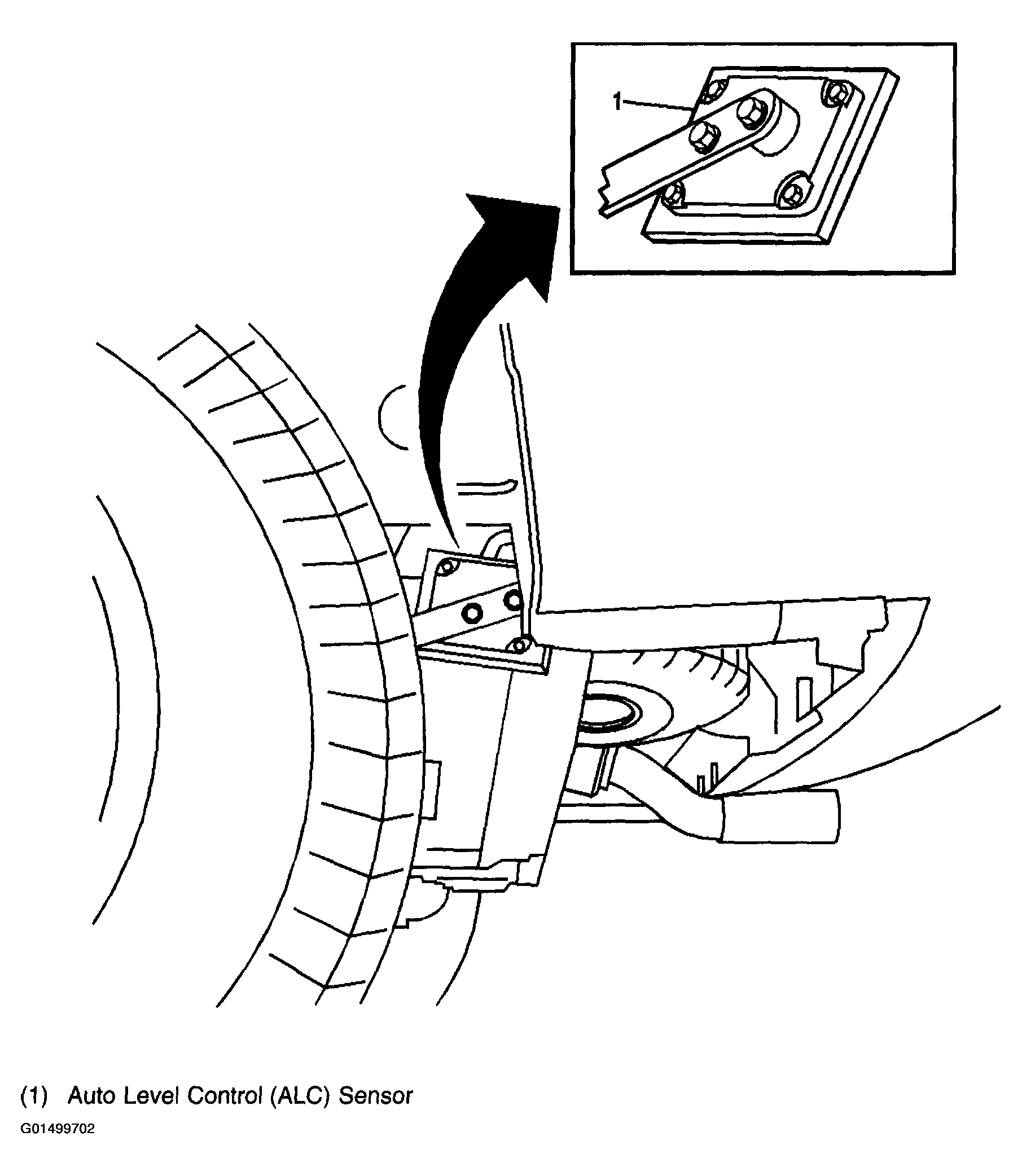

Fig 2: Locating Automatic Level Control (ALC) Sensor
G01499702Courtesy of GENERAL MOTORS CORP.
