Installation Procedure

  1. Install the bolts (1) and bracket to the compressor.

    Tighten

    Tighten the air compressor bolts to 6 N.m (53 Ib in).

  2. Install the air compressor to the air compressor bracket.

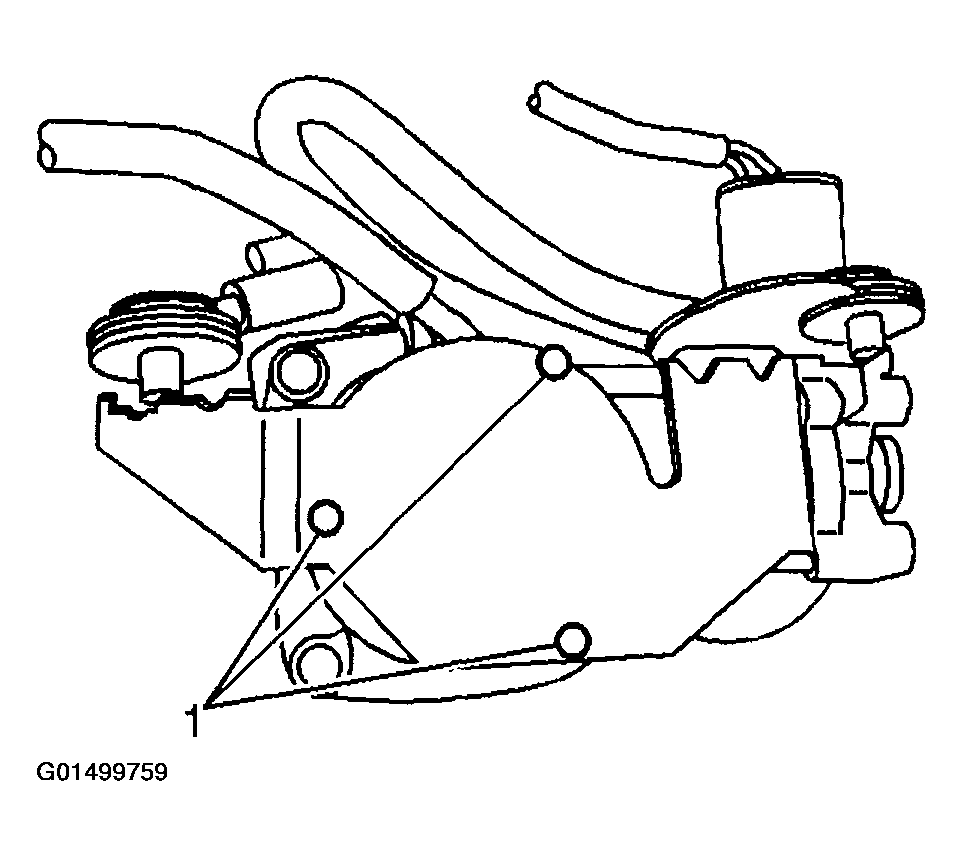

    Fig 1: Air Compressor Installing Procedure (1 Of 5)
    G01499759Courtesy of GENERAL MOTORS CORP.
  3. Install the air compressor bolts (1).

    Tighten

    Tighten the air compressor bolts to 6 N.m (53 Ib in).

  4. Install the air dryer. Refer to AUTOMATIC LEVEL CONTROL AIR DRYER REPLACEMENT  .

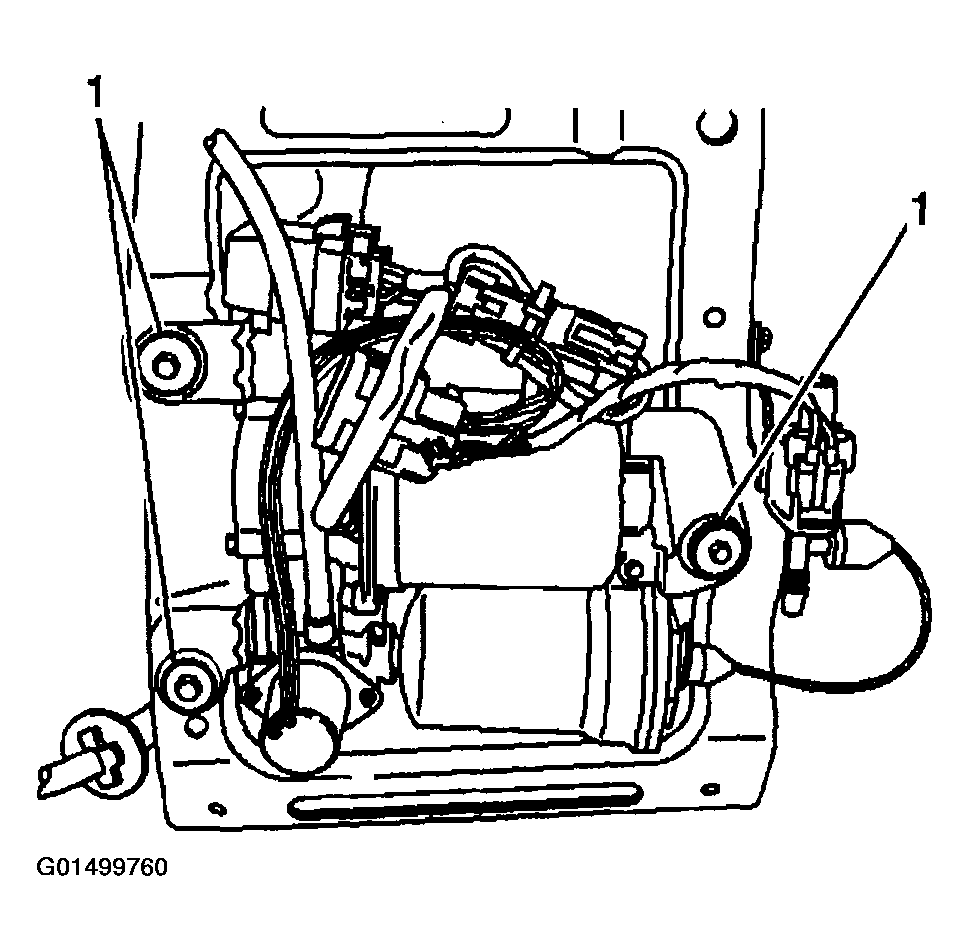

    Fig 2: Air Compressor Installing Procedure (2 Of 5)
    G01499760Courtesy of GENERAL MOTORS CORP.
  5. Install the air tubes (1) onto the inflator solenoid.

    Refer to INFLATOR SOLENOID REPLACEMENT  .

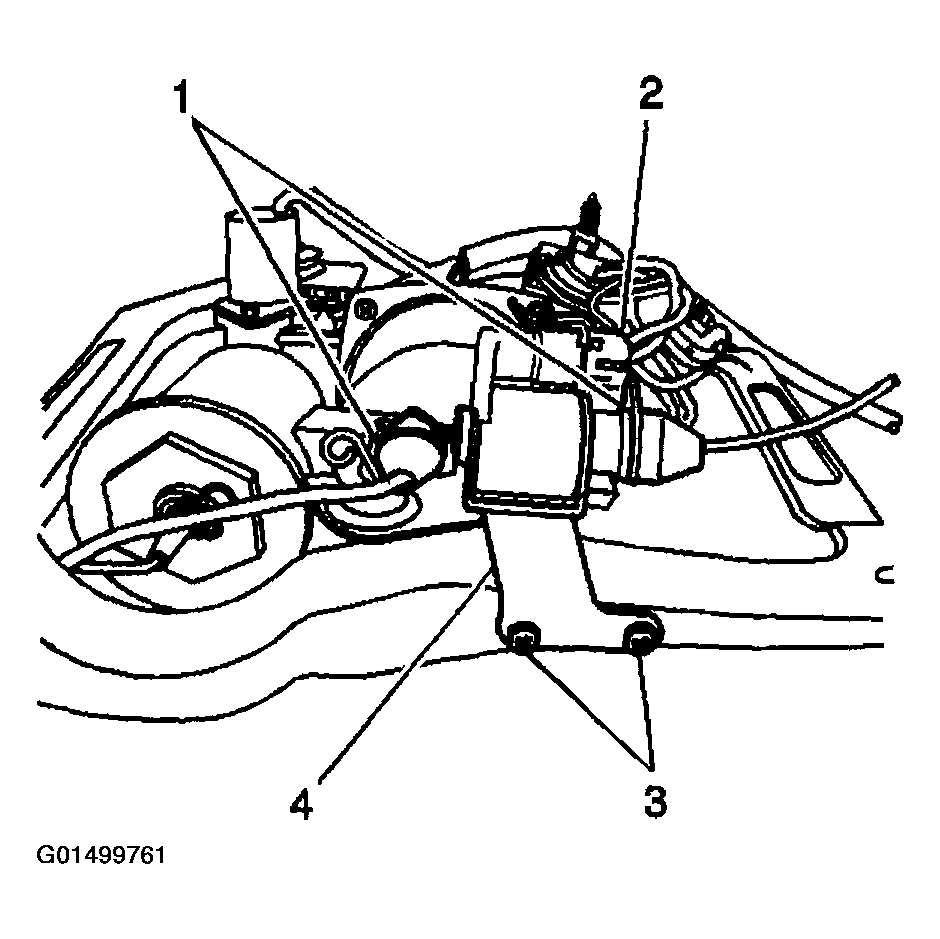

    Fig 3: Air Compressor Installing Procedure (3 Of 5)
    G01499761Courtesy of GENERAL MOTORS CORP.
  6. Install the compressor wires into the electrical connector.
  7. Connect the air compressor electrical connector.
  8. Install the air compressor filter to the underbody rail.
    Fig 4: Air Compressor Installing Procedure (4 Of 5)
    G01499762Courtesy of GENERAL MOTORS CORP.
  9. Install the air compressor and bracket to the underbody rail.
  10. Install the air compressor bracket nuts.

    Tighten

    Tighten the air compressor bracket nuts to 10 N.m (89 lb in).

  11. Install the air compressor bracket bolts.

    Tighten

    Tighten the air compressor bracket bolts to 10 N.m (89 lb in).

  12. Lower the vehicle.

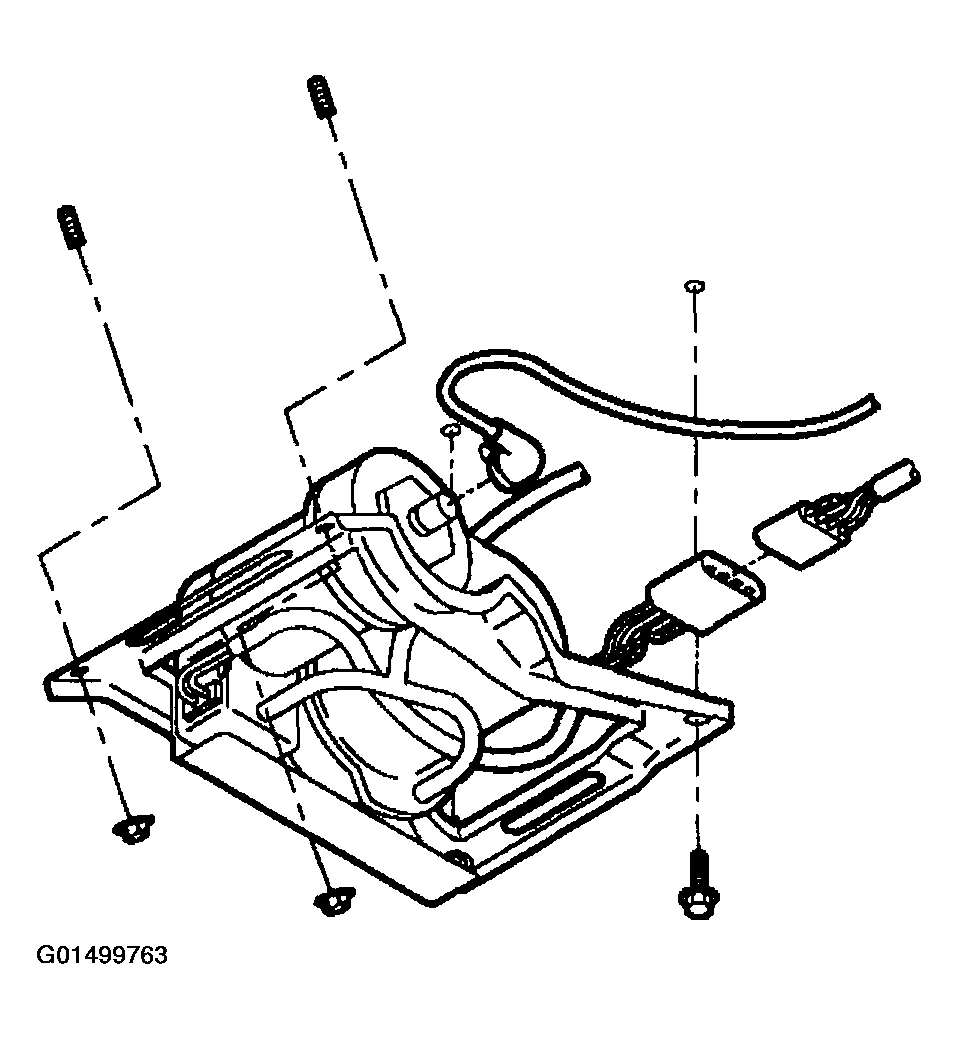

    Fig 5: Air Compressor Installing Procedure (5 Of 5)
    G01499763Courtesy of GENERAL MOTORS CORP.
