Installation Procedure

  1. Install the O-ring to the speed sensor, if removed.
  2. Install the speed sensor (1) to the transfer case.

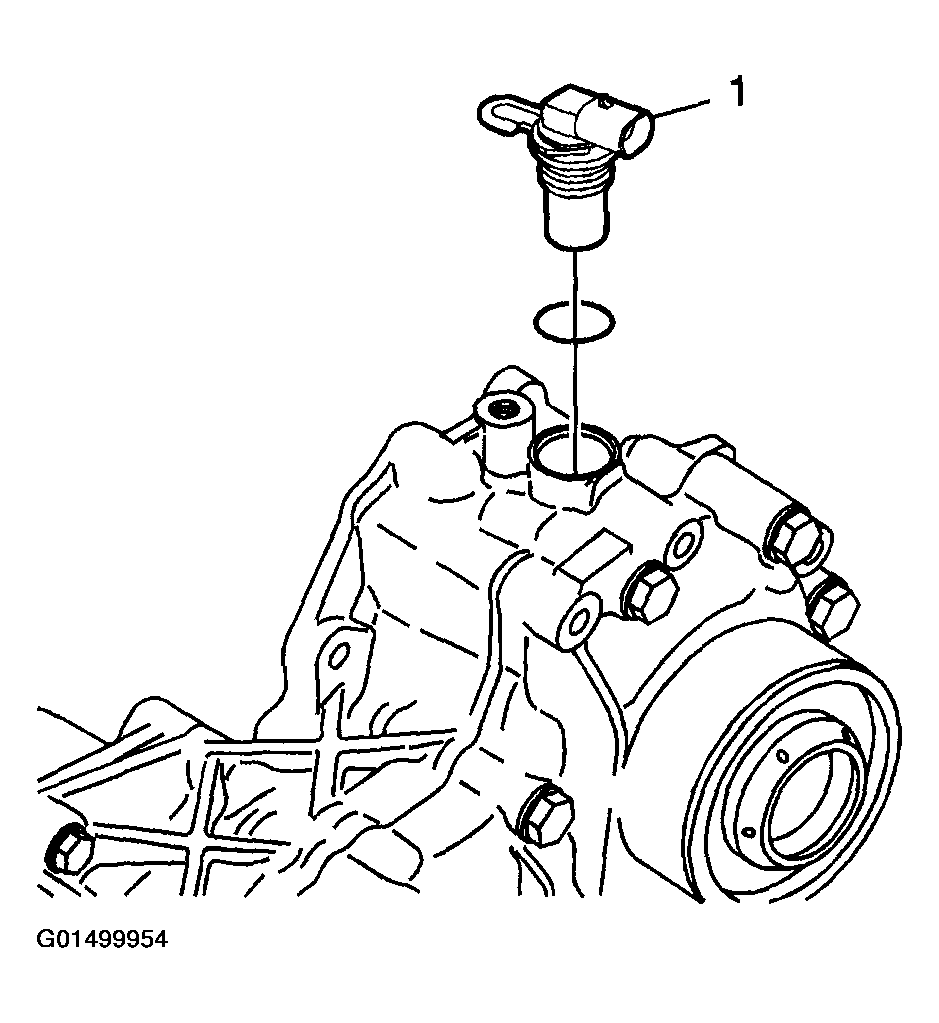

    Fig 1: Installing Speed Sensor To Transfer Case
    G01499954Courtesy of GENERAL MOTORS CORP.
  3. Position the pinion housing vent hose (2) and mounting bracket to the speed sensor bolt boss.

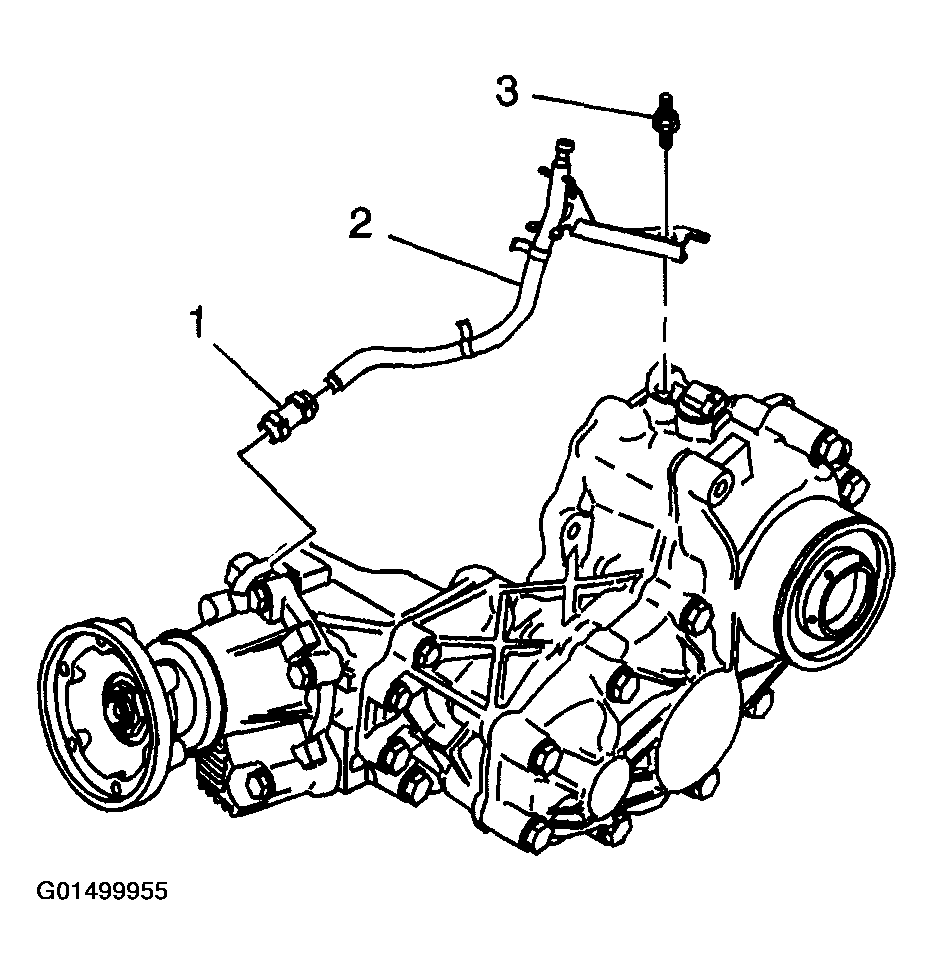

    Fig 2: Pinion Housing Vent Hose & Mounting Bracket To Speed Sensor Bolt Boss
    G01499955Courtesy of GENERAL MOTORS CORP.
  4. Install the speed sensor bolt (3) to the transfer case.

    Tighten

    Tighten the bolt to 30 N.m (22 lb ft).

  5. Connect the electrical connector to the speed sensor.
  6. Lower the vehicle.
