Splice Locations

SP205 - SP409:

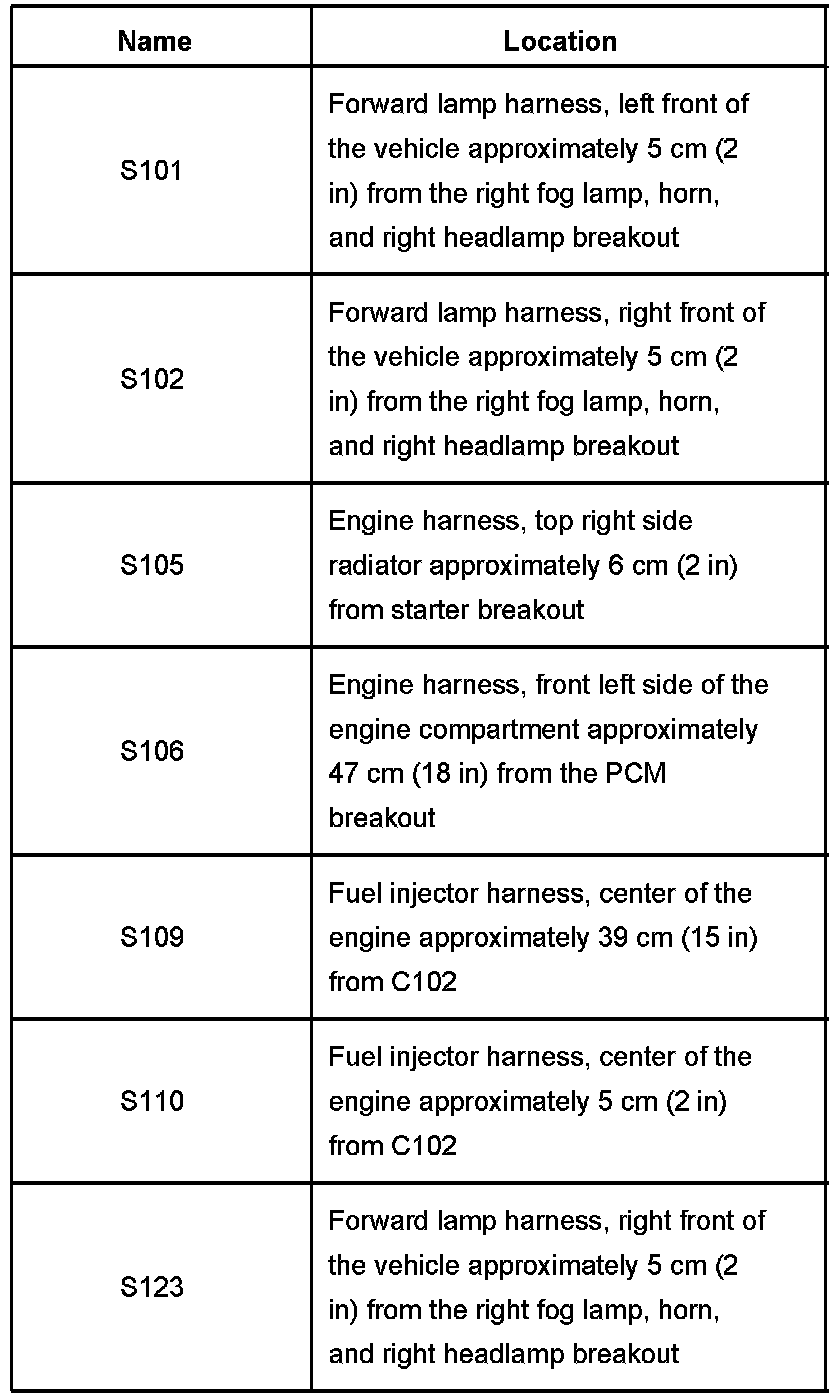

S101 - S123:

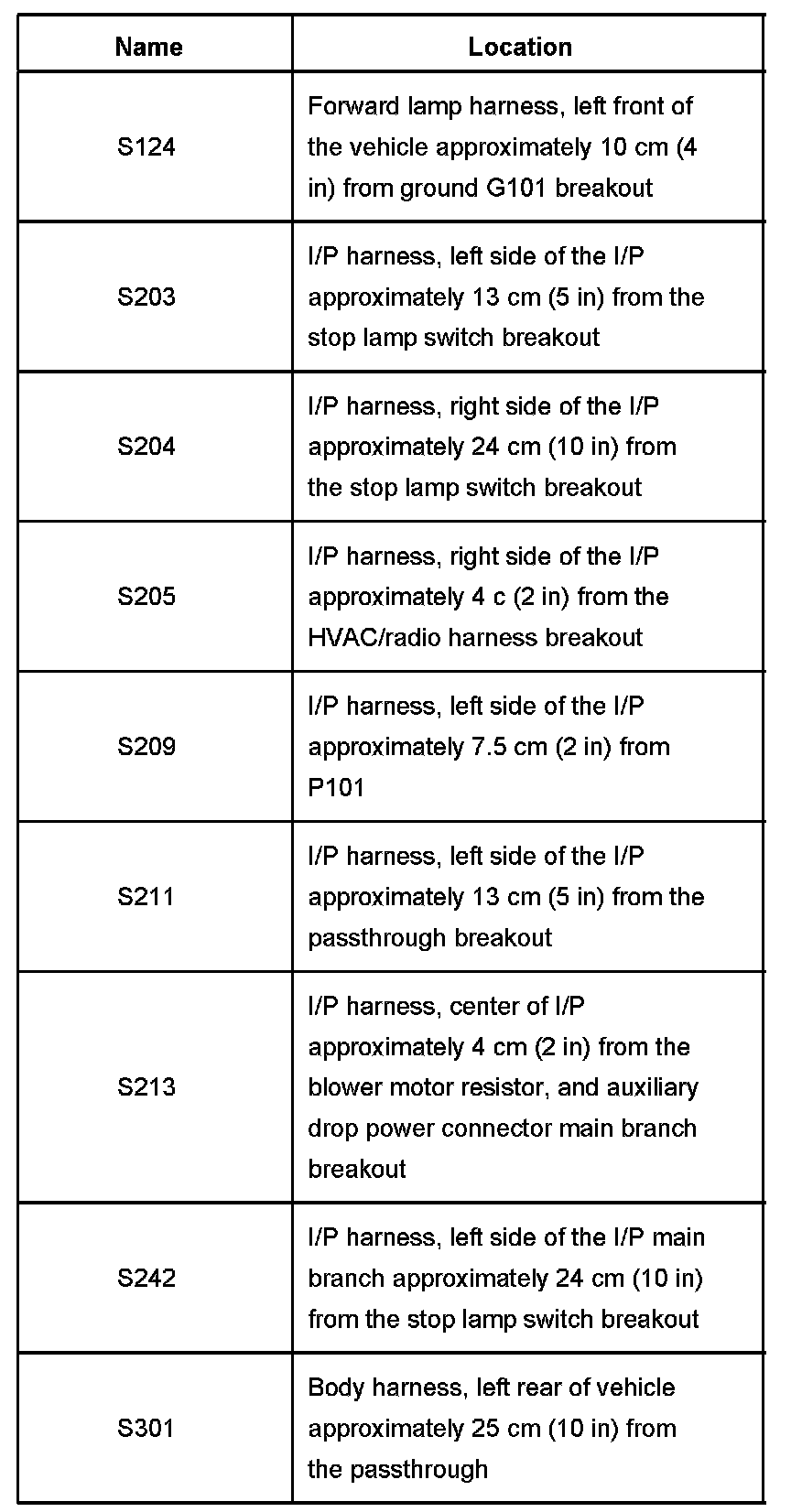

S124 - S301:

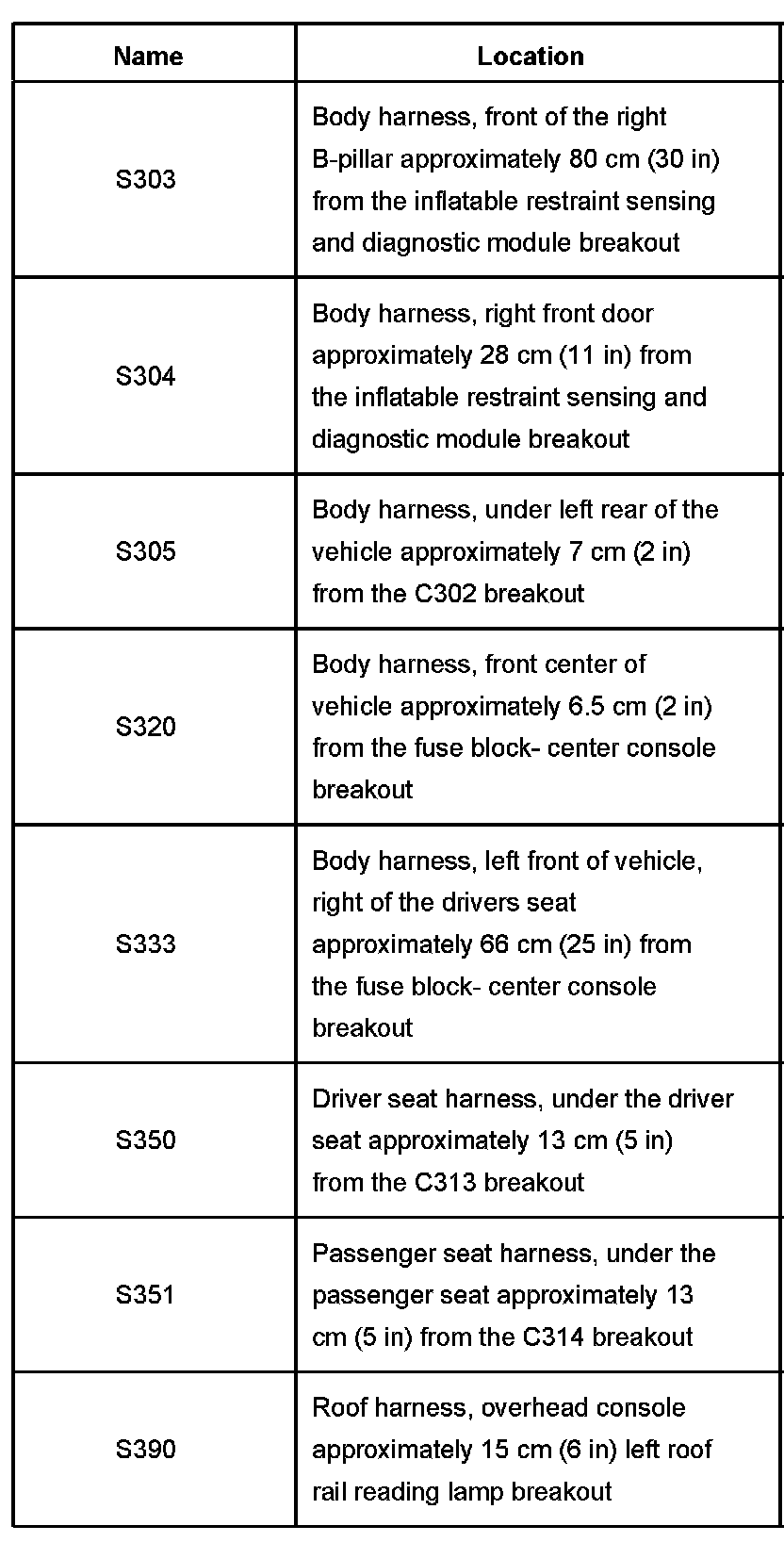

S303 - S390:

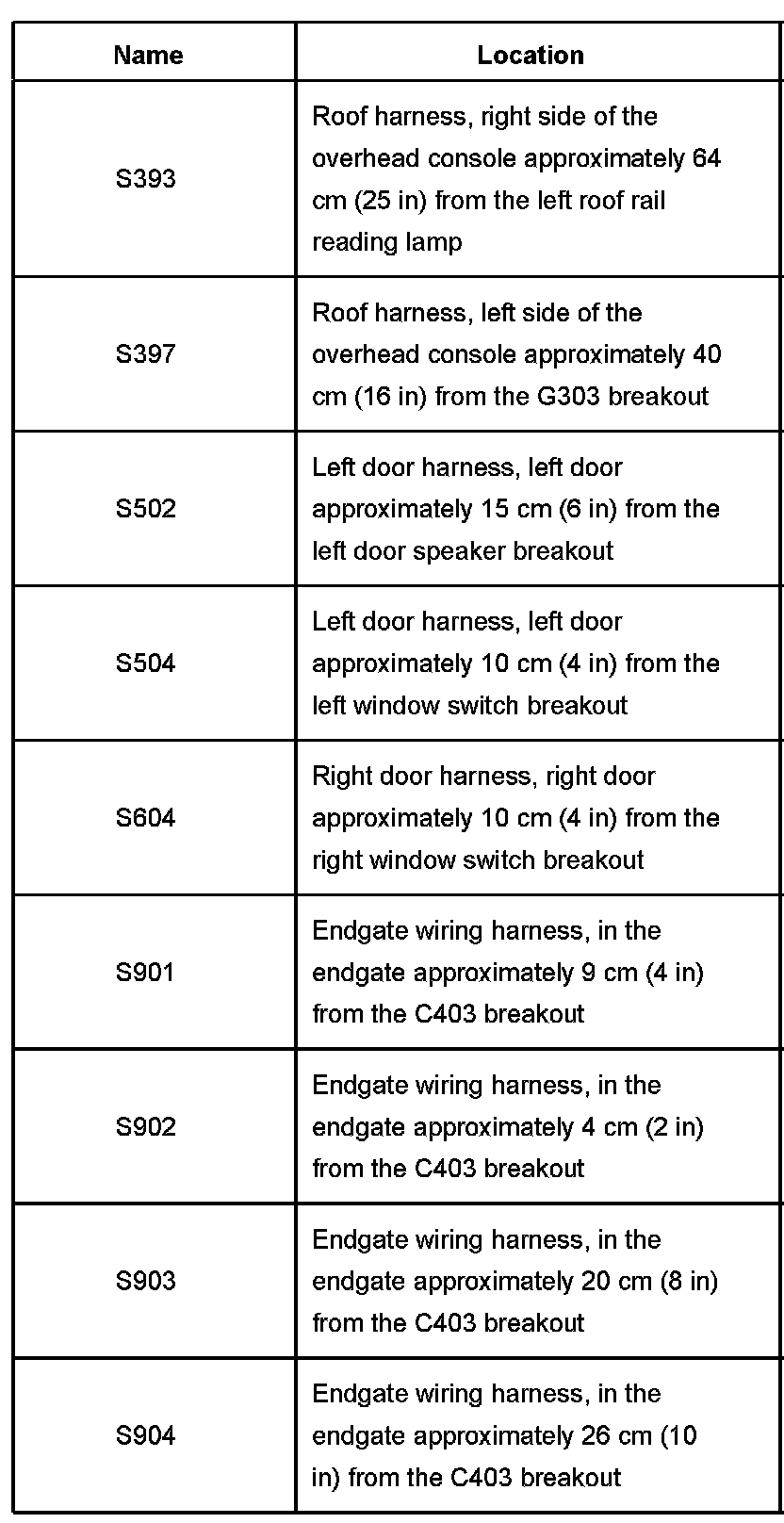

S393 - S904:




S905 - S907:
