Relay Box: Application and ID

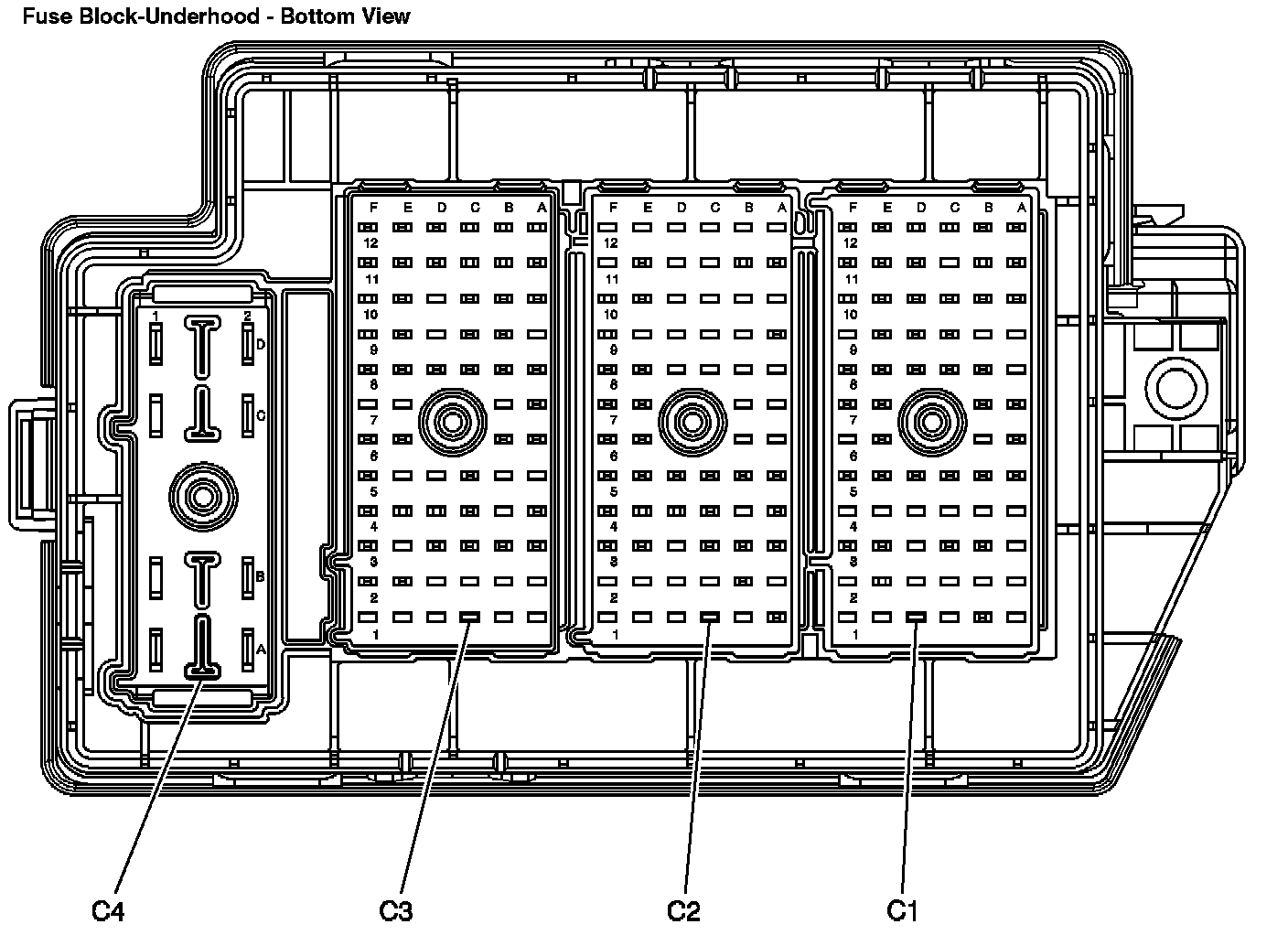

Location View:

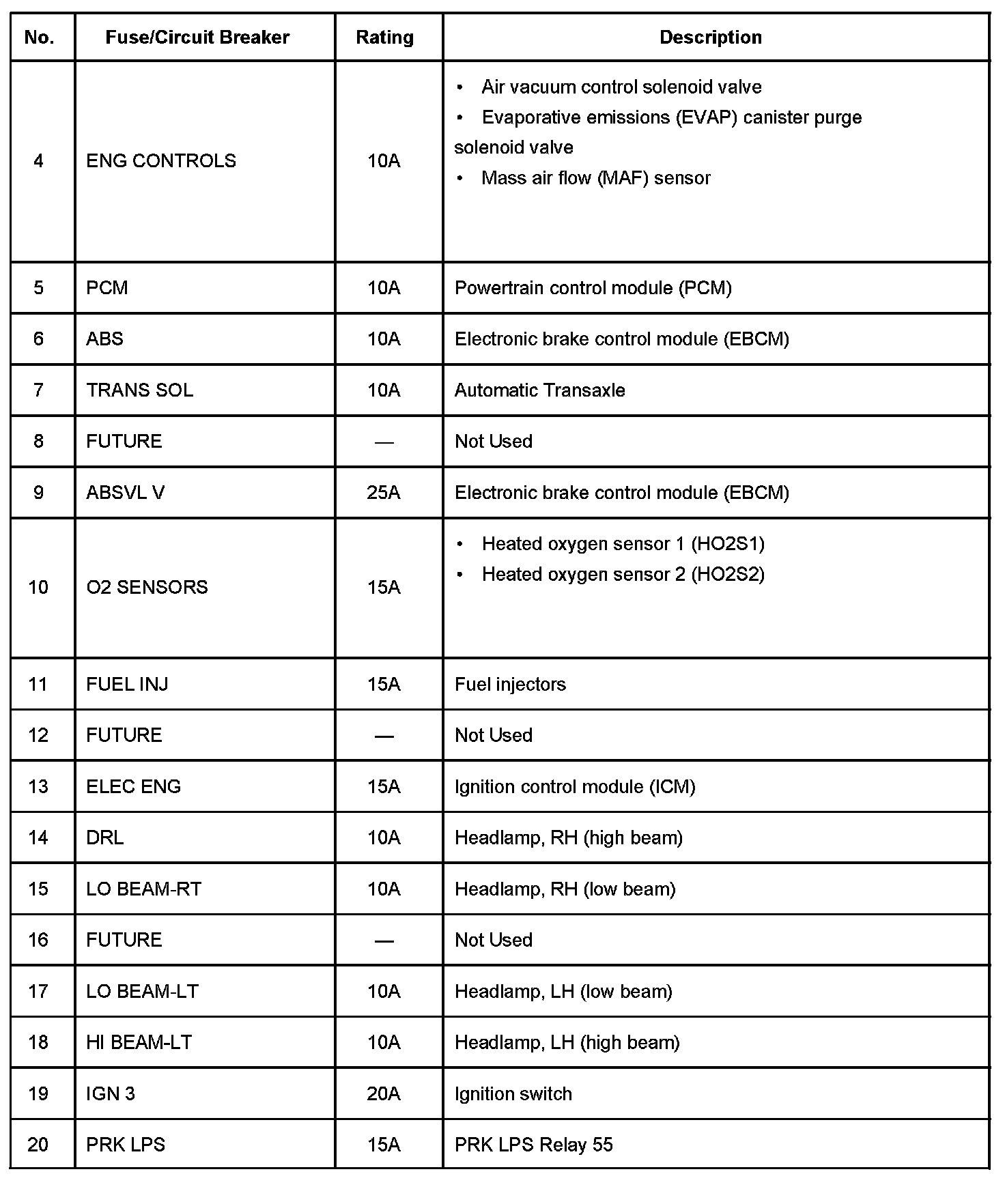

Application Table Part 1:

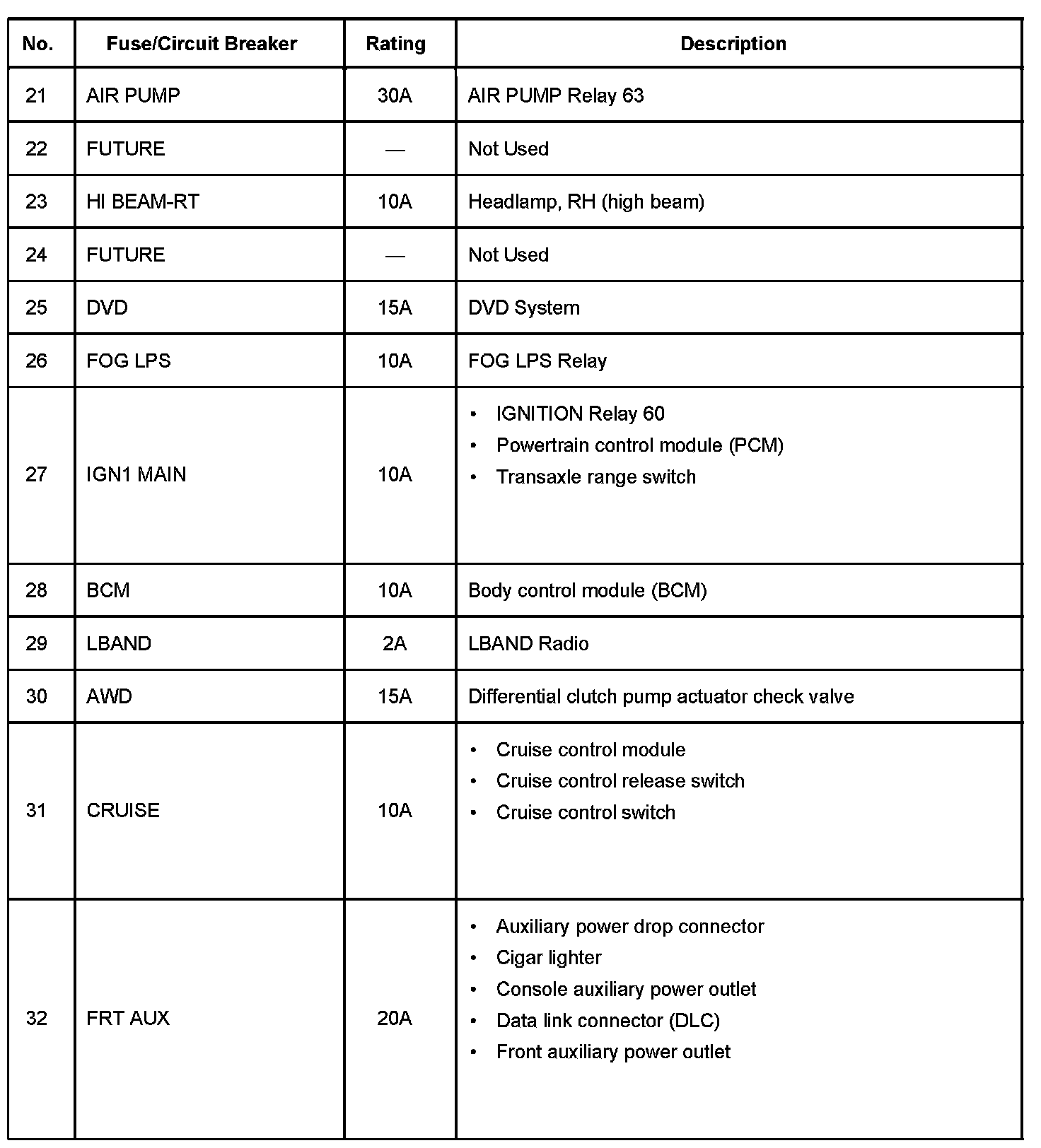

Application Table Part 2:

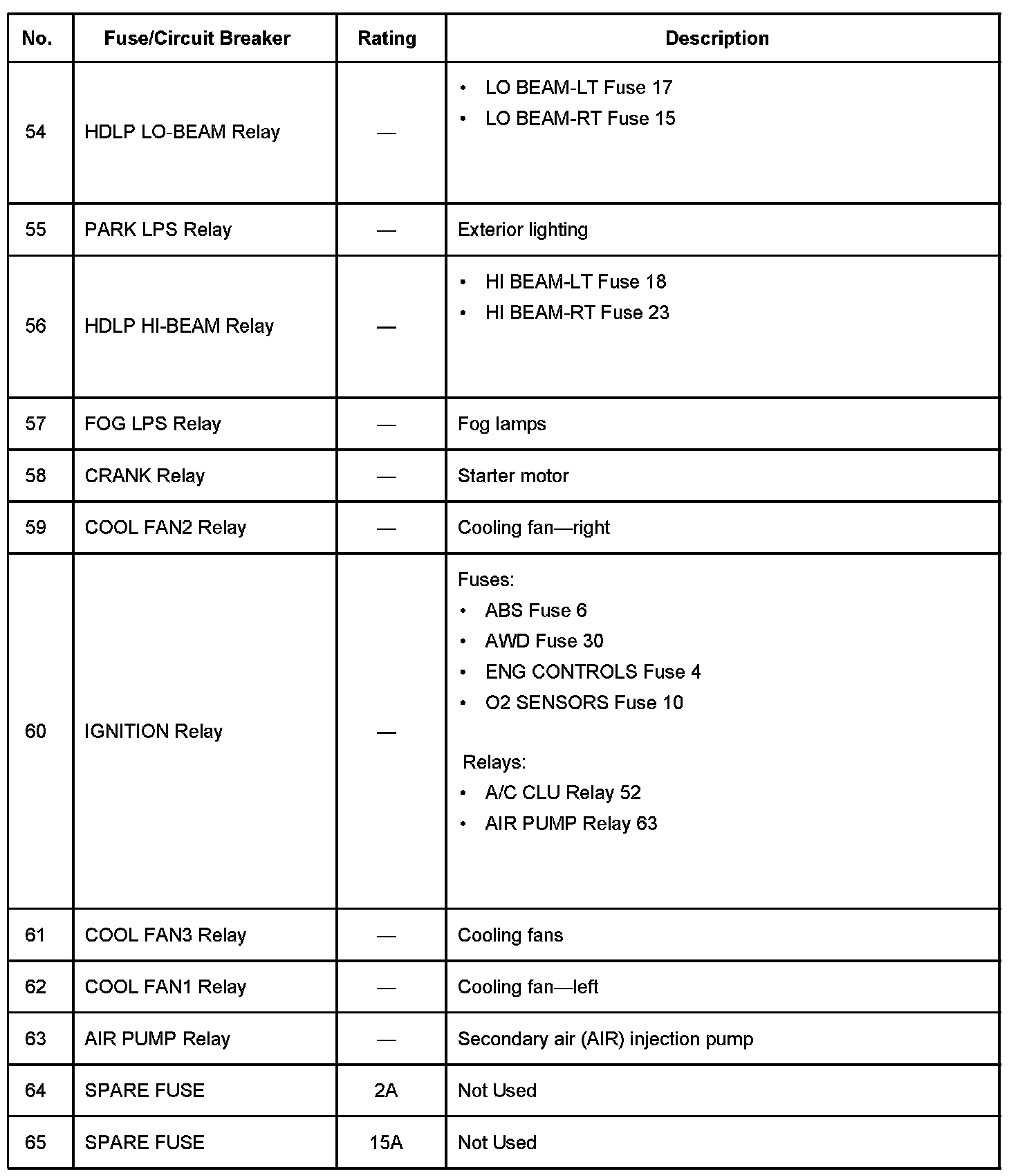

Application Table Part 3:




Application Table Part 4:




Application Table Part 5:




Application Table Part 6:




Application Table Part 7:

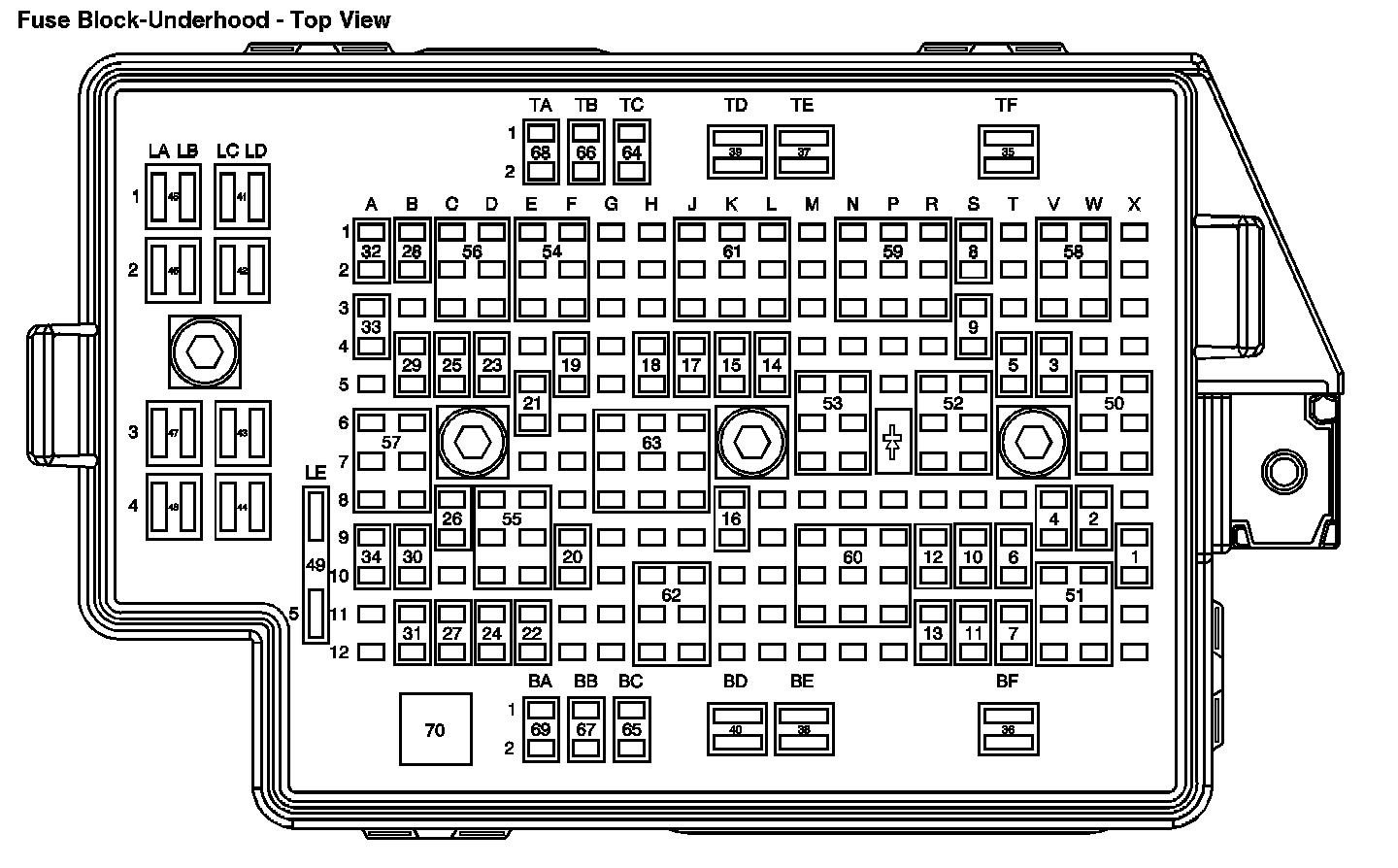

Location View:

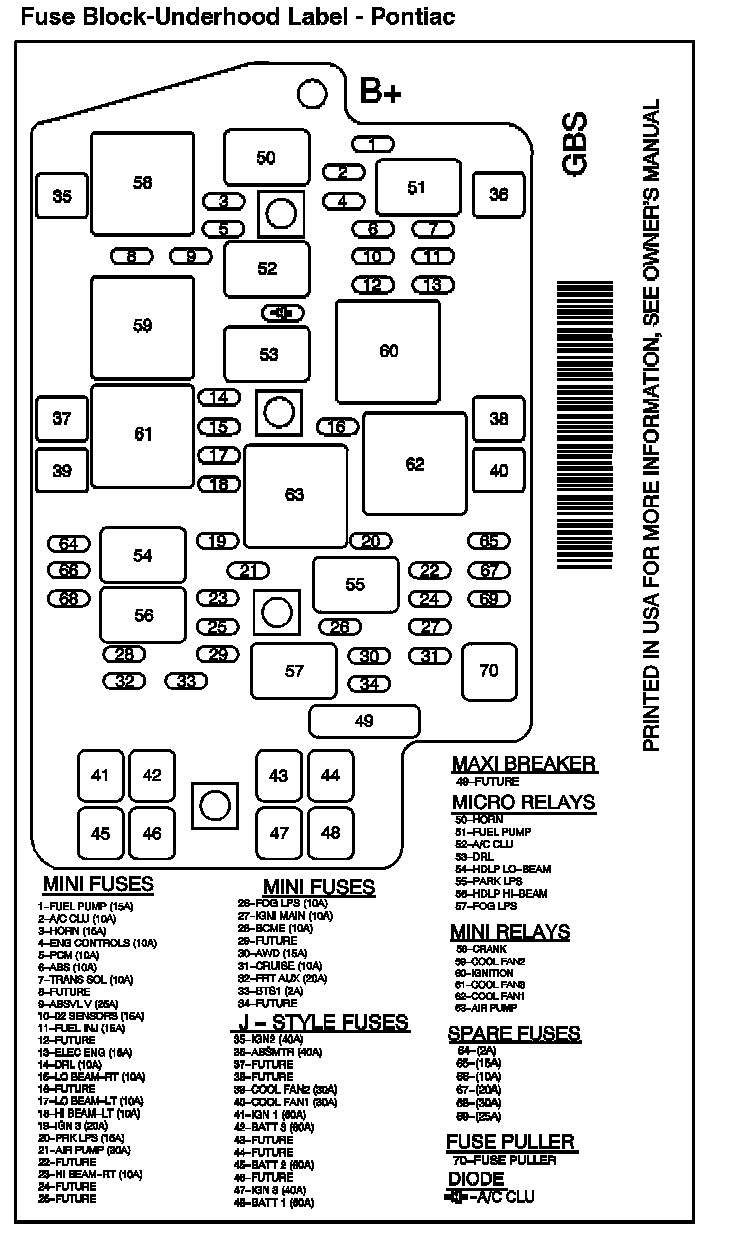

Location View:
