Automatic Transmission Shift Lock Control Connector End Views

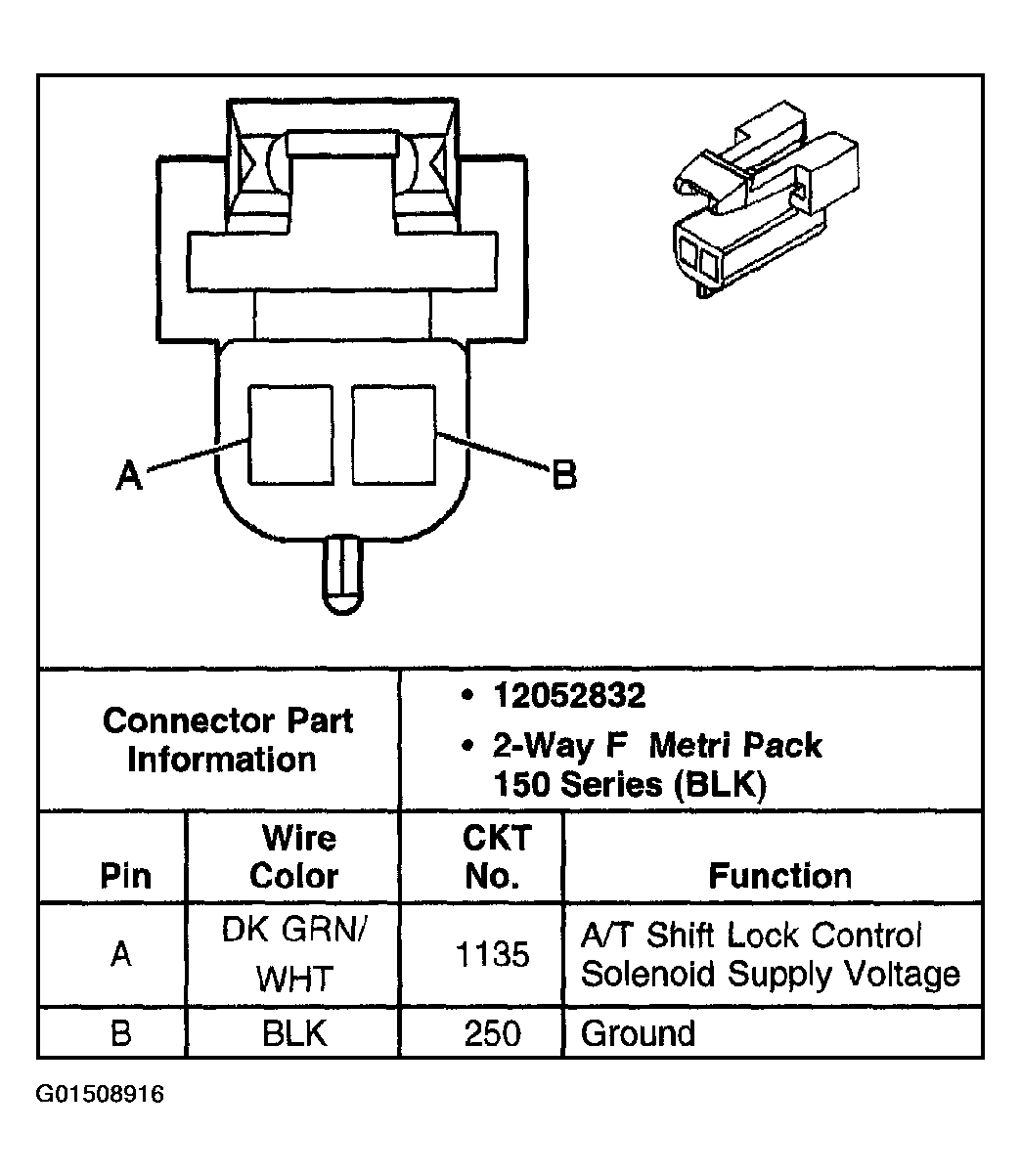

Fig 1: Identifying Automatic Transmission Shift Lock Control Solenoid Connector Terminals

Courtesy of GENERAL MOTORS CORP.

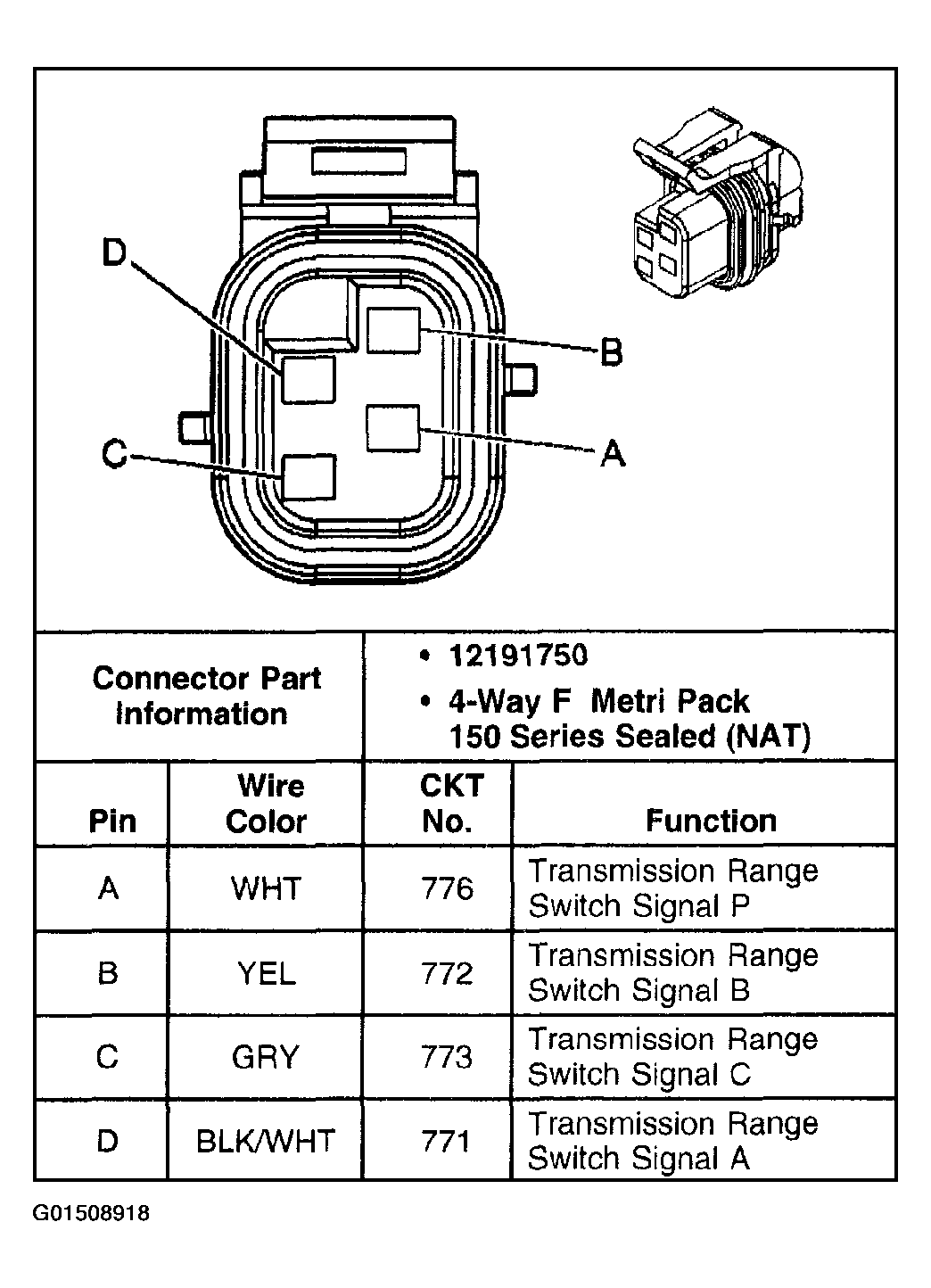

Fig 2: Identifying Park/Neutral Position Switch, C1 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

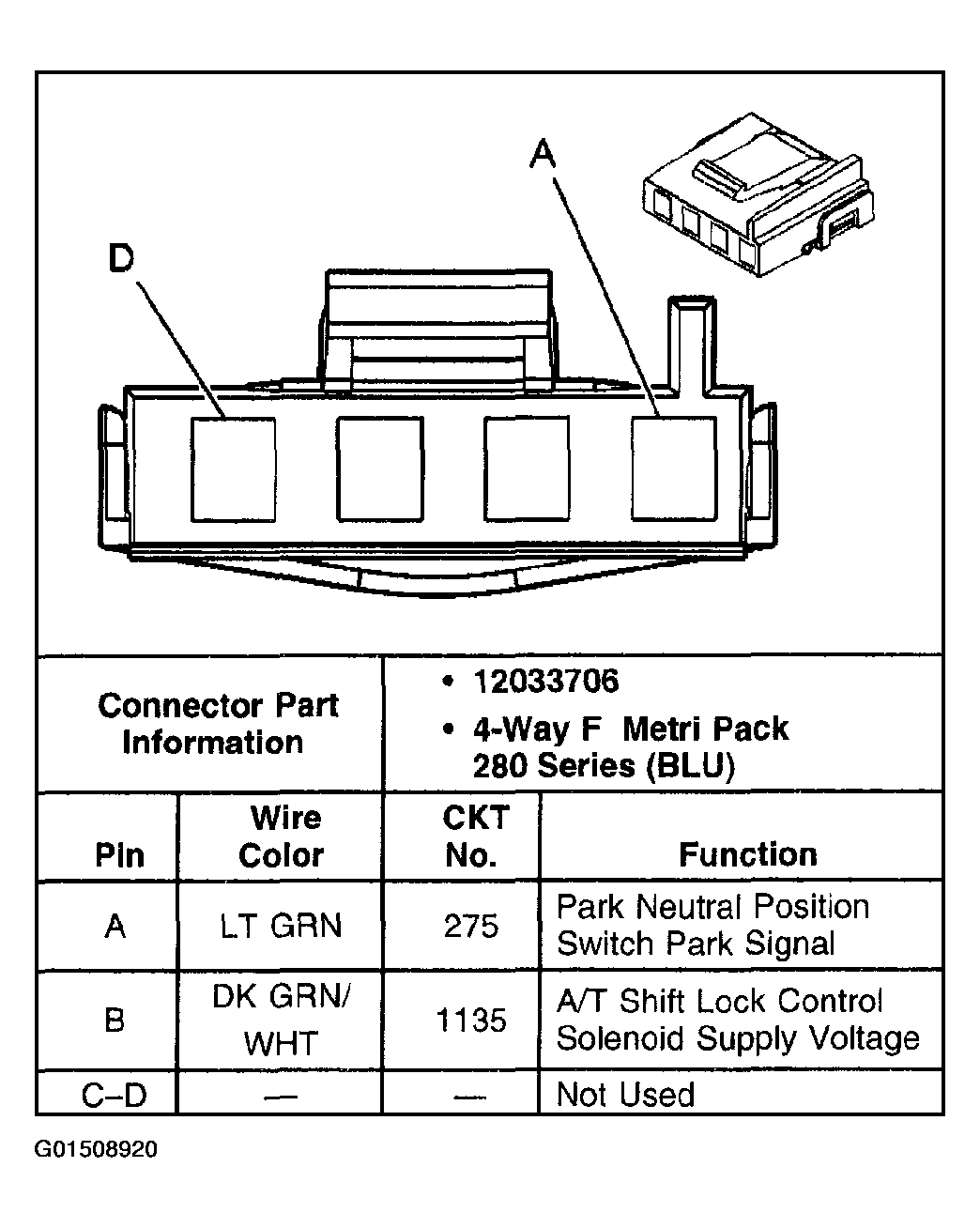

Fig 3: Identifying Park/Neutral Position Switch, C2 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

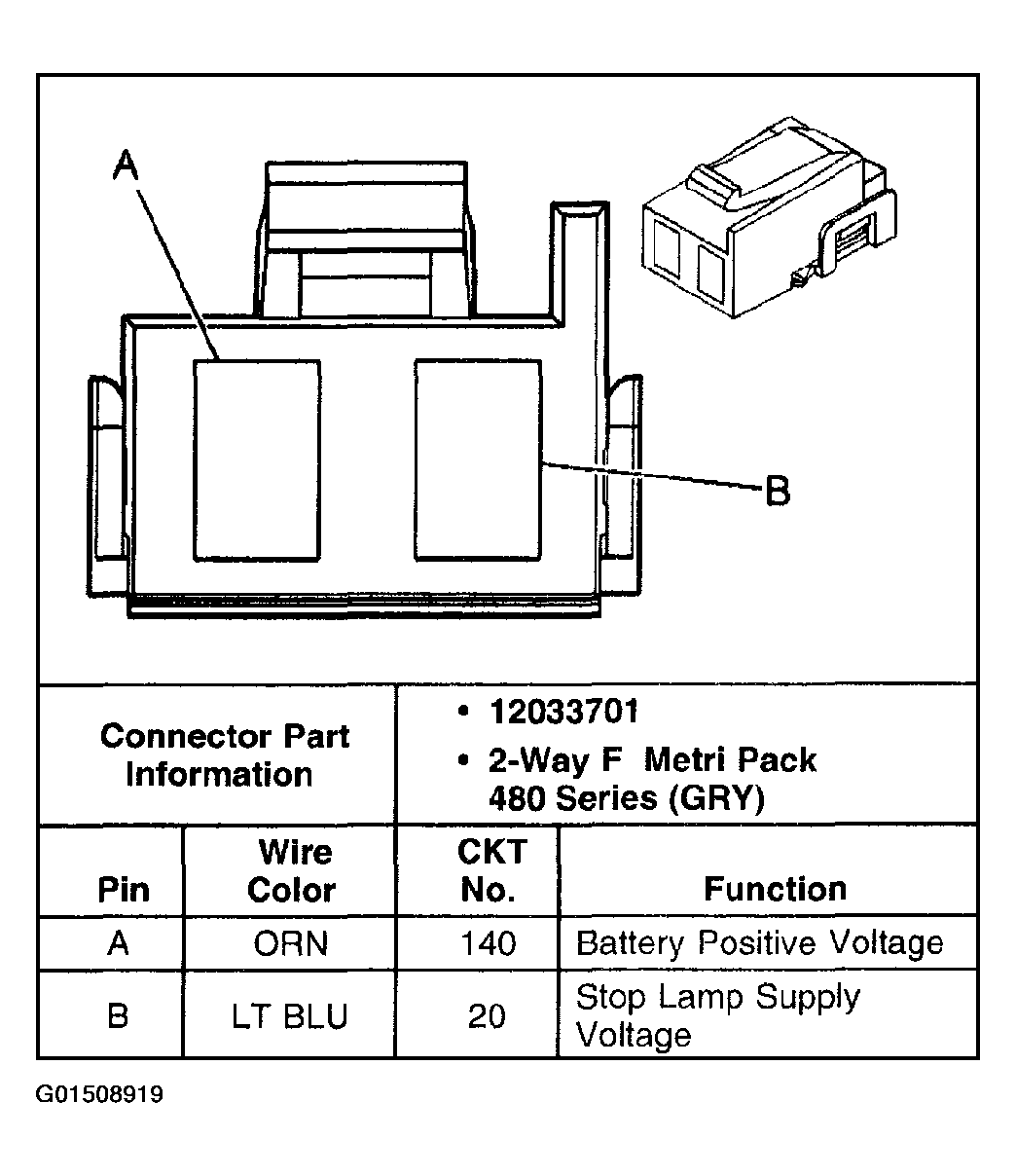

Fig 4: Identifying Stop Lamp Switch, C1 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Stop Lamp Switch, C2 Connector Terminals

Courtesy of GENERAL MOTORS CORP.
