Automatic Transmission Shift Lock Control Schematics

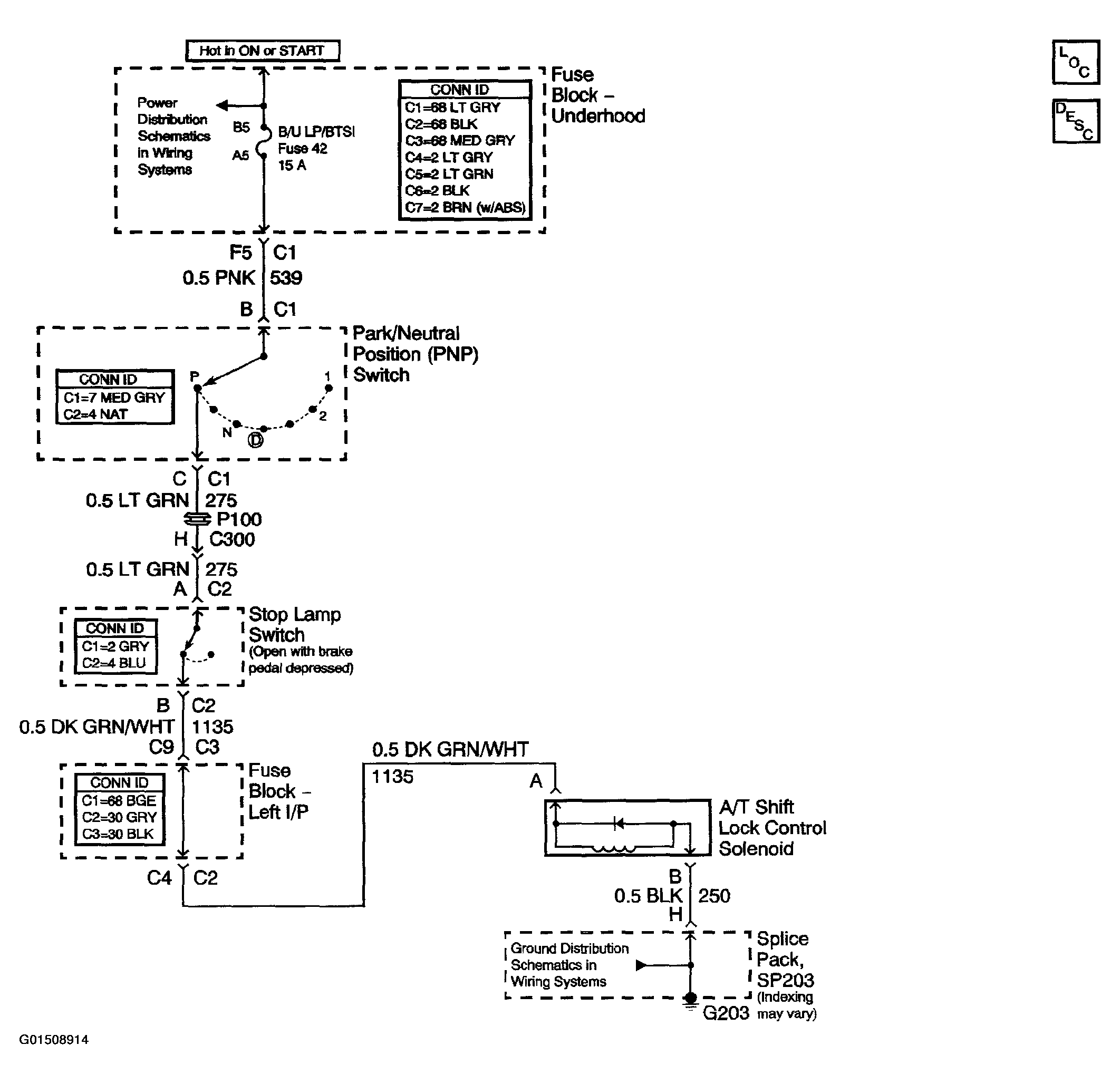

Fig 1: Automatic Transmission Shift Lock Control Schematics Diagram
G01508914Courtesy of GENERAL MOTORS CORP.
