HVAC Control Module, C1 Connector End View

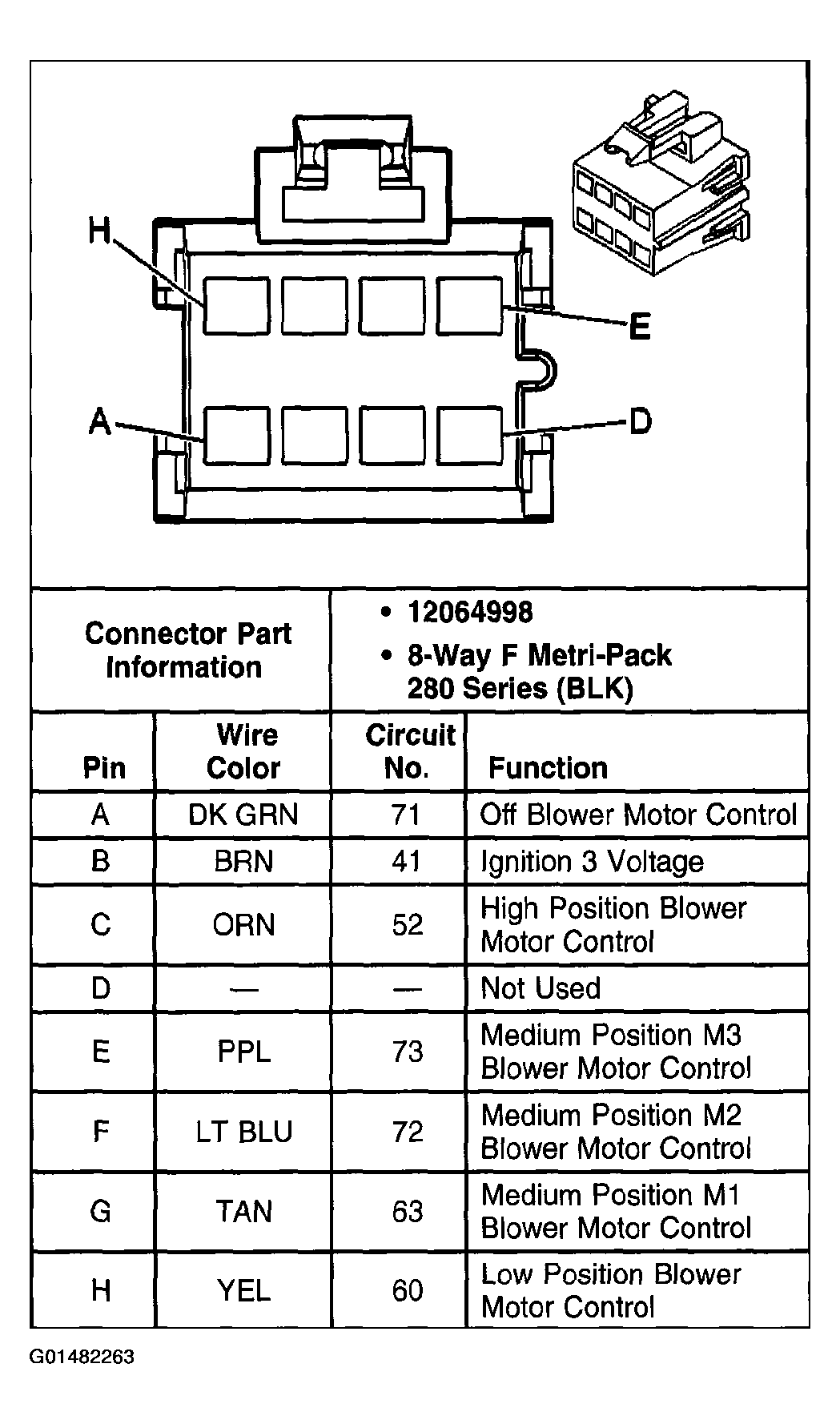

Fig 1: HVAC Control Module, C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
