Installation Procedure

Important:  Locate the opening in the retaining guide block (1).

1. Install the inside handle rod to the retaining guide block (1), push inward to secure the rod.
2. Install the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  or Install the rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .

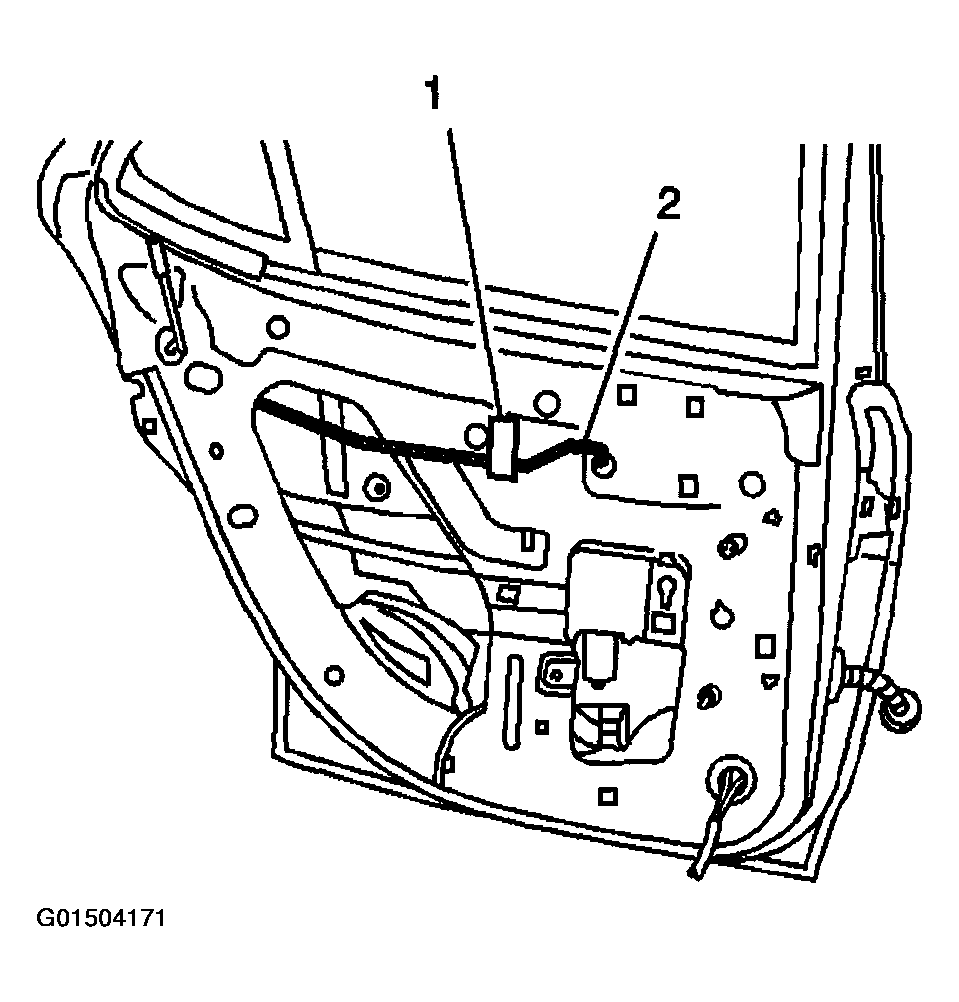

   Fig 1: Installing Inside Handle Rod To Retaining Guide Block

   Courtesy of GENERAL MOTORS CORP.
