Stationary Windows Component Views

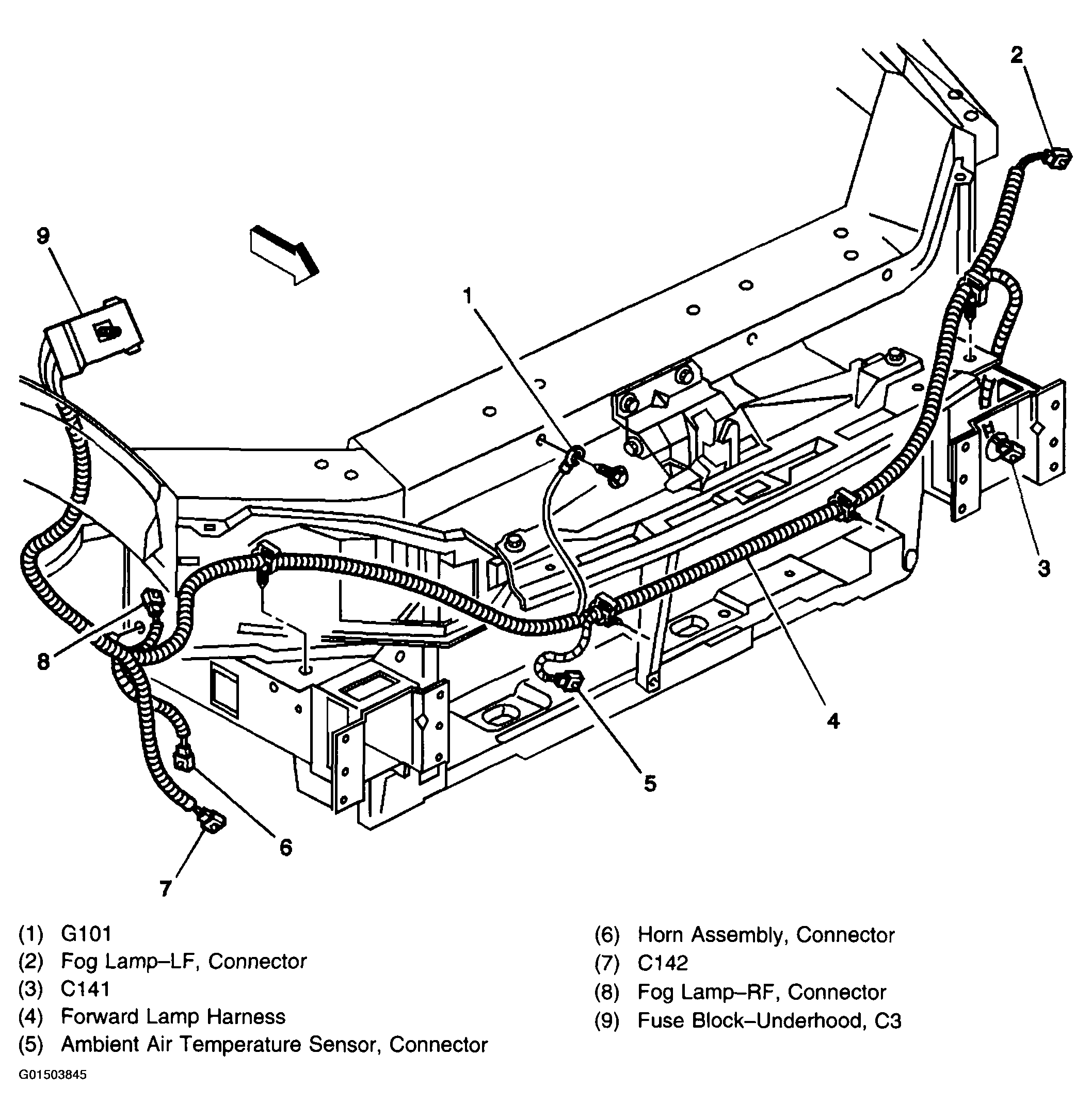

Fig 1: Stationary Windows Component View (Front Of Vehicle)

Courtesy of GENERAL MOTORS CORP.

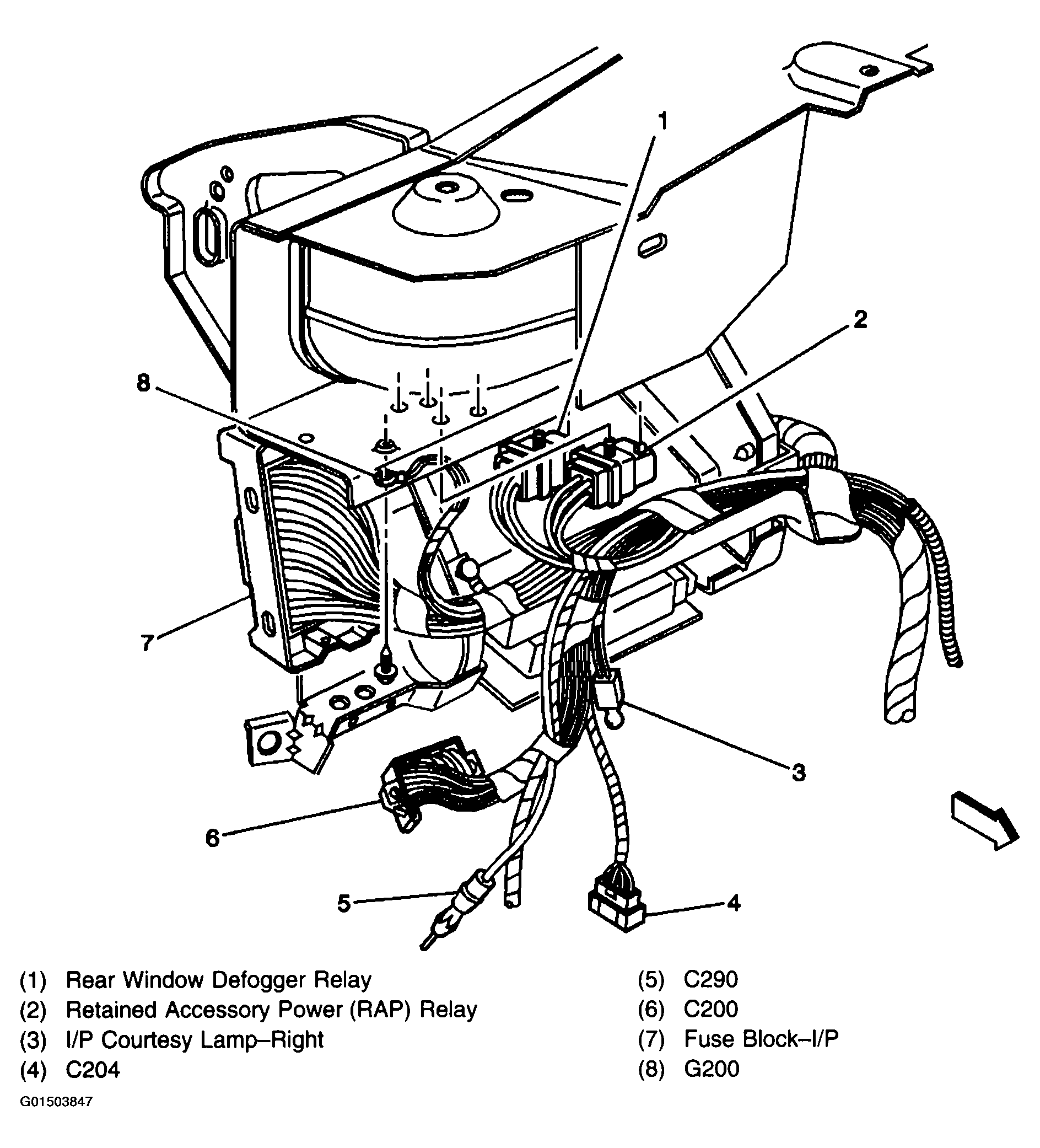

Fig 2: Stationary Windows Component View (Forward Center Of Interior Compartment)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Stationary Windows Component View (Behind Instrument Panel-Right Side)

Courtesy of GENERAL MOTORS CORP.

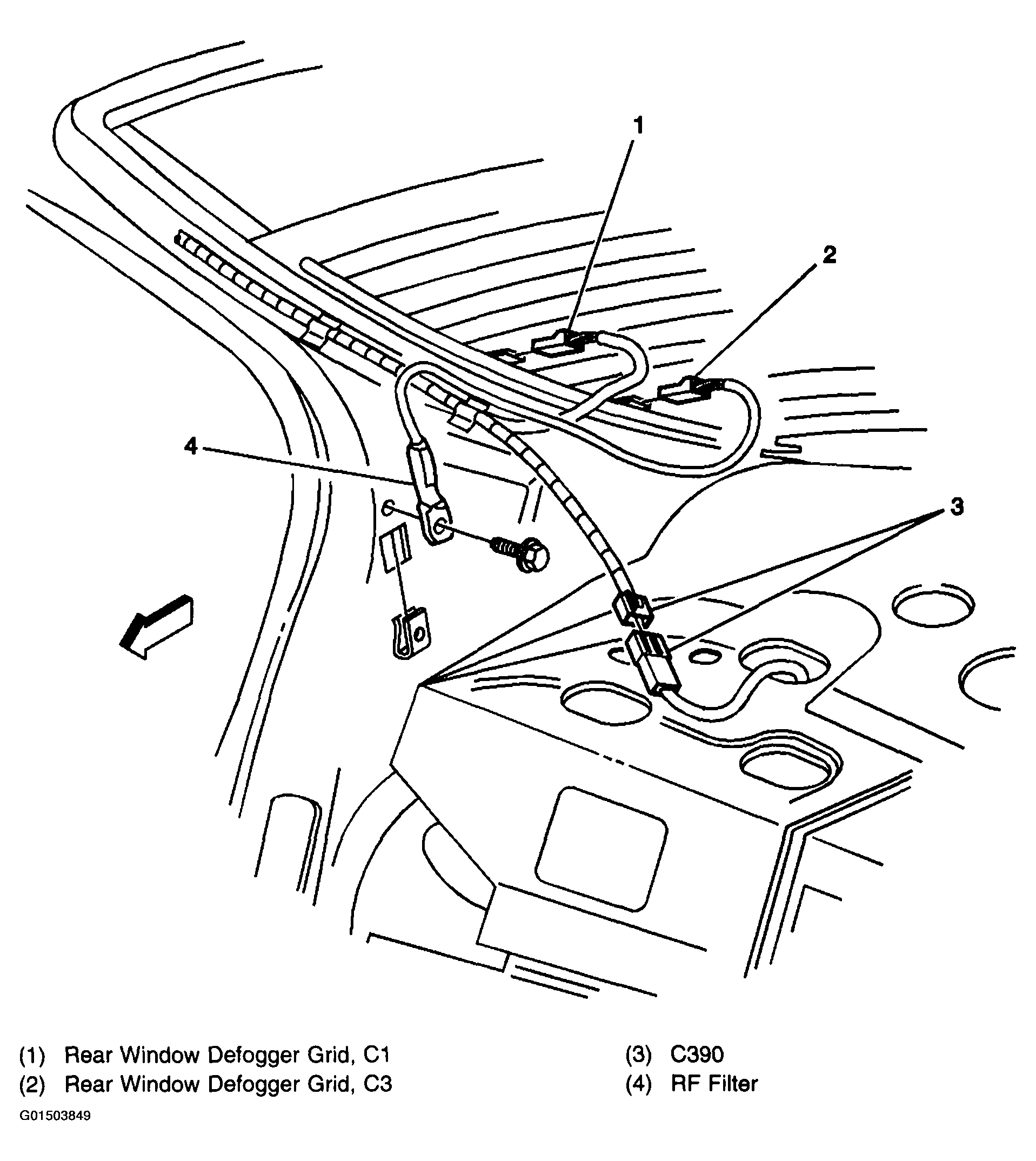

Fig 4: Stationary Windows Component View (Left Rear Window)

Courtesy of GENERAL MOTORS CORP.

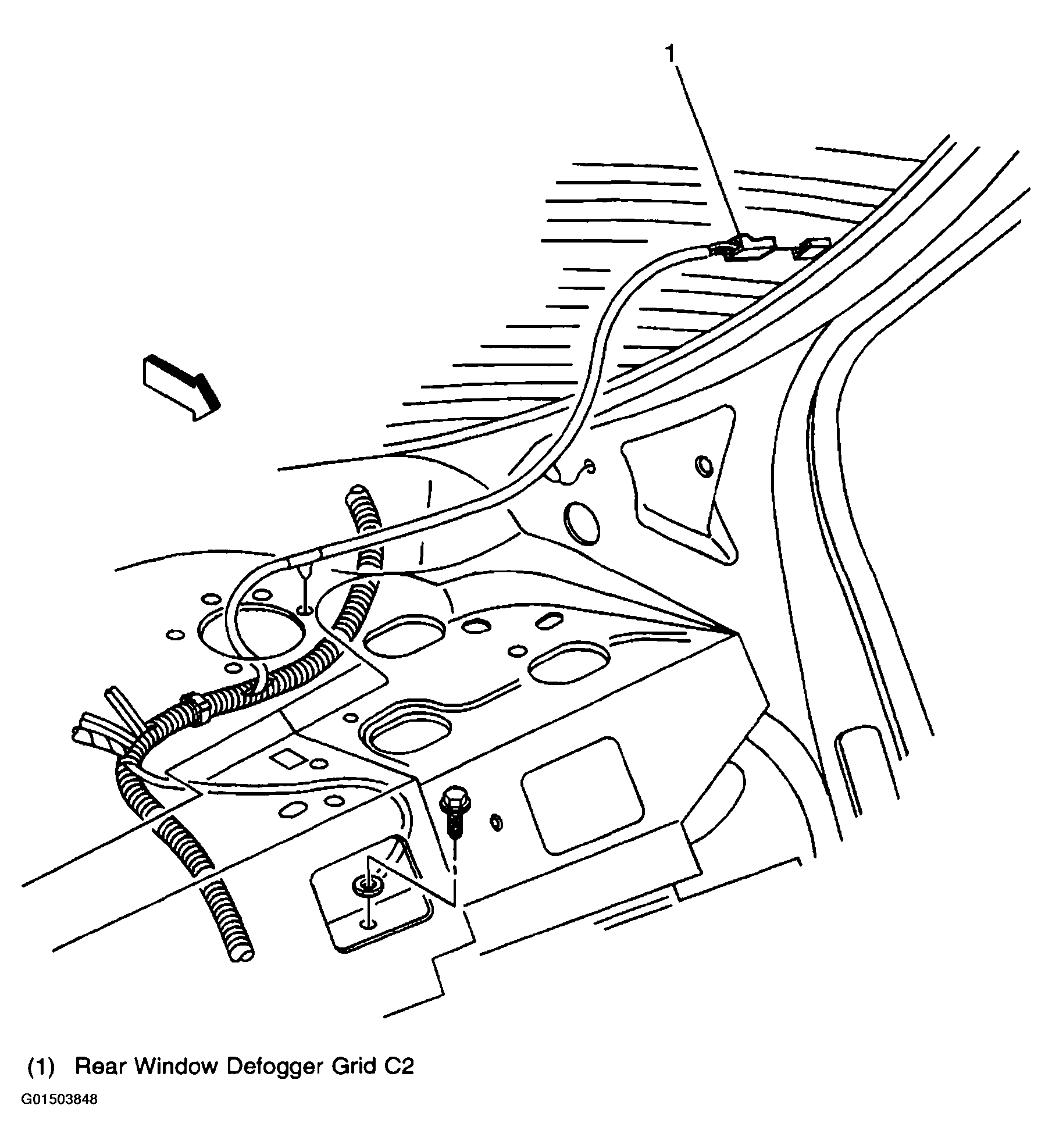

Fig 5: Stationary Windows Component View (Right Side Of Rear Window)

Courtesy of GENERAL MOTORS CORP.
