Stationary Windows Connector End Views

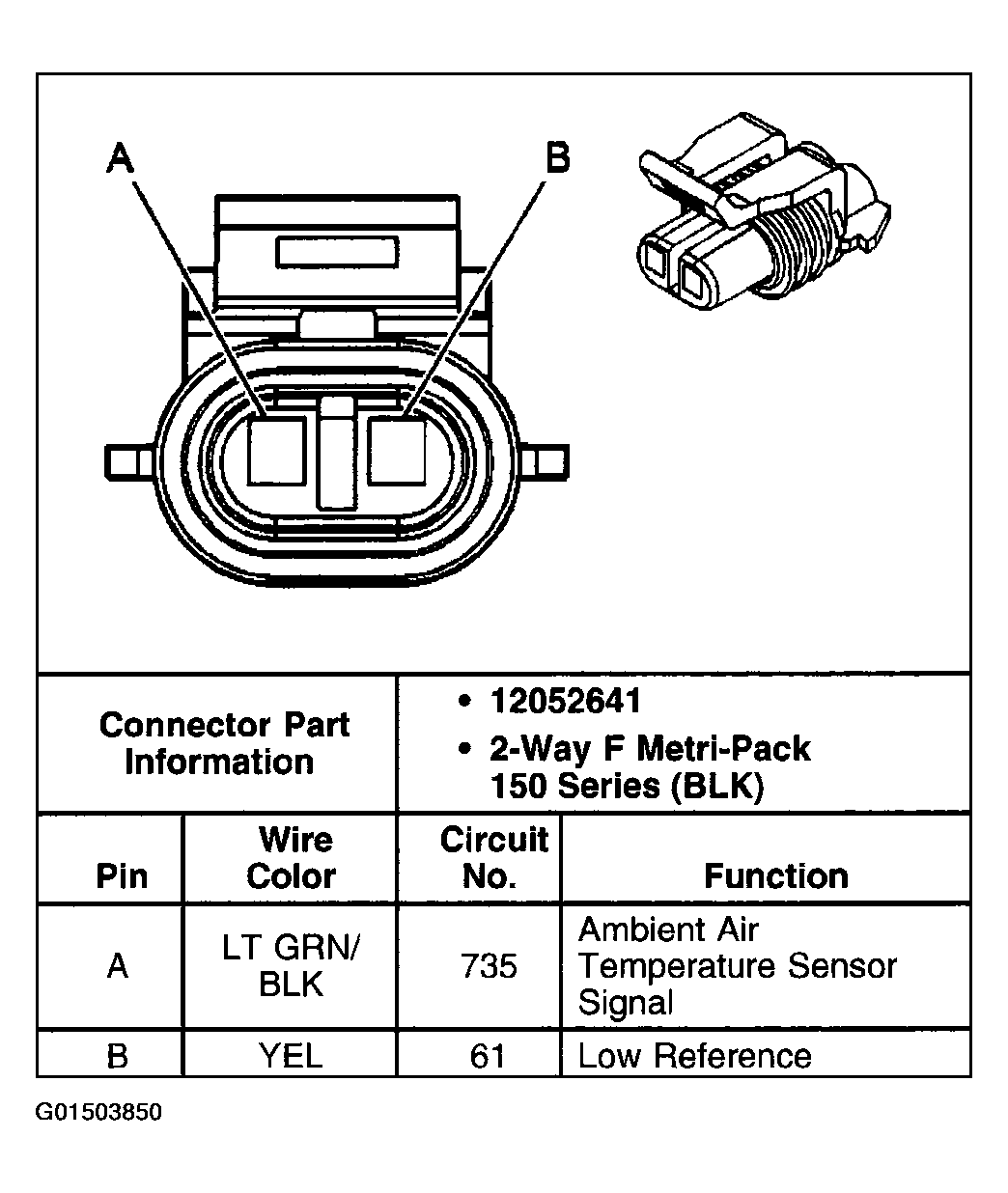

Fig 1: Ambient Air Temperature Sensor (DD8) Connector End View

Courtesy of GENERAL MOTORS CORP.

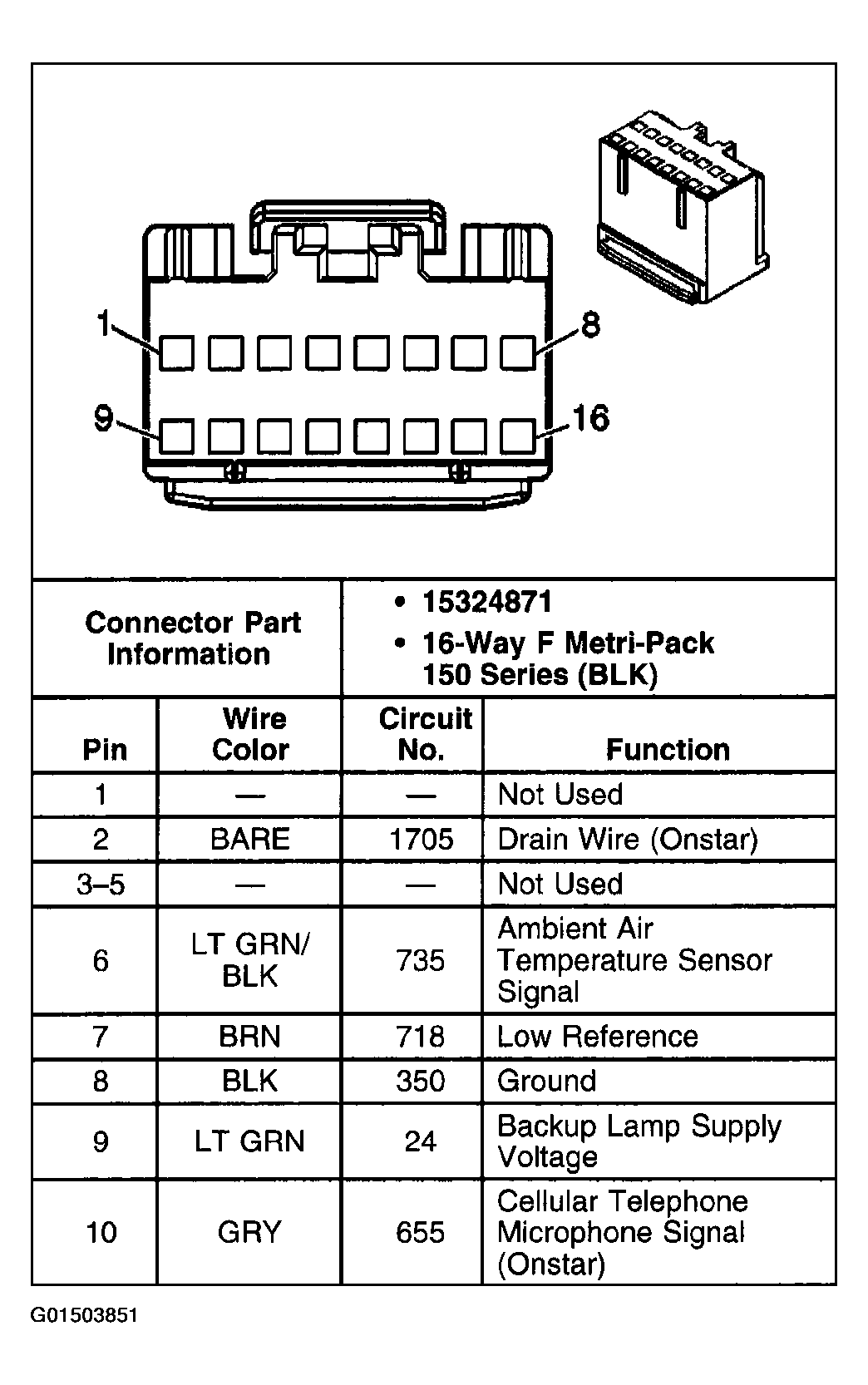

Fig 2: Inside Rearview Mirror Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

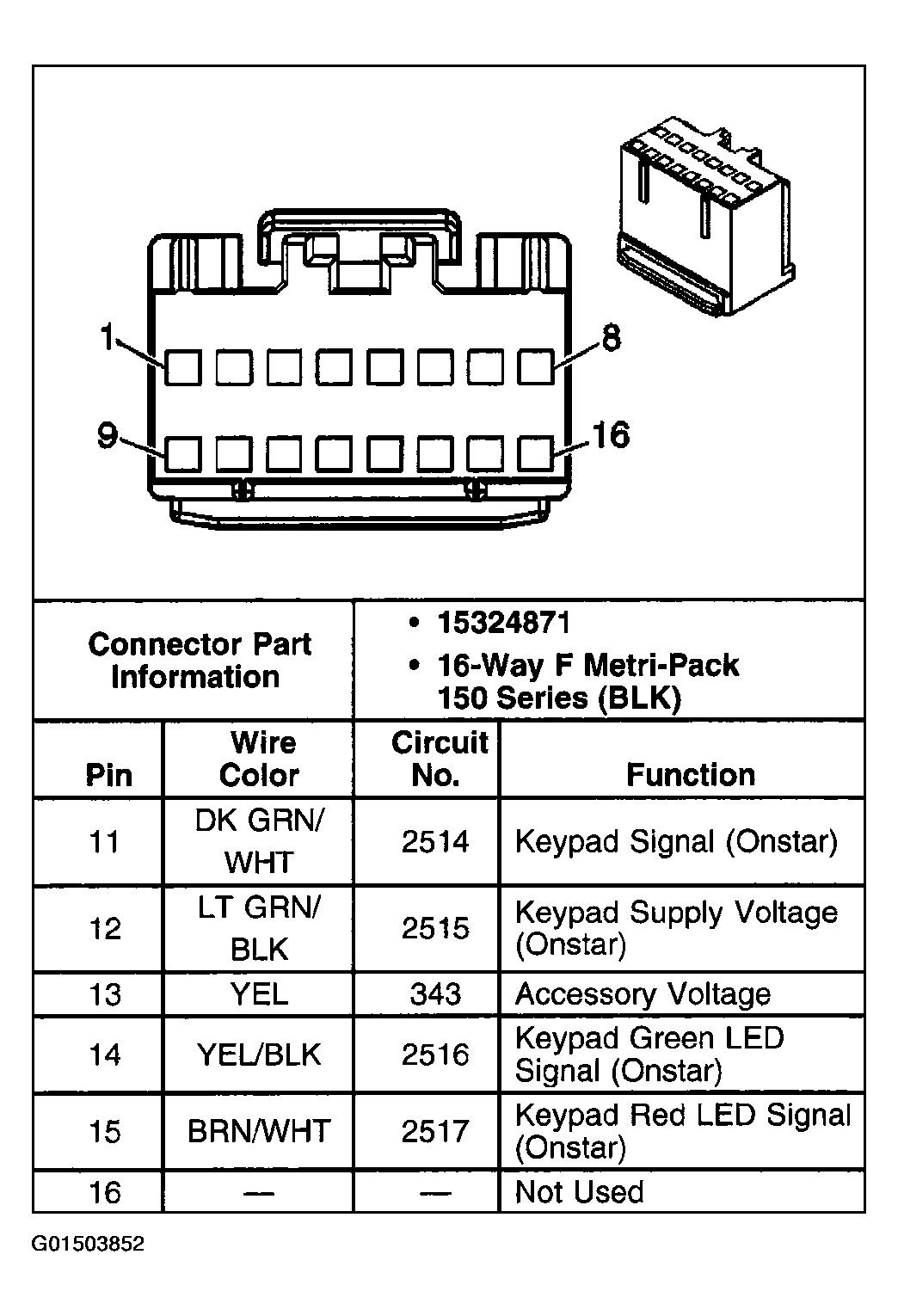

Fig 3: Inside Rearview Mirror Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

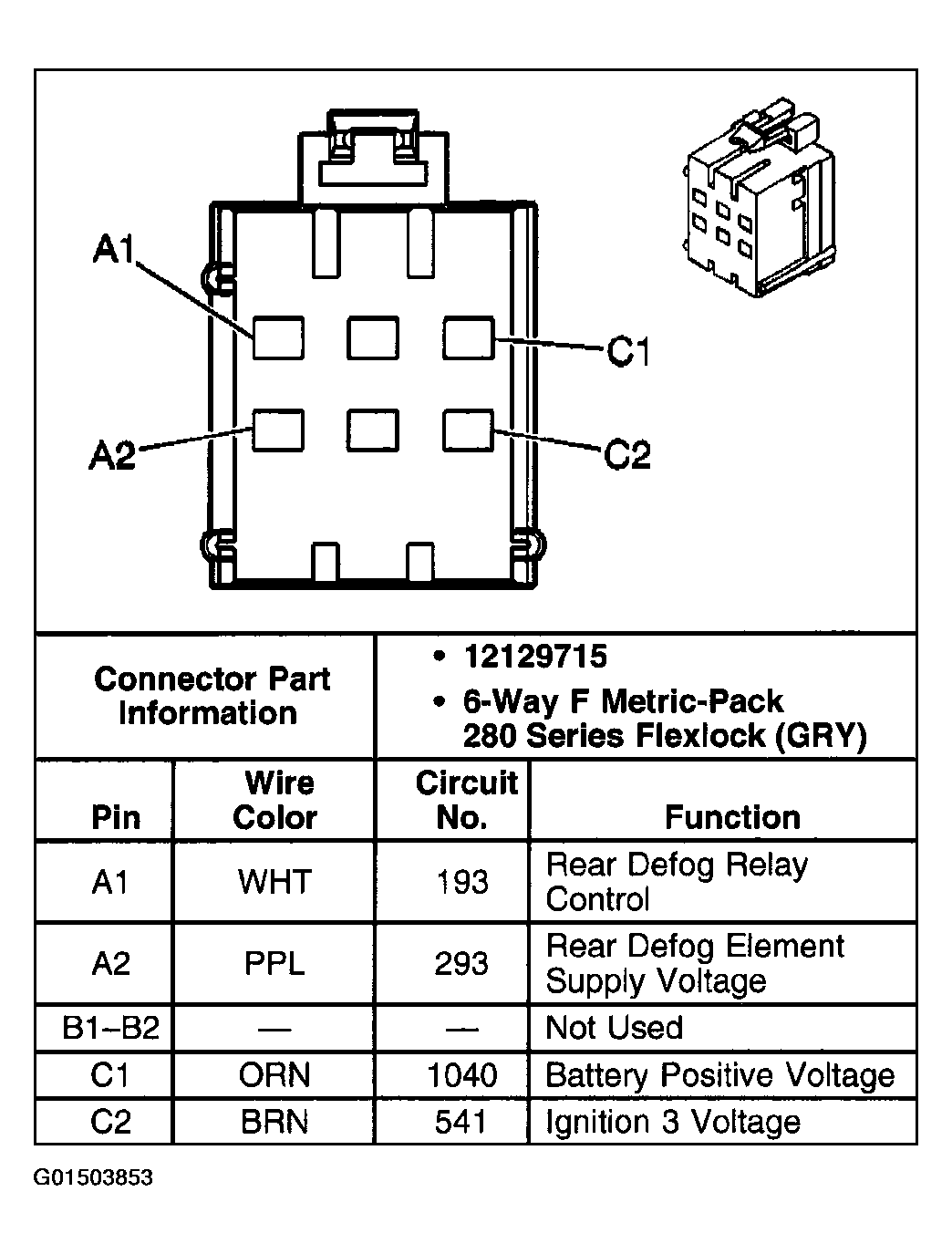

Fig 4: Rear Window Defogger Relay Connector End View

Courtesy of GENERAL MOTORS CORP.
