Installation Procedure

  1. Install the rear window into the opening. Refer to URETHANE ADHESIVE INSTALLATION OF STATIONARY WINDOWS  .
  2. Connect the rear window defogger electrical connectors.

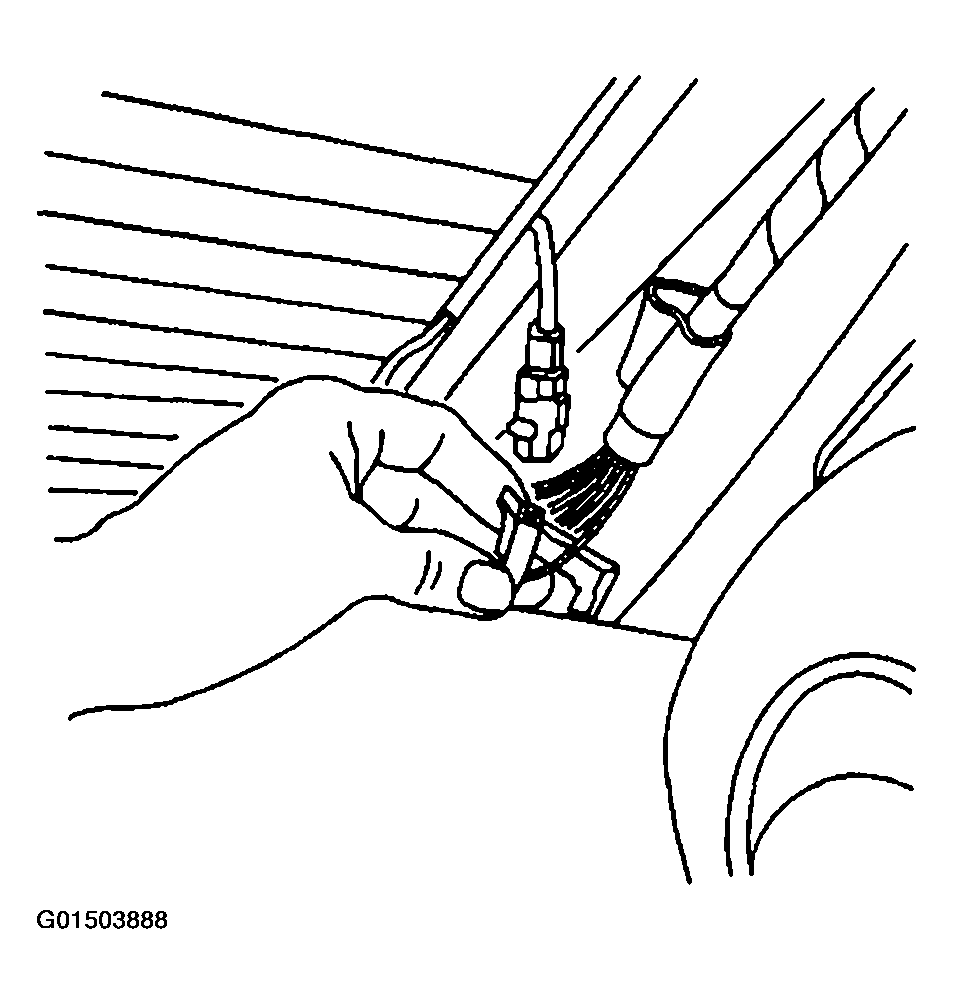

    Fig 1: Connecting Rear Window Defogger Electrical Connector
    G01503888Courtesy of GENERAL MOTORS CORP.
  3. Install the rear window radio antenna connector.
  4. Connect the OnStar® connector, if equipped.
  5. Verify the radio and the OnStar® has reception.
  6. Close the rear compartment lid.
  7. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

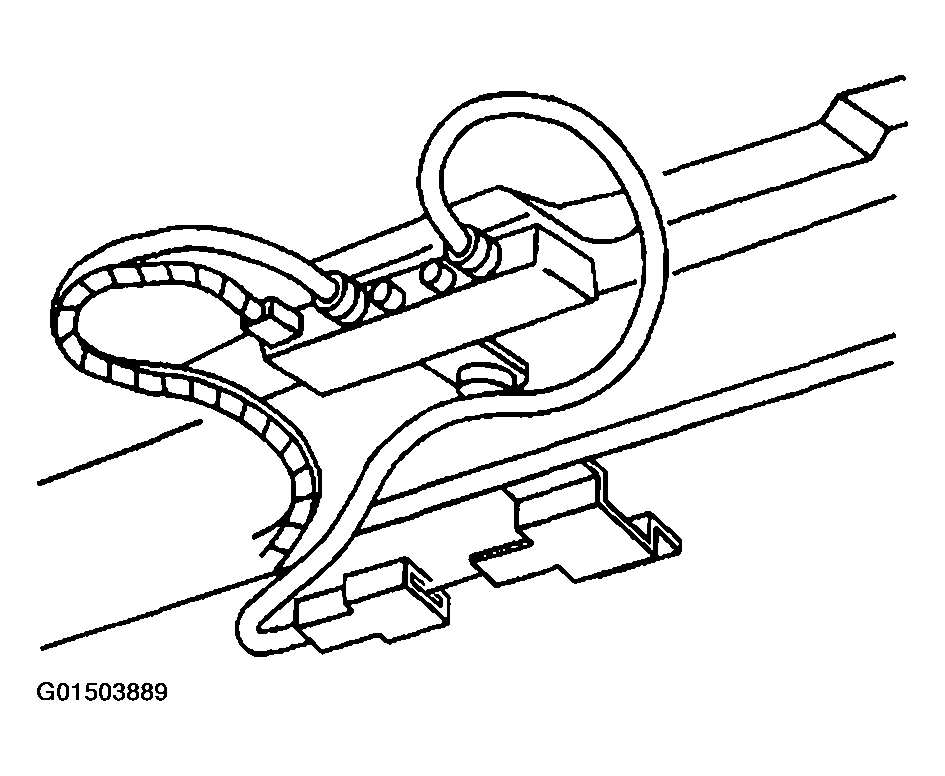

    Fig 2: Installing Rear Window Radio Antenna Connector
    G01503889Courtesy of GENERAL MOTORS CORP.
