HVAC Control Module, C2 Connector End View (1 Of 2)

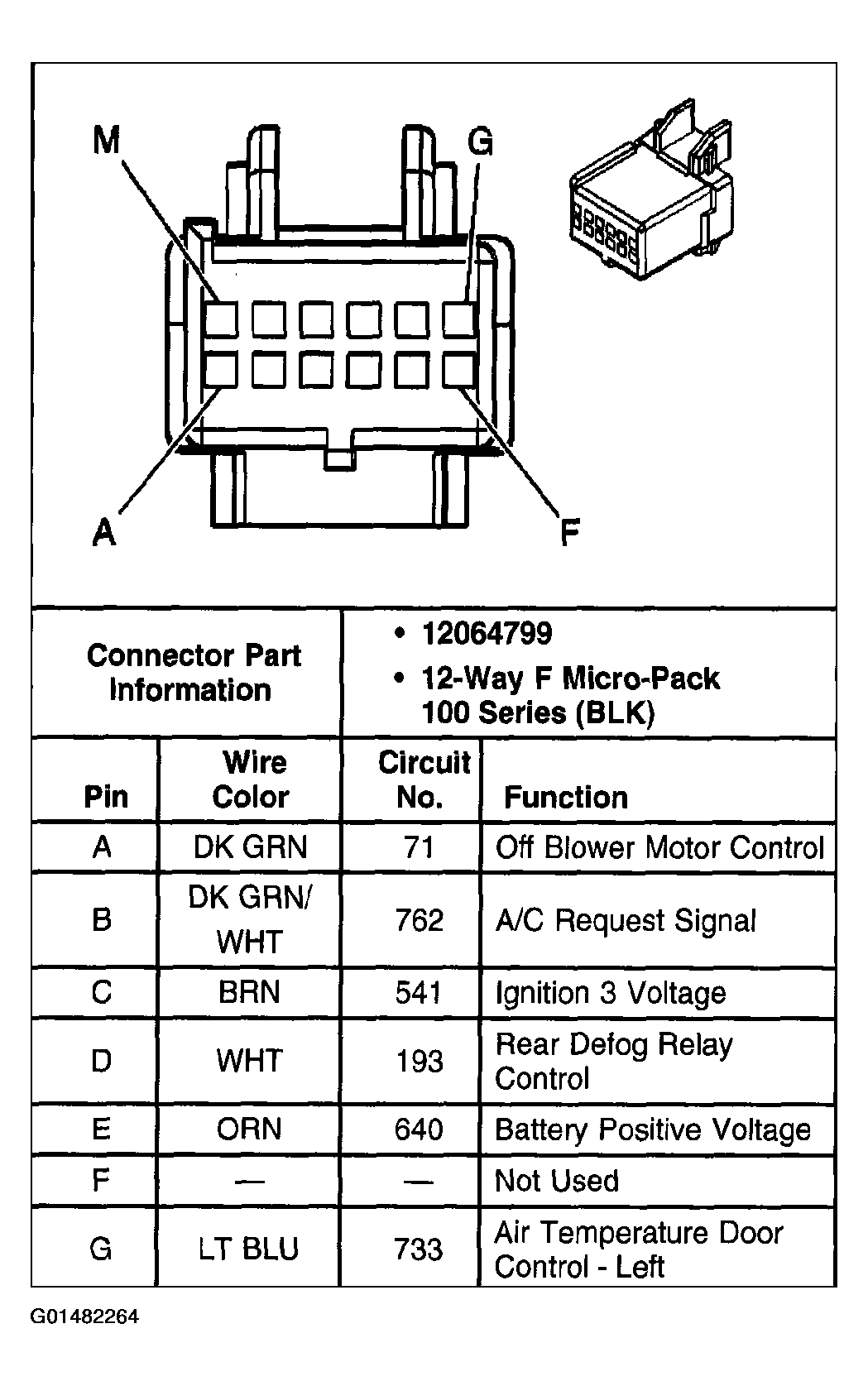

Fig 1: HVAC Control Module, C2 Connector End View (1 Of 2)
G01482264Courtesy of GENERAL MOTORS CORP.
