Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Body Control Module | Behind left side of dash, left of steering column. |
| Coolant Level Module | On right side of radiator. |
| Cruise Control Module | Front of left strut tower. |

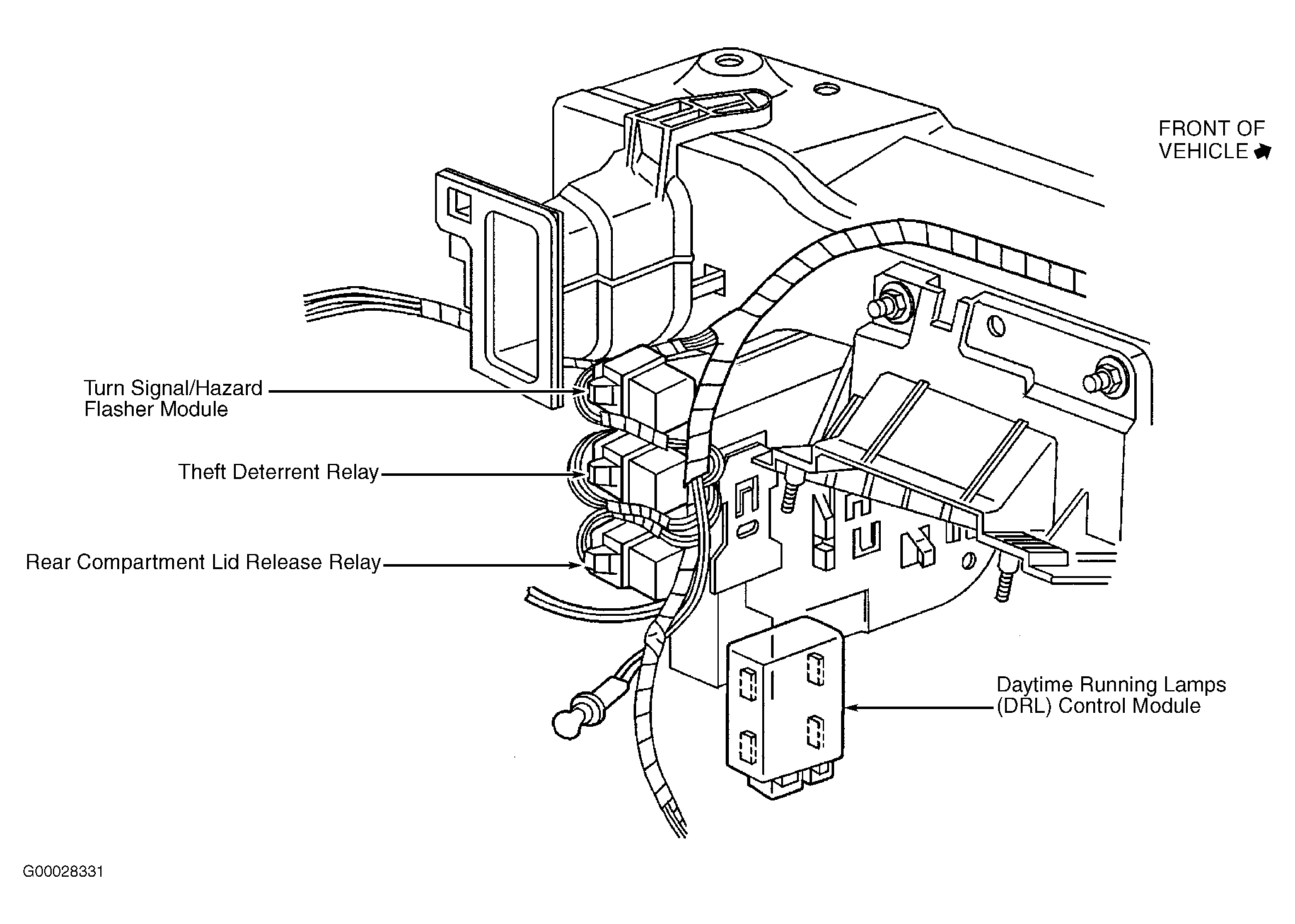

| Daytime Running Lamps (DRL) Control Module | Behind left side of dash. See Figure . |
| Driver Seat Heater Control Module | Below right side of driver's seat, mounted on seat track. |
| Electronic Brake Control Module | Left side of engine compartment, part of brake pressure modulator valve. |
| HVAC Control Module | Center of dash. |

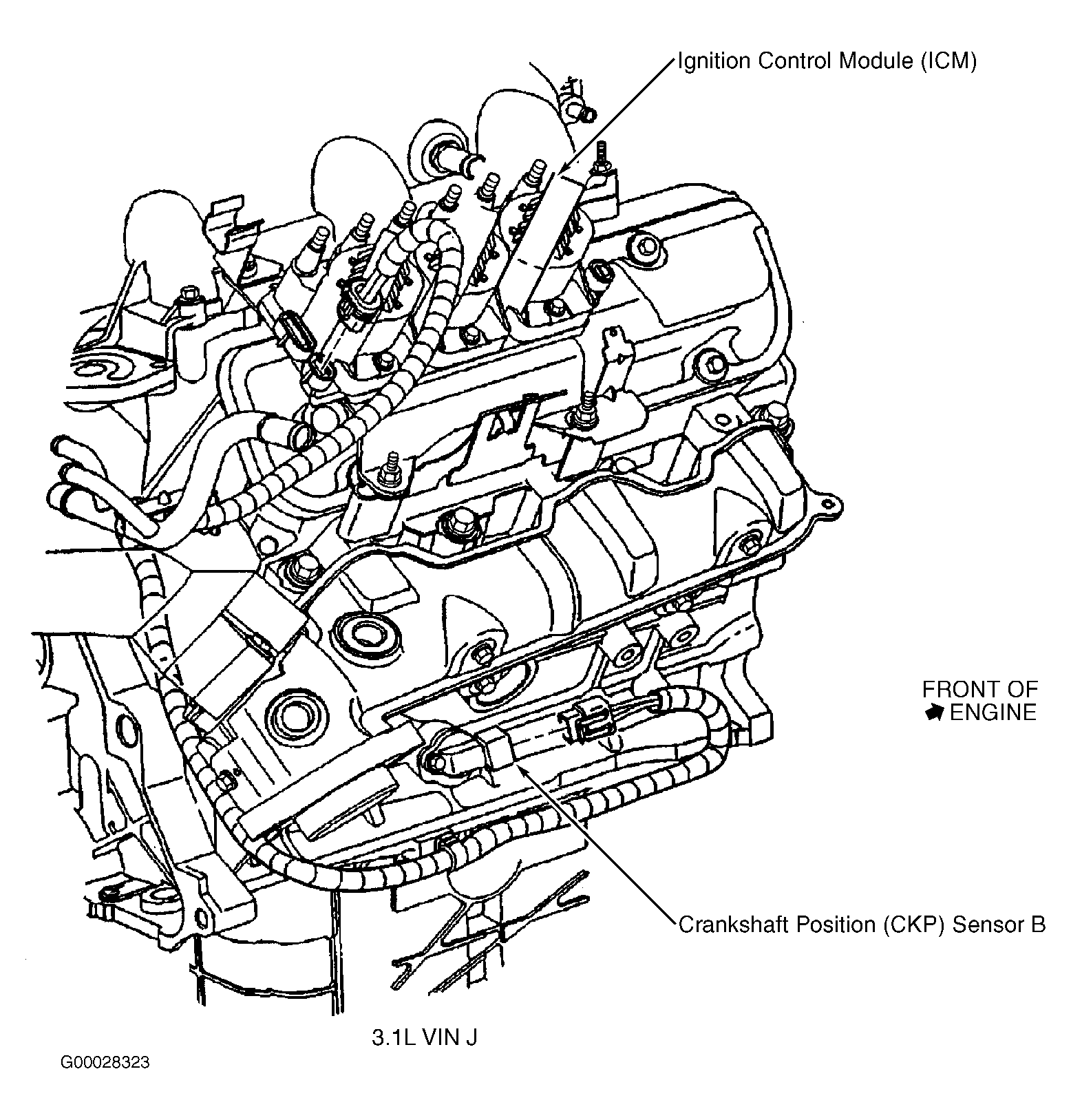

| Ignition Control Module (ICM) (3.1L VIN J) | Top right side of engine. See Figure . |

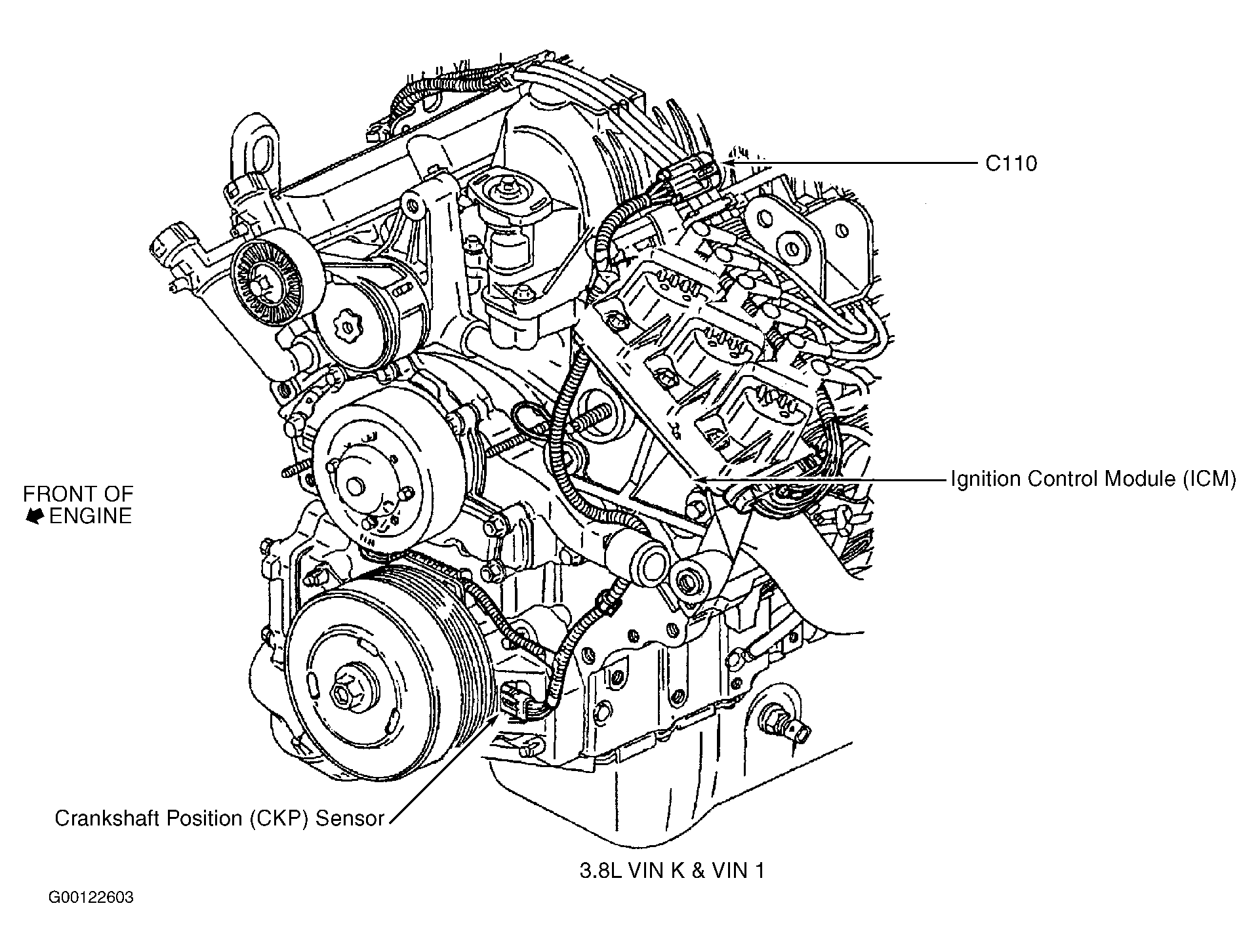

| Ignition Control Module (ICM) (3.8L VIN K) | Top left front of engine. See Figure . |
| Ignition Control Module (ICM) (3.8L VIN 1) | Top left front of engine. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module | Under right front seat. |
| Powertrain Control Module | Left front side of engine compartment, in air cleaner assembly. |
| Remote Control Door Lock Receiver | Behind right side of dash. |
| Sun Roof Module | Front center of sun roof module. |
| Theft Deterrent Control Module | Part of ignition key cylinder. |
| Vehicle Communications Unit | In trunk, on left wheelwell. |
| Vehicle Interface Unit | In trunk, on left wheelwell. |
