Steering Column Disassembled View

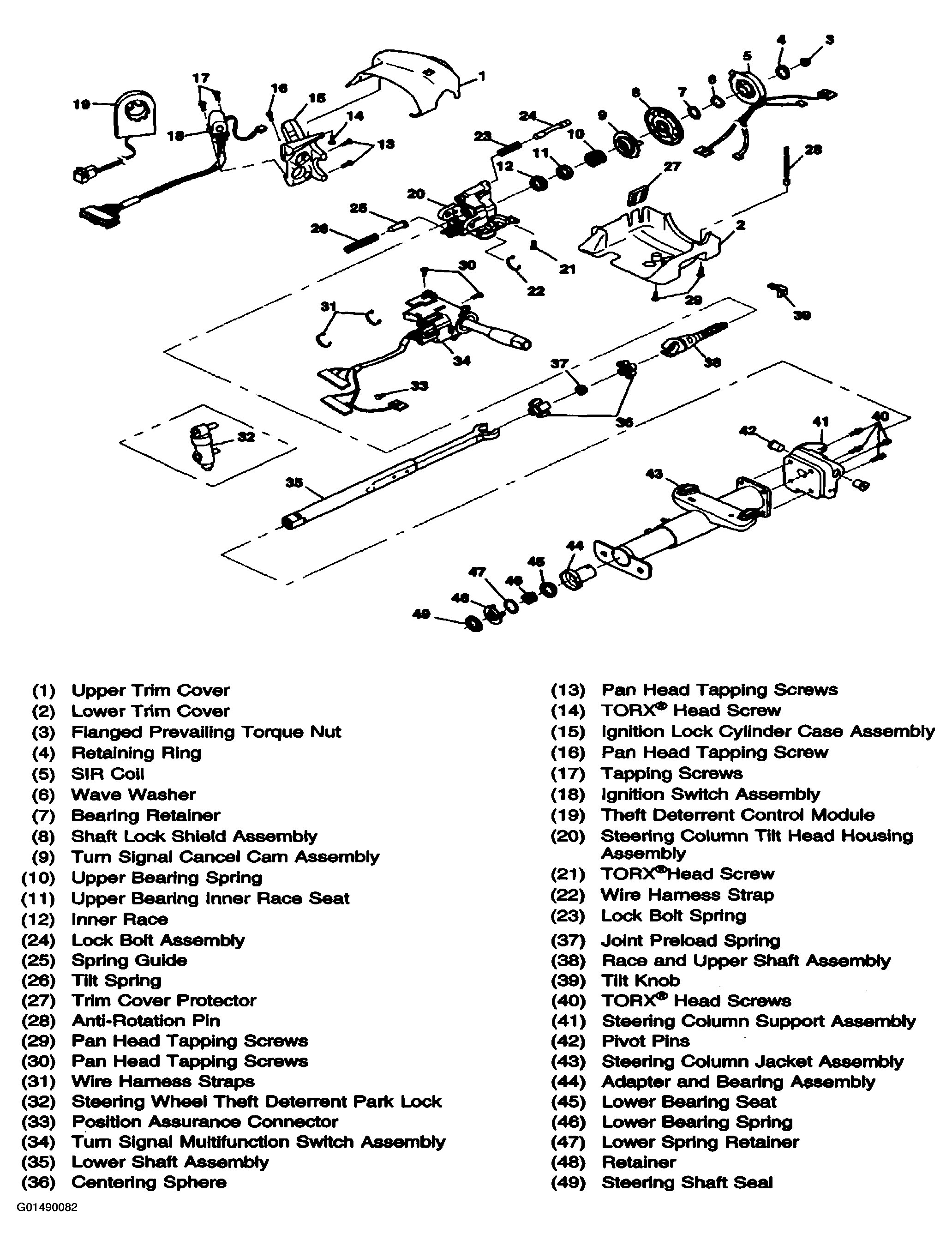

Fig 1: Tilt Steering Column (Floor Shift)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
