Installation Procedure

NOTE: Refer to FASTENER NOTICE .
  1. Install the ignition switch assembly (3) onto the ignition lock cylinder case (2) and secure by using the 2 tapping screws.

    Tighten

    1. Tighten the screws to 4.7 N.m (42 lb in).
  2. Install the key alarm connector (1) into the ignition lock cylinder case (2).

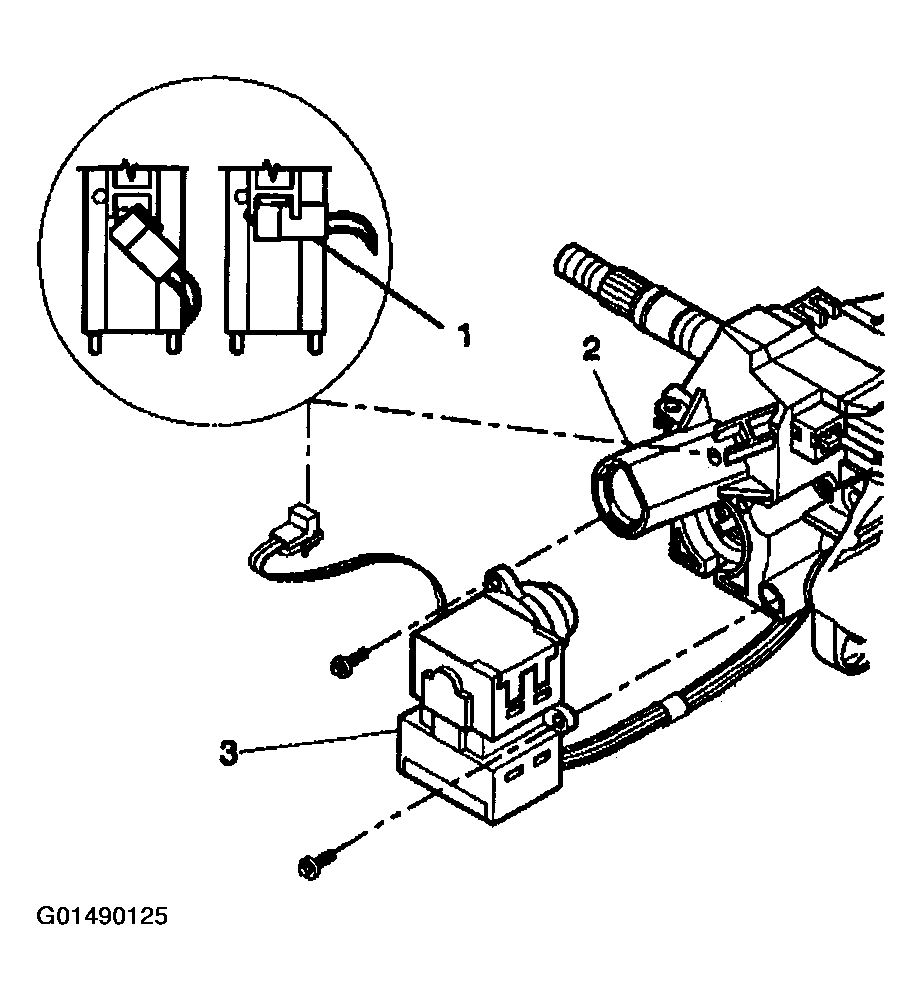

    Fig 1: Installing Key Alarm Connector Into Ignition Lock Cylinder Case
    G01490125Courtesy of GENERAL MOTORS CORP.
  3. Slide the PASSKEY® III (2) onto the ignition lock cylinder case (1).

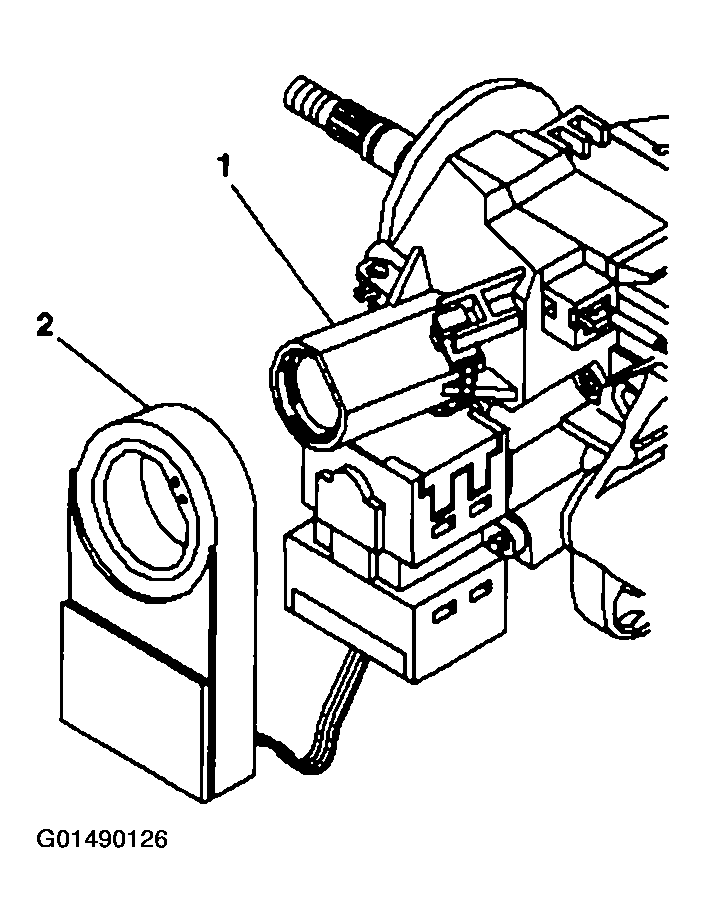

    Fig 2: Ignition Lock Cylinder Case
    G01490126Courtesy of GENERAL MOTORS CORP.
  4. Slide the turn signal switch assembly connectors (2) to the bulkhead connector (1).

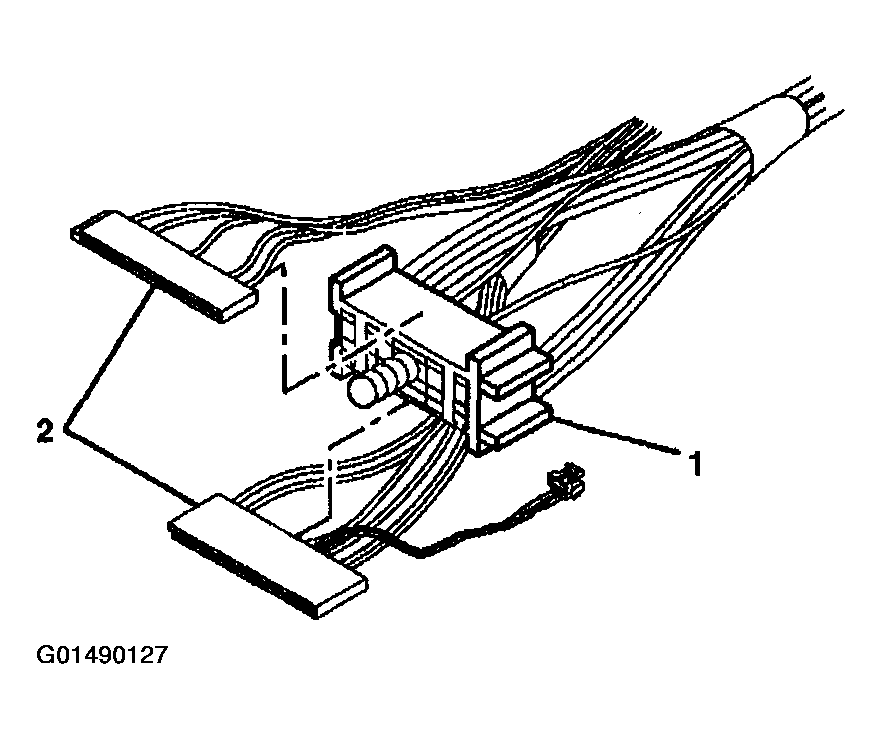

    Fig 3: Sliding Turn Signal Switch Assembly Connectors To Bulkhead Connector
    G01490127Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to SIR INFLATOR MODULE COIL CAUTION .
  5. Install the wire harness assembly (4) into the wire harness strap (5).
  6. Install the wire harness strap (2) into the steering column tilt head assembly (1).
  7. Install the wire harness straps (3) onto the wire harness assembly (4).
  8. Install the upper and lower trim covers. Refer to Steering Column Trim Covers Replacement  .
  9. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .

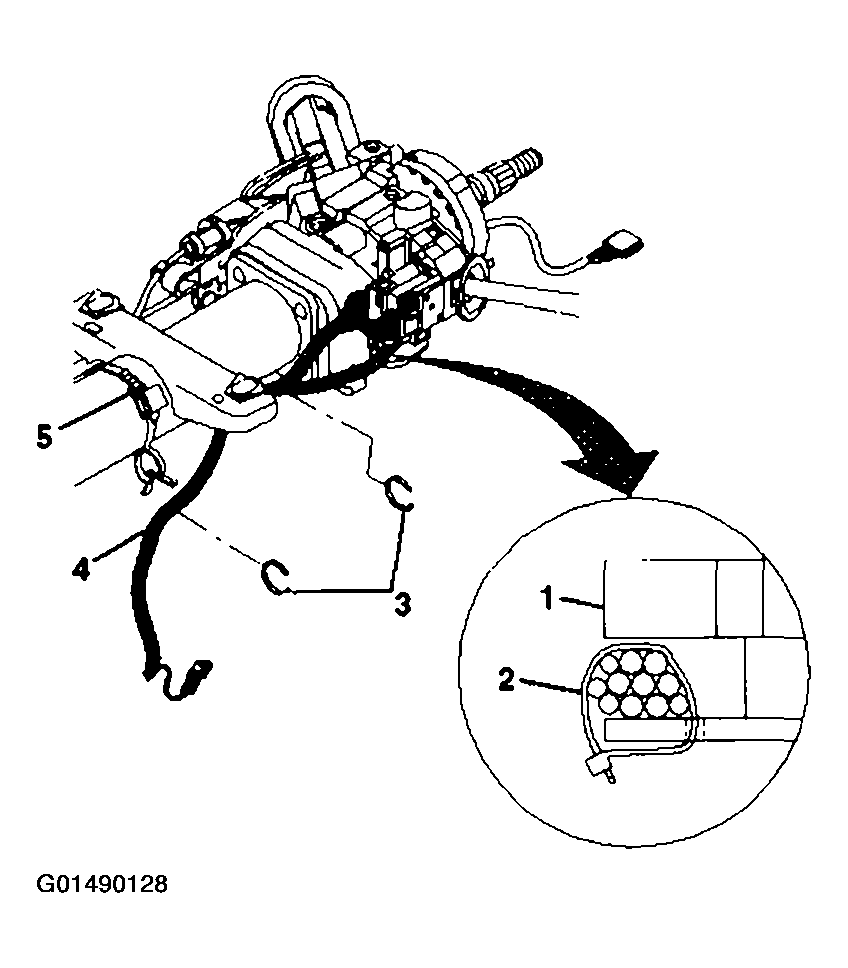

    Fig 4: Installing Wire Harness Assembly & Straps
    G01490128Courtesy of GENERAL MOTORS CORP.
