Body Control System Component Views

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

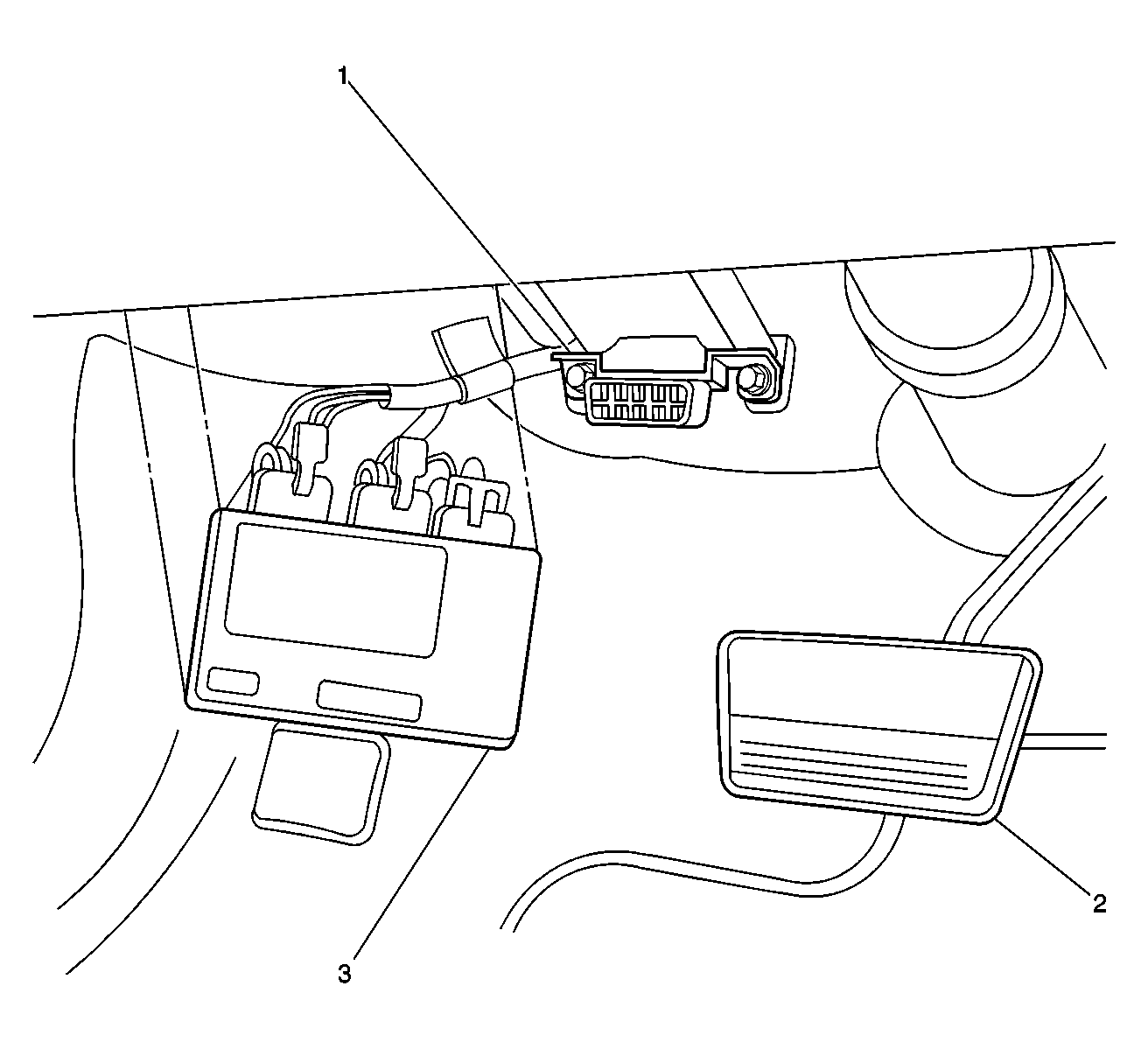

Fig 1: Under The Left Side Of The Instrument Panel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Data Link Connector (DLC)
2	Brake Pedal
3	Body Control Module (BCM)

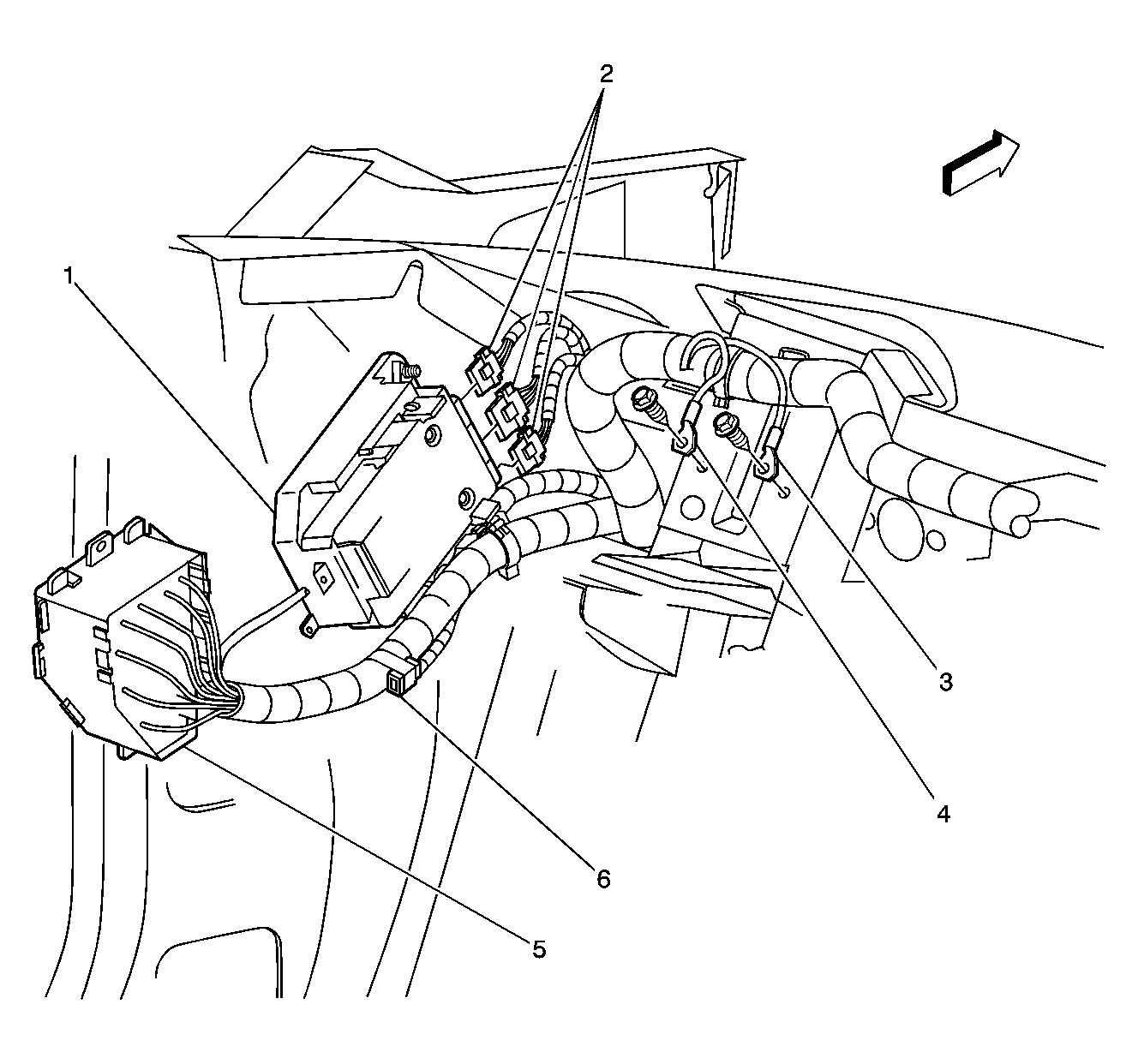

Fig 2: Behind The Left Side Of The Instrument Panel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)
2	BCM Connectors
3	G204
4	G201
5	Fuse Block I/P
6	Horn Relay

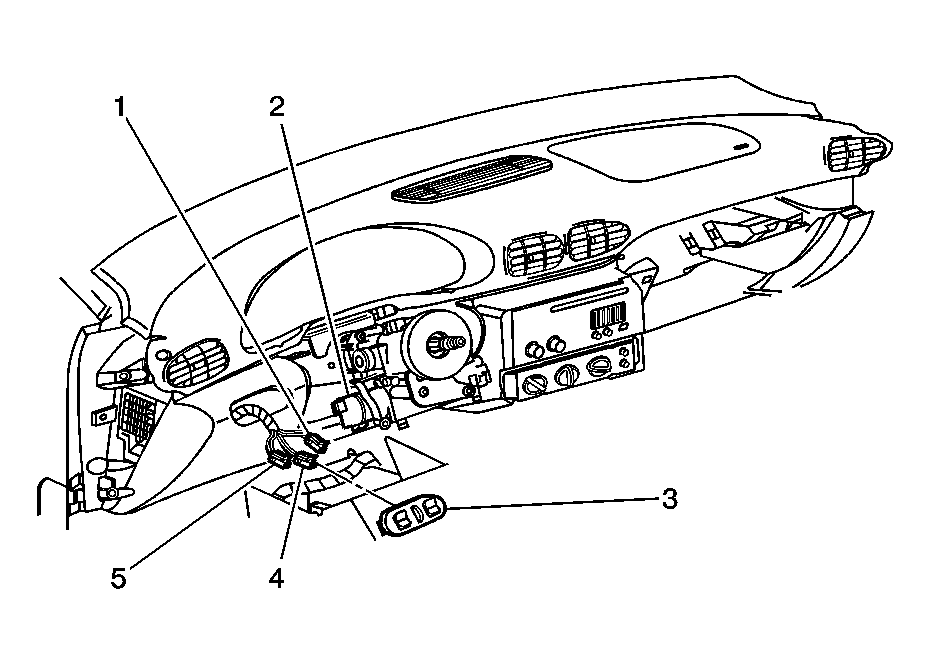

Fig 3: Left Side Of The Instrument Panel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Traction Control Switch Connector
2	Ignition Switch
3	Traction Control/Fog/I/P Dimmer Switch Assembly
4	I/P Dimmer Switch Connector
5	Fog Lamp Switch Connector
