Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery cable.
Remove the console.

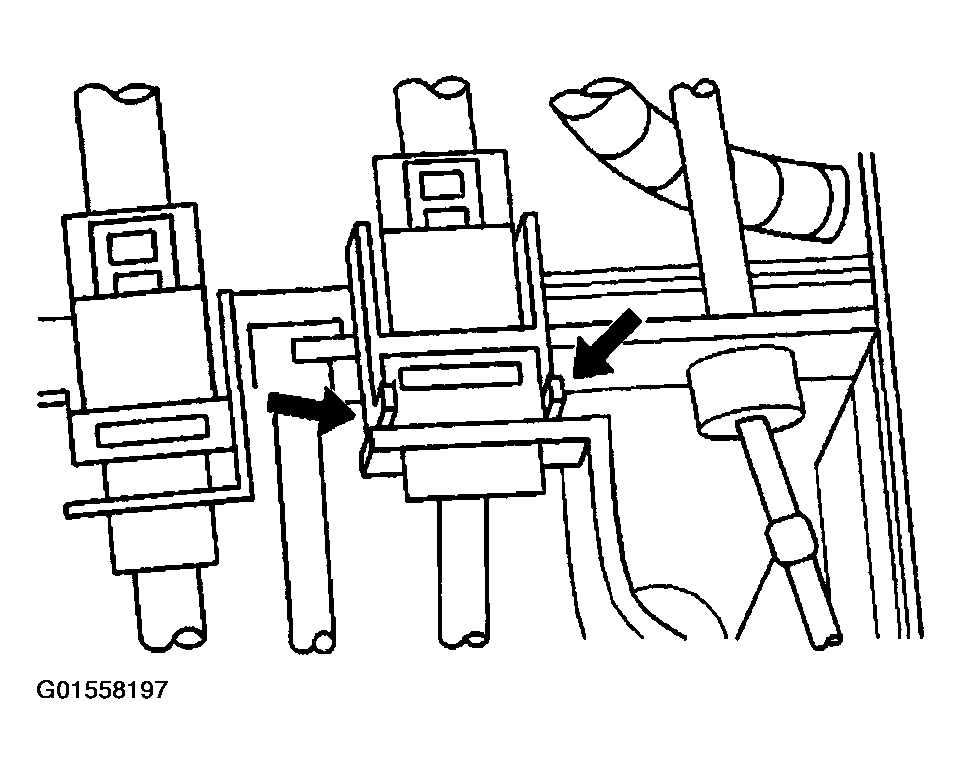

Lift up on the cable retainers.
Disconnect the cable ends from the shifter.

Fig 1: Disconnecting Cable Ends From Shifter
Courtesy of GENERAL MOTORS CORP.

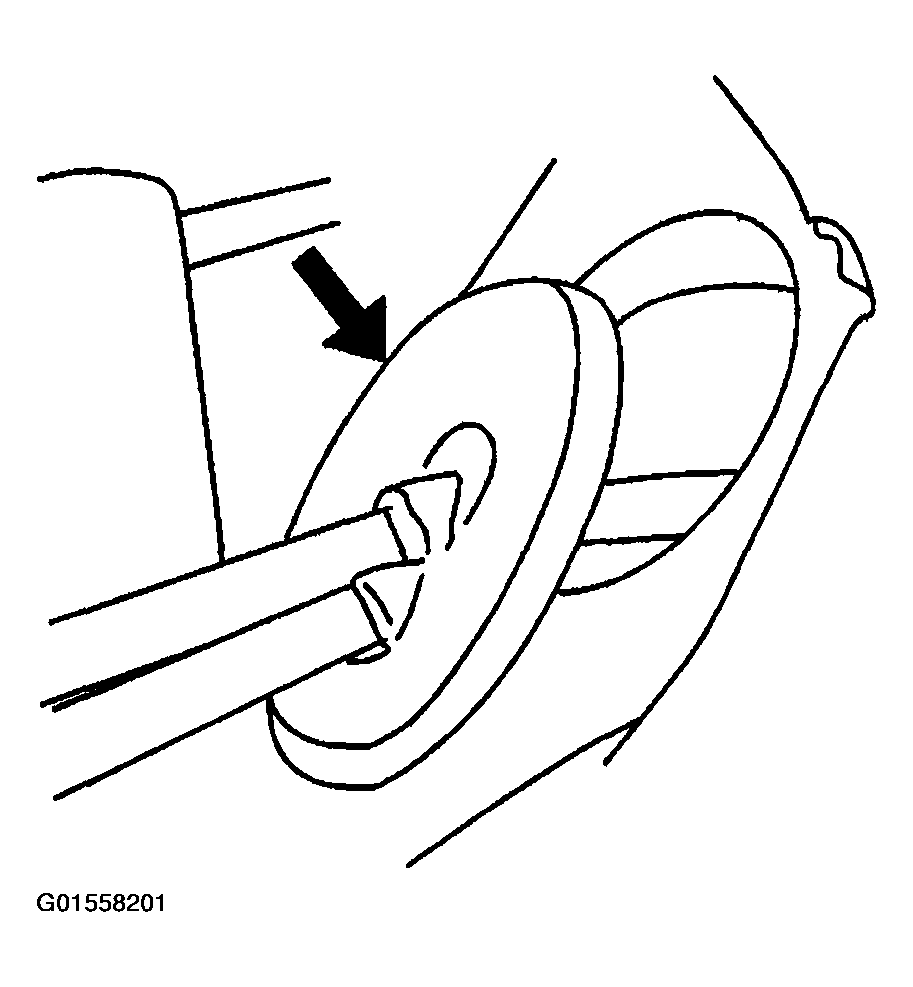

Depress the locking tabs and remove the forward cable from the anchor.
Remove the Air Inlet Duct.

Fig 2: Depressing Locking Tabs
Courtesy of GENERAL MOTORS CORP.

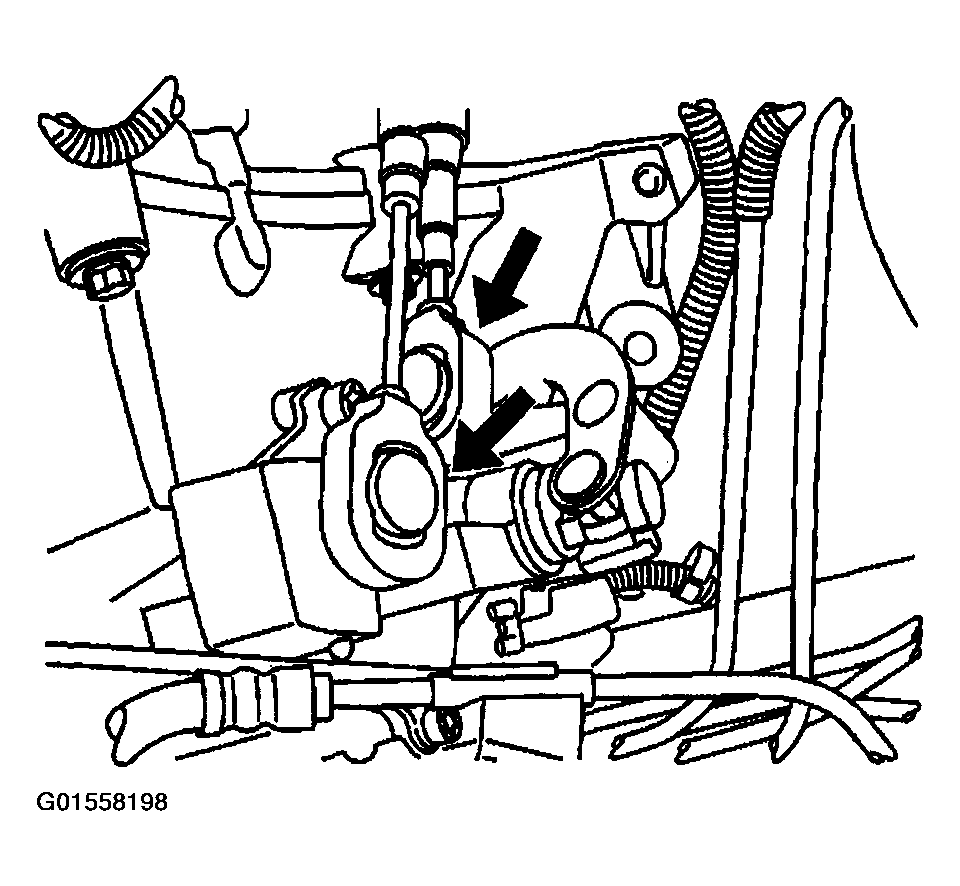

On the transmission end, disconnect the cable from the shift actuator.

Fig 3: Disconnecting Cable From Shift Actuator
Courtesy of GENERAL MOTORS CORP.

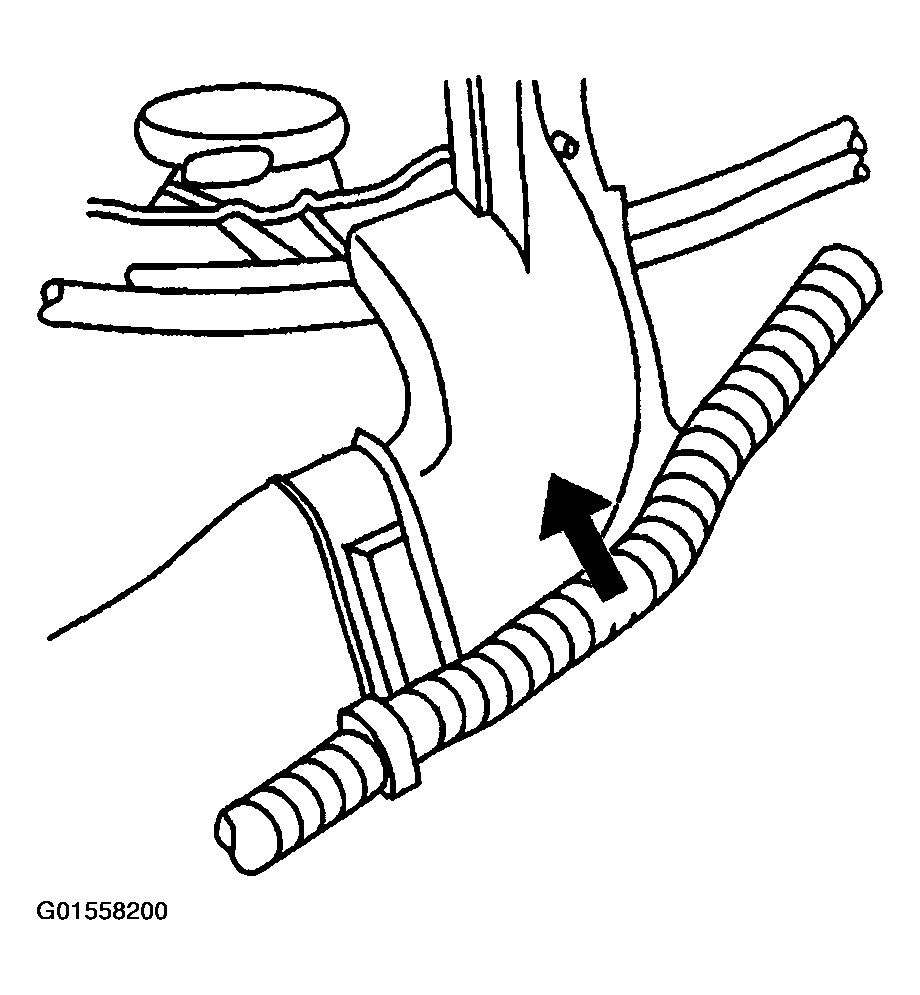

Remove both cables from the underhood cable bracket.
Position aside the passenger front carpet.

Fig 4: Removing Cables From Underhood Cable Bracket
Courtesy of GENERAL MOTORS CORP.

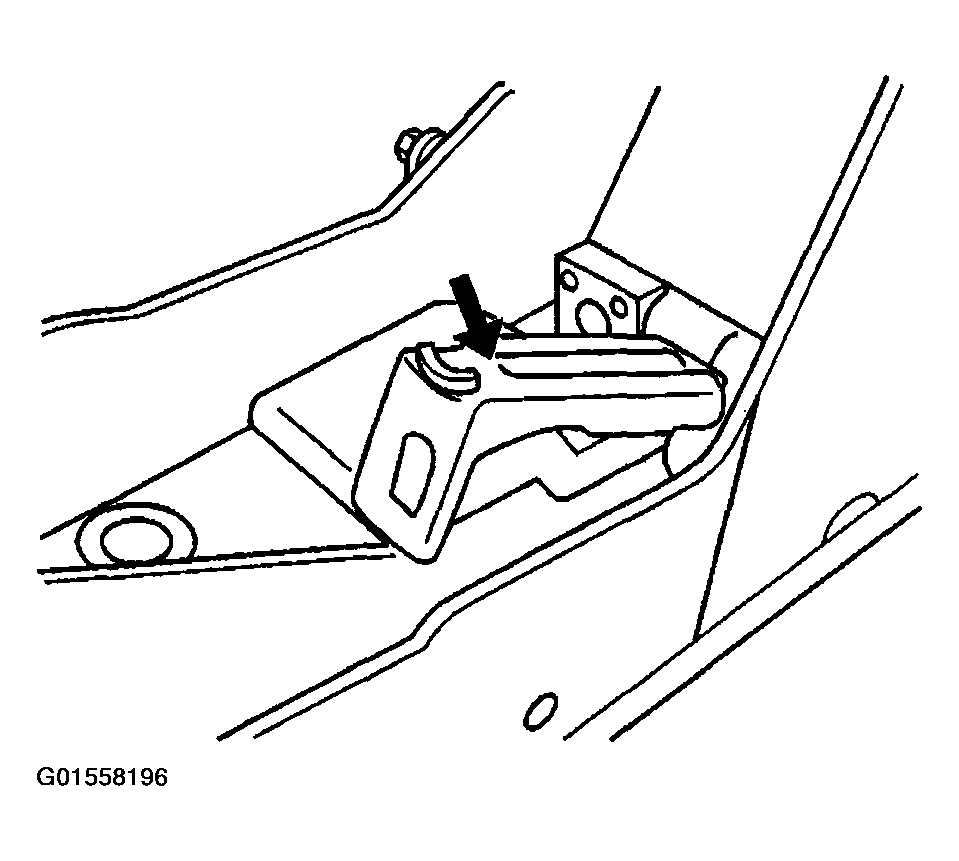

Remove the right rear floor duct elbow.

Fig 5: Removing Right Rear Floor Duct Elbow
Courtesy of GENERAL MOTORS CORP.

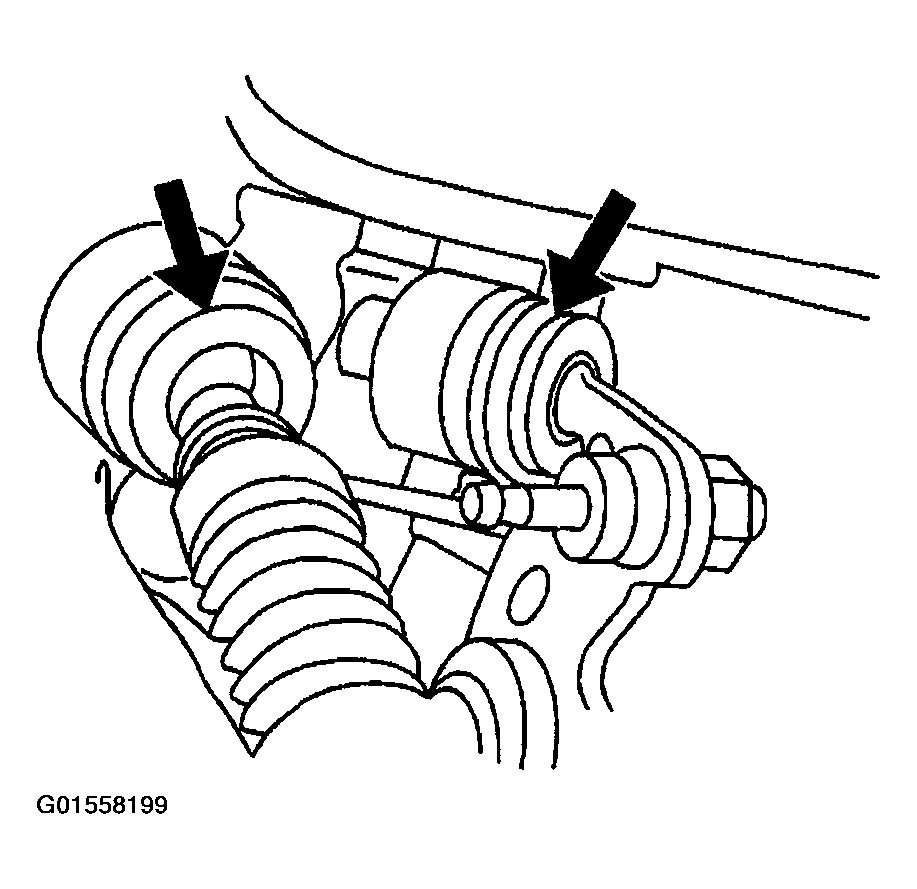

Separate the grommet from the floor plan.
Pull the cables through the passenger floor opening.

Fig 6: Separating Grommet From Floor Plan
Courtesy of GENERAL MOTORS CORP.
