HVAC Control Lamp Replacement

HVAC CONTROL LAMP REPLACEMENT

REMOVAL PROCEDURE
1. Remove the instrument panel accessory trim plate.
2. Remove the screws from the HVAC control.




3. Pull the HVAC control away from the instrument panel.

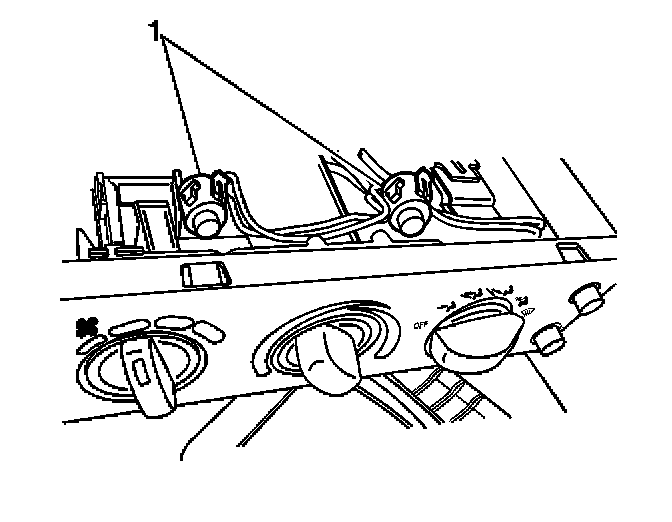

4. Remove the bulbs/sockets (1) from the HVAC control.
5. Remove the bulbs from the sockets.

INSTALLATION PROCEDURE

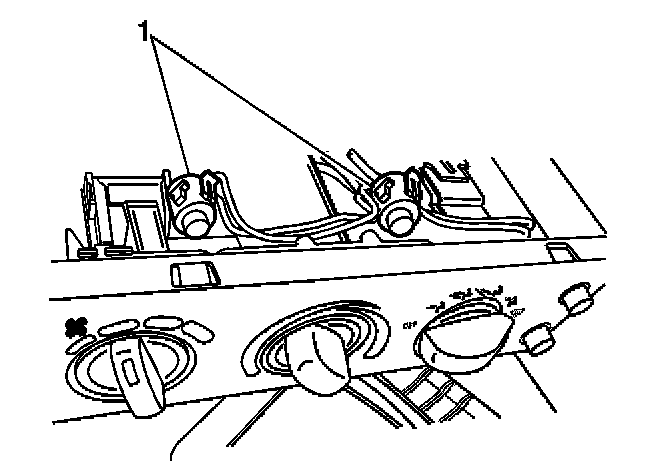

1. Install the bulbs to the sockets (1).
2. Install the bulbs/sockets (1) to the HVAC control.
3. Install the HVAC control to the instrument panel.
4. Install the screws to the HVAC control.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the HVAC control screws 2 N.m (18 lb in).

5. Install the instrument panel accessory trim plate.
