Powertrain Control Module (PCM) C2

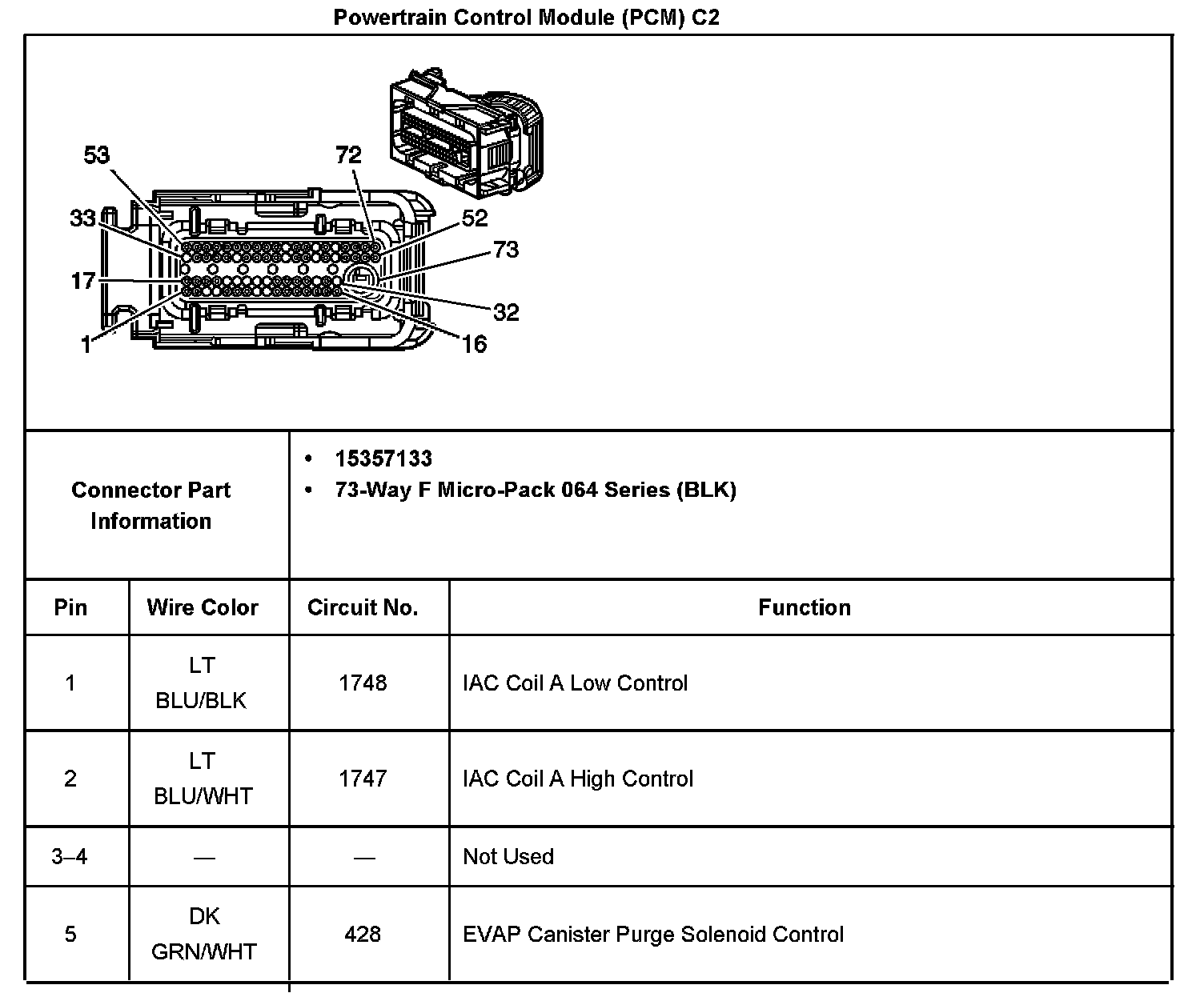

Powertrain Control Module (PCM) C2 Part 1:




Powertrain Control Module (PCM) C2 Part 2:




Powertrain Control Module (PCM) C2 Part 3:




Powertrain Control Module (PCM) C2 Part 4:




Powertrain Control Module (PCM) C2 Part 5:




Powertrain Control Module (PCM) C2 Part 6:




Powertrain Control Module (PCM) C2 Part 7:
