Cruise Control Component Views

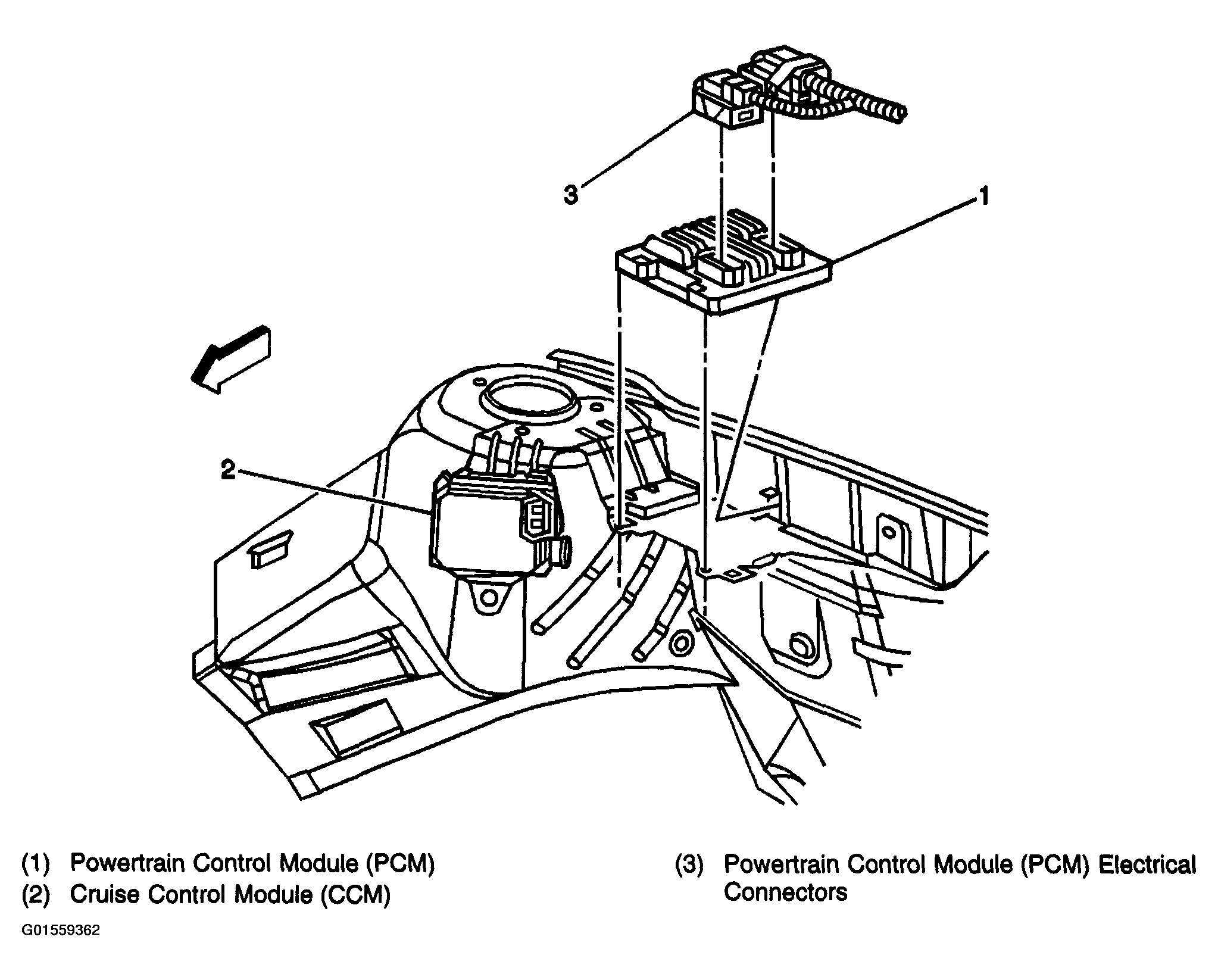

Fig 1: Locating Cruise Control Components (Powertrain Control Module)
Courtesy of GENERAL MOTORS CORP.

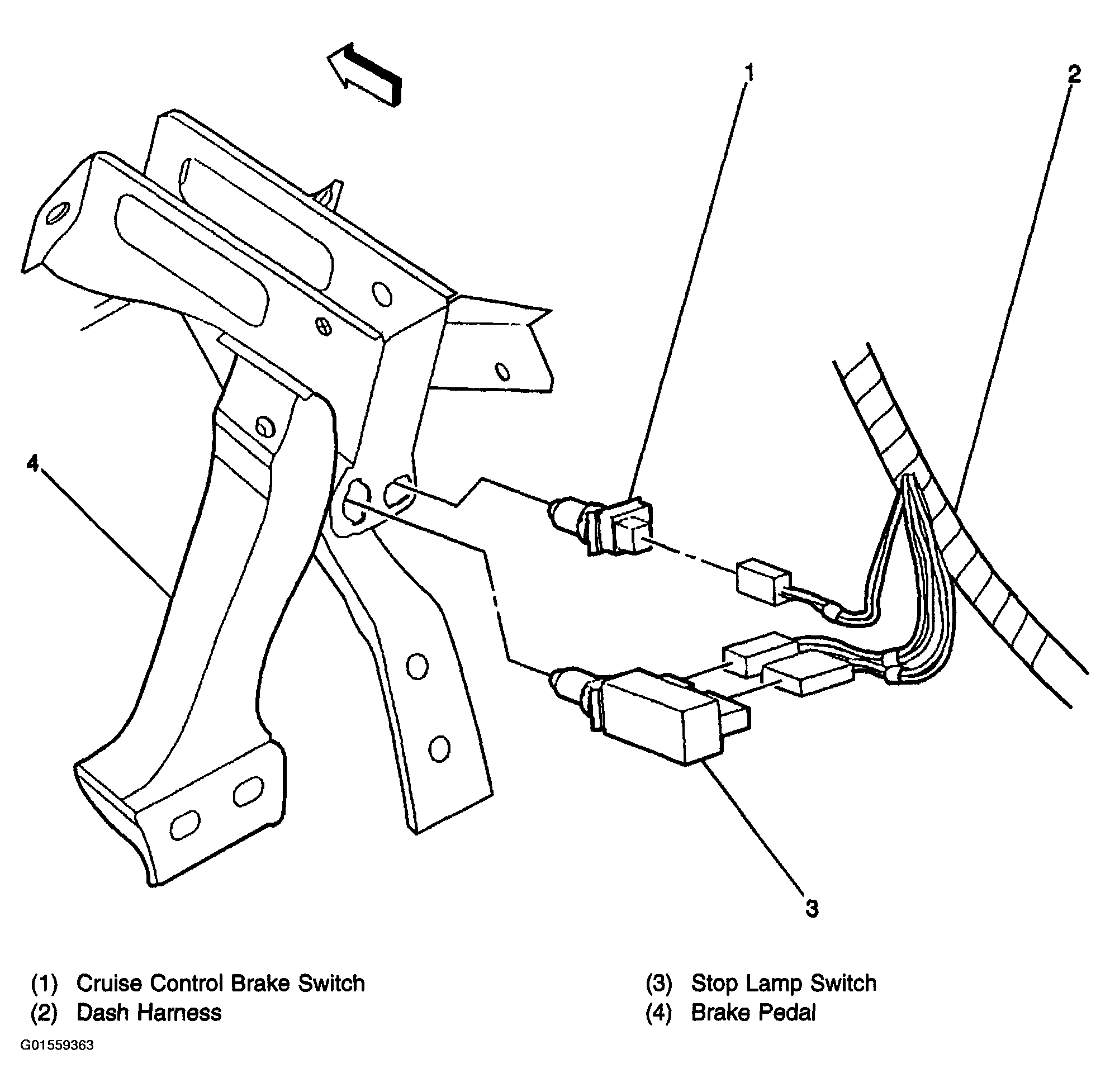

Fig 2: Locating Cruise Control Components (Below Left Side Of IP, Near Steering Column)
Courtesy of GENERAL MOTORS CORP.

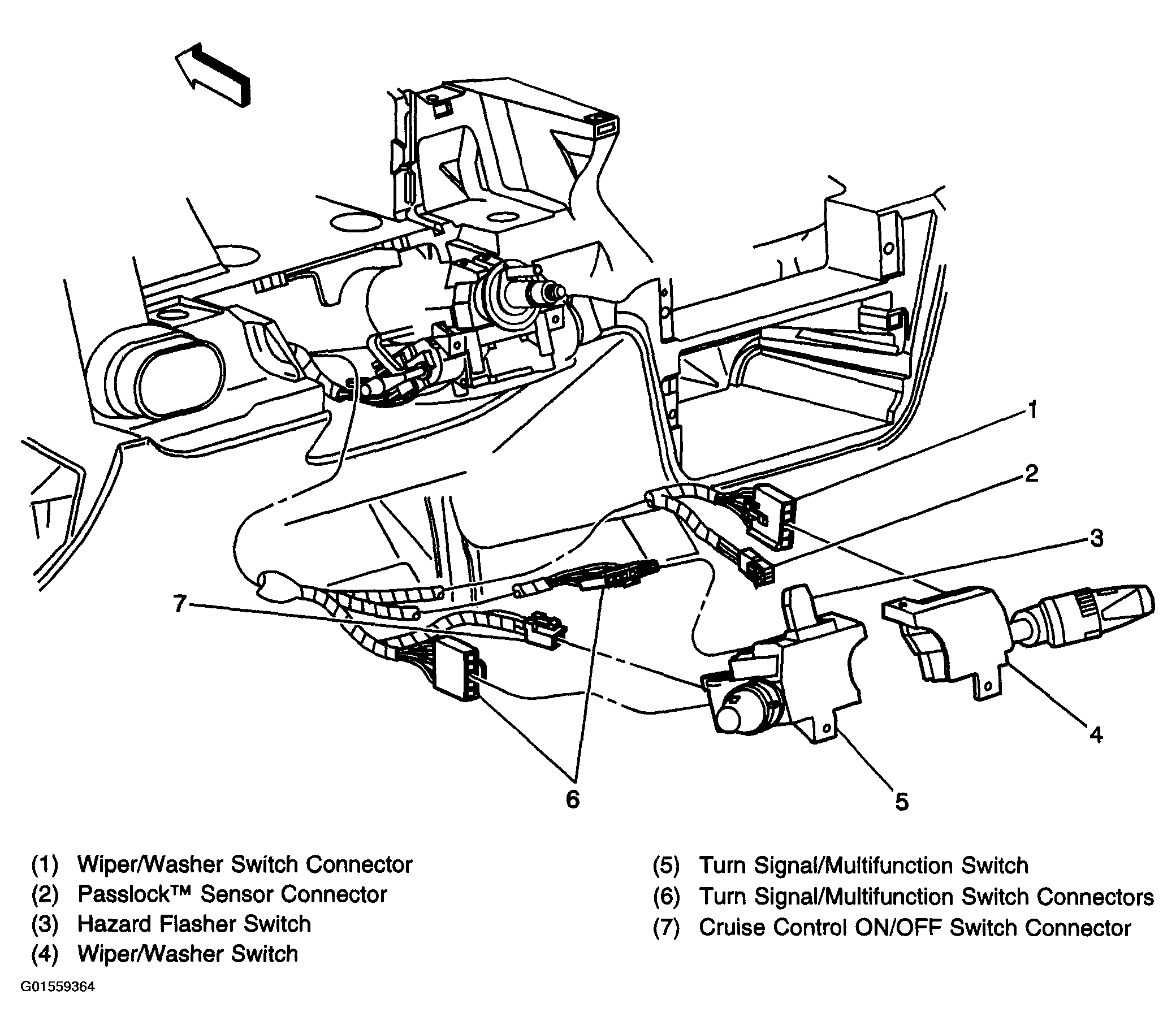

Fig 3: Locating Cruise Control Components (Steering Column)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
