Cruise Control Connector End Views

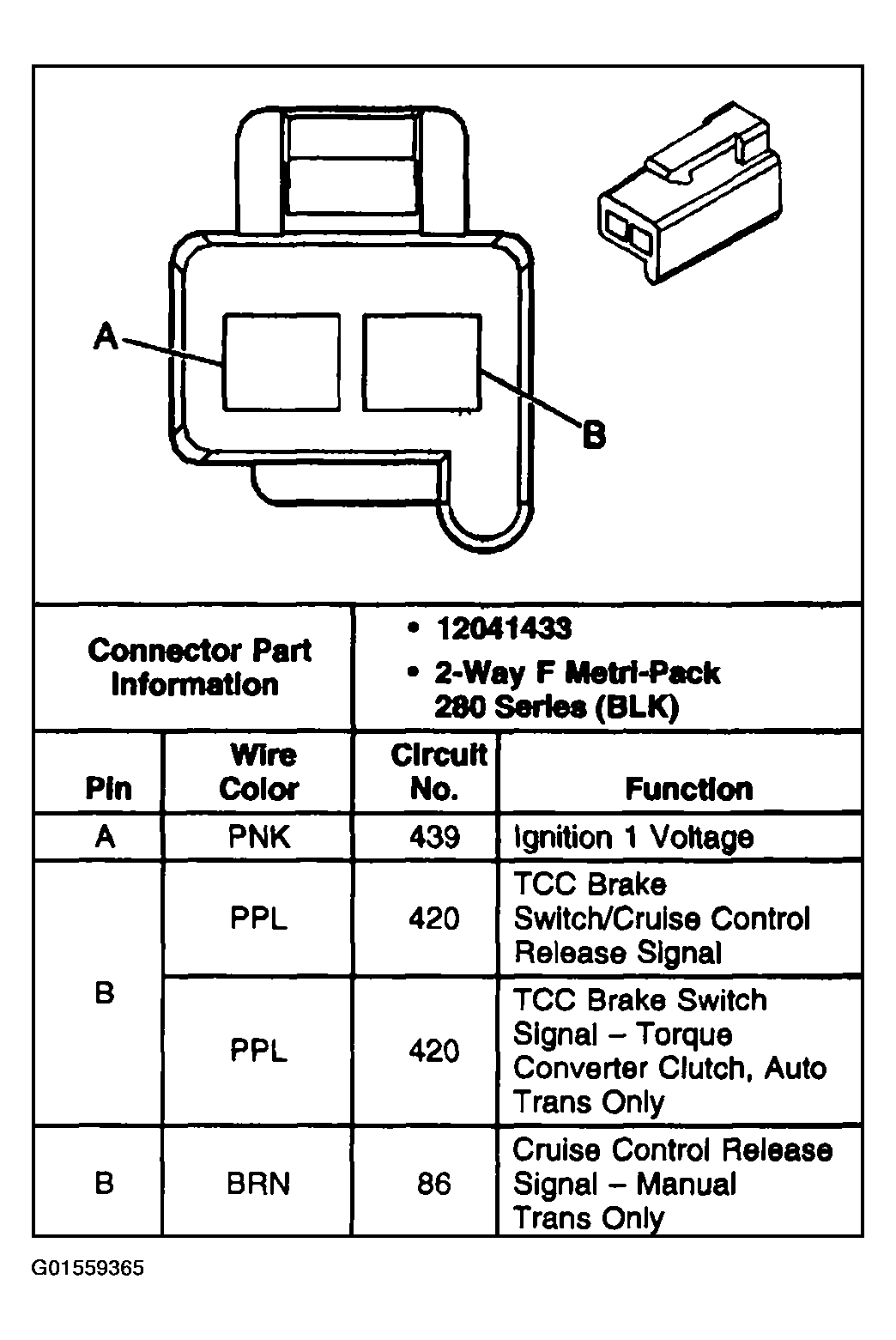

Fig 1: Identifying Cruise Control Brake Switch Connector Terminals
Courtesy of GENERAL MOTORS CORP.

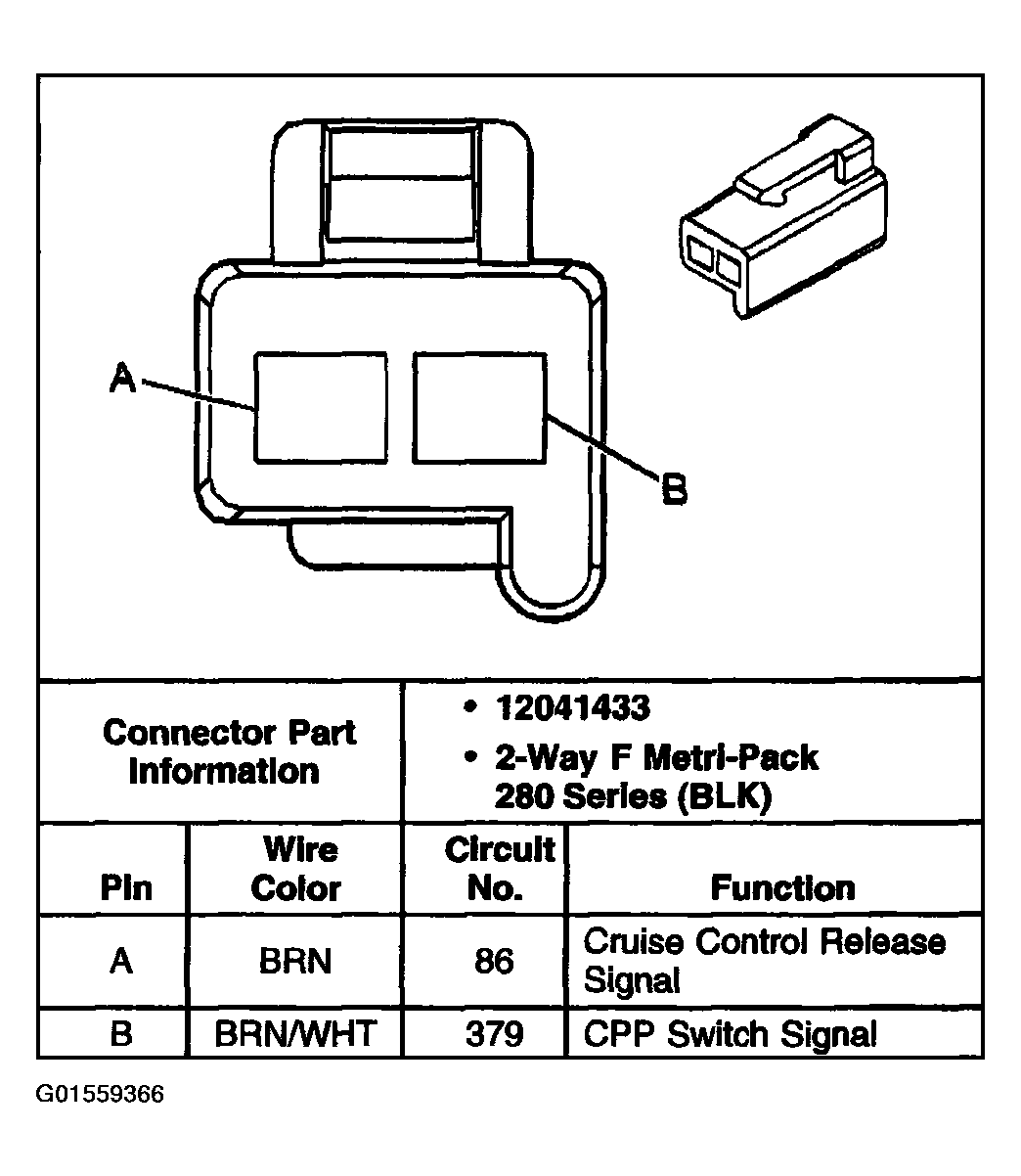

Fig 2: Identifying Clutch Pedal Position Switch Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Cruise Control Module Connector Terminals
Courtesy of GENERAL MOTORS CORP.

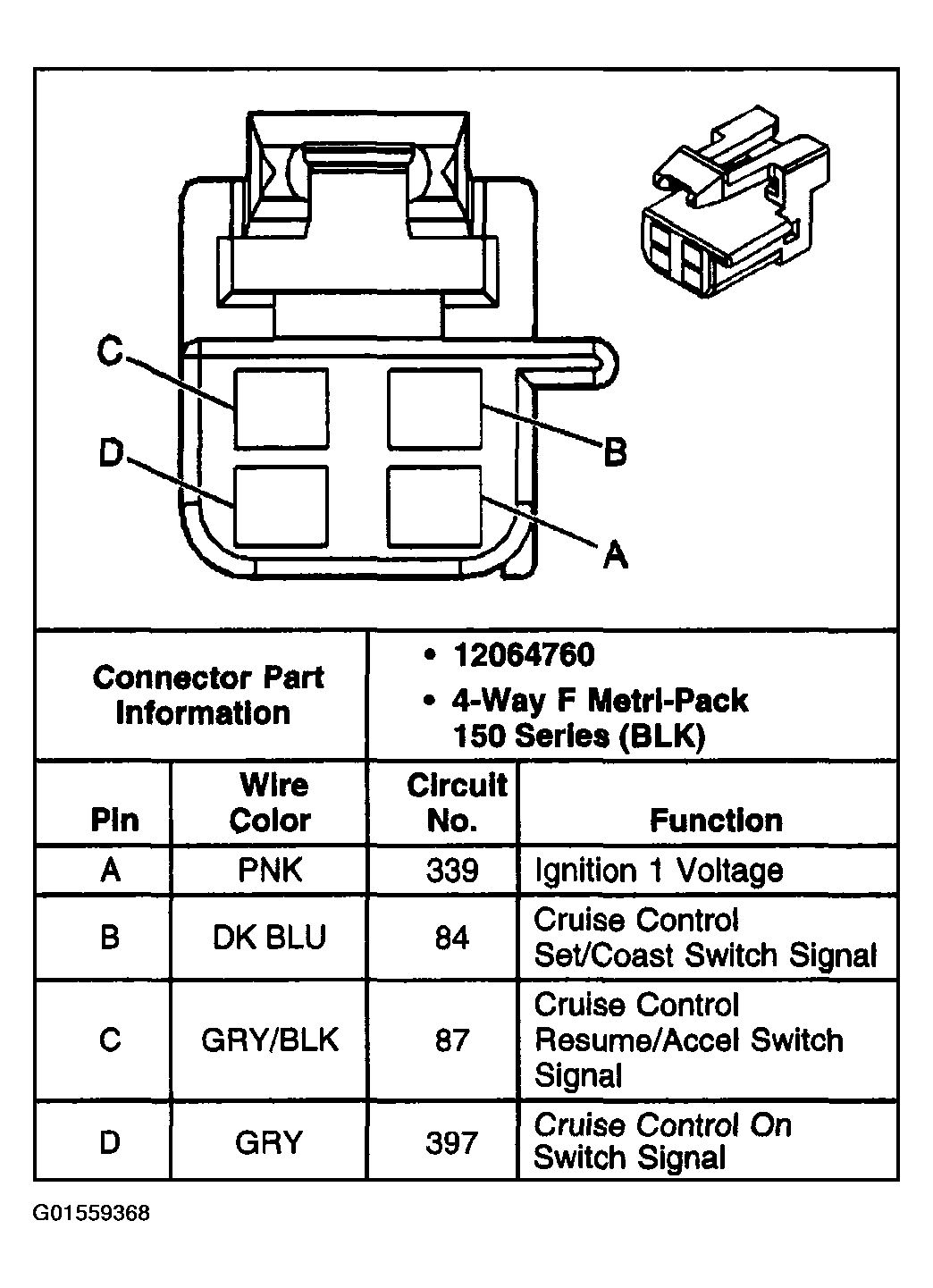

Fig 4: Cruise Control ON/OFF Switch Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
