Installation Procedure

Position the cruise control module to the mounting bracket.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the bolts (1) to the cruise control module.
Tighten

Tighten the bolts to the cruise control module to 10 N.m (89 lb.in).

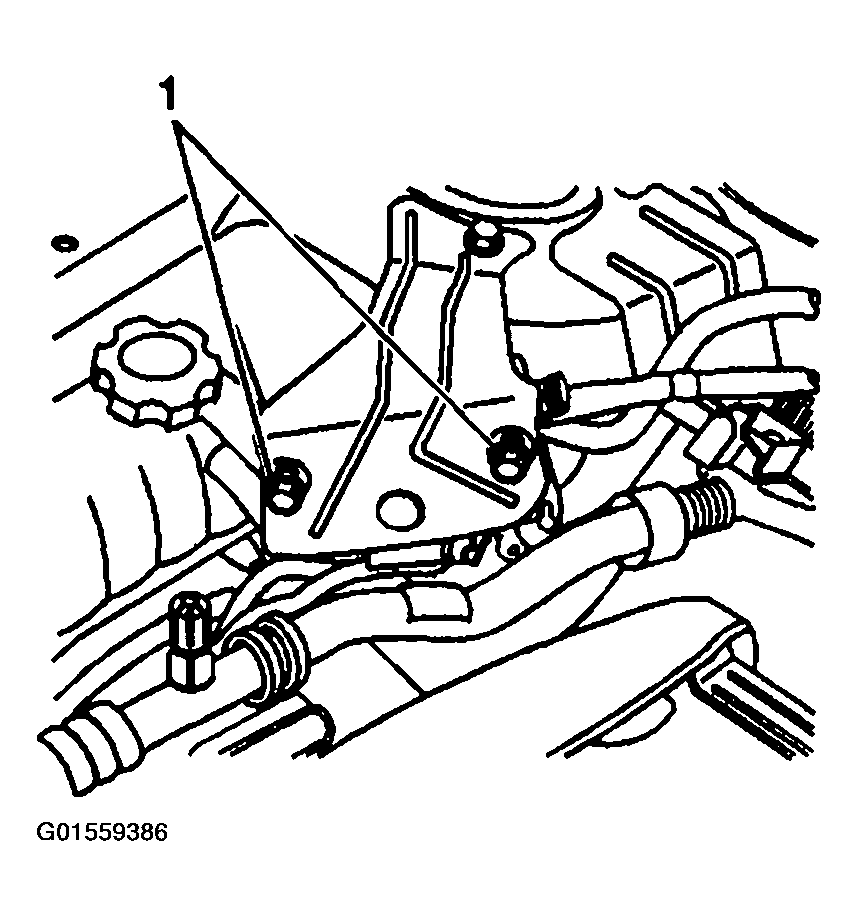

Fig 1: Installing Bolts To Cruise Control Module
Courtesy of GENERAL MOTORS CORP.
Position the cruise control module to the engine compartment.
Install the bolt and nut (1) to the cruise control module mounting bracket.
Tighten

Tighten the nuts to the cruise control module to 10 N.m (89 lb.in).

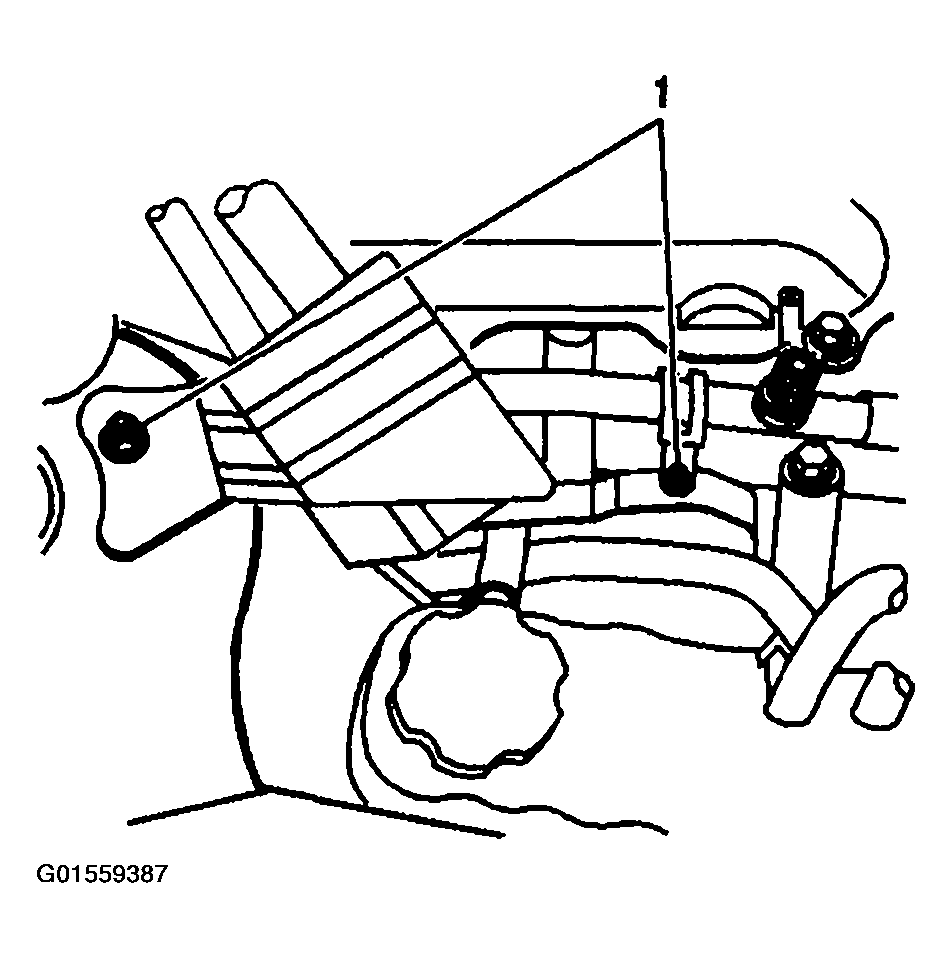

Fig 2: Installing Bolt And Nut To Cruise Control Module Mounting Bracket
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The ribbon must not be twisted.
Connect the cruise control cable slug to the ribbon buckle.

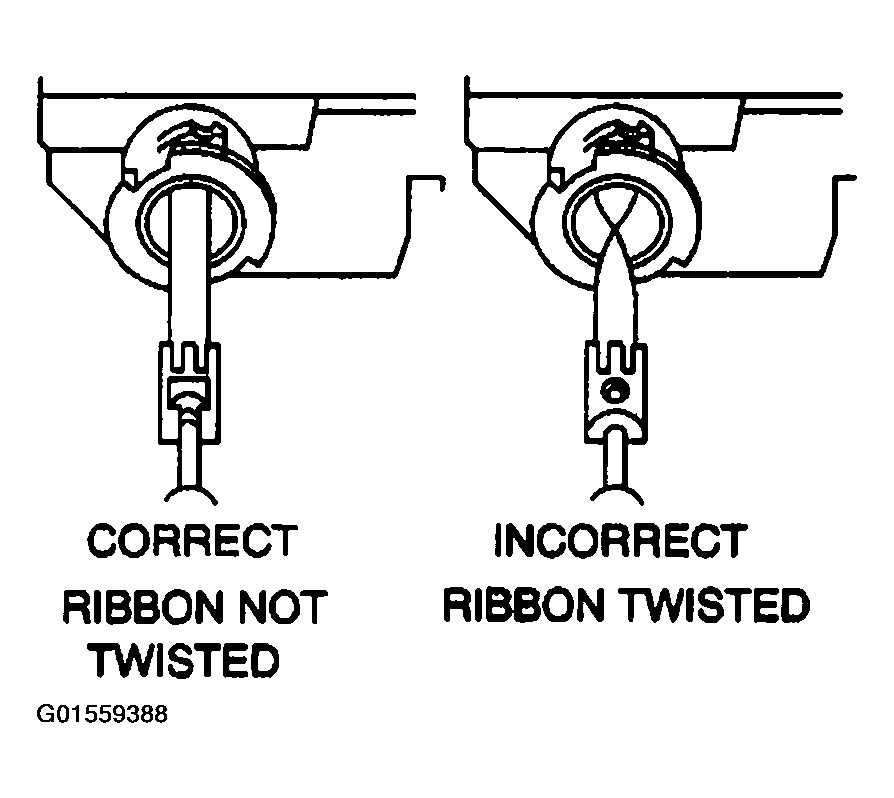

Fig 3: Connecting Cruise Control Cable Slug To Ribbon Buckle
Courtesy of GENERAL MOTORS CORP.
Insert the cruise control cable into the cruise control module until the seal touches the module.
Position the narrow cable tab into the narrow slot and the wide tab into the wide slot.
IMPORTANT: The adjuster tab must be pointing toward the front of the car after installation.
Connect the cruise control cable to the cruise control module by turning the cable clockwise.

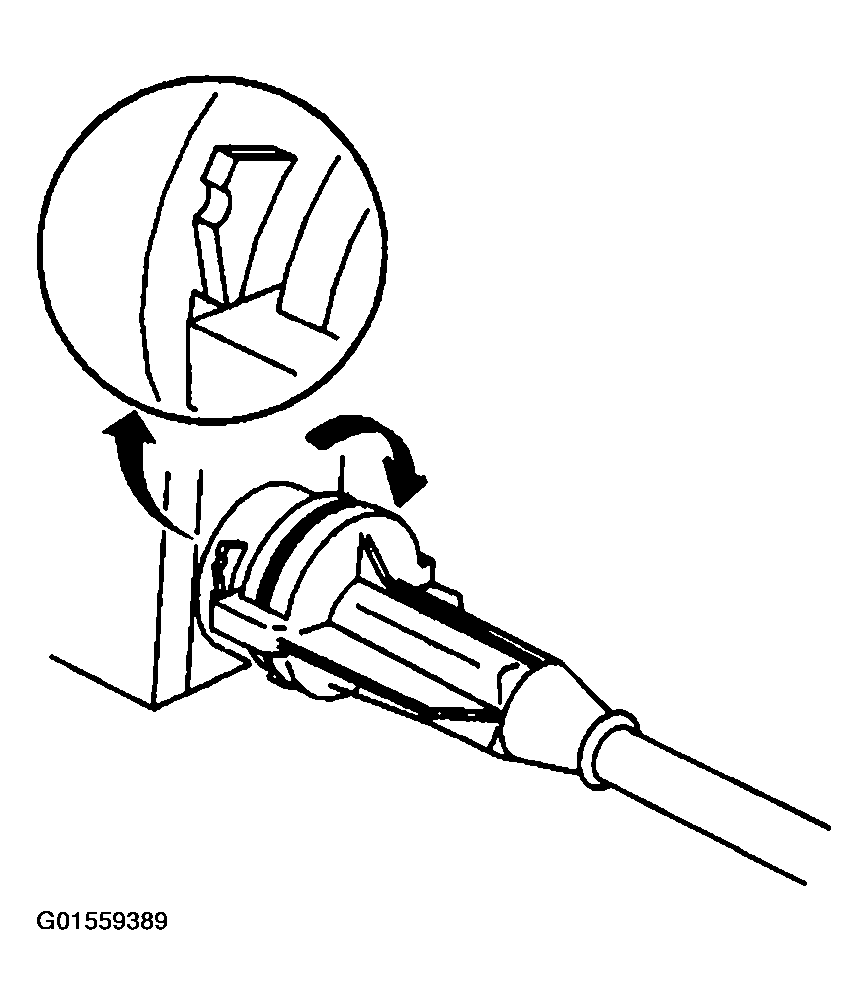

Fig 4: Inserting Cruise Control Cable Into Cruise Control Module
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the cruise control module.

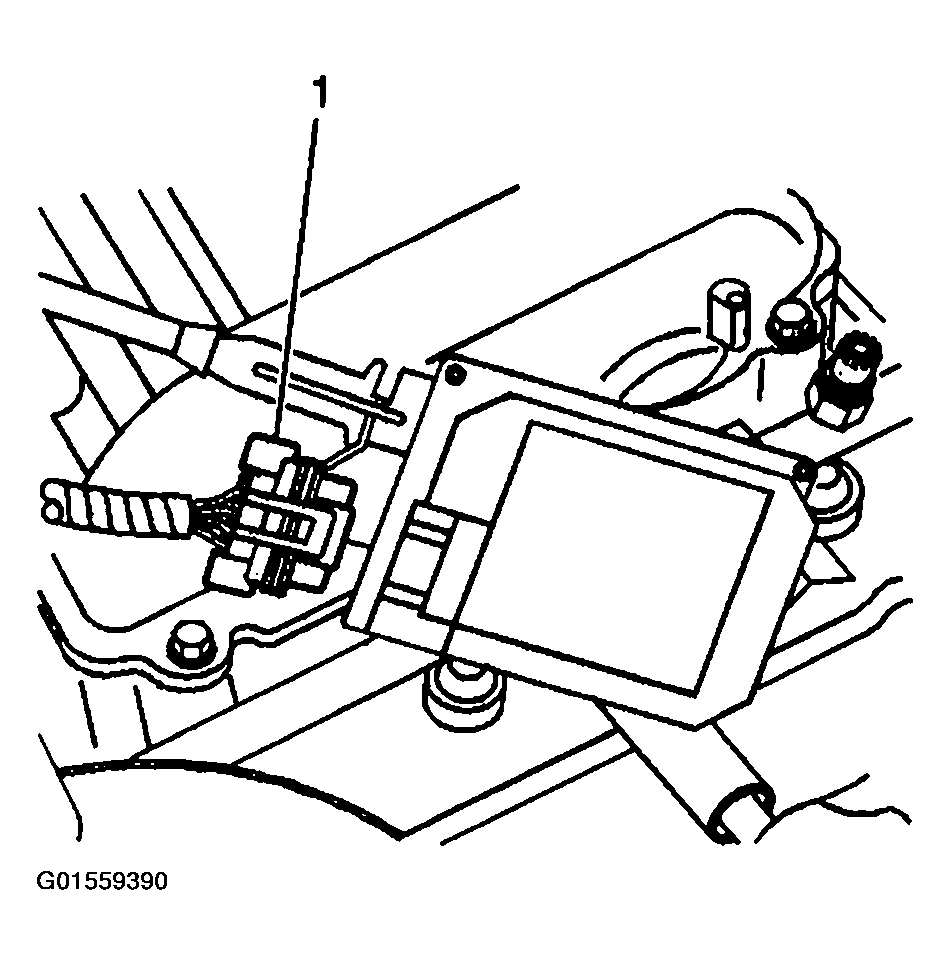

Fig 5: Connecting Electrical Connector To Cruise Control Module
Courtesy of GENERAL MOTORS CORP.
Install the cruise control cable to the throttle body bracket pressing into place until fully seated.
Open the throttle body cam slightly.
Connect the cruise control cable to the throttle body cam lever.
Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

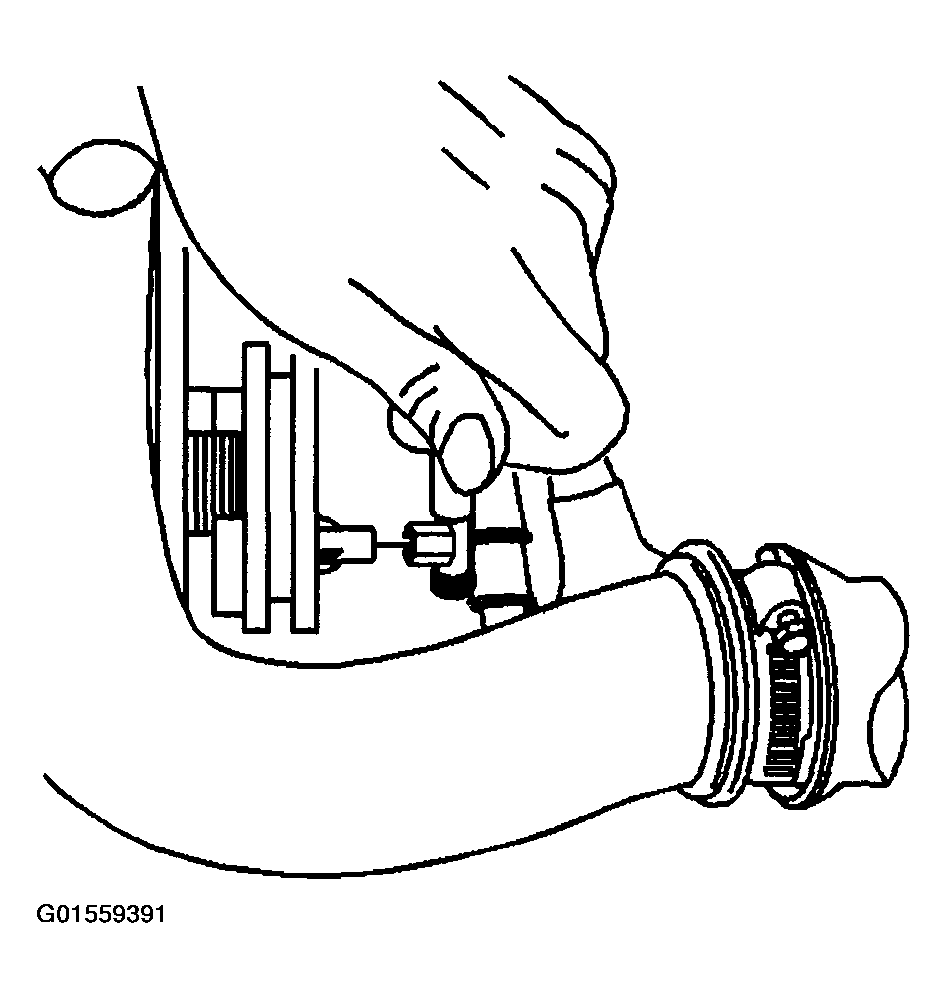

Fig 6: Connecting Cruise Control Cable To Throttle Body Cam Lever
Courtesy of GENERAL MOTORS CORP.
