Removal Procedure

Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
Disconnect the electrical connector (1) from the cruise control module.

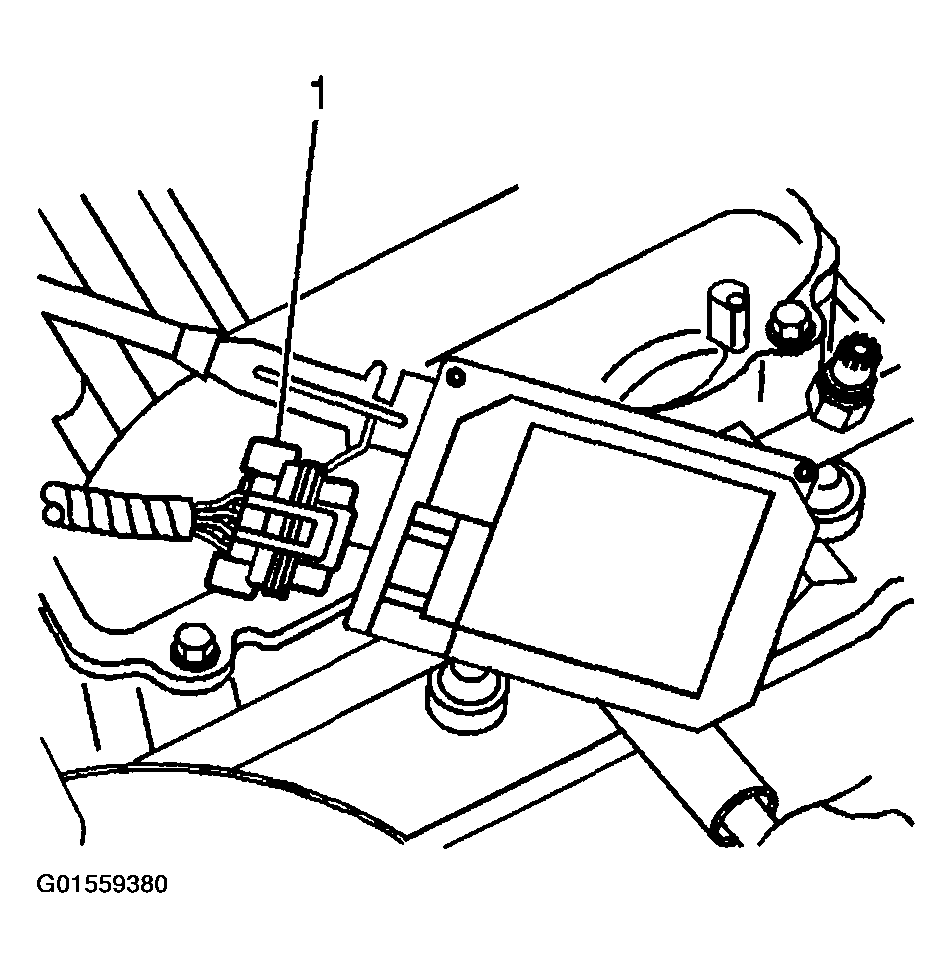

Fig 1: Disconnecting Electrical Connector From Cruise Control Module
Courtesy of GENERAL MOTORS CORP.
Open the throttle body cam slightly.
Disconnect the cruise control cable from the throttle body cam lever.
Remove the cruise control cable from the throttle body bracket.
Remove the cruise control cable from the retainer clip on the engine.

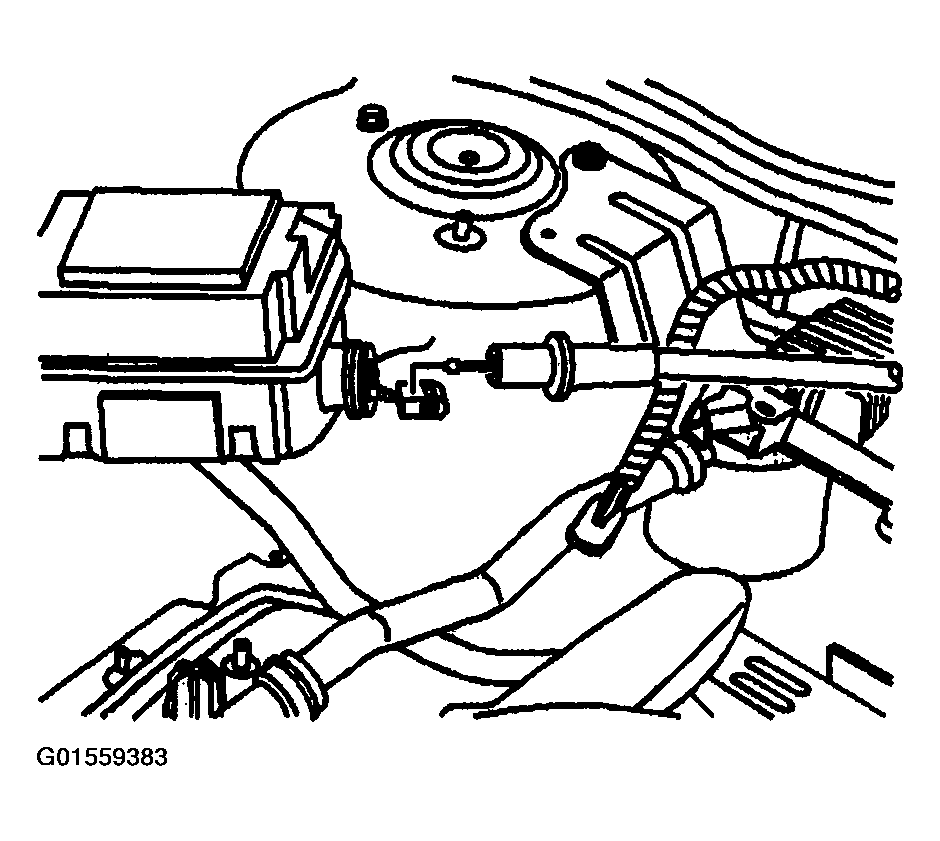

Fig 2: Disconnecting Cruise Control Cable From Throttle Body Cam Lever
Courtesy of GENERAL MOTORS CORP.
Disconnect the cruise control cable from the cruise control module by turning the cable 1/4 turn counterclockwise.

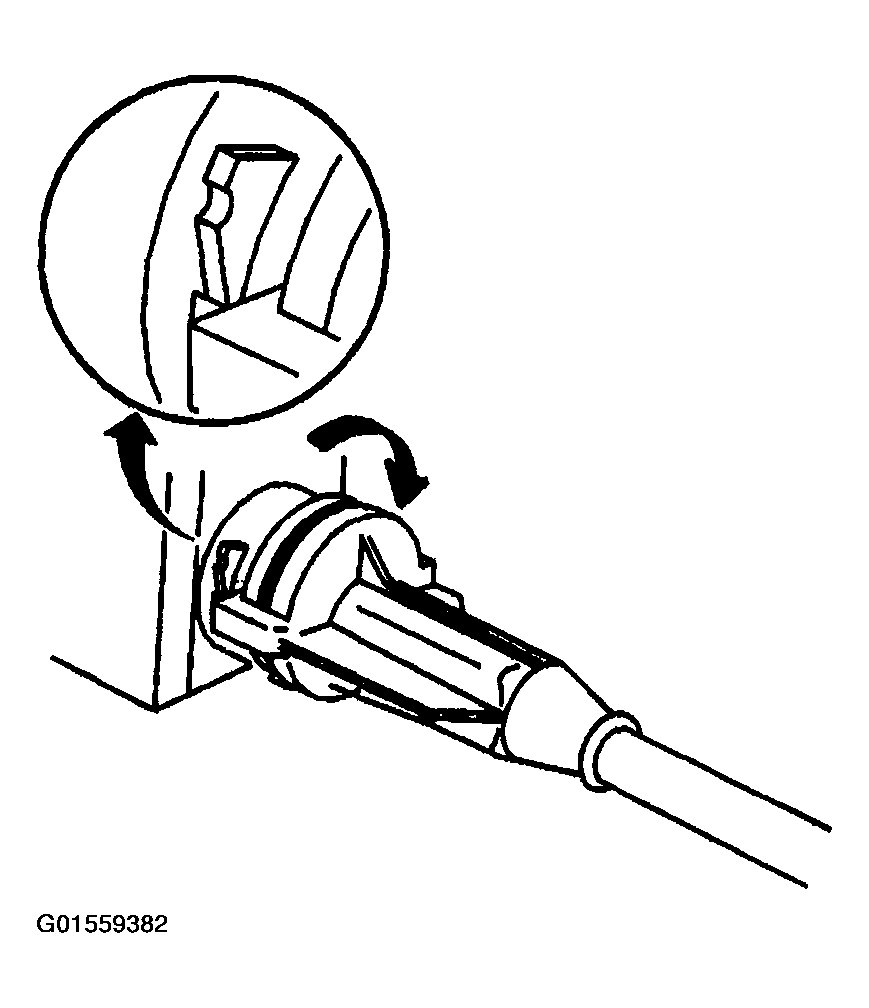

Fig 3: Disconnecting Cruise Control Cable From Cruise Control Module
Courtesy of GENERAL MOTORS CORP.
Disconnect the cruise control cable slug from the ribbon buckle.

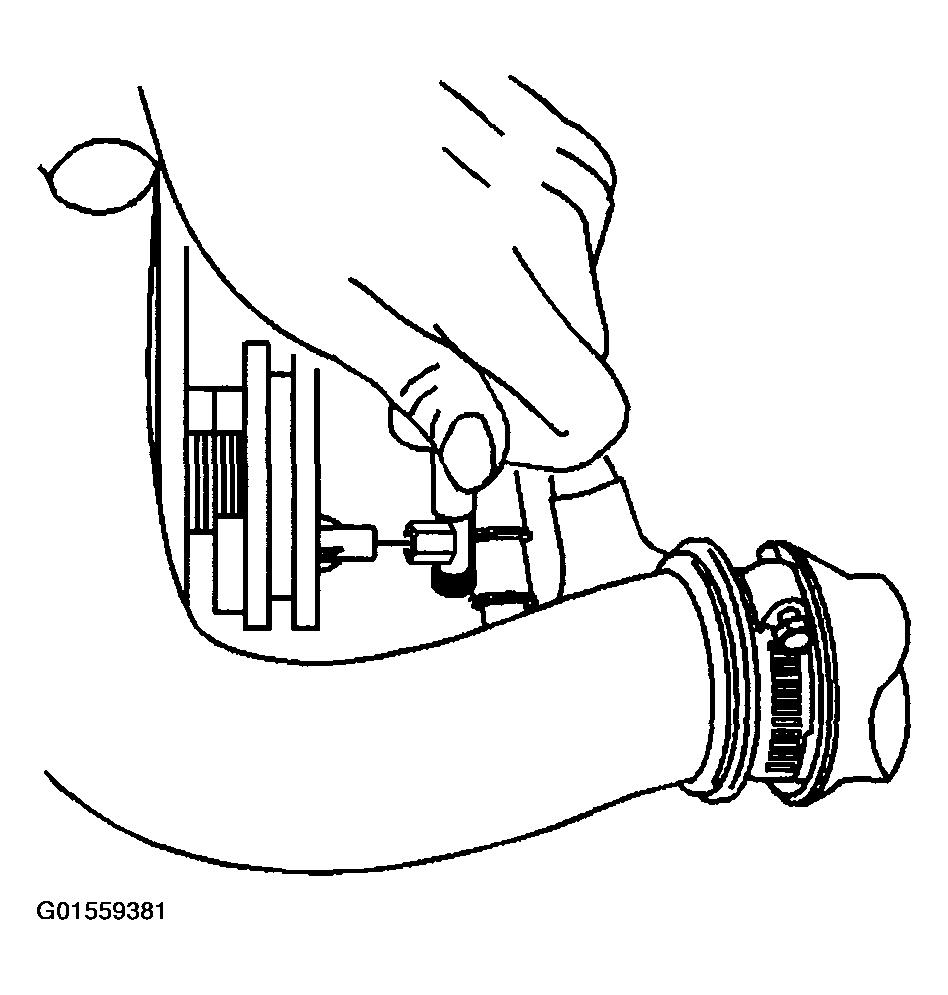

Fig 4: Disconnecting Cruise Control Cable Slug From Ribbon Buckle
Courtesy of GENERAL MOTORS CORP.
Remove the bolts (1) from the cruise control module.

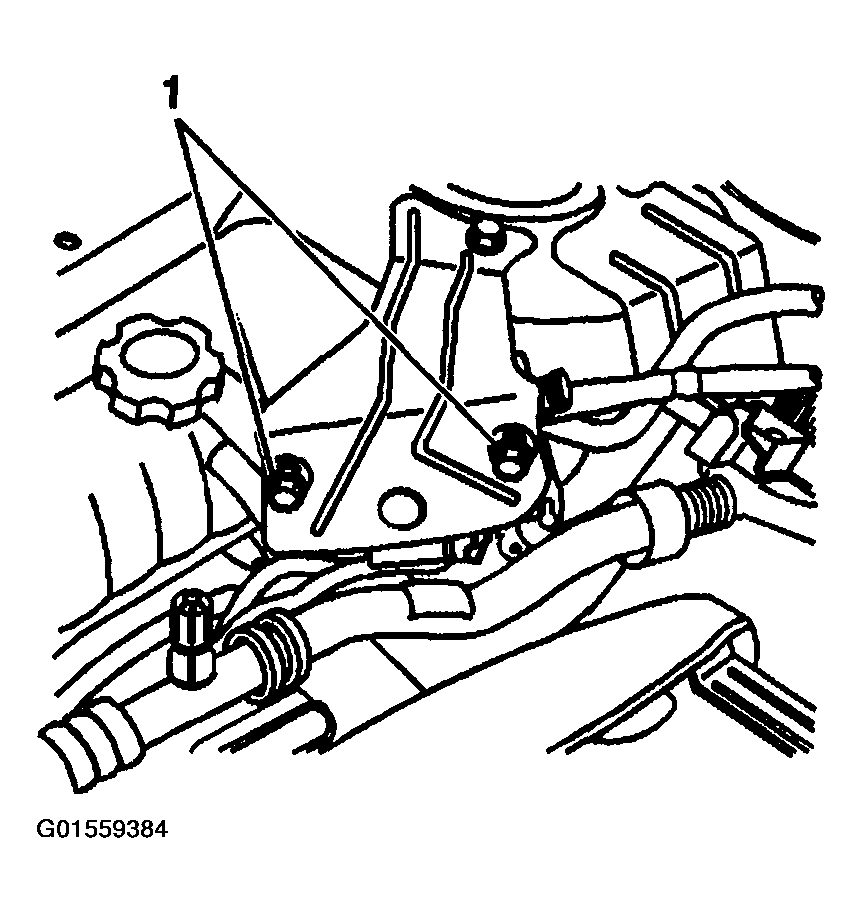

Fig 5: Removing Bolts From Cruise Control Module
Courtesy of GENERAL MOTORS CORP.
Remove the bolt and nut (1) from the cruise control module mounting bracket.
Remove the cruise control module from the engine compartment.

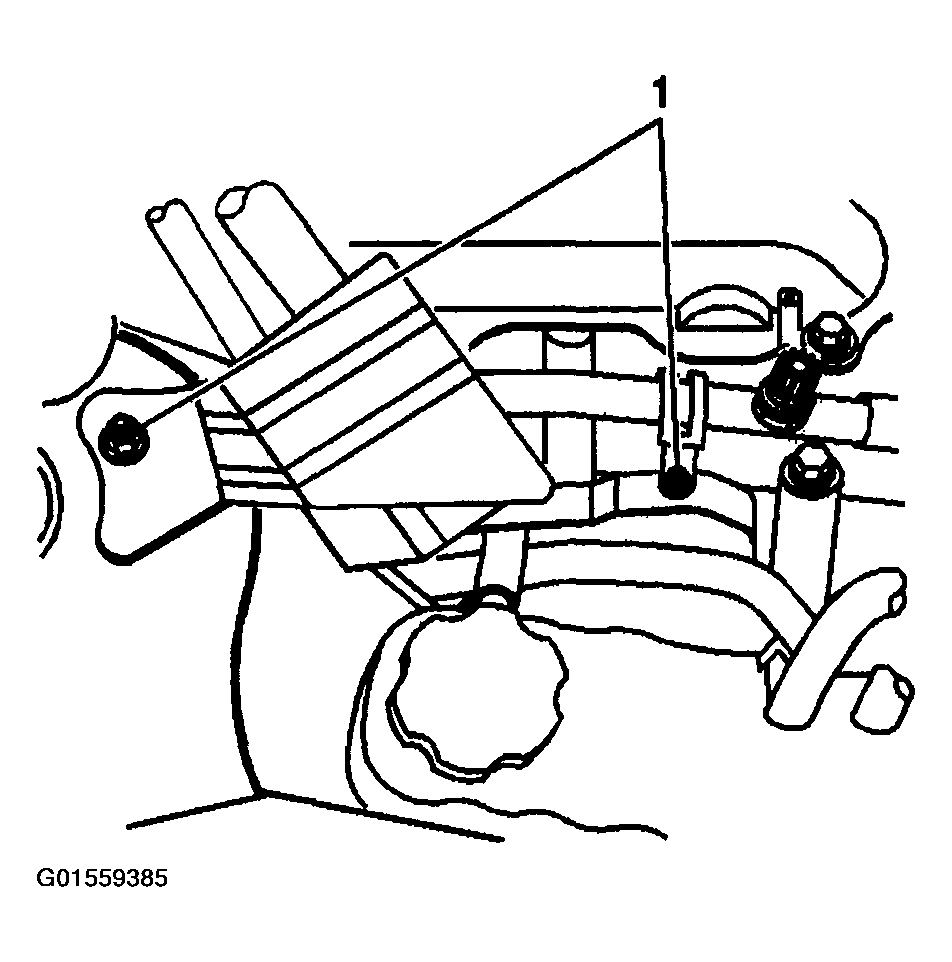

Fig 6: Removing Bolt And Nut From Cruise Control Module Mounting Bracket
Courtesy of GENERAL MOTORS CORP.
