Entertainment Component Views

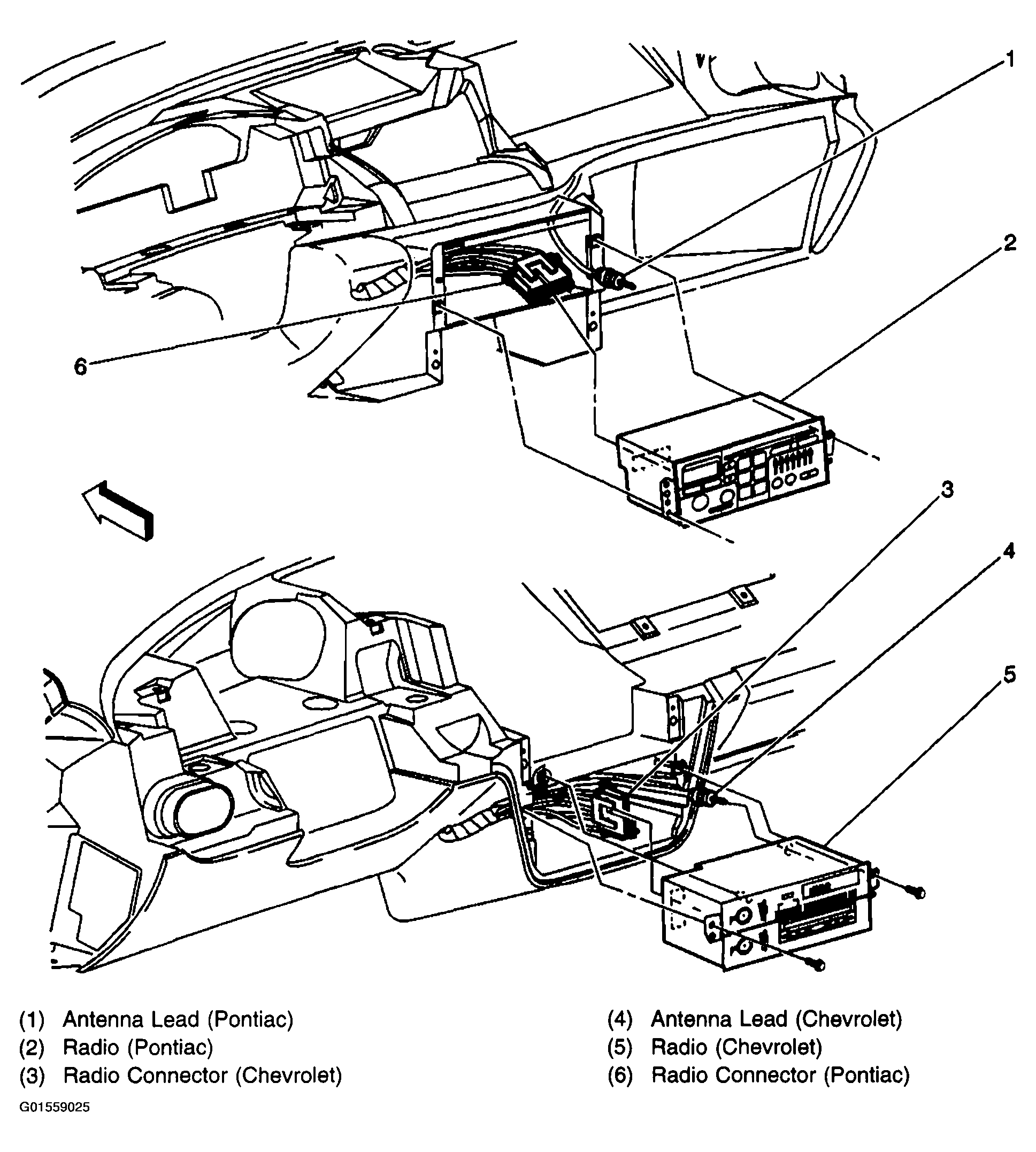

Fig 1: Locating Entertainment Components (Antenna Lead And Radio Connector)

Courtesy of GENERAL MOTORS CORP.

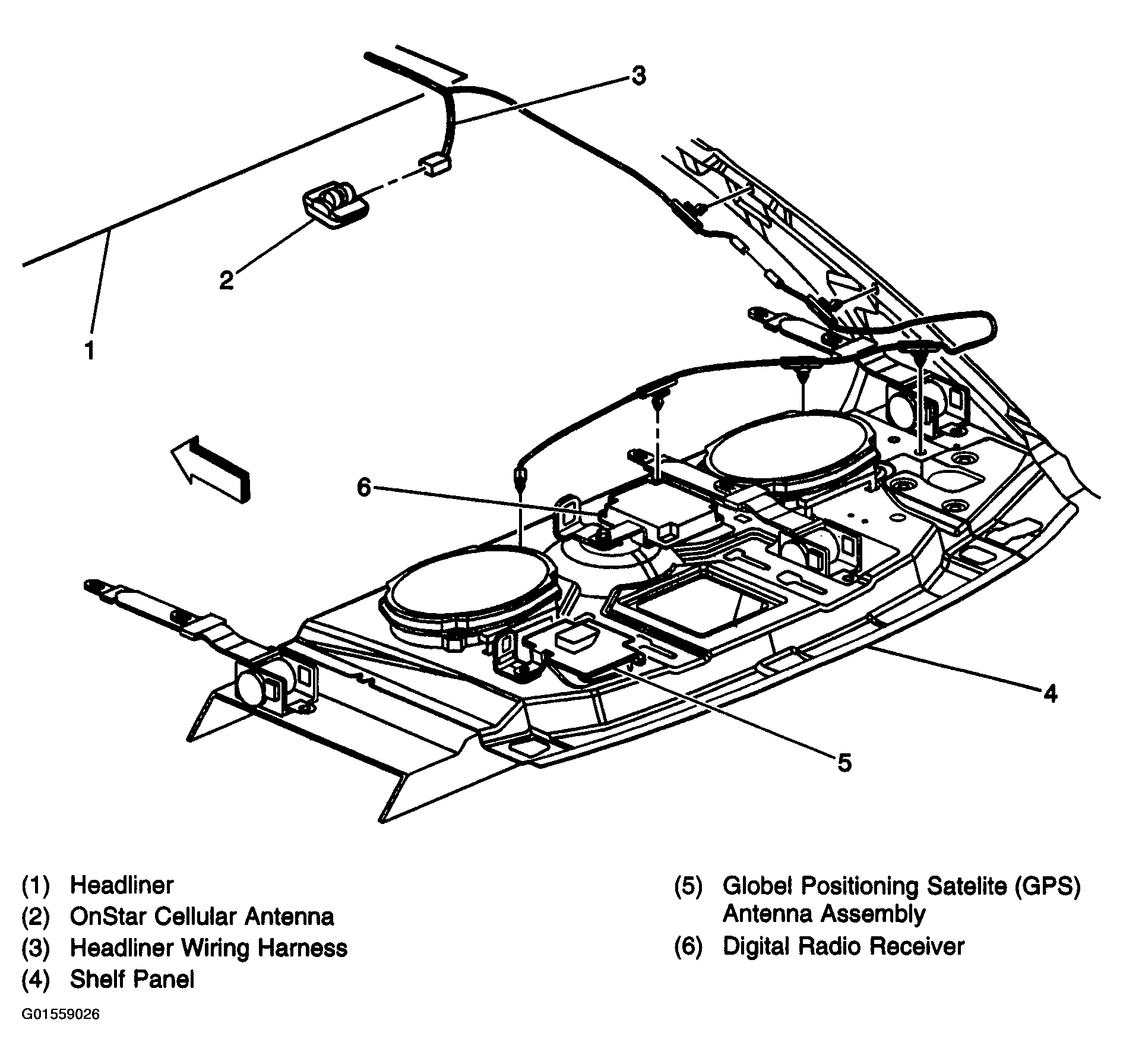

Fig 2: Locating Entertainment Components (OnStar Cellular Antenna)

Courtesy of GENERAL MOTORS CORP.

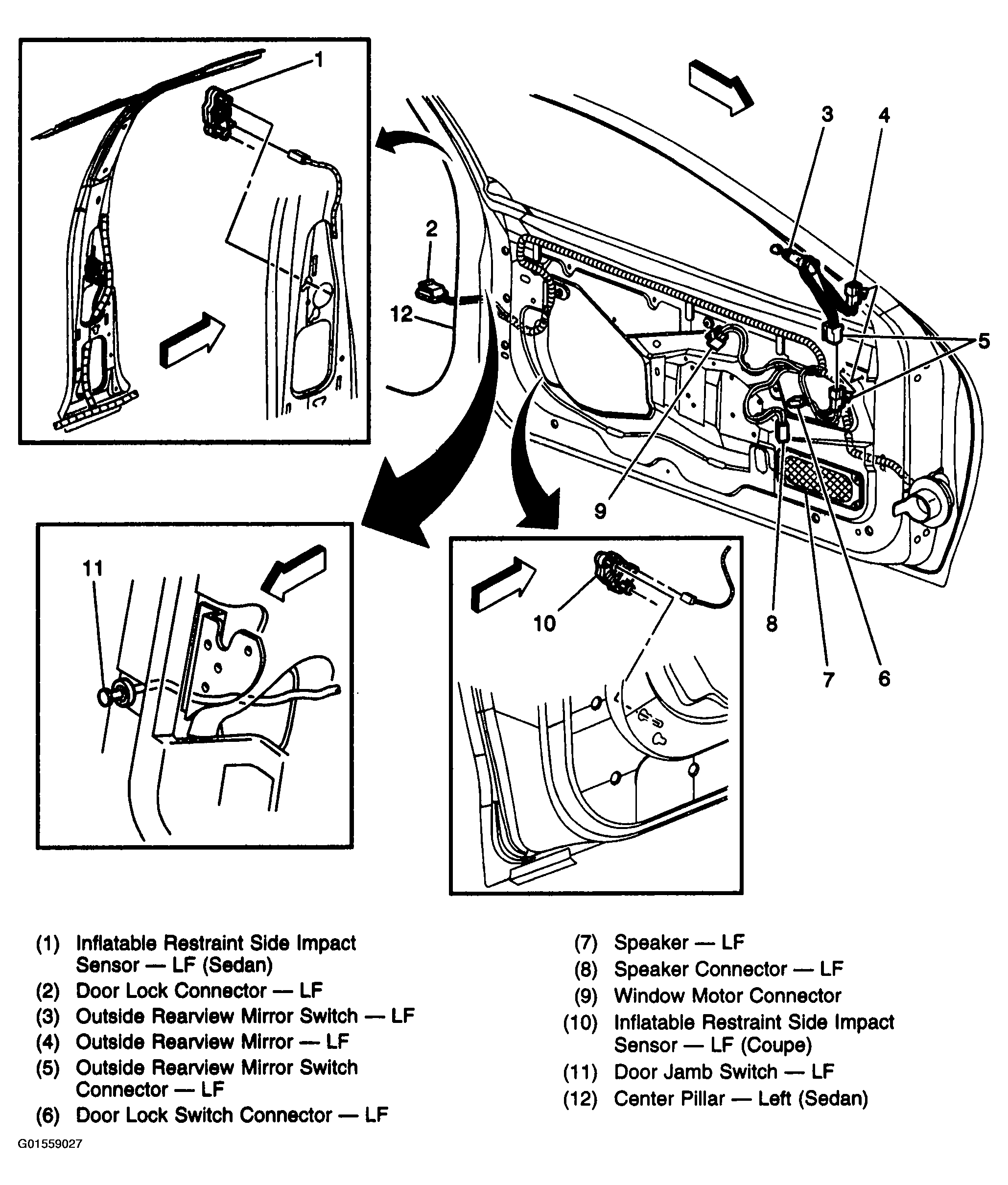

Fig 3: Locating Entertainment Components (Driver Door)

Courtesy of GENERAL MOTORS CORP.

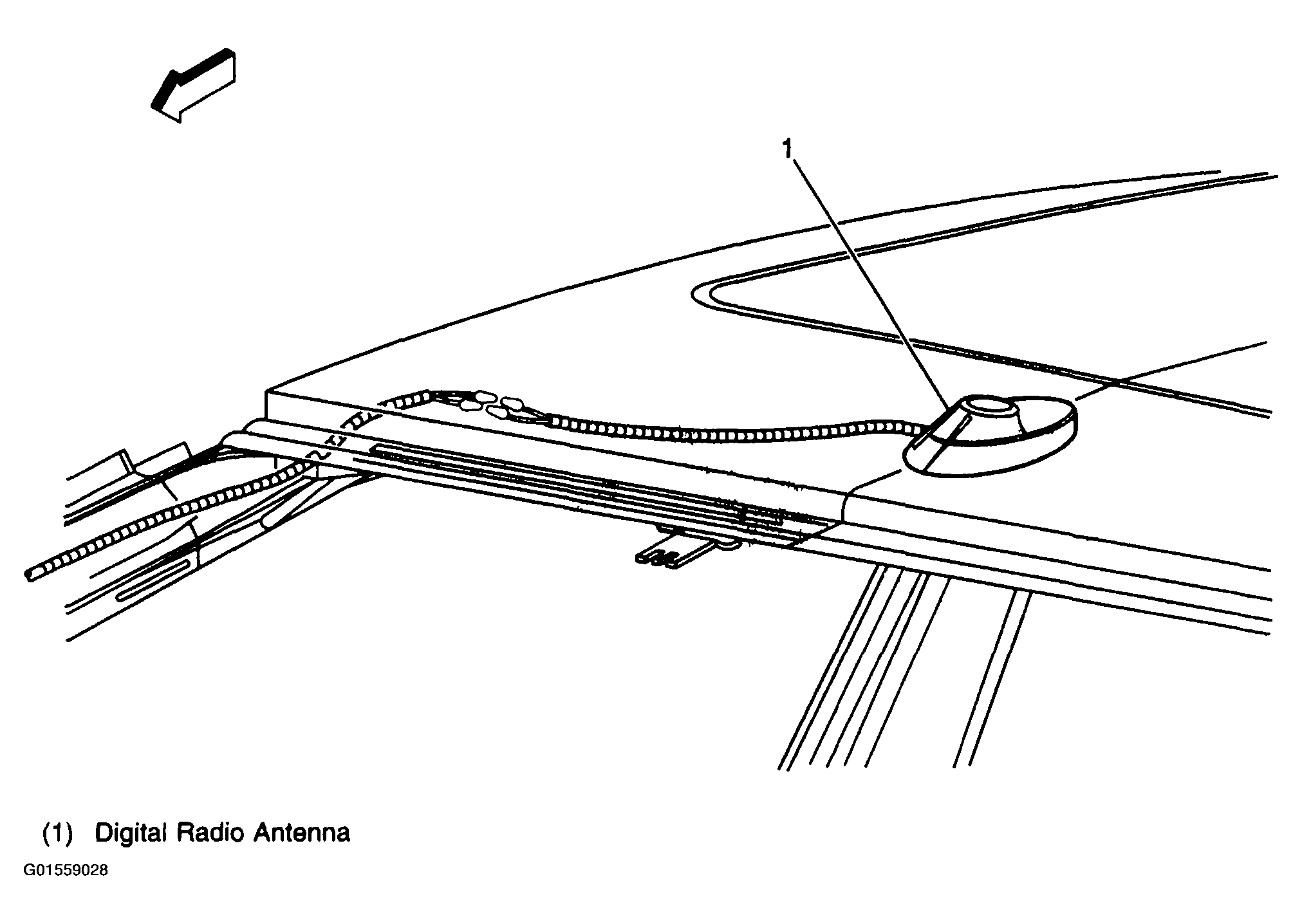

Fig 4: Locating Entertainment Components (Front Center Of Roof)

Courtesy of GENERAL MOTORS CORP.

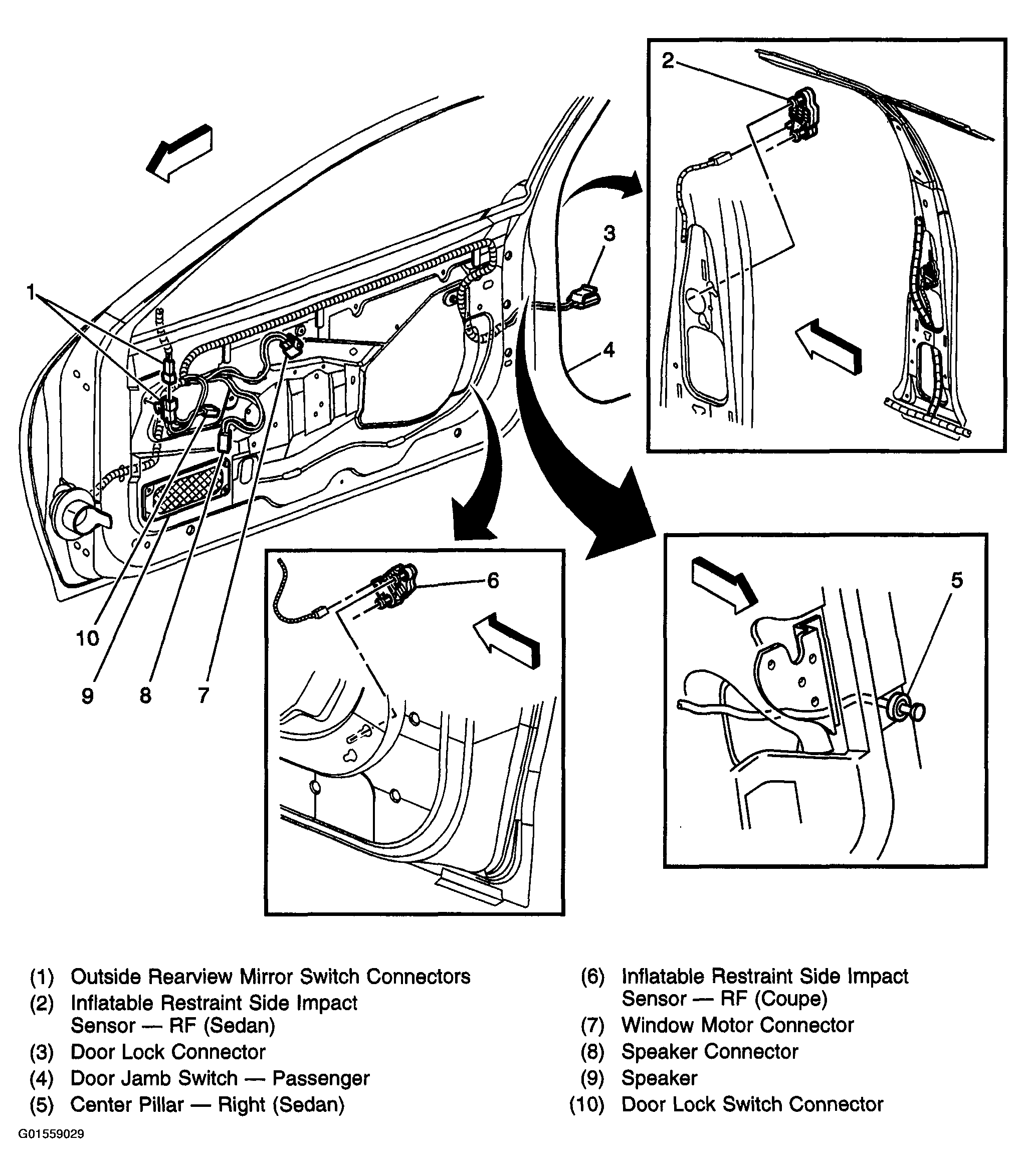

Fig 5: Locating Entertainment Components (Passenger Door)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Locating Entertainment Components (Rear Compartment)

Courtesy of GENERAL MOTORS CORP.

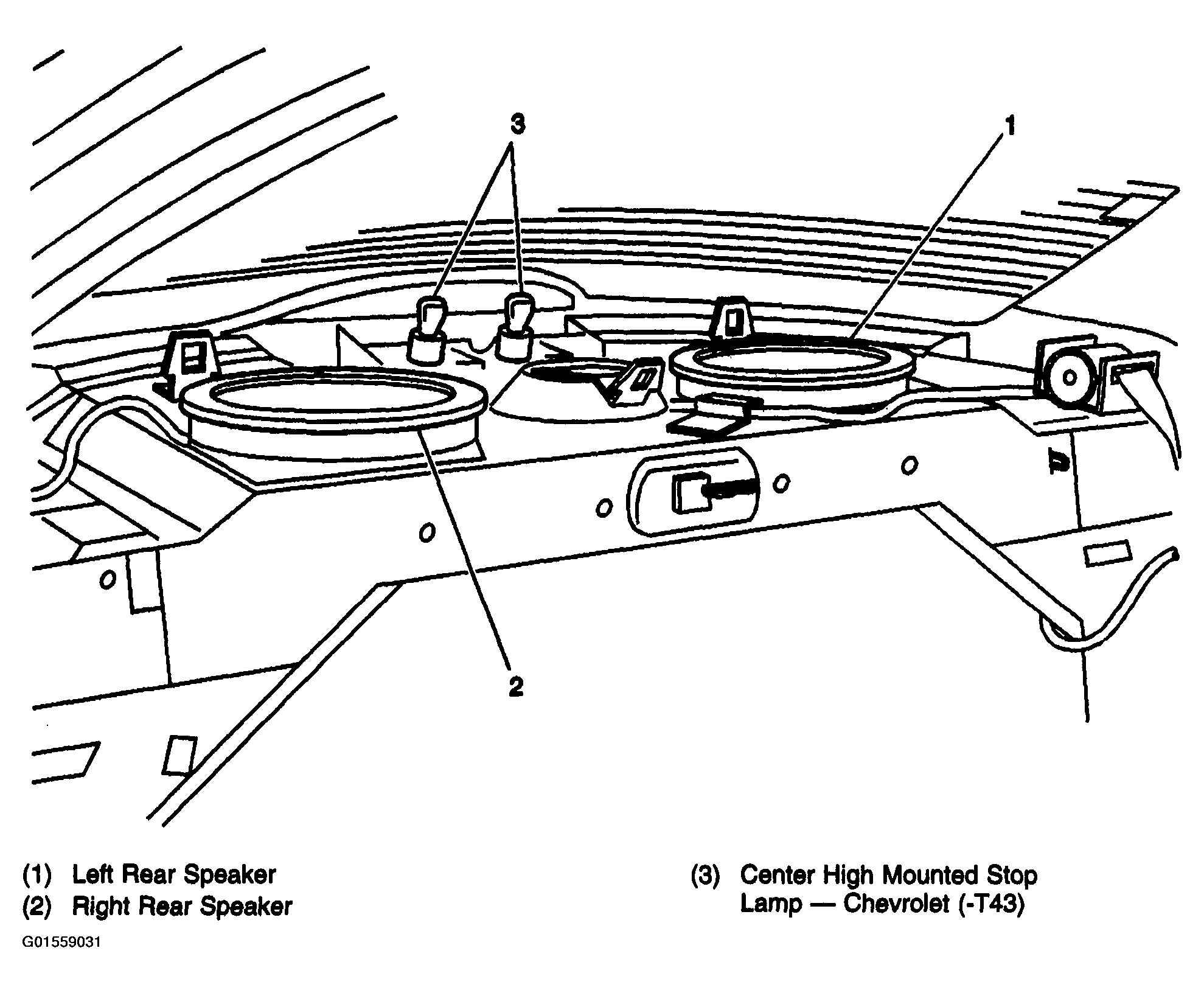

Fig 7: Locating Entertainment Components (Rear Package Shelf - Speakers And CHMSL)

Courtesy of GENERAL MOTORS CORP.
