Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

With an assistant, align the sunroof module assembly with the white plastic locating pins.
With an assistant, push the module assembly with an upward motion to engage the white locating pins.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
With an assistant, install the sunroof module assembly bolts (2).
Tighten: Tighten the sunroof module bolts to 11 N.m (97 lb in).
Connect the drain hose connections to the sunroof housing.
Install the headliner finish panel. Refer to Headliner Replacement in Interior Trim.

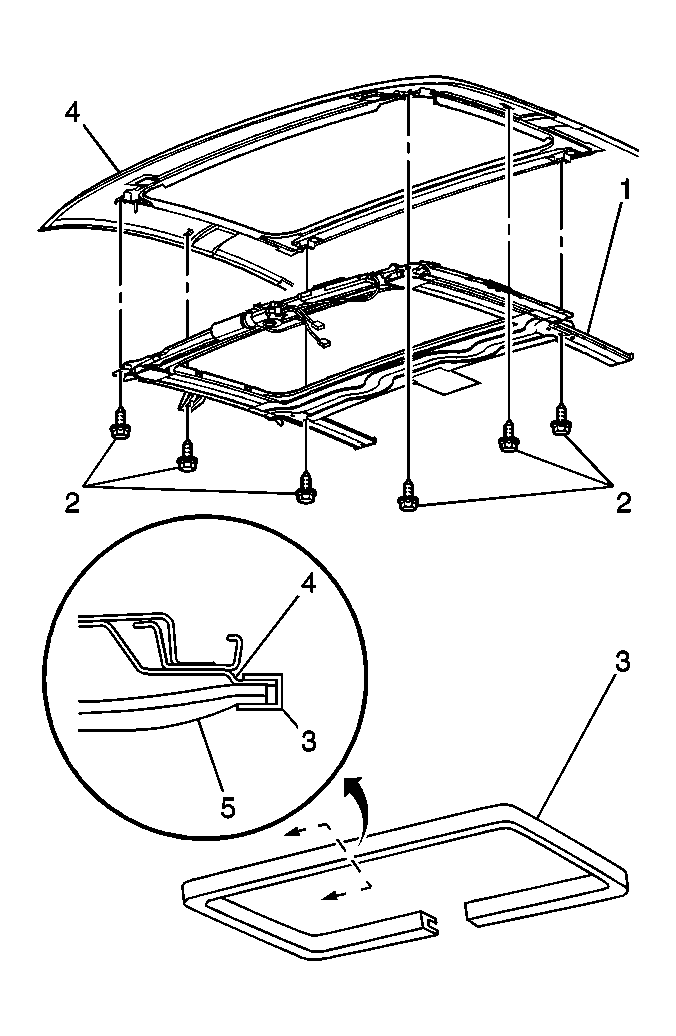

Fig 1: Sunroof Module Assembly
Courtesy of GENERAL MOTORS CORP.
