Installation Procedure

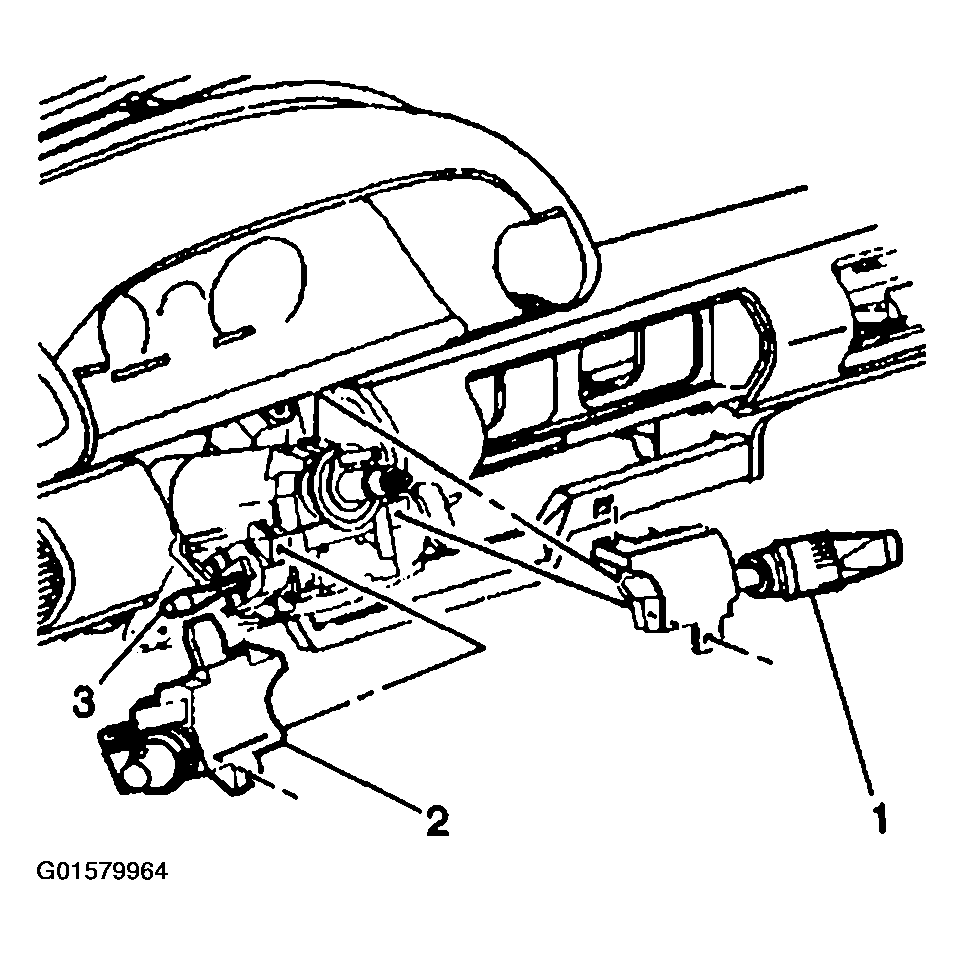

Fig 1: Installing Multifunction Switch To Steering Column
G01579964Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors to the multifunction switch (2).
  2. Install the multifunction switch (2) to the steering column while depressing the spring loaded horn pin.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the retaining screws to the multifunction switch (2).

    Tighten

    Tighten the screws to 4 N.m (36 lb in).

  4. Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .
  5. Connect the negative battery cable.
  6. Ensure that the multifunction switch functions properly.
