Remote Control Door Lock Receiver

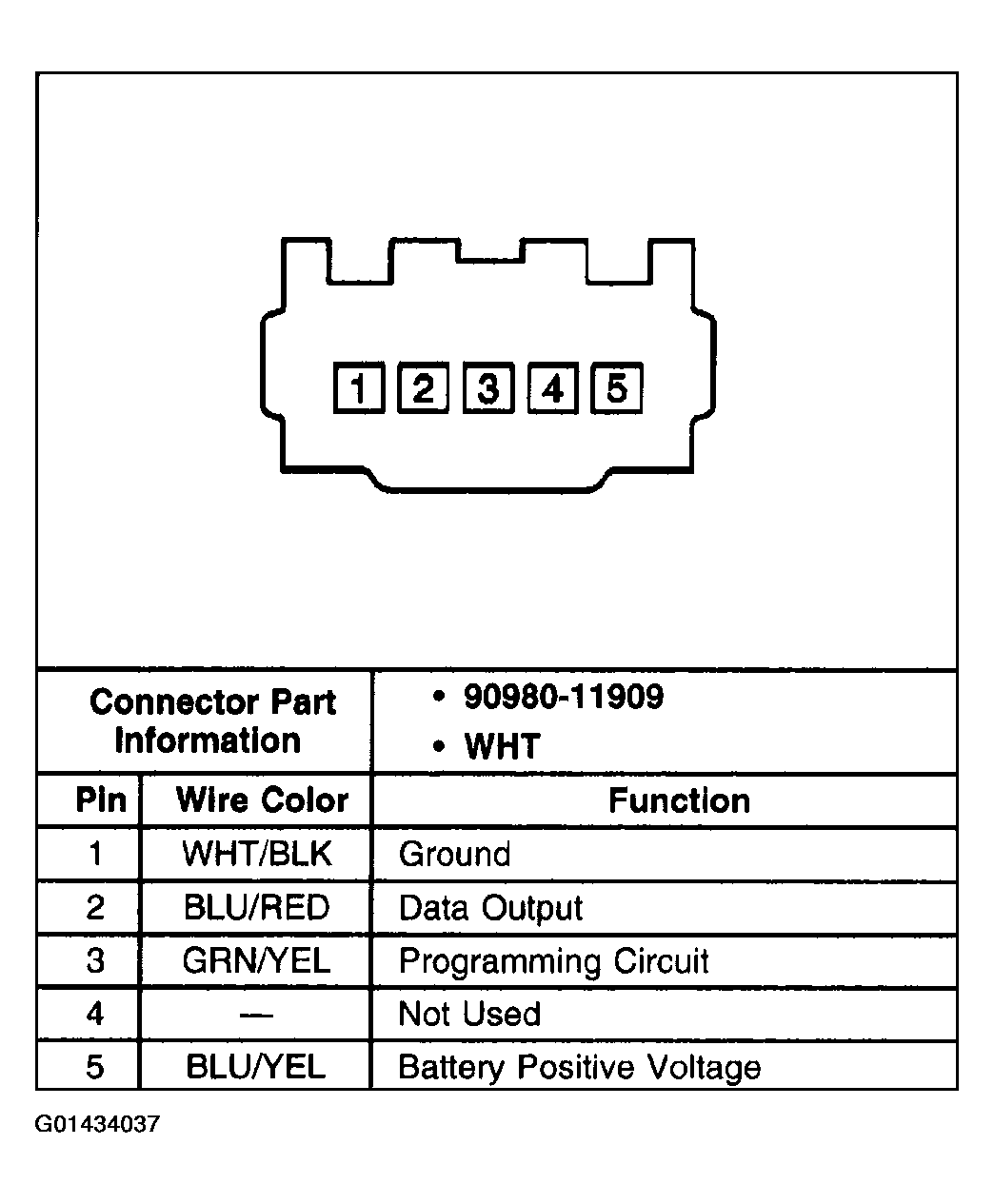

Fig 1: Identifying Remote Control Door Lock Receiver Connector And Pin Function Chart
G01434037Courtesy of GENERAL MOTORS CORP.
