Power Door Systems Connector End Views

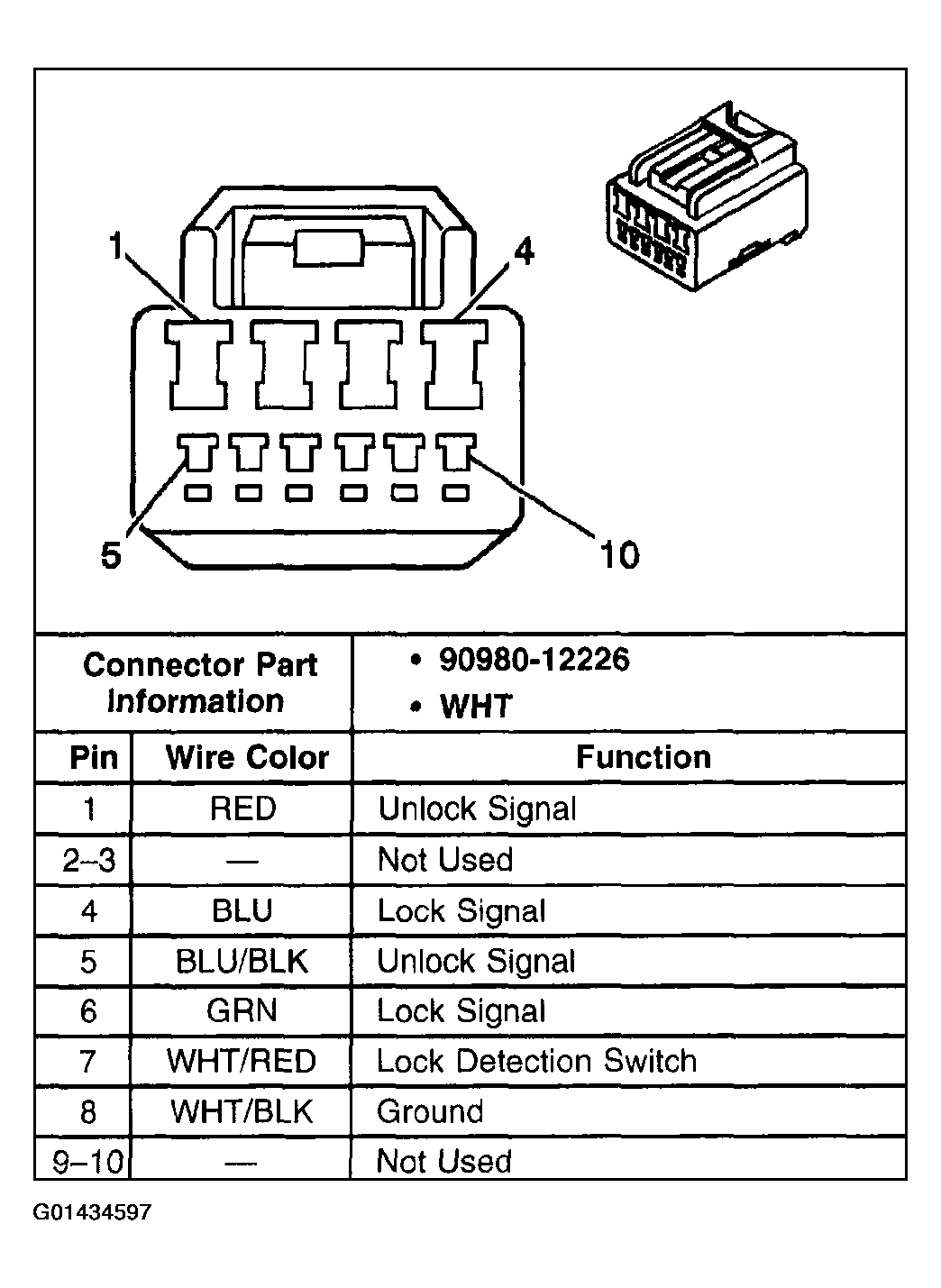

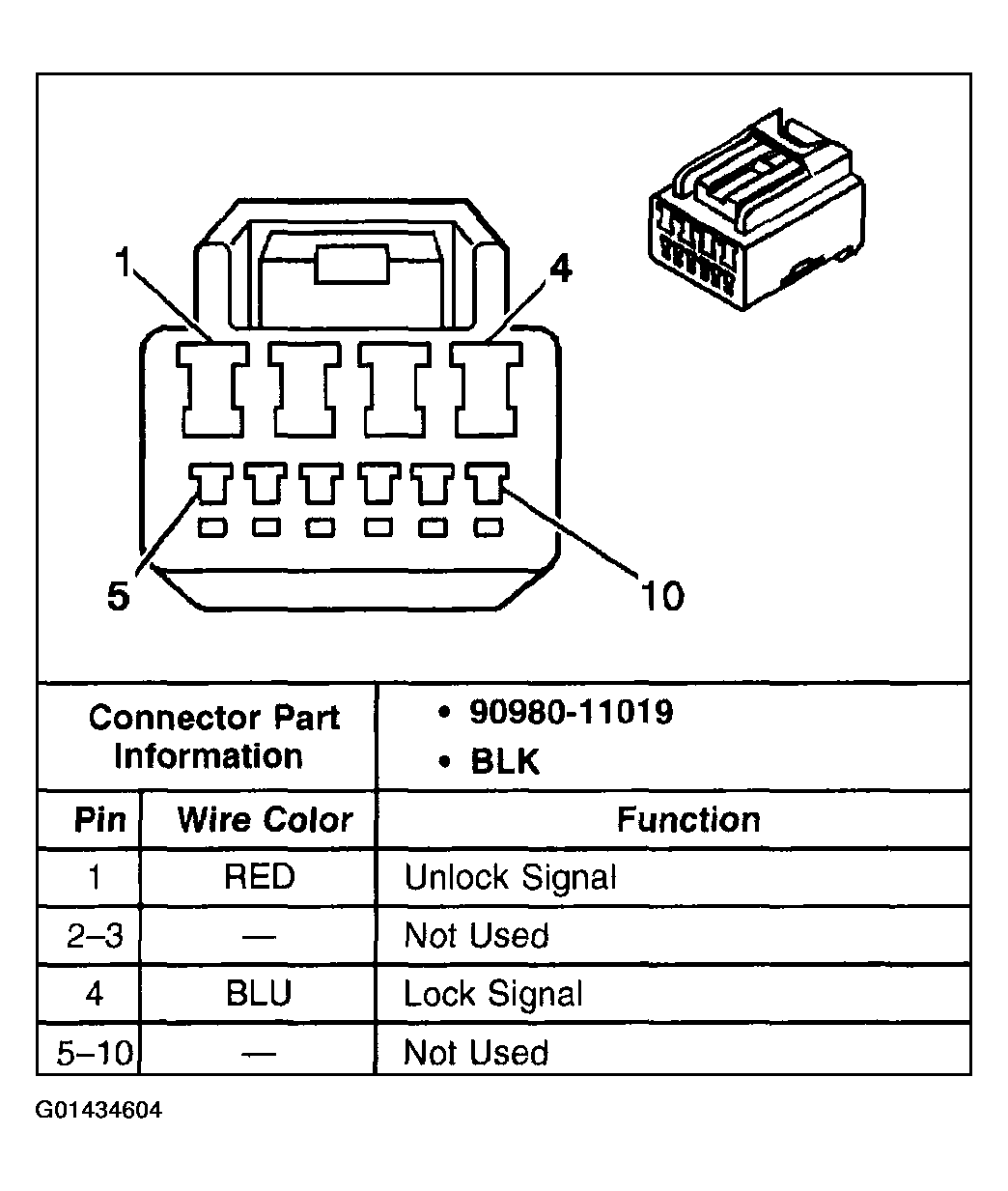

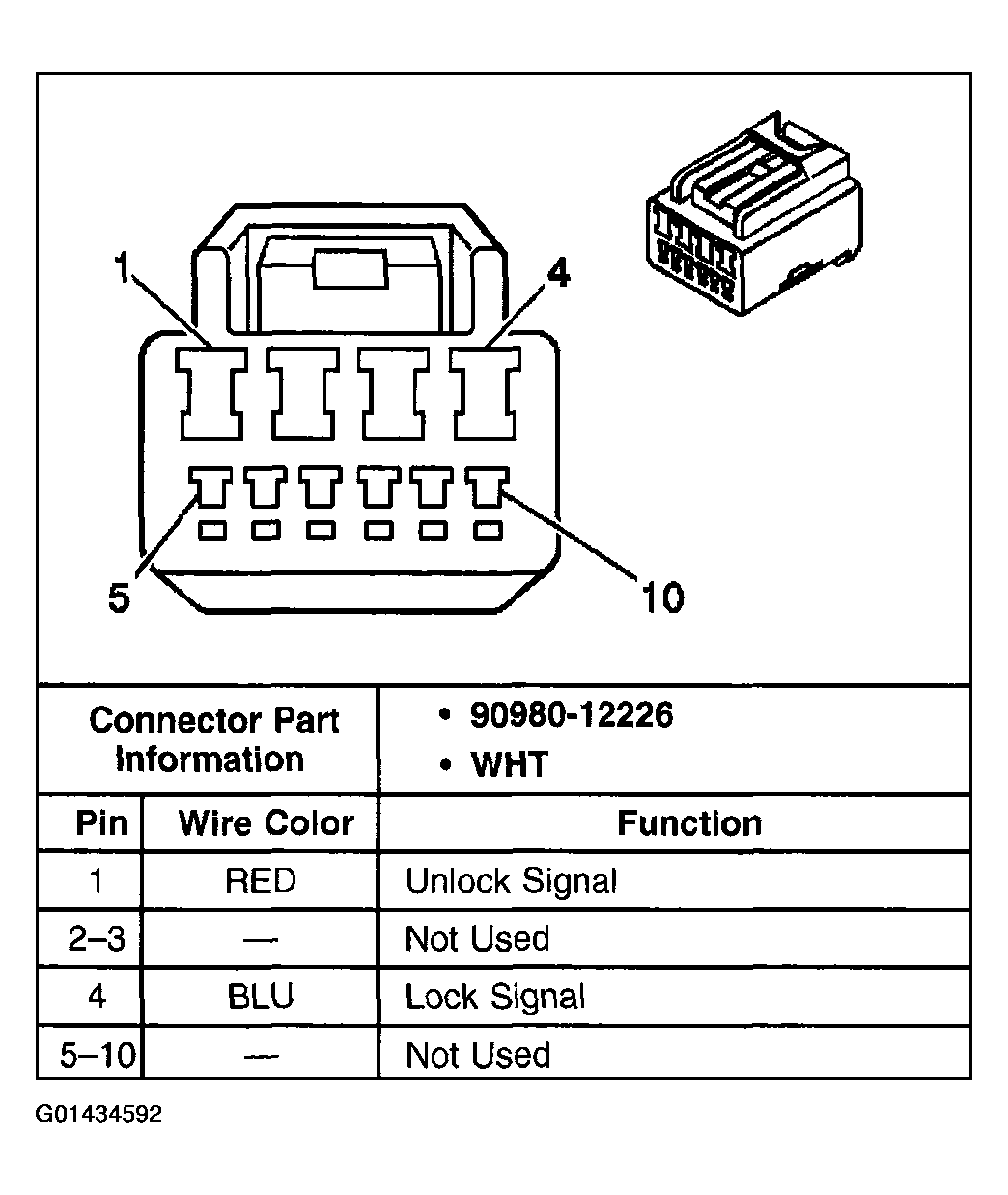

Fig 1: Power Door Systems Connector End View - LH Front Door Lock Actuator

Courtesy of GENERAL MOTORS CORP.

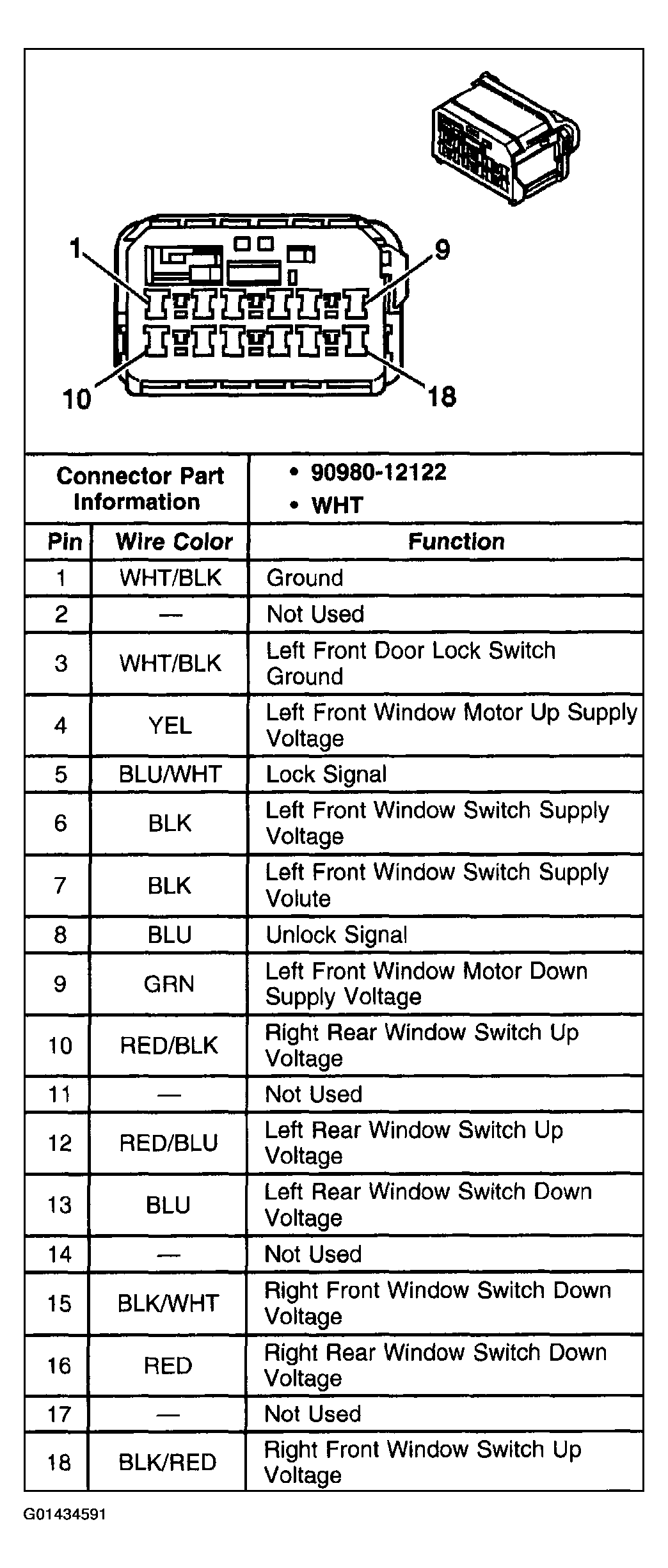

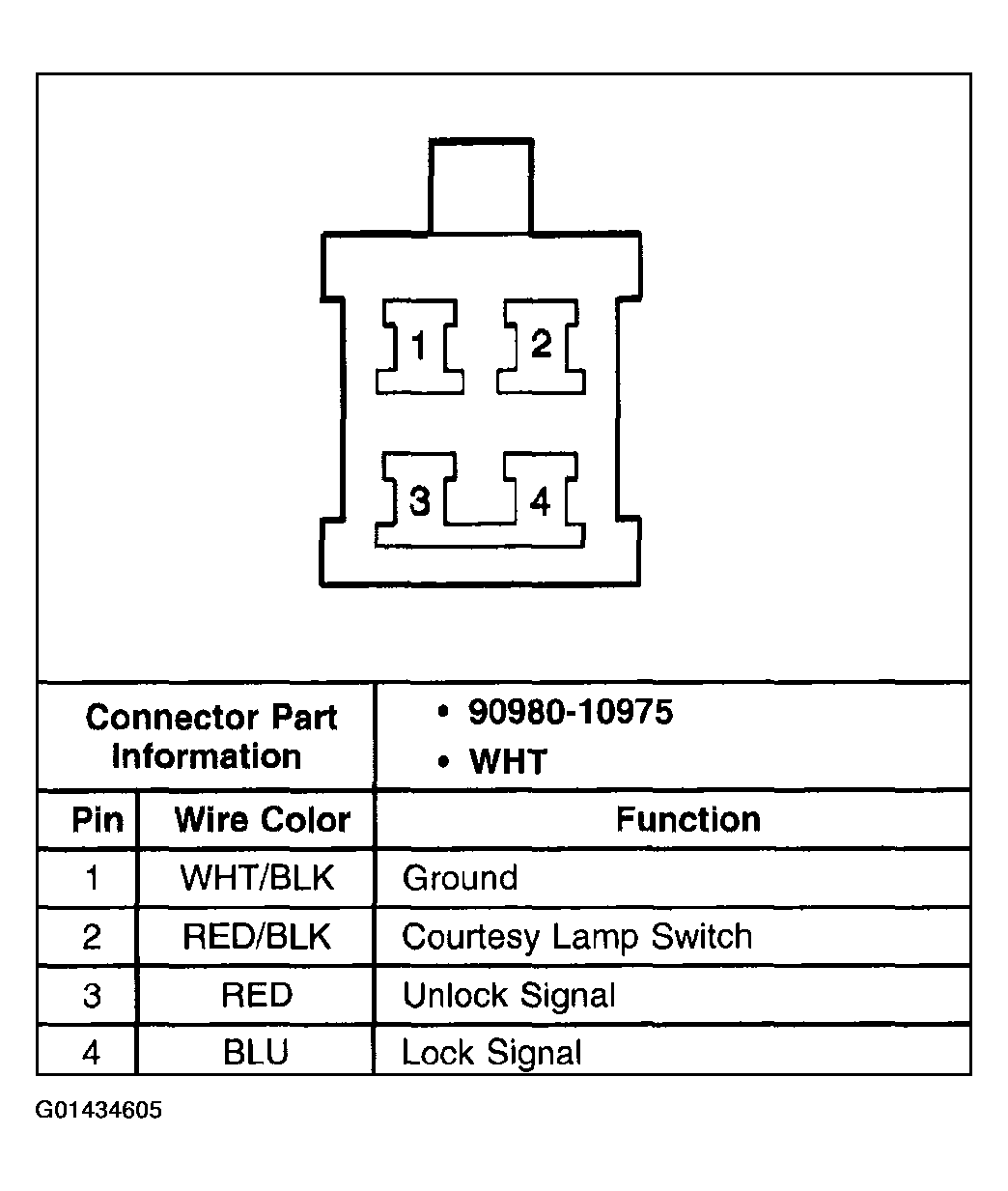

Fig 2: Power Door Systems Connector End View - LH Door Window/Lock Switch

Courtesy of GENERAL MOTORS CORP.

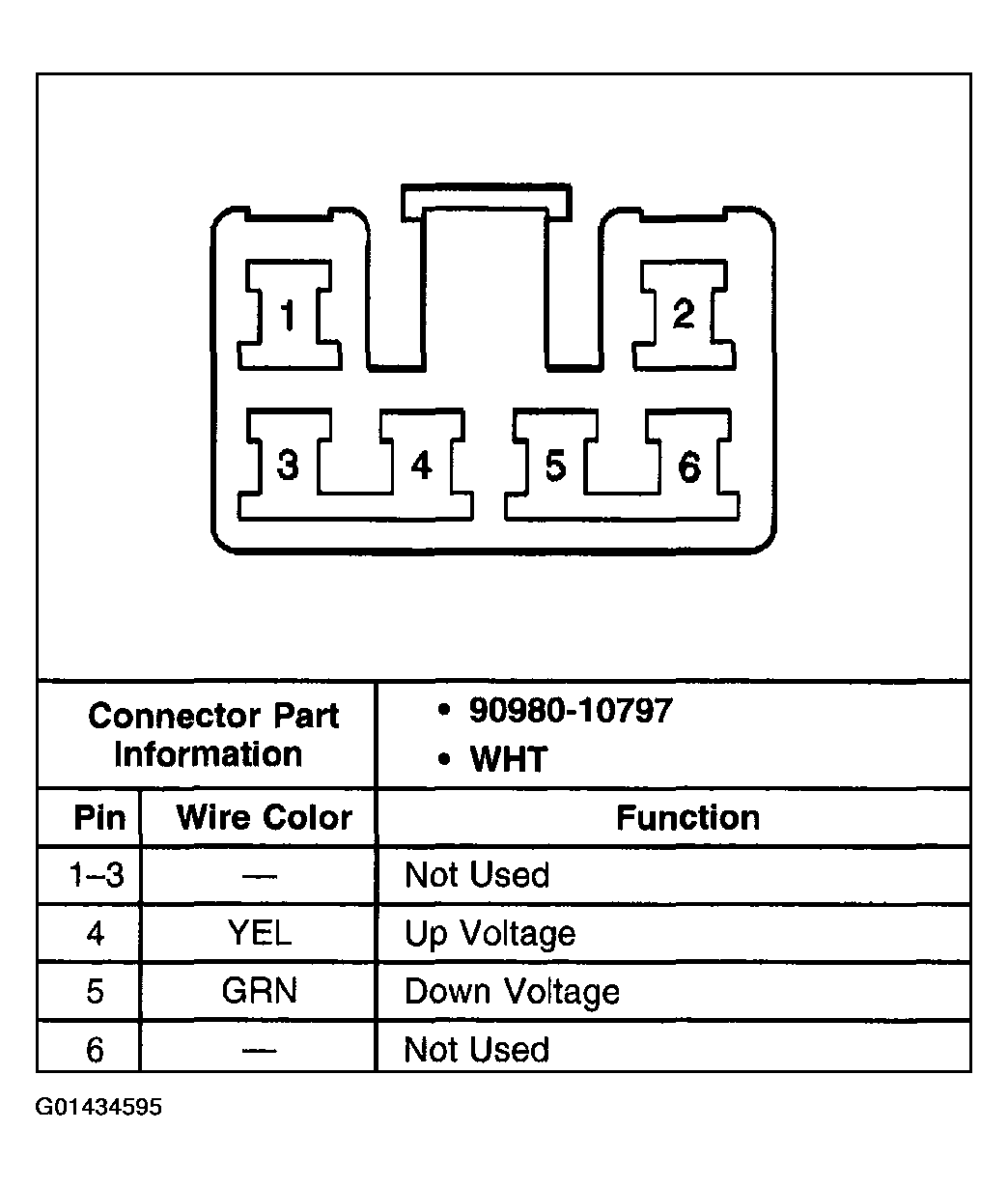

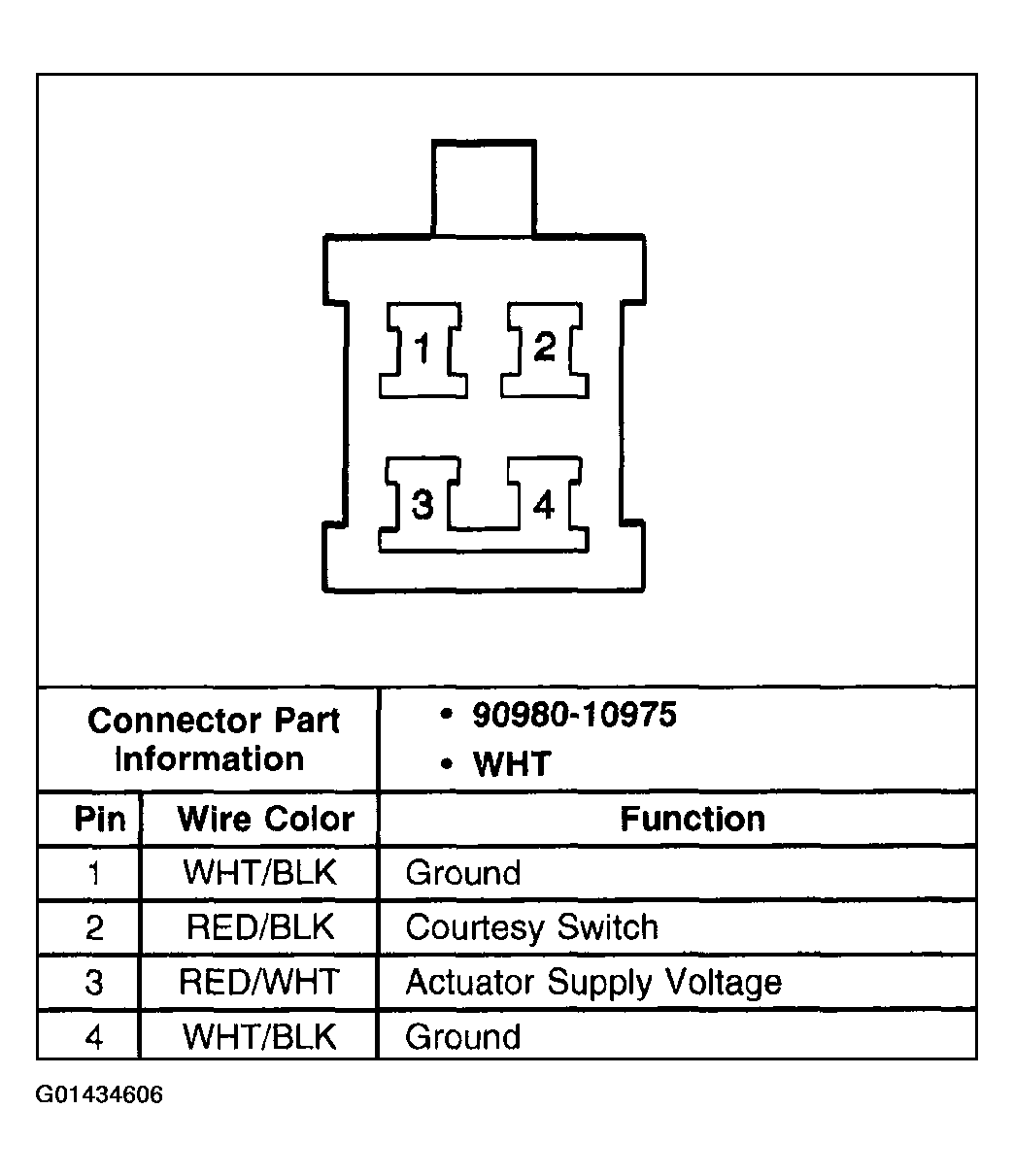

Fig 3: Power Door Systems Connector End View - LH Rear Door Lock Actuator

Courtesy of GENERAL MOTORS CORP.

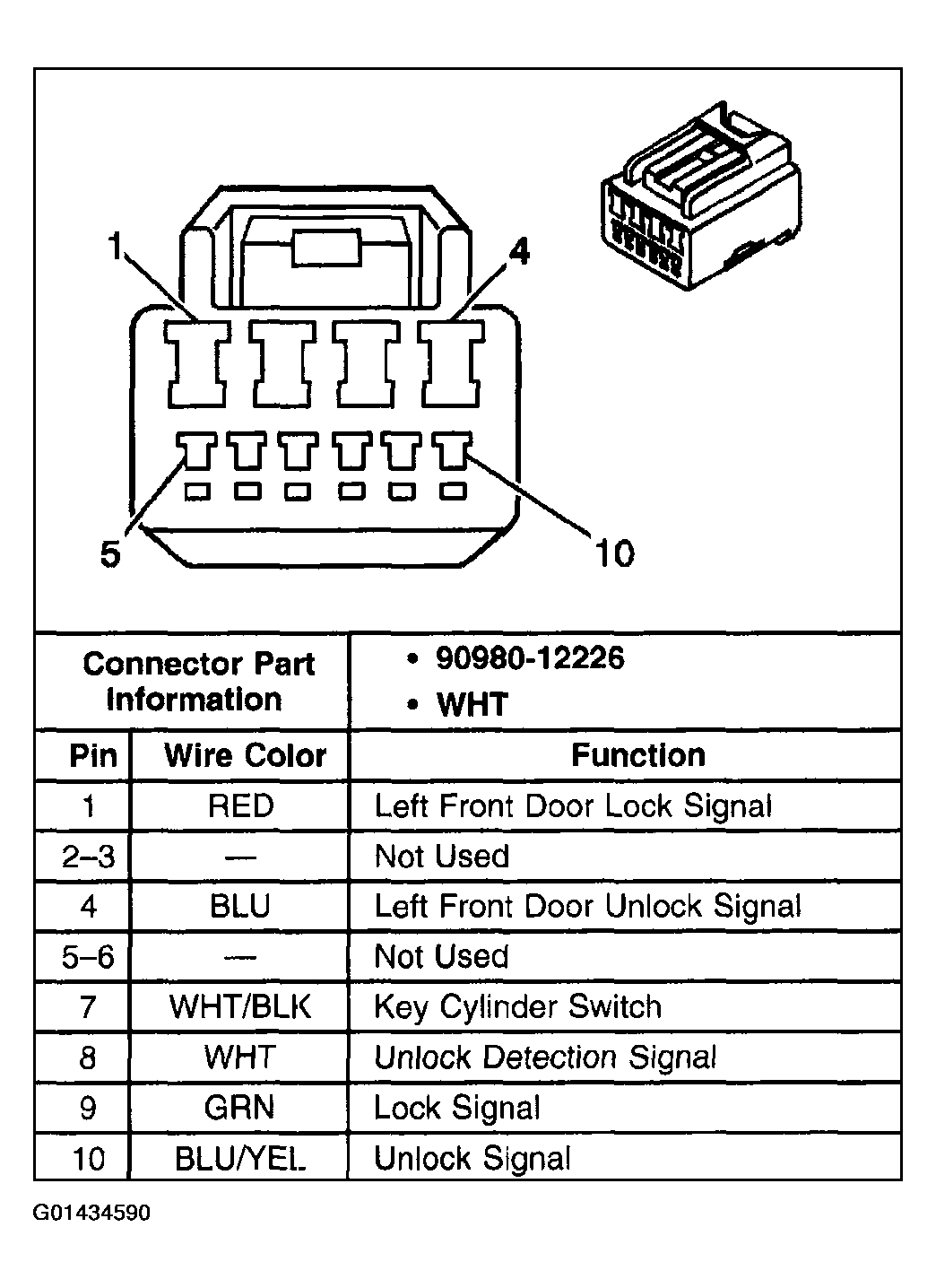

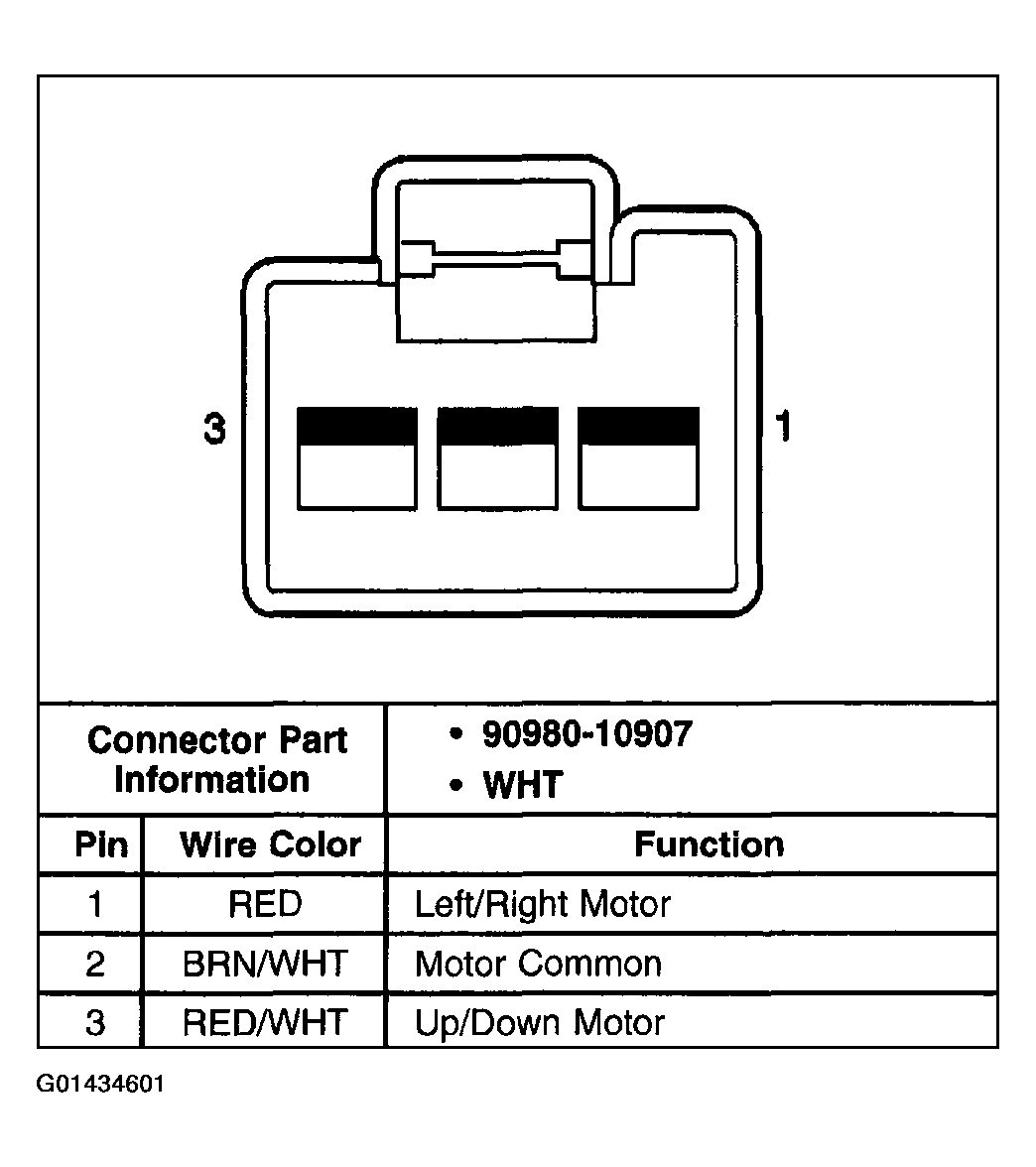

Fig 4: Power Door Systems Connector End View - LH Outside Rear View Mirror Assembly

Courtesy of GENERAL MOTORS CORP.

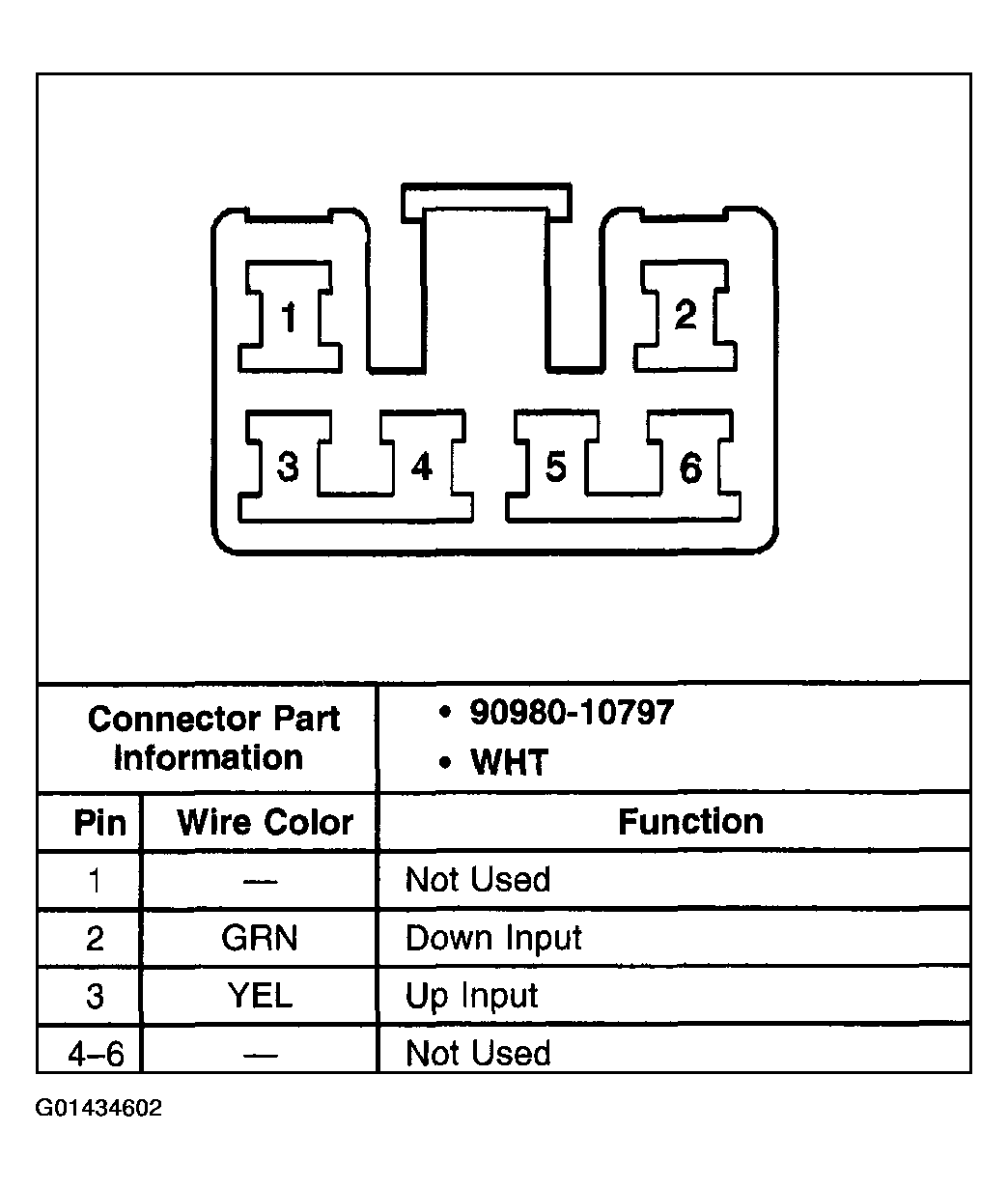

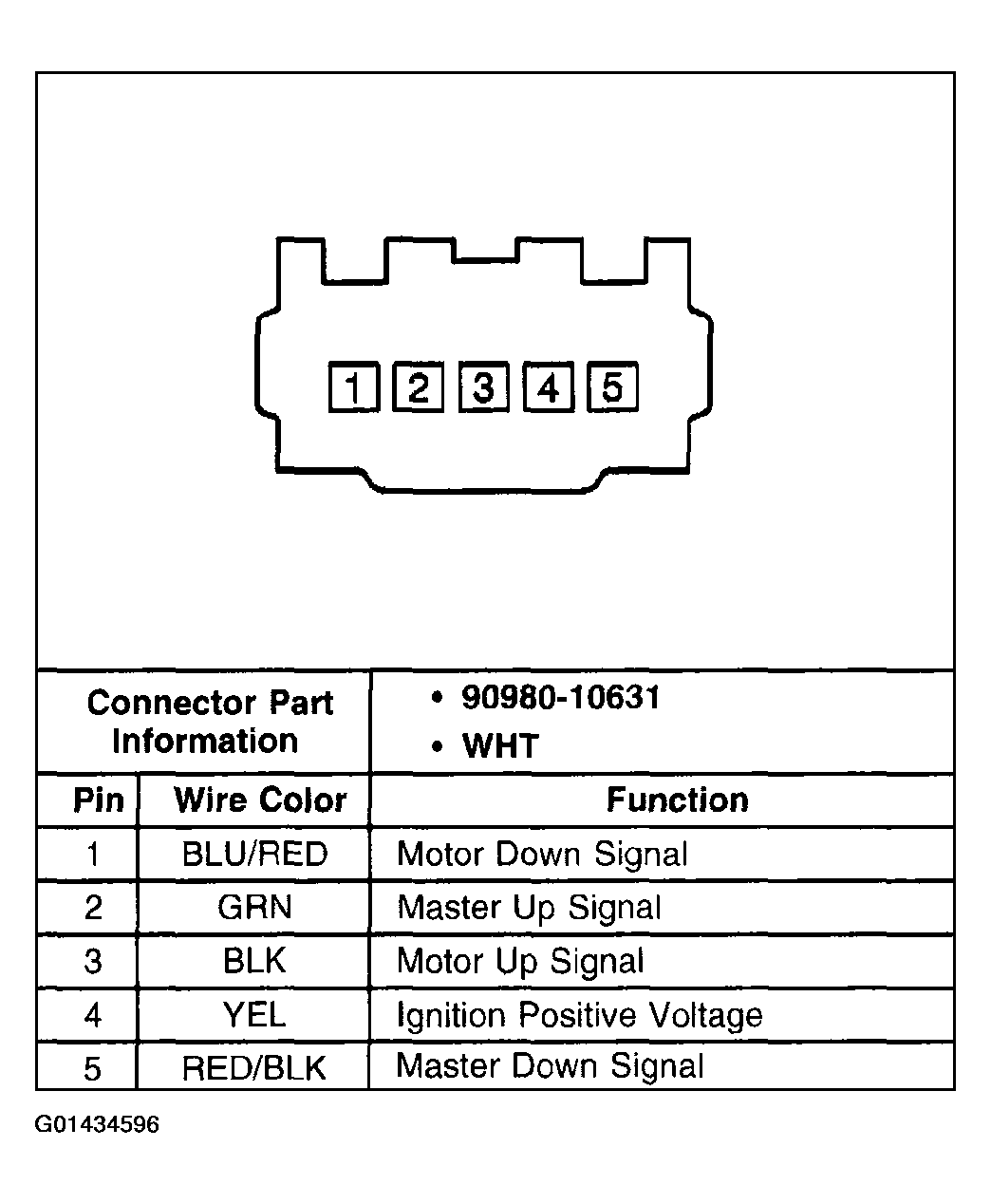

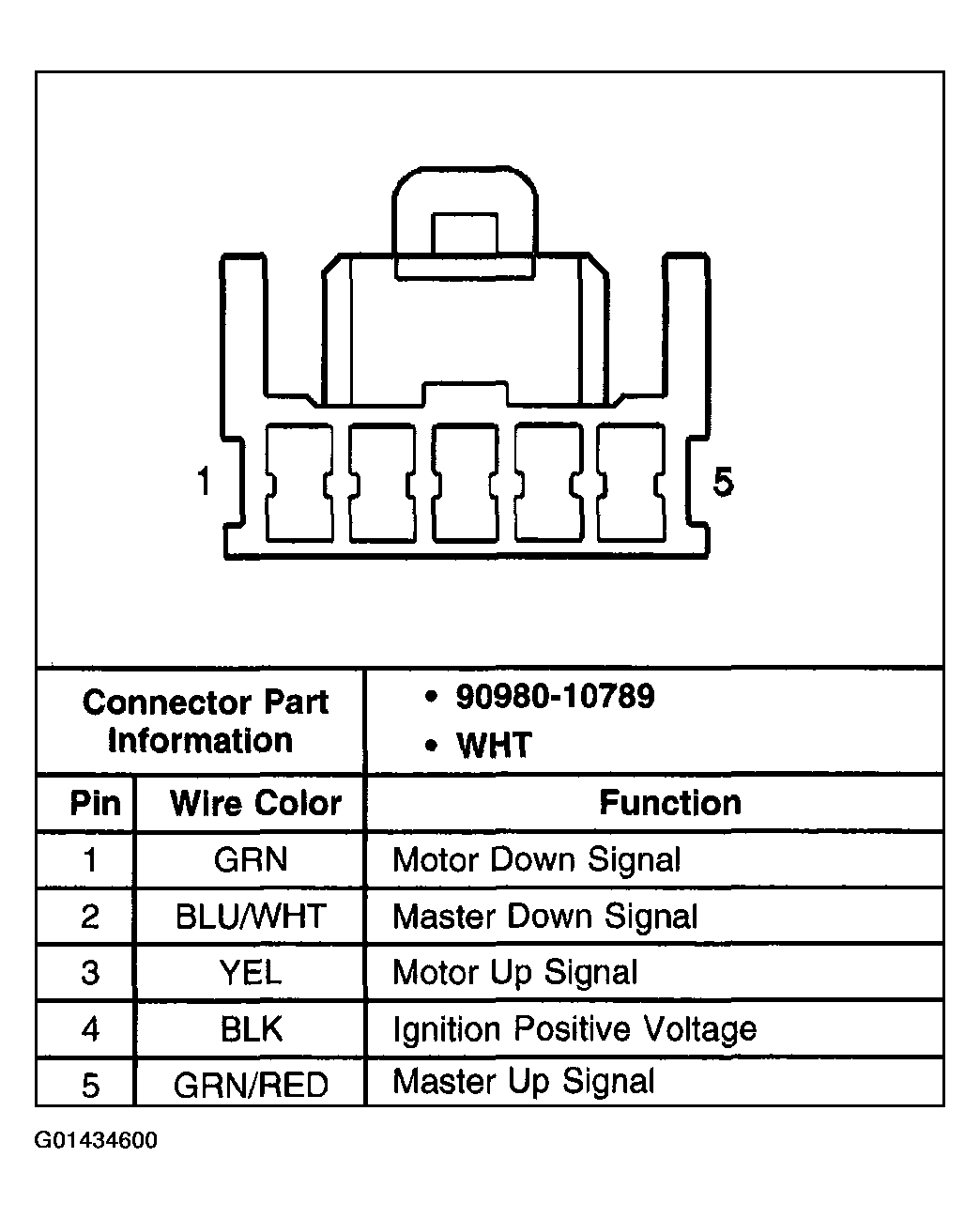

Fig 5: Power Door Systems Connector End View - LH Front Window Motor

Courtesy of GENERAL MOTORS CORP.

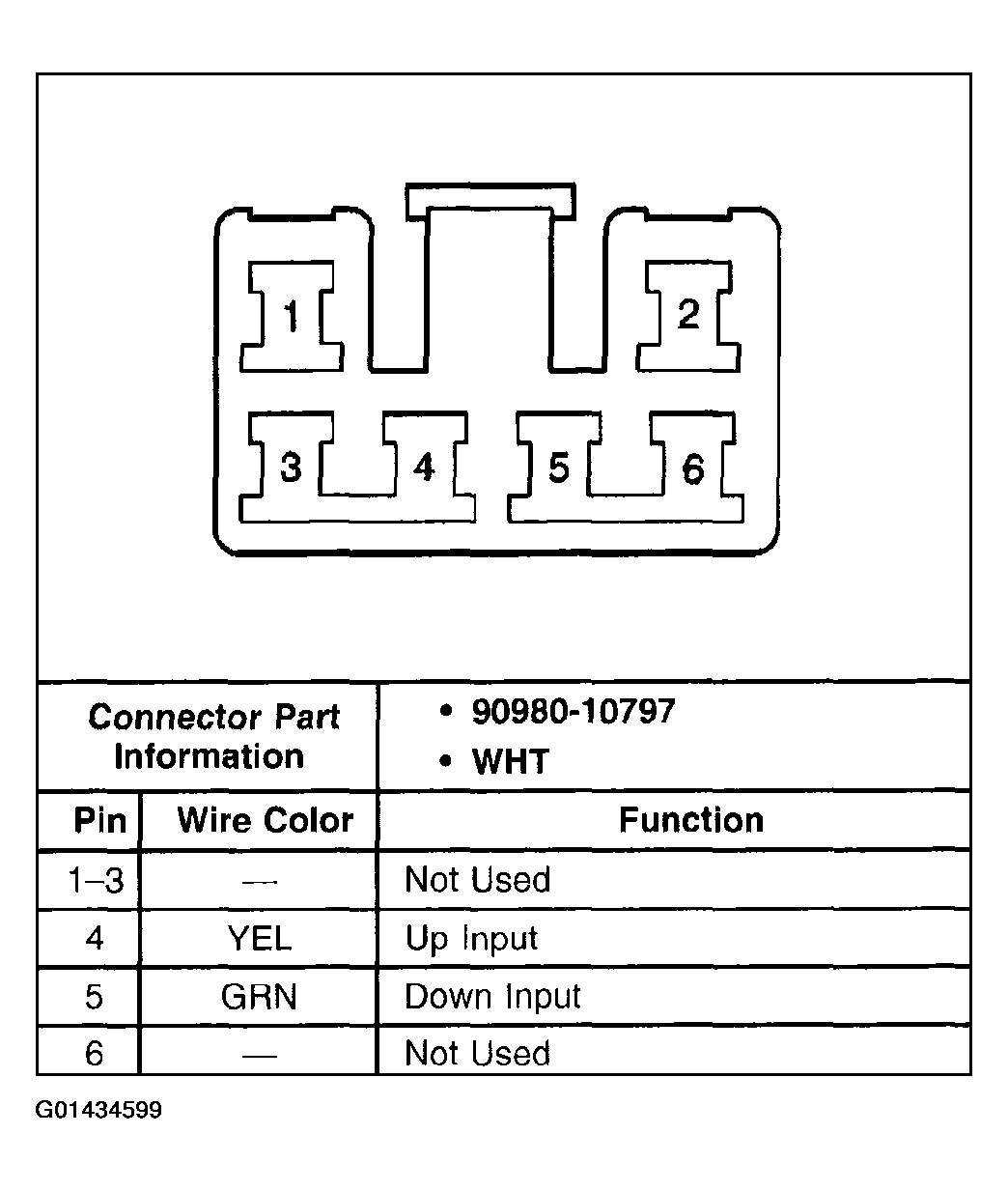

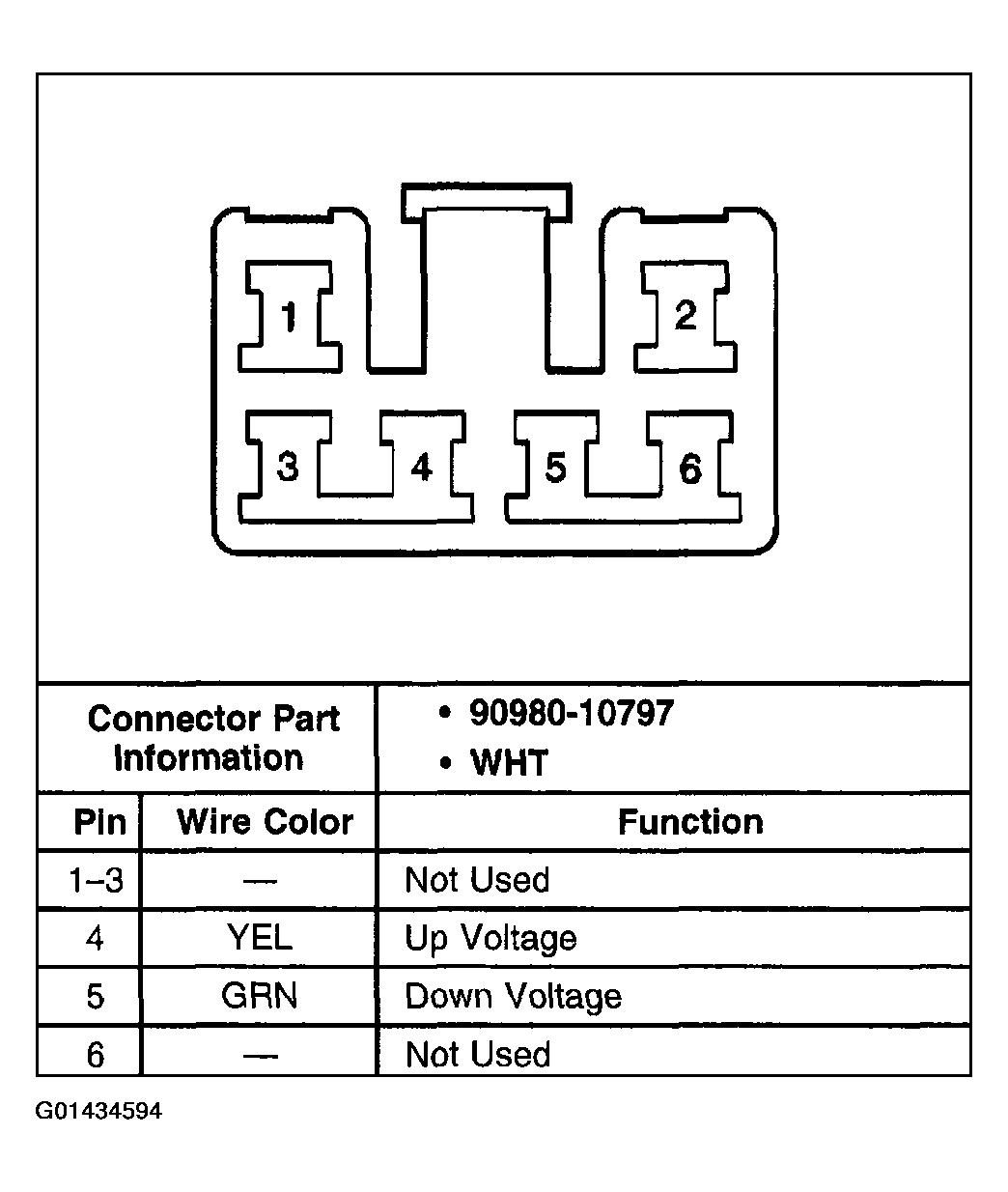

Fig 6: Power Door Systems Connector End View - LH Rear Window Motor

Courtesy of GENERAL MOTORS CORP.

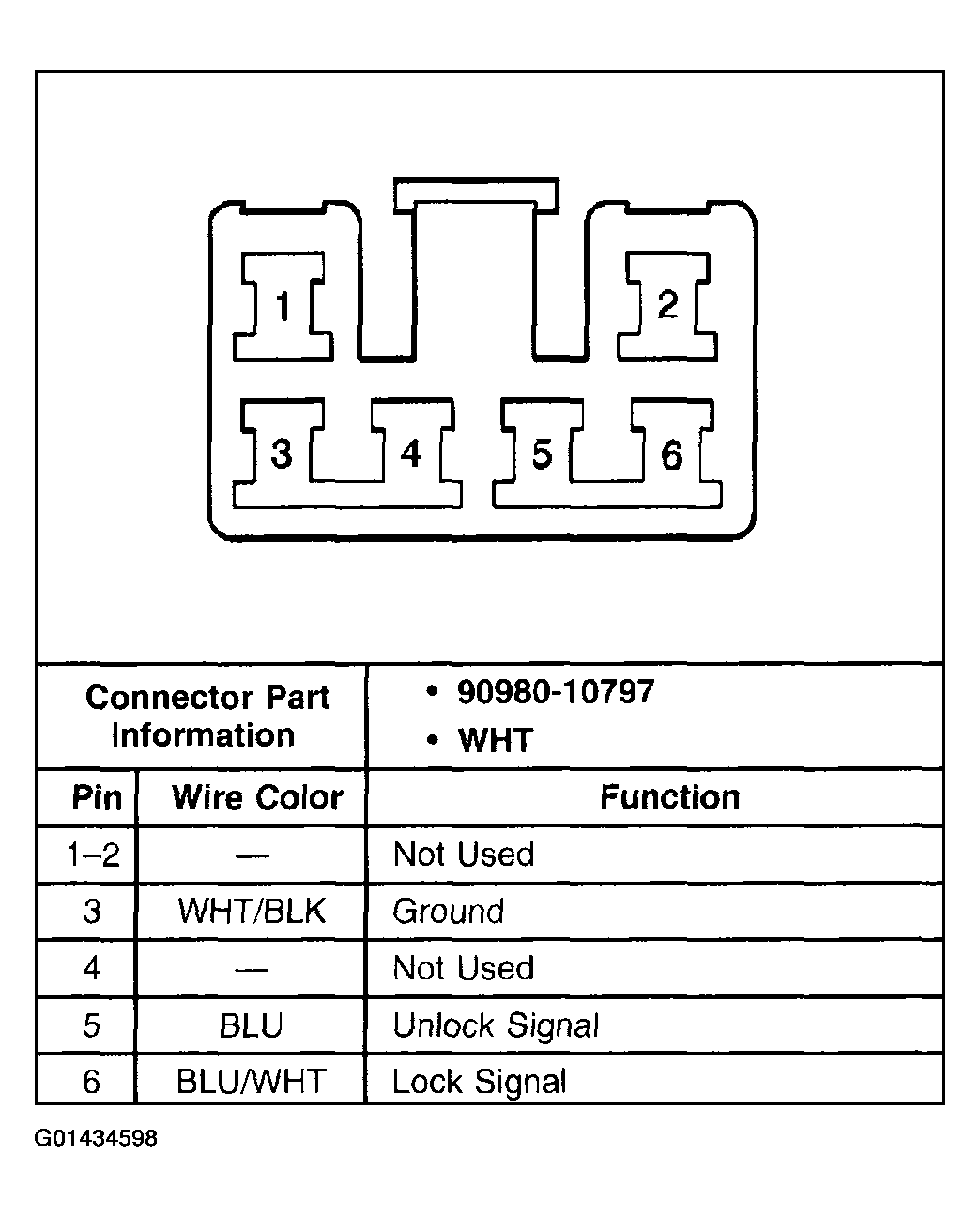

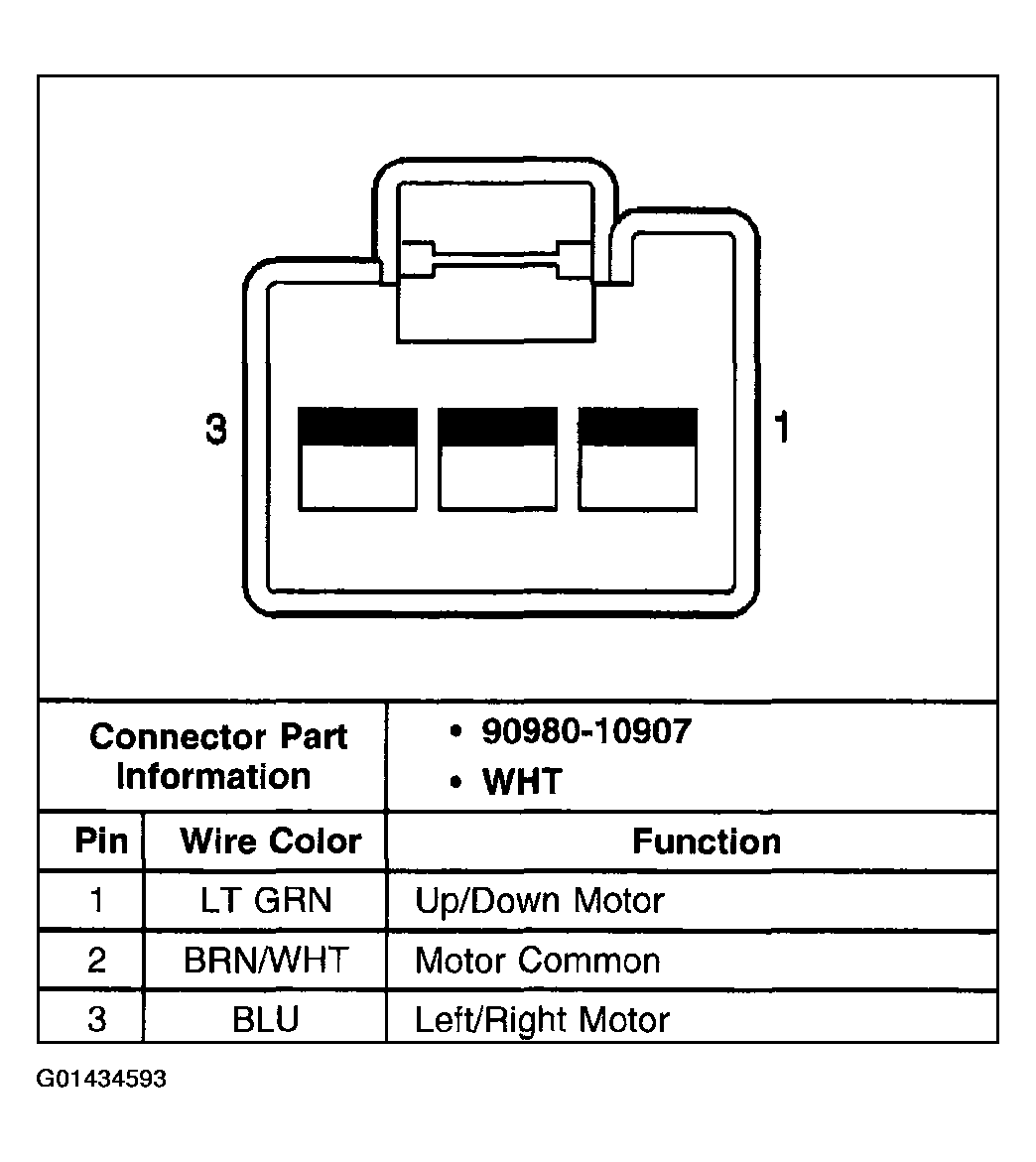

Fig 7: Power Door Systems Connector End View - LH Rear Window Switch

Courtesy of GENERAL MOTORS CORP.

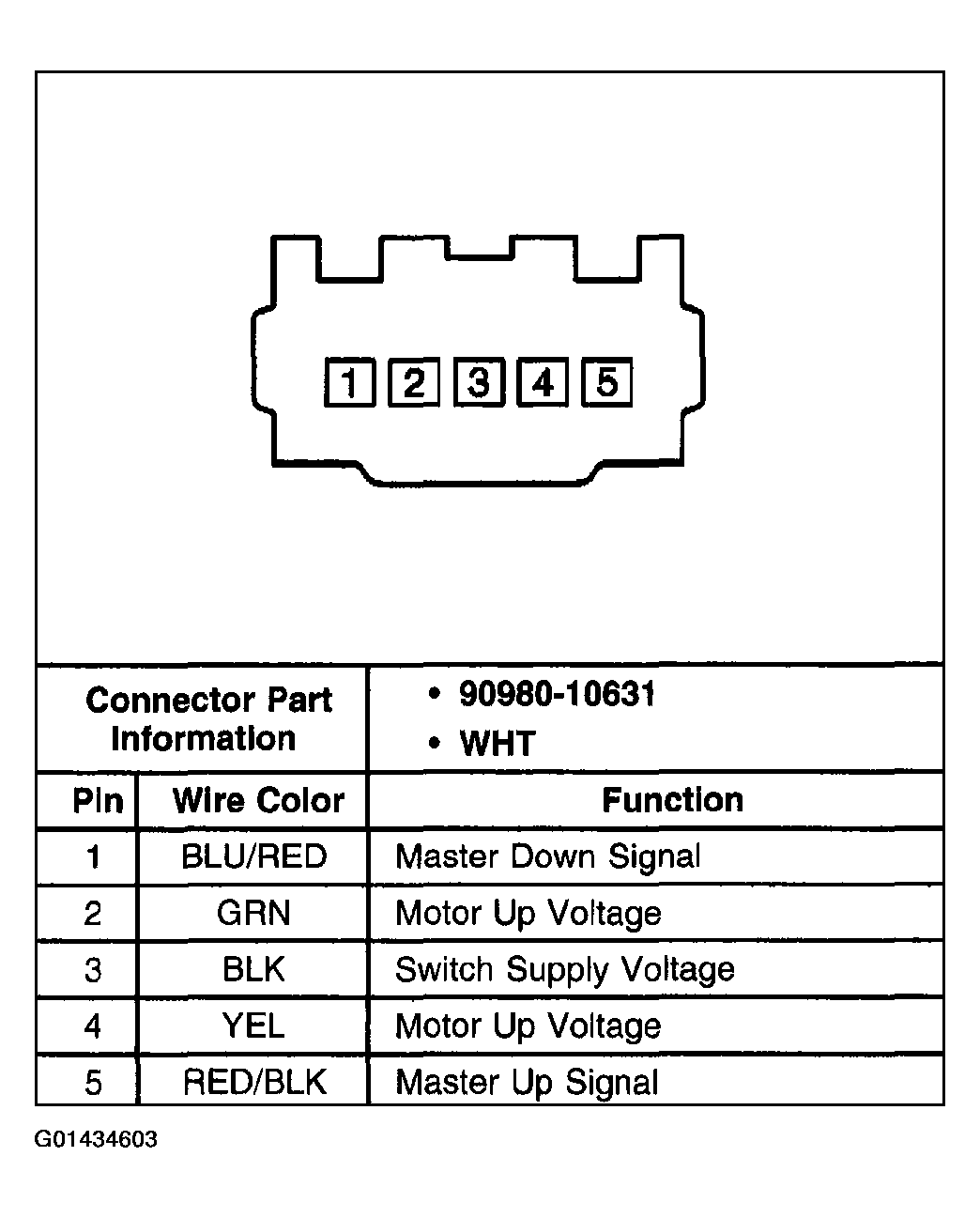

Fig 8: Power Door Systems Connector End View - RH Front Door Lock Actuator

Courtesy of GENERAL MOTORS CORP.

Fig 9: Power Door Systems Connector End View - RH Door Lock Switch

Courtesy of GENERAL MOTORS CORP.

Fig 10: Power Door Systems Connector End View - RH Front Window Motor

Courtesy of GENERAL MOTORS CORP.

Fig 11: Power Door Systems Connector End View - RH Front Window Switch

Courtesy of GENERAL MOTORS CORP.

Fig 12: Power Door Systems Connector End View - RH Outside Rear View Mirror Assembly

Courtesy of GENERAL MOTORS CORP.

Fig 13: Power Door Systems Connector End View - RH Rear Window Motor

Courtesy of GENERAL MOTORS CORP.

Fig 14: Power Door Systems Connector End View - RH Rear Window Switch

Courtesy of GENERAL MOTORS CORP.

Fig 15: Power Door Systems Connector End View - RH Rear Door Lock Actuator

Courtesy of GENERAL MOTORS CORP.

Fig 16: Power Door Systems Connector End View - Tailgate Door Lock Actuator

Courtesy of GENERAL MOTORS CORP.

Fig 17: Power Door Systems Connector End View - Glass Hatch Actuator and Courtesy Switch

Courtesy of GENERAL MOTORS CORP.
